E-Type 2 Holes Borden Low Speed Intra Spray Air Motor Handpiece
Name: Low speed 1:1 2 holes air motor dental handpieceModel : BIN-01CPacking List: - Air motor: 1 pcs - O-ring: 4 pcs - English manual: 1 pcs Features:1. Internal irrigation, perfect cooling systerm2. Bur size: Φ2.35mm 3. Imported bearing from Japan 4. Four or two holes conneaction can be c......
Send Inquiry
Product Description

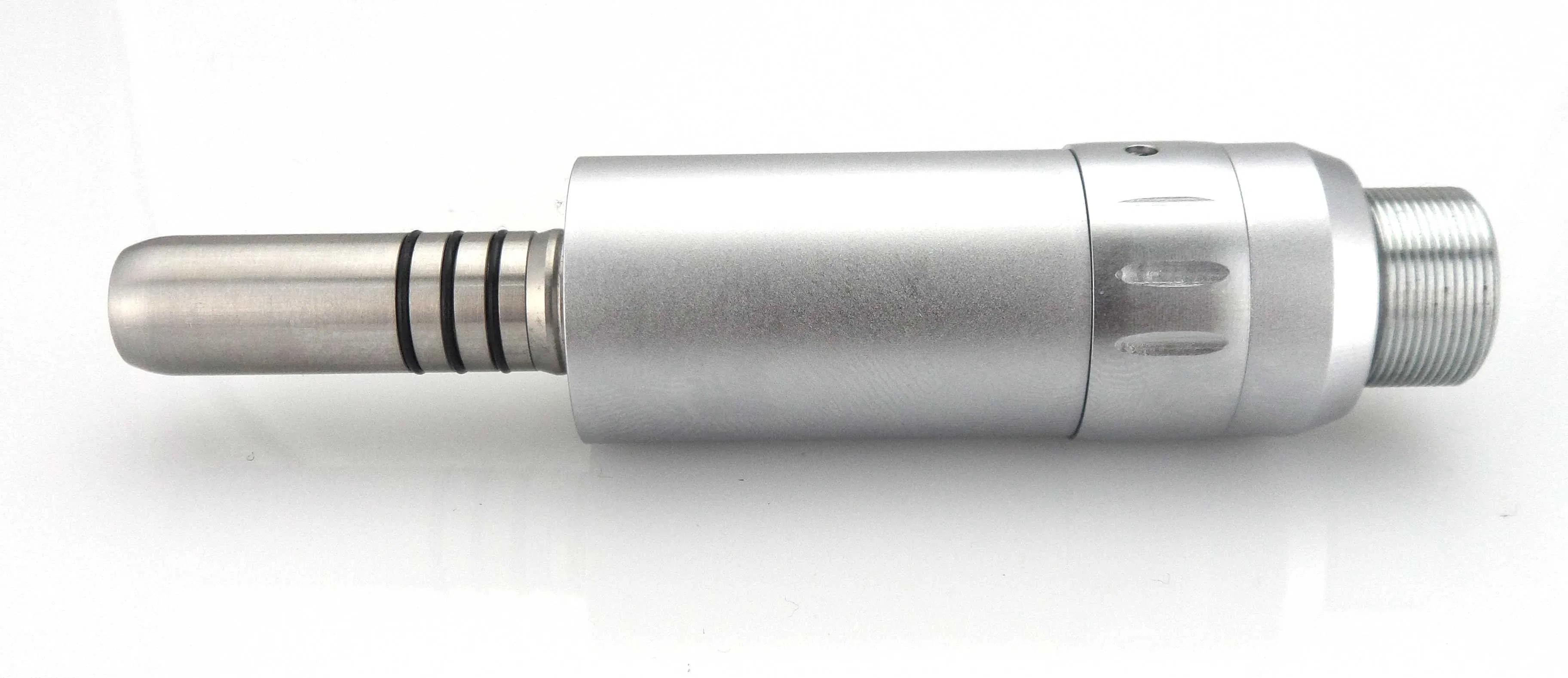

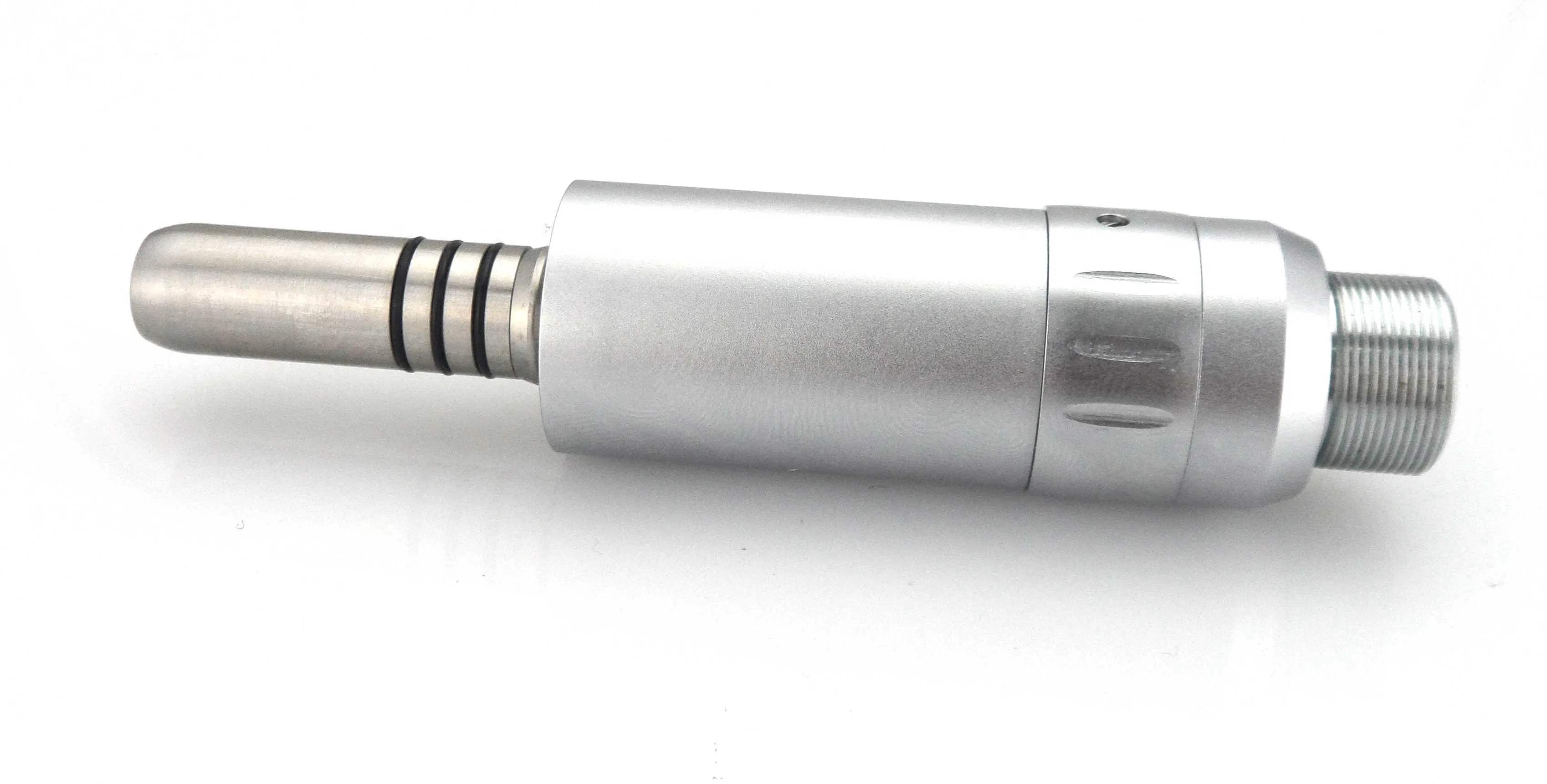

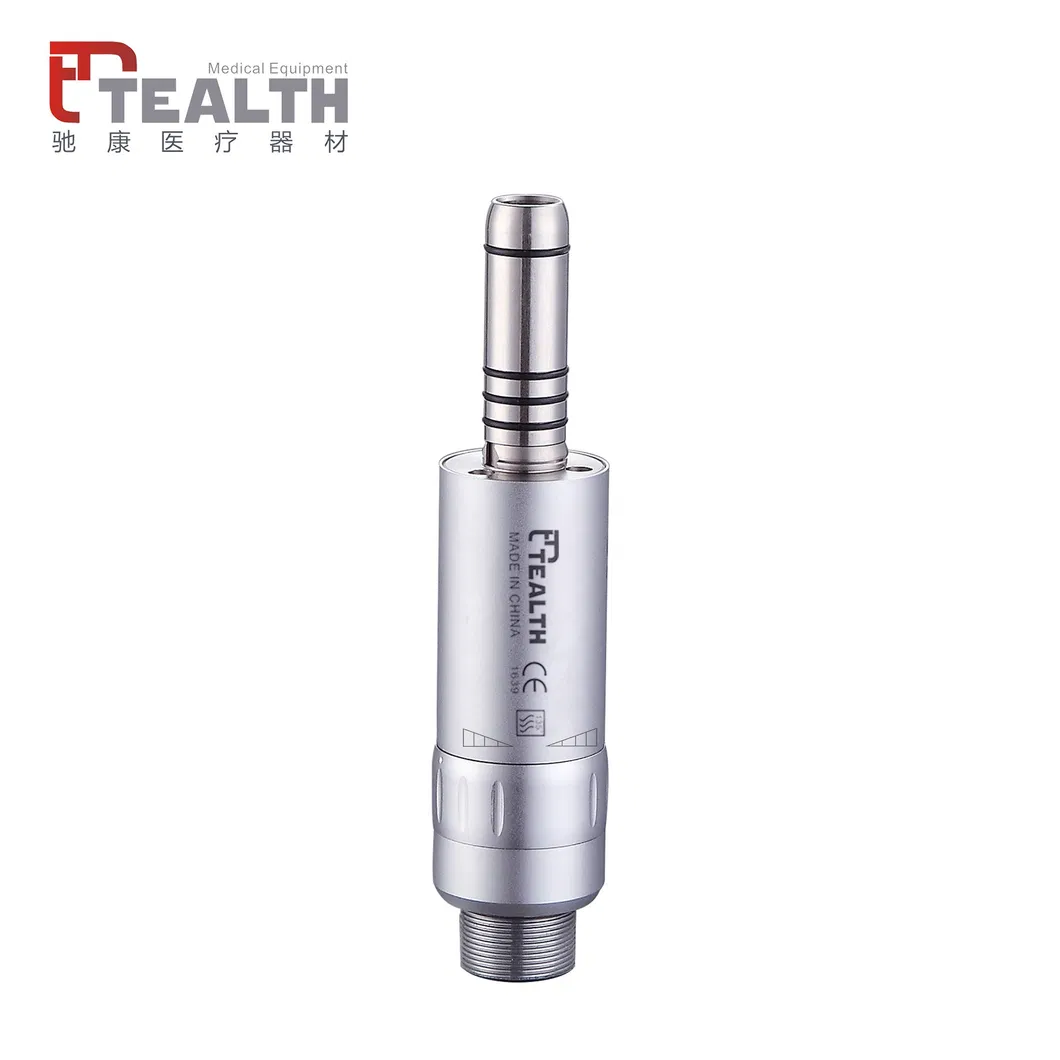

Name: Low speed 1:1 2 holes air motor dental handpiece
Model : BIN-01C
Packing List:
- Air motor: 1 pcs
- O-ring: 4 pcs
- English manual: 1 pcs
Features:
1. Internal irrigation, perfect cooling systerm
2. Bur size: Φ2.35mm
3. Imported bearing from Japan
4. Four or two holes conneaction can be choosen

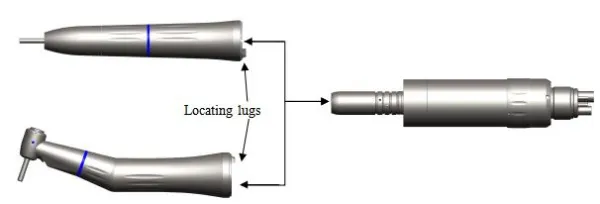

Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.
Removal
Grip both handpiece and motor respectively, pulling and separating.
Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
Model : BIN-01C
Packing List:
- Air motor: 1 pcs
- O-ring: 4 pcs
- English manual: 1 pcs
Features:
1. Internal irrigation, perfect cooling systerm
2. Bur size: Φ2.35mm
3. Imported bearing from Japan
4. Four or two holes conneaction can be choosen
Handpiece inserting & removal
Inserting
Insert the E-type handpiece onto the motor and turning all the way until it click to stop.
Removal
Grip both handpiece and motor respectively, pulling and separating.
Maintenance & Care
After each treatment, sterilizing handpiece in autoclave according to the following steps:
1. Remove the bur, use brush to clean handpiece, then cleaning outside of handpiece with alcohol solution.
2. Lubricate handpiece.
3. Package into autoclaving pouch.
4. Autoclave the handpiece for 12 min at 135ºC.
5. Dental handpieces cannot be soaked in a disinfectant with acidic liquid. it will seriously damage the bearings and handpiece internal components
6. Do not use an ultrasonic cleaner to clean the dental handpiece.
7. It is not recommended to repair the dental handpiece by little experience person. For repairing, please return to the factory or send to the designated after-sales service maintenance office.
