Advanced Medical Anesthesia Machine/Anesthetic Workstation
Surgical Equipment 2-tubes Flowmeters Multifunctional Anesthesia machineAnesthesia machine Sevoflurane configuration. Double-tubes O2 flowmeter, standard loop system, ABS Engineered plastic frame, screen display ventilator (IPPV, MANUAL, ventilation volume, tidal volume, respiratory rate, inhale/ex......
Send Inquiry
Product Description

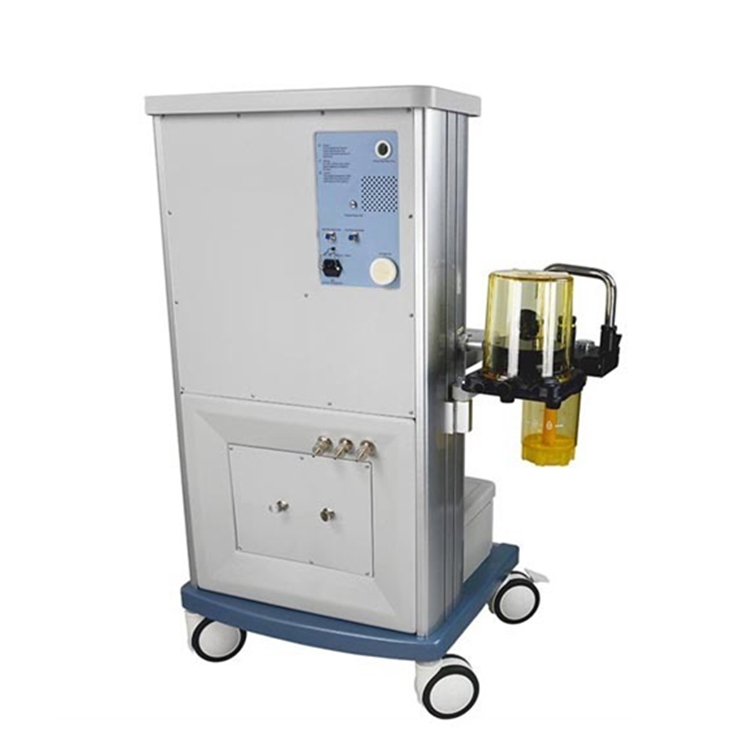

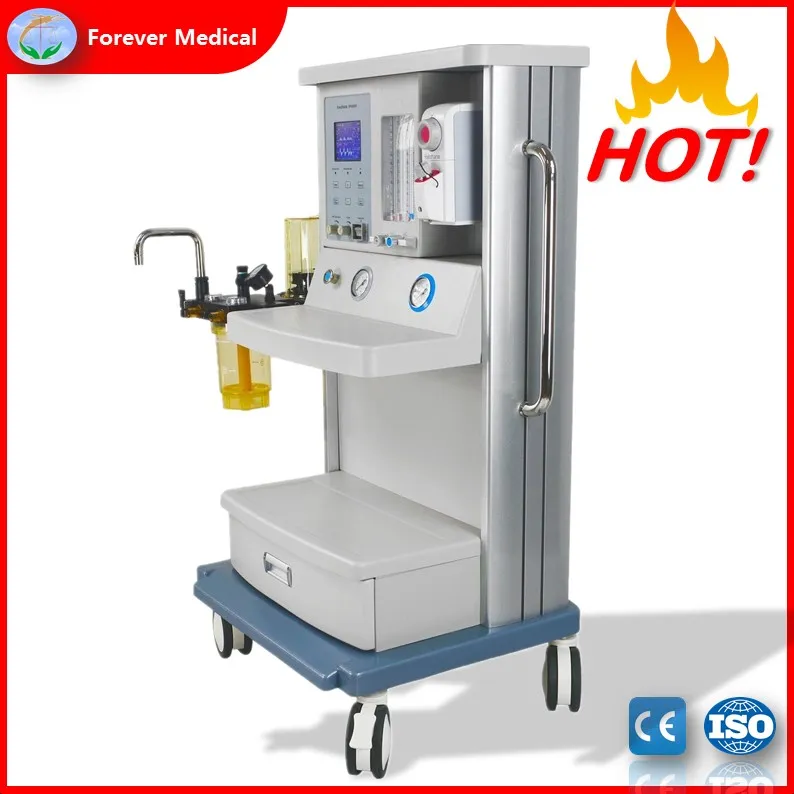

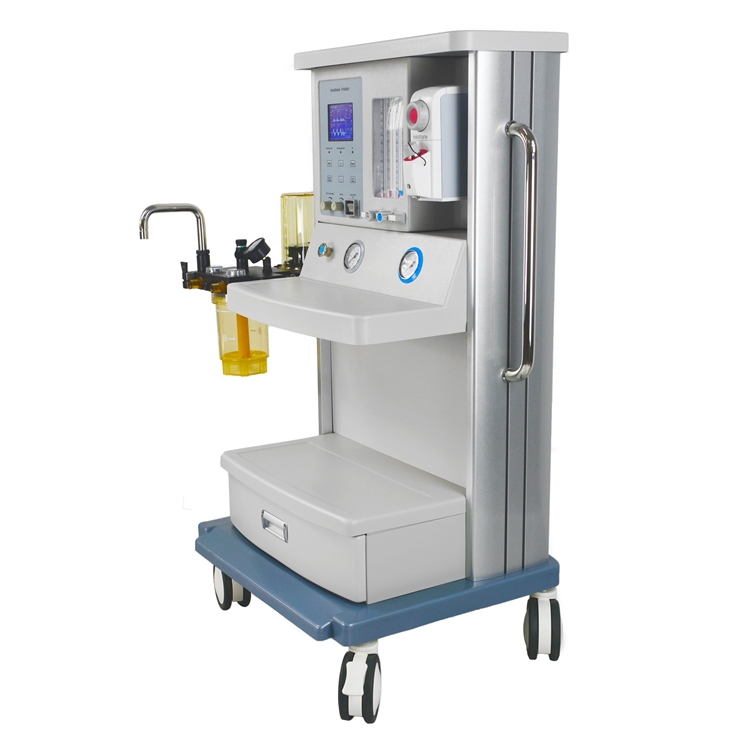

Surgical Equipment 2-tubes Flowmeters Multifunctional Anesthesia machine
Anesthesia machine Sevoflurane configuration. Double-tubes O2 flowmeter, standard loop system, ABS Engineered plastic frame, screen display ventilator (IPPV, MANUAL, ventilation volume, tidal volume, respiratory rate, inhale/exhale ratio), real-time display of respiratory duct pressure, clear at one glance).

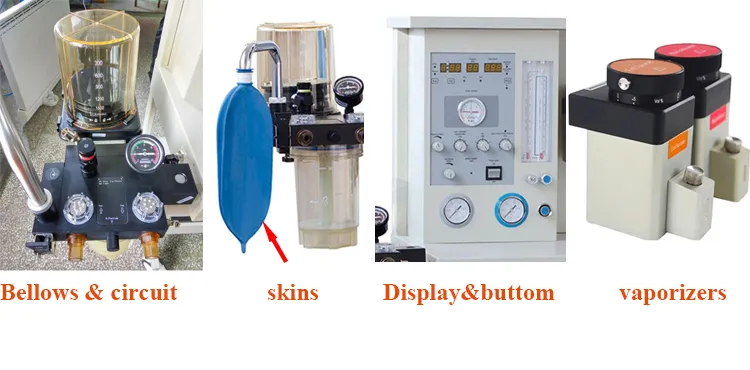

More Details
Pneumatically driven and electrically controlled system
Built-in ventilator, LED display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric
Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.

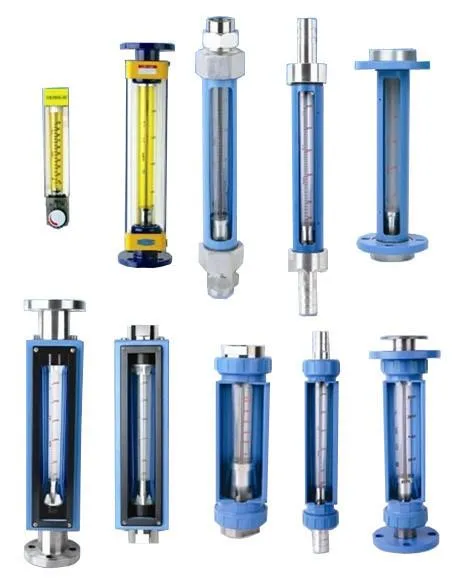

2-tubes Flowmeters, O2 & N2O; 0.1L/Min ~ 10L / Min; Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,MANUAL
Tidal Volume: 50~1500ml
I/E Ratio: 1:1.5 ~ 1:3.0

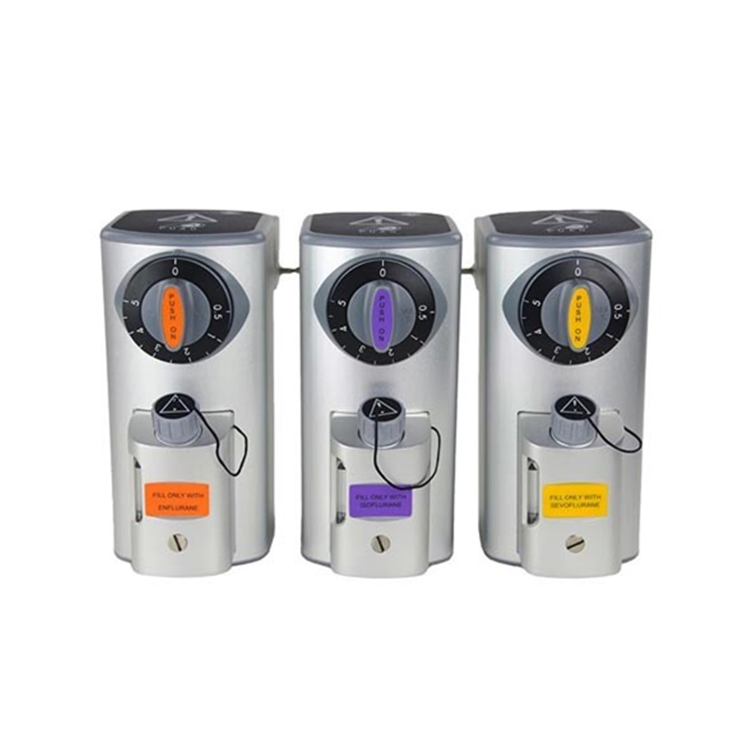

Two vaporizers: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 4~40 bpm;
Ptr: -1.0kPa ~ 1.0 kPa
CO2 absorber capacity : 1 kg
Packaging & Delivery:

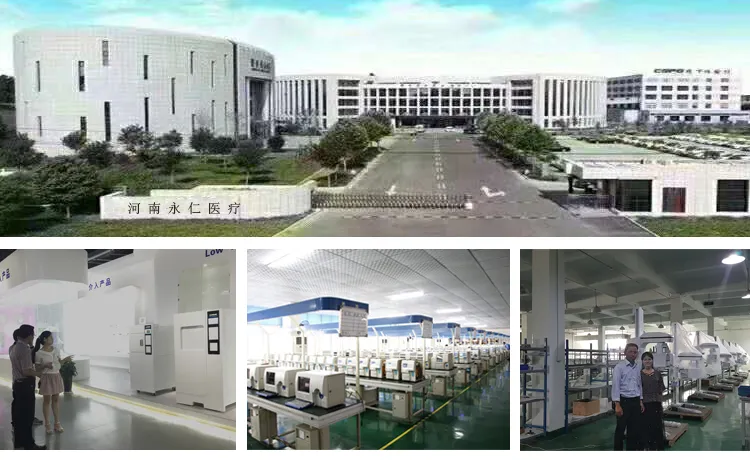

Our Company:
Our Customer:
Certificate:
Anesthesia machine Sevoflurane configuration. Double-tubes O2 flowmeter, standard loop system, ABS Engineered plastic frame, screen display ventilator (IPPV, MANUAL, ventilation volume, tidal volume, respiratory rate, inhale/exhale ratio), real-time display of respiratory duct pressure, clear at one glance).
More Details
Pneumatically driven and electrically controlled system
Built-in ventilator, LED display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric
Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
2-tubes Flowmeters, O2 & N2O; 0.1L/Min ~ 10L / Min; Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,MANUAL
Tidal Volume: 50~1500ml
I/E Ratio: 1:1.5 ~ 1:3.0
Two vaporizers: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 4~40 bpm;
Ptr: -1.0kPa ~ 1.0 kPa
CO2 absorber capacity : 1 kg
Packaging & Delivery:
Our Company:
Our Customer:Certificate:
