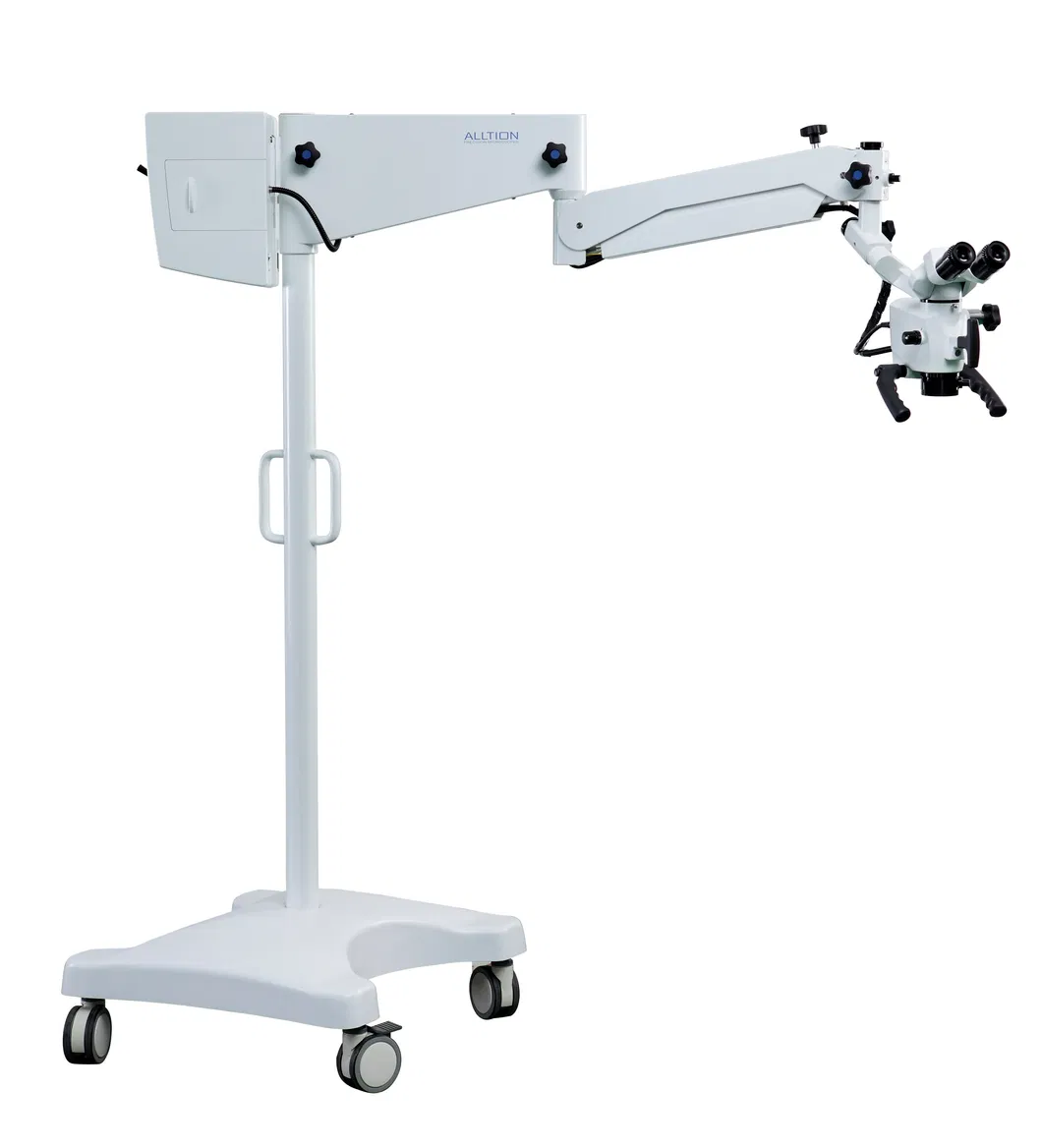

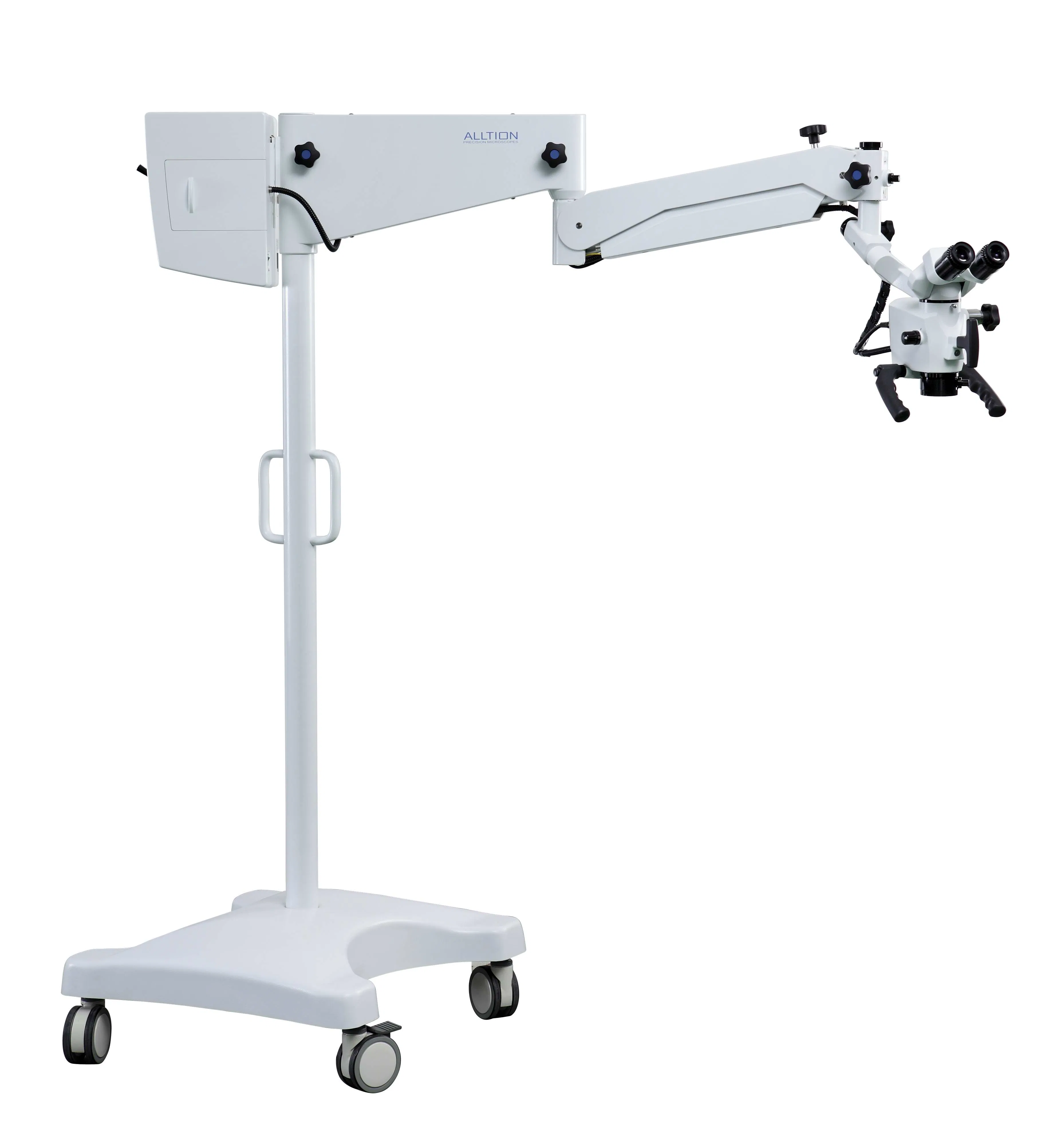

Am-3000 Series Operation Microscope

ALLTION provides professional microscopes for wide range of medical specialties: Dentistry, ENT surgery, Gynecology, Orthopedics, Hand surgery, Neurosurgery, Andrology and Urology, Plastic and Reconstructive surgery, Veterinary surgery etc.

Alltion AM-3000 series Operation microscope have been in the dental n ent market since 2007 and were sold hundreds of untils worldwide after that 2012 version am-3000 is launched with many upgrades features!


1. Eirger 45° Inclined or 0-180° Inclinable binocular head for dental surgery or straight binocular head for ent surgery.
2.12.5x/18mm high eye-point wide-field eyepieces
3. Range of pupillary distance: 50mm to 70mm
4. Range of the diopter of eyepiece: +/- 7d
5.250mm apo-chromatic objective lens with fine focusing adjustment knob
6. Magnification: 5-step, total magnification indicator 0.4=3.44x, 0.6=5.36x, 1=8.48x,
1.6=13.6x, 2.5=21.2x
7. Diameter of object field: 10.4mm to 64.9mm
8. Arms: First big arm, 500mm length can be rotated 360° . Second small arm 600mm in
Length with movement +/-300mm can be rotated +/-150° . Third angled arm can be 3-d movement.
9. Height: 1750mm
10. Base size: 610mm x 600mm
11. Two 15V / 150W halogen lamp are manually changeable by a level.
12. Maximum object illumination: 30, 000 lux min.
13. Built-in orange filter and green filter changed by a knob.
14. Power supply: 220V/50Hz or 110V/60Hz

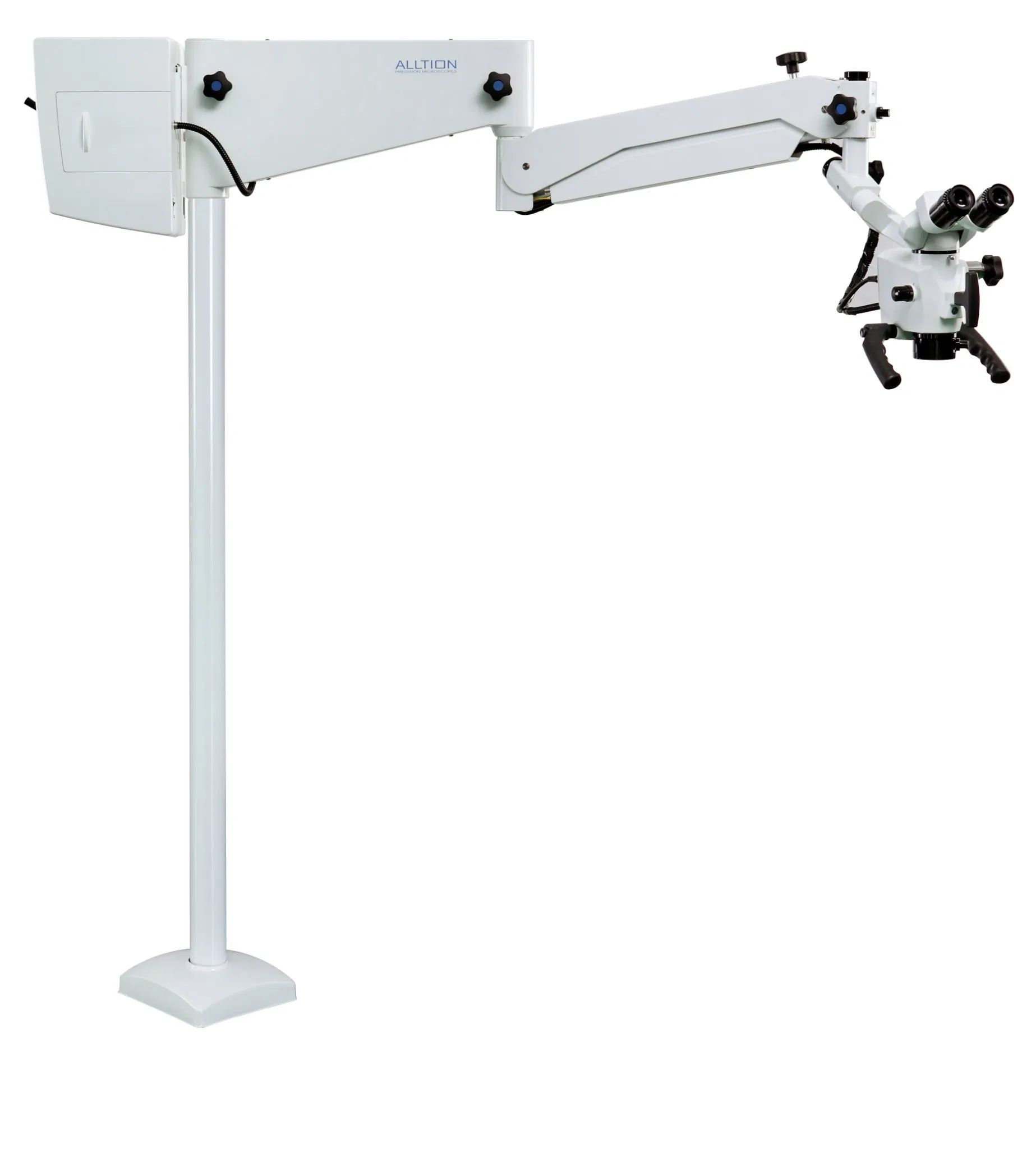

Supporting system

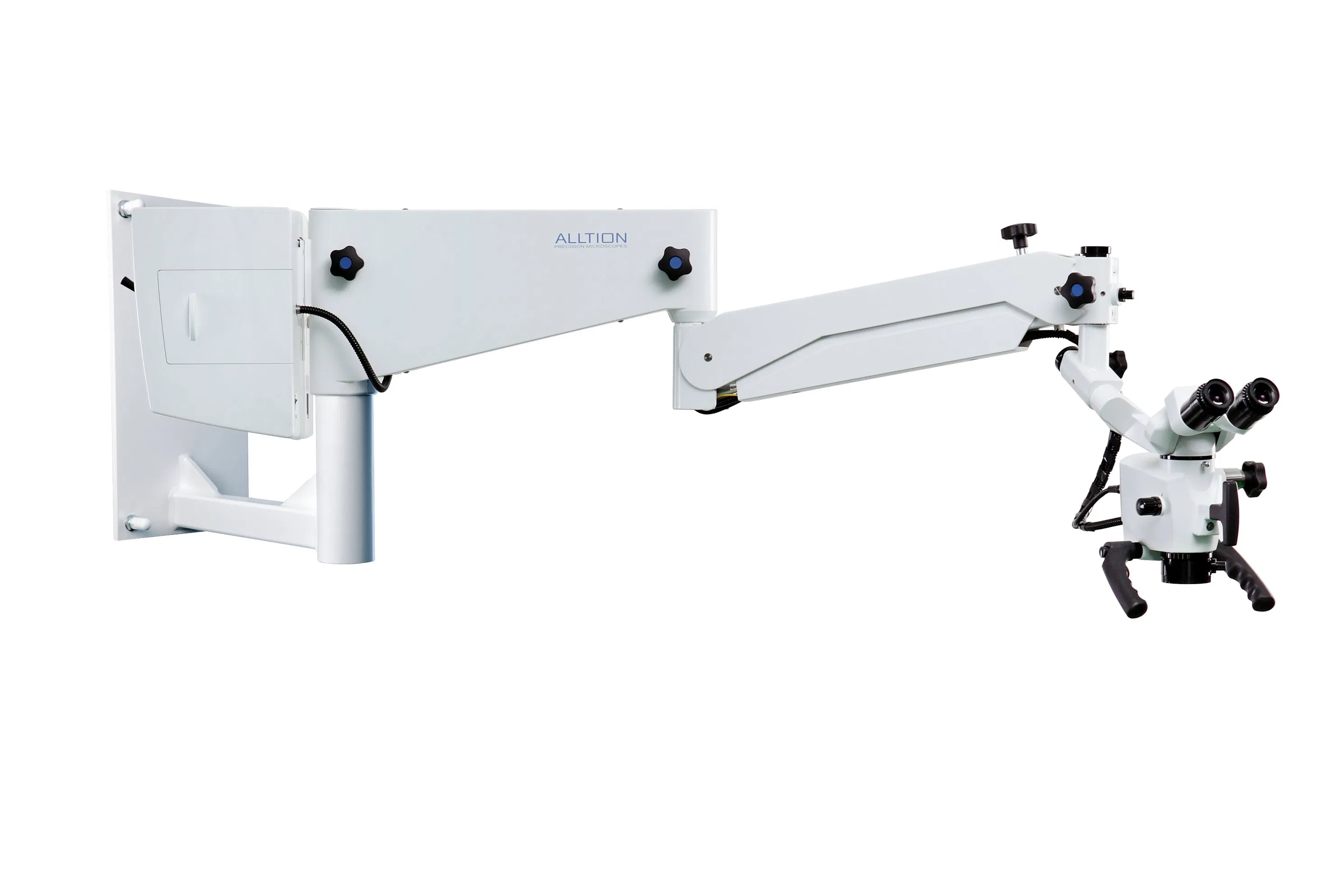

Wall mount system, ceiling mount system, fixed ground mount system and a special 5-star small/compact base (dia. 600mm) for floor stand are available besides standard mobile floor stand.
