Aota202 Multi-Purpose Surgery Operation Table Orthopaedics Traction Frame

Product Description

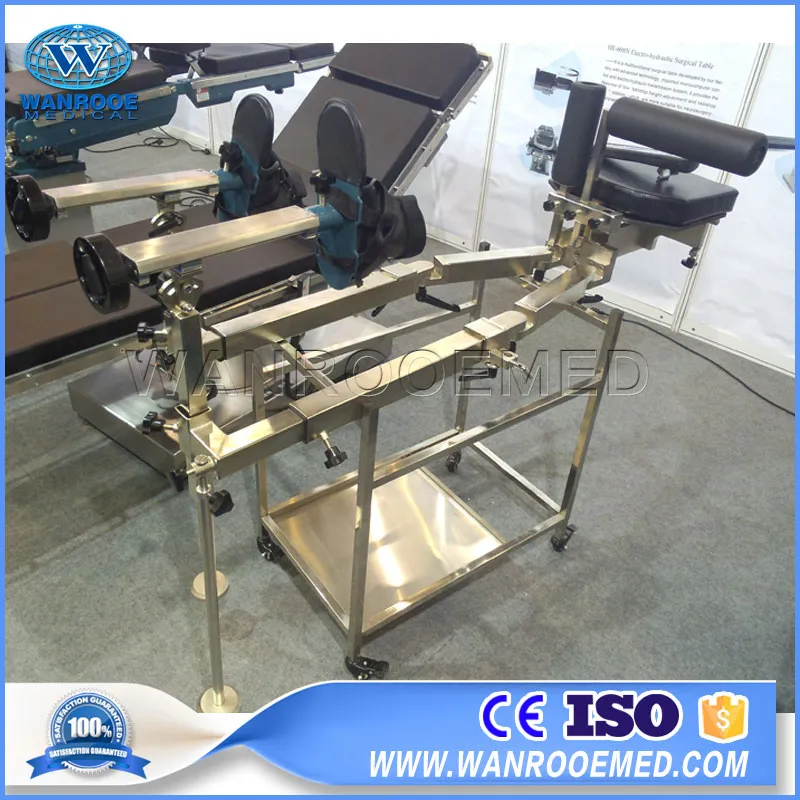

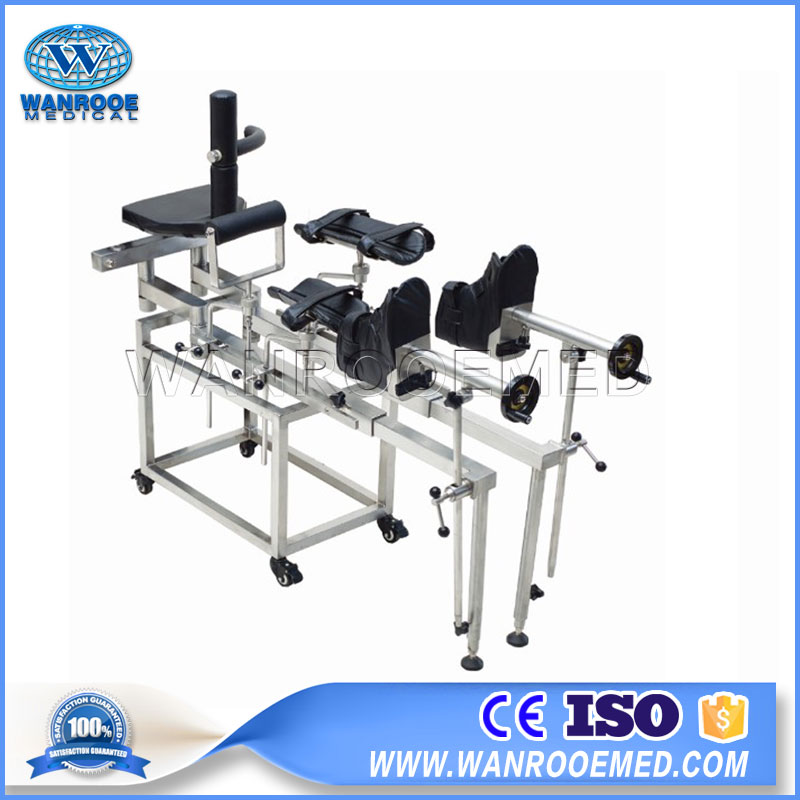

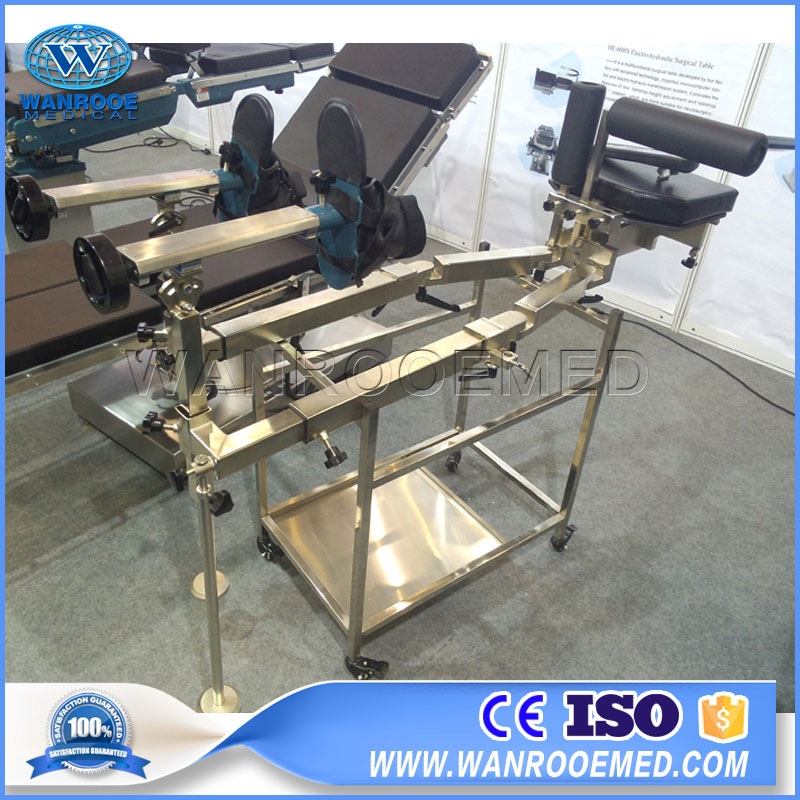

AOTA202 Multi-Purpose Surgery Operation Table Orthopaedics Traction Frame

Features:

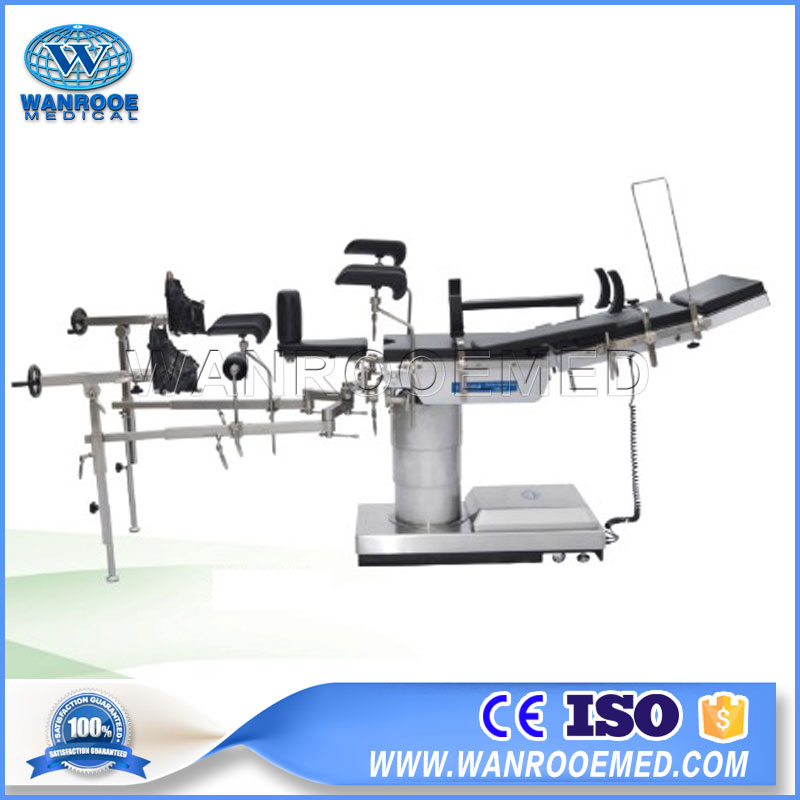

1. This orthopedic operating table can be used with the company's operating table, mainly for orthopedic surgery of the lower limbs. When using, side or horizontal traction can be performed on the lower limbs of the patient, and various positions can be adjusted any.
2. The main material of this orthopedic operating table is carbon fiber and is used with C-arm, and any position is no blind.
3. The traction mechanism has a scale display that can accurately reflect the traction stroke, which is convenient for the doctor.

Parameter:

Basic parameters:
The horizontal opening Angle of the rotary arm on the orthopedic operating table	≥60°
The horizontal movement range S1 of the leg bracket	≥550mm
Traction stroke S	≥180mm
The horizontal movement range of the orthopedic operating table S2	≥400mm
Vertical Angle adjustment range of traction mechanism R	50°~140°
Size:
Length	1300 mm
Width	300 mm
Height	850 mm
