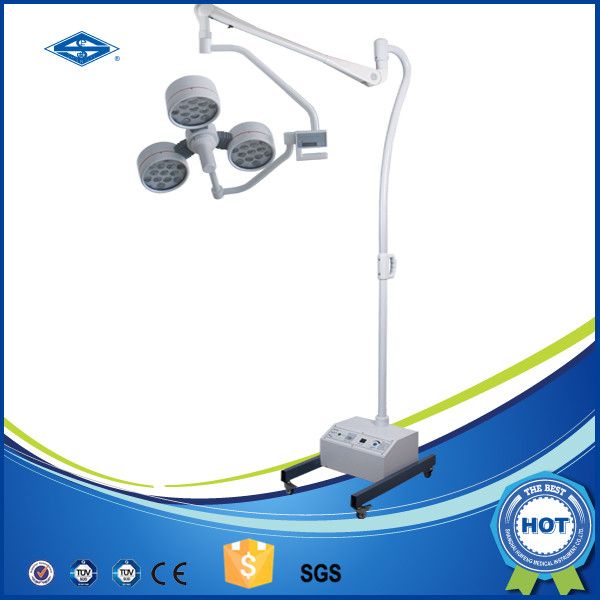

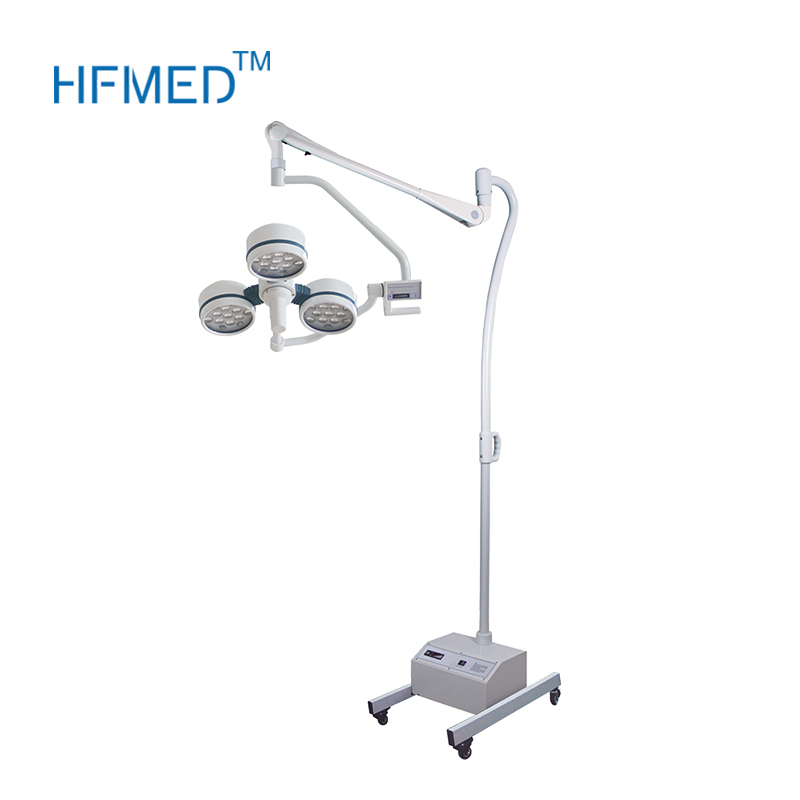

Battery LED Lighting Portable Operating Theatre Light (YD02-LED3E)
YD02-LED3E battery led lighting portable operating theatre lightMain featureExcellent cold light: Adopting LED cold light as light source, without temperature rising.Excellent daylight quality and CRI meet the illumination needs of the doctors.Excellent lighting effect: Unique optical system, homoge......
Send Inquiry
Product Description
YD02-LED3E battery led lighting portable operating theatre light
Main feature
Excellent cold light: Adopting LED cold light as light source, without temperature rising.
Excellent daylight quality and CRI meet the illumination needs of the doctors.
Excellent lighting effect: Unique optical system, homogenous light spot, high-definition.
Brightness Adjustment: Micro computer digital control, with 8 shifts luminance for selection and it offers illuminance memory funcition and wide voltage working speciality.
Long service life: LED life is up to 30000 hours.
Energy saving and environment-friendly.
Flexible and stable balance arm suspension system contents various requirement on height and angle.
Optimized air flow design for better hygiene
With its open design and superior ventilated ceiling tolerance, YD02-LED3E ensures that perfect operating conditions are created and hygienic requirements are fulfilled. The airflow surface under the ventilated ceiling is minimized and the reduced heat generation ensures a low turbulence displacement stream under the light head.
Main feature
Excellent cold light: Adopting LED cold light as light source, without temperature rising.
Excellent daylight quality and CRI meet the illumination needs of the doctors.
Excellent lighting effect: Unique optical system, homogenous light spot, high-definition.
Brightness Adjustment: Micro computer digital control, with 8 shifts luminance for selection and it offers illuminance memory funcition and wide voltage working speciality.
Long service life: LED life is up to 30000 hours.
Energy saving and environment-friendly.
Flexible and stable balance arm suspension system contents various requirement on height and angle.
Optimized air flow design for better hygiene
With its open design and superior ventilated ceiling tolerance, YD02-LED3E ensures that perfect operating conditions are created and hygienic requirements are fulfilled. The airflow surface under the ventilated ceiling is minimized and the reduced heat generation ensures a low turbulence displacement stream under the light head.
| Main Technical Data | |
| Type | YD02-LED3E |
| Illuminance(Lux) | >=100,000 |
| Colour temperature(k) | 4800±200K |
| Colour reduction index(Ra) | 96 |
| Illuminance depth(mm) | 1050 |
| Total irradiance (W/m2) | 310 |
| Size of light field (mm) | 120-240 |
| Lamp head diameter | 500 |
| Rated power of bulb(V/W) | 3.2V/1W |
| LED Service life of illuminant | >=50000 |
| Total power consumptio(W) | 50W |
| Power supply voltage | AC110V-240V(50HZ-60HZ) |
| Brightness adjustmen | Automatic8-stage continuous light adjustment |
| Total LED bulb quantity | 39pcs |
| Emergency time | 7-8h |
| Warranty | 2years |
| Delivery time | 3-5days |
| Packing list | |
| Light Head and spring arm Size | 95*92*44(cm) |
| Light Head NW/GW | 38kg /26kg |
| Base | 76*53*38(cm) |
| NW/GW | 44kg/37kg |
| YD02-LED3E CBM | 0.54M3 |
