Product Description

Prospective service and support

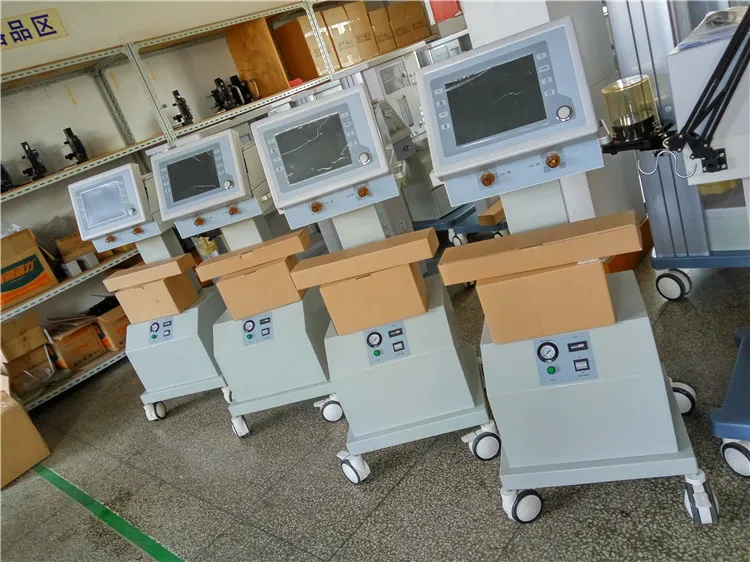

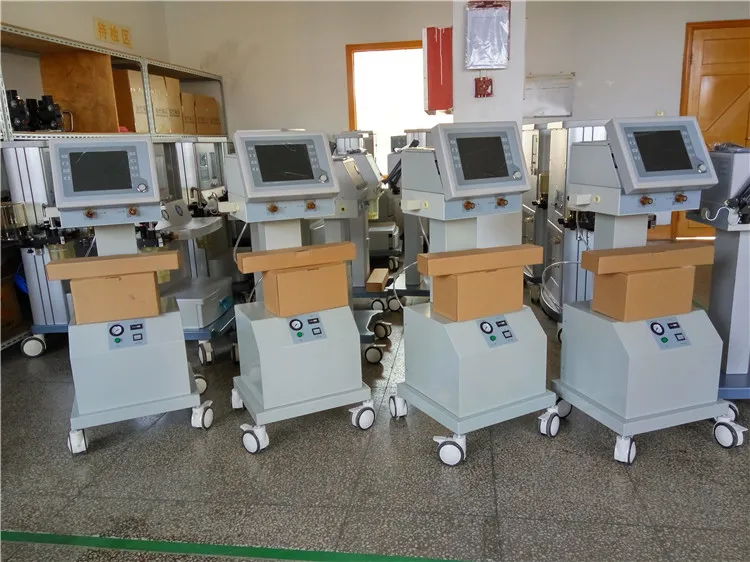

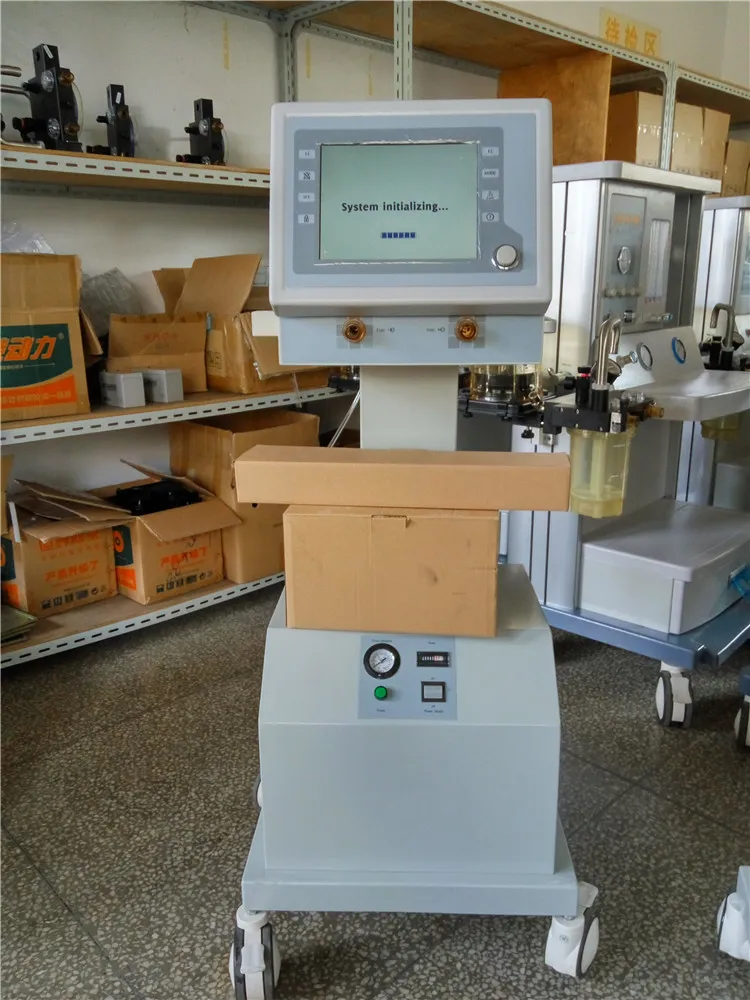

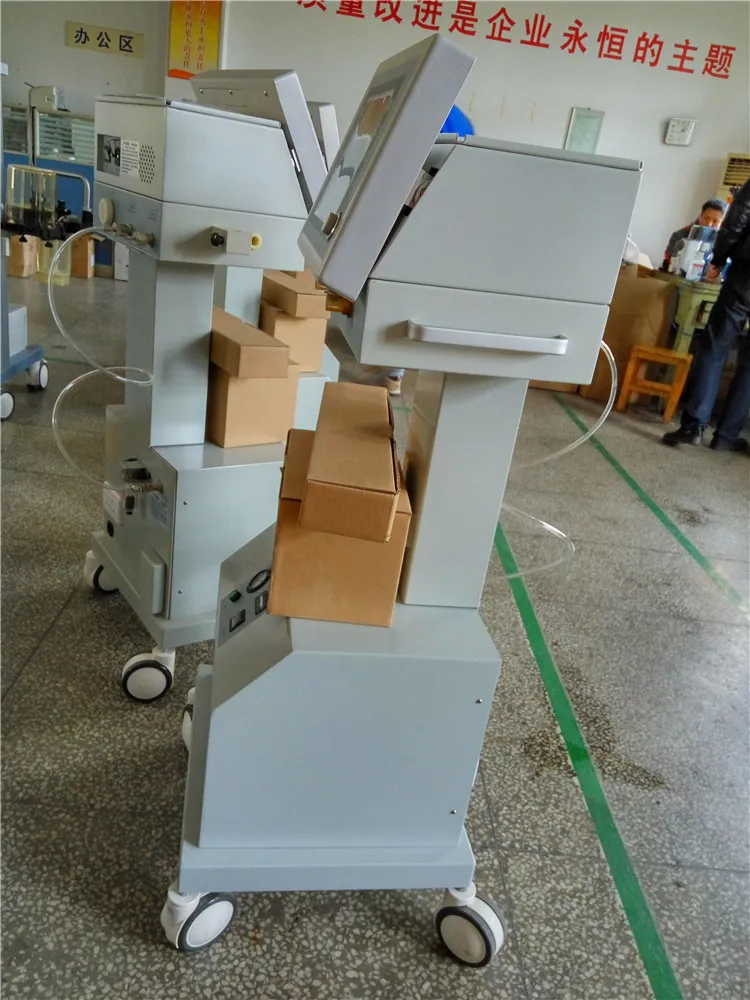

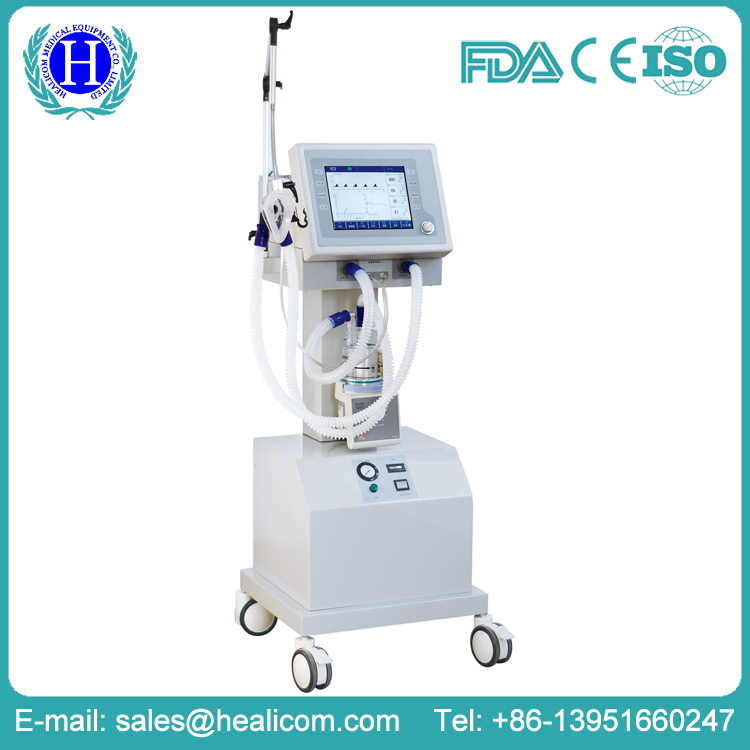

The HPA-900B ventilator is an electrically controlled pneumatic ventilator integrating such functions as time, volume cycling, pressure limit, etc. it provides an alternation in case of irreversible lesions in respiratory muscles or irreversible damage to upper airway to maintain the respiratory function of the patient, and also provides ventilation assistance for the patient during the recovery from a disease or operation.

The automatic conversion for standby power while AC power outage, keep working not less than 1 hour.

Technicals:

Breathing Mode	IPPV, SIPPV, IMV, SIMV, PEEP, Manu, Sigh and so on;
Tidal Volume Adjustment	0~1500ml
Ventilation Capacity per Minute	≥18L
Oxygen Concentration	21%~100%
Ventilator Conformance	≤30mL/kpa
Respiratory Rate	1~100/m
I/E Ratio:	I:E: 4:1, 3:1, 2:1, 1:1, 1:1.5, 1:2.0, 1:2.5, 1:3, 1:4;
Maximum Safe Pressure	≤6.0kPa
(Ptr) Range	-0.8~±0.9kPa
Transfer Time from Controlled to Assistant Respiration	6s
Air Flow Adjustment	1~12 times /m
PEEP	0.1~1.0kPa
Sigh Volume	150% of tidal volume
Oxygen Consumption	≤1.5mPa change in pressure after 1-hour operation of oxygen cylinder of 12250kPa/40L.
