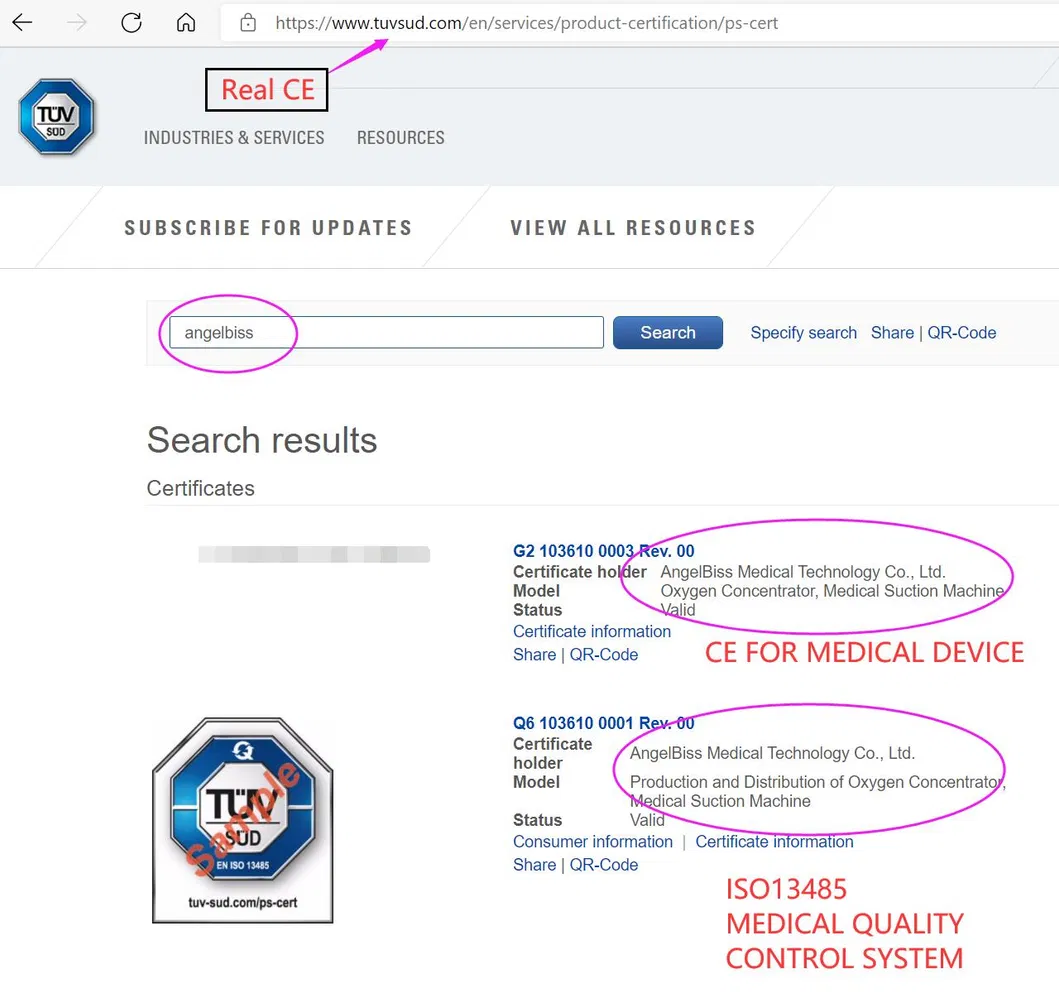

China CE ISO Approved Angelbiss Suction Apparatus Portable Medical 25L Suction Machine with Double Anti-Overflow Proection System

Product Description

Portable Medical 25L Suction Machine with Double Anti-Overflow Proection System

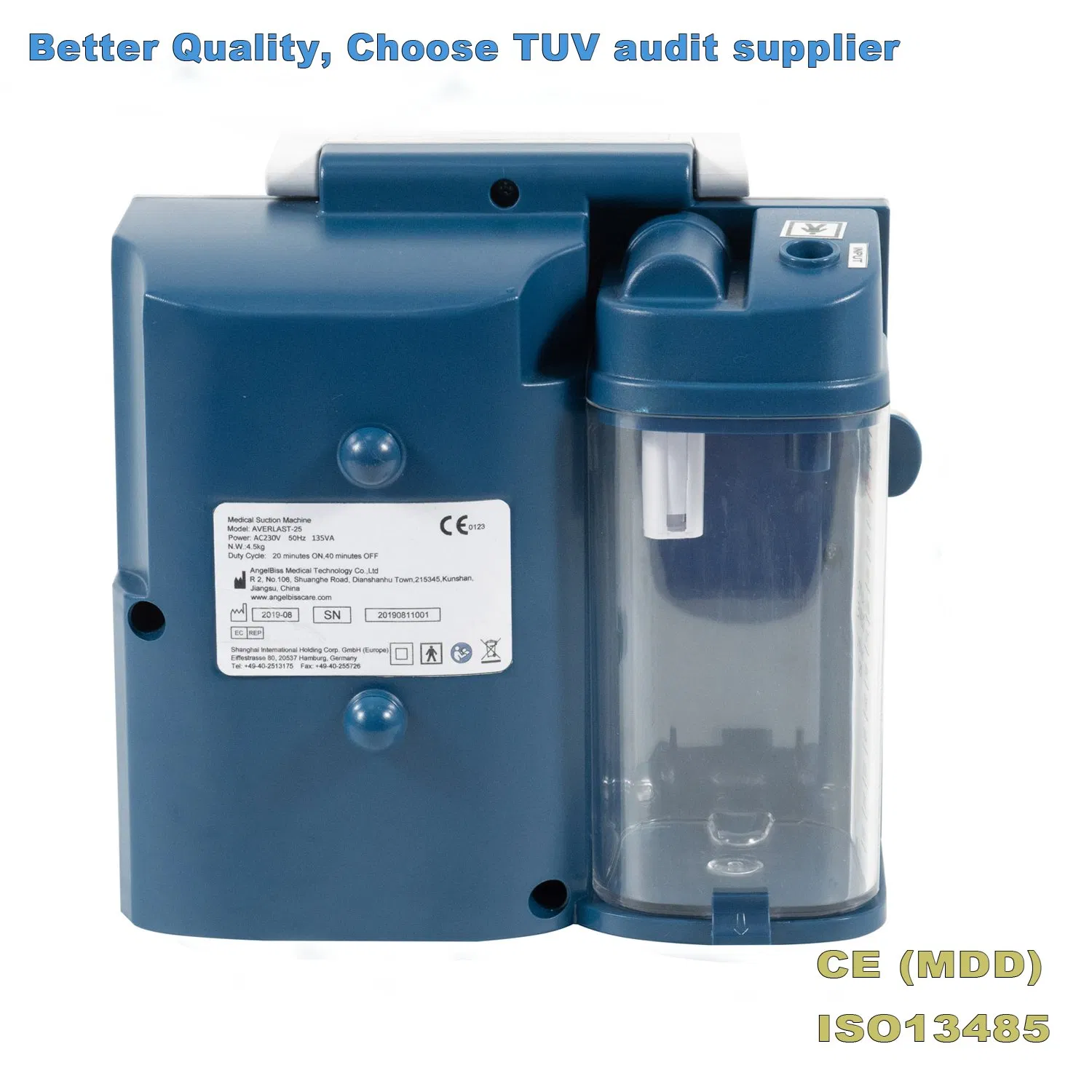

AVERLAST 25 can be equipped with a rechargeable battery (accumulator) and this battery is optional. Integrated microprocessor-based technology assures safe charging of the battery; overcharging is thus impossible. An over temperature stop controlled by electronics avoids overheating of the unit. A disposable bacterial filter plate integrated in the lid of the collection jar prevents bacteria and liquid from penetrating into the pump.

CE ISO Approved Angelbiss Suction Apparatus Portable Medical 25L Suction Machine with Double Anti-Overflow Proection System

FEATURES

Powerful suction up to 0.08MPa
Double anti-overflow protection system
Direct Plug-in Bottle System, only one push to take out bottle
1400ml capacity suction bottle
Innovative filter technology which prevents penetration of micro organisms and secretion into the device
Only one inlet for suction hose, avoid misleading of air inlet and outlet
Easy clean & sterilize & user-friendly operations
25L air flow options

ACCESSORIES

1 Silicone suction hose Ø6mm, L=1.30m
1 Universal PC power cord wires
1 filter
1 Suction catheter (free)

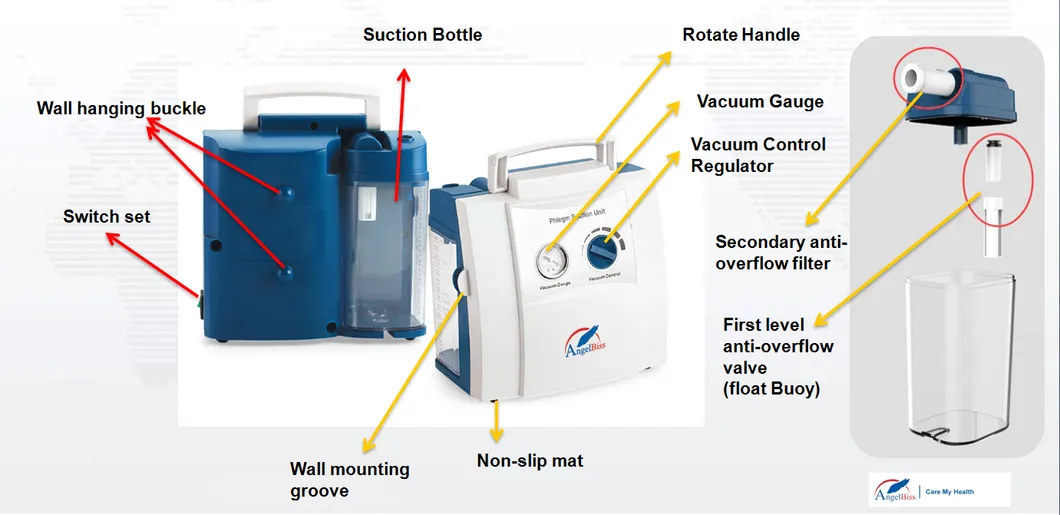

BODY STRUCTURE GRAPHIC

CE ISO Approved Angelbiss Suction Apparatus Portable Medical 25L Suction Machine with Double Anti-Overflow Proection System

TECHNICAL SPECIFICATIONS

System Map	Functions	AVERLAST 25
Pump Driving System	Max. Air Flow	25L/min
	Max. Vacuum Pressure	0.08Mpa
	Work Mode	Intermittent Run
Bottle System	Max. Jar capacity	1400ml
	Overflow Protection	Double Safety Protection
	Innovative Filter	Waterproof Reusable
	Inlet Cover	One only, and no need outlet
Operate System	Vacuum Gauge Range	0.00Mpa ~ 0.1Mpa (0psi ~14psi)
	Vacuum Control Range	0.02Mpa ~ 0.08Mpa
	Suction Hose Hang Groove	One, at the left
	Wall mounted Hang Tip	Two, at the back
	Hidden Rotatable Handle	Yes, at the top
3 Safety System	Floating method	First level stop overflow
	Filter method	Second level stop overflow
	Overheated Protection	Yes
Electrical System	Power Consumption	130 W
	Auto Power off	Every 30 minutes
	Power Fuse	1.0 A -φ5×20mm
	Noise Level	<50dB(A)
Packaging Details	Machine Body Size	283x195x273mm
	Import Carton Size	415x360x300mm for 2 units
	Net Weight per Unit	3.75kg
	Import Gross Weight per Carton	9.8 kg
Operating Condition	Operating Temperature	41ºF to 104ºF (5ºC to 40ºC)
	Operating Humidity	10% to 90% RH
	Operating Atmospheric Pressure	700-1060hpa
	Storage Temperature	-4ºF to 131ºF (-20ºC to 55ºC)
	Storage Humidity	10 to 95% RH
Pump Driving System	Max. Air Flow	25L/min
	Max. Vacuum Pressure	0.08MPa
	Work Mode	Intermittent Run

COMPANY PROFILE

AngelBiss Medical Technology Co.,Ltd is a Chinese manufacturer specializing in 5L Oxygen Concentrator and Portable Suction Machine.

AngelBiss is a technology holder supplier from United States, establish her first production facility in Jiangsu, mainly engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Asthma Therapy and Diagnostic Therapy. AngelBiss has provided many quality-pricing medical products to world customers.

AngelBiss is the brand can be sourced from end of last century.The critical technologies are brought in USA and Germany. And now having complete services networks on Malaysia,China, Nepal, Bangladesh, Ukraine, Italy, UK,and Iran. AngelBiss having the most professional talent engineering managements, experienced workers and sales managements team, which make her customers to believe AngelBiss can always be holding the progressive critical manufacturing equipments and better off quality control system that will continuously creat more values for her customers.

CE ISO Approved Angelbiss Suction Apparatus Portable Medical 25L Suction Machine with Double Anti-Overflow Proection System

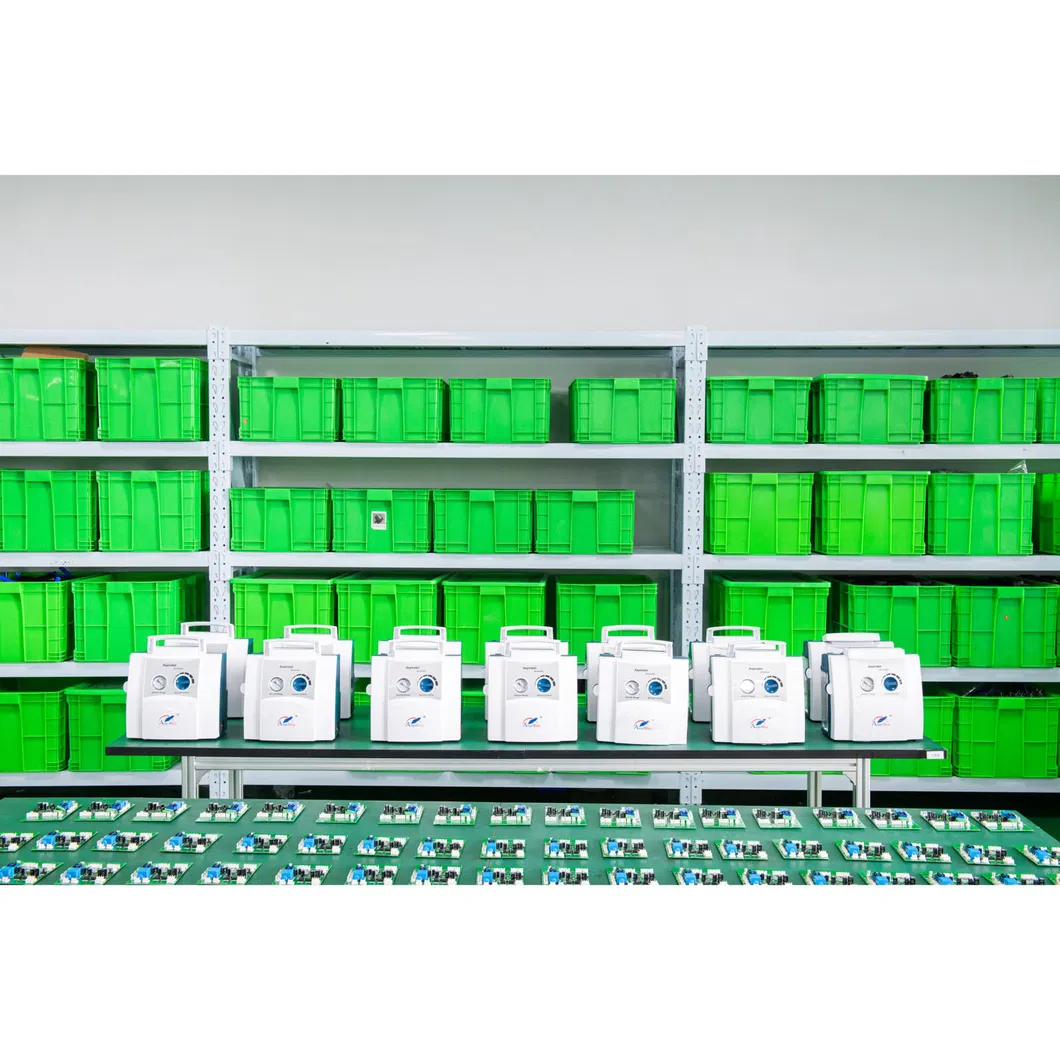

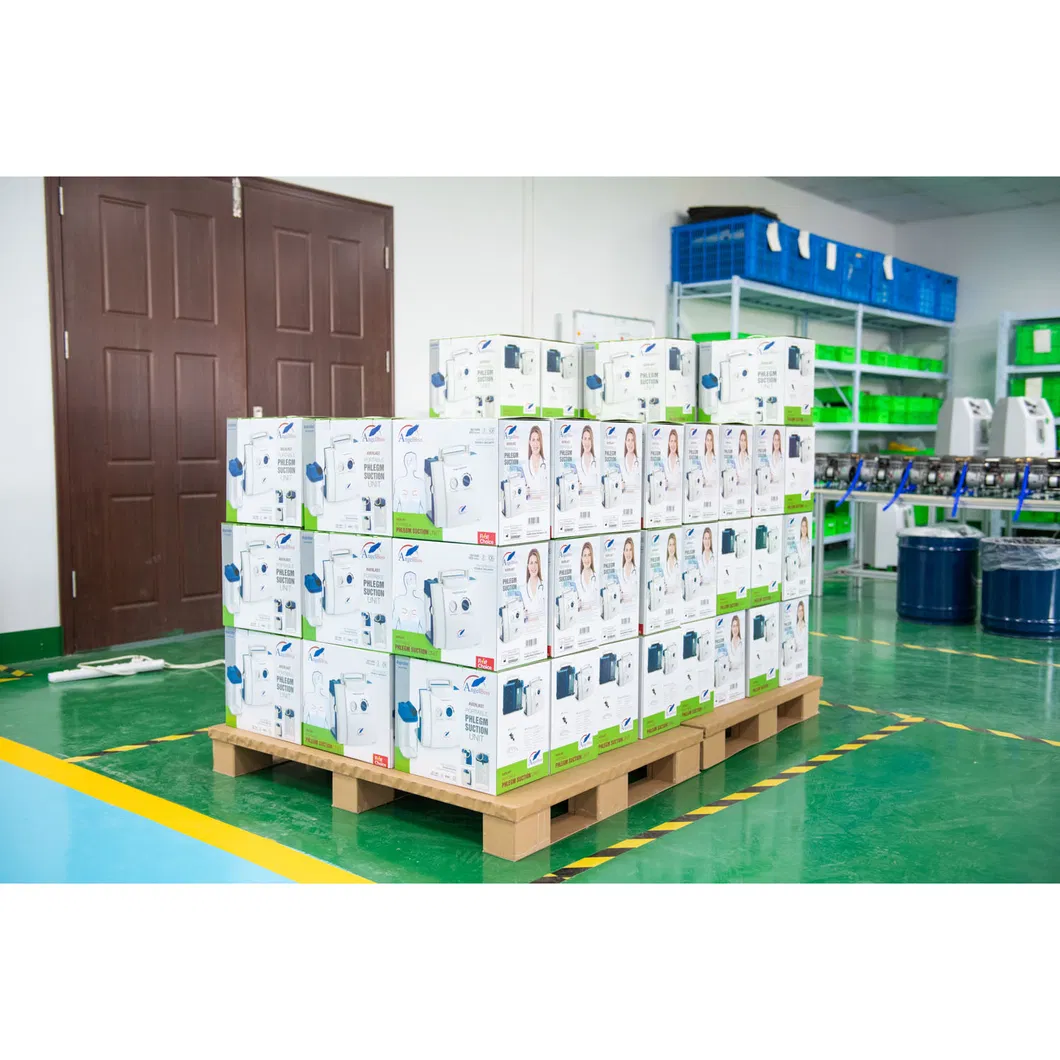

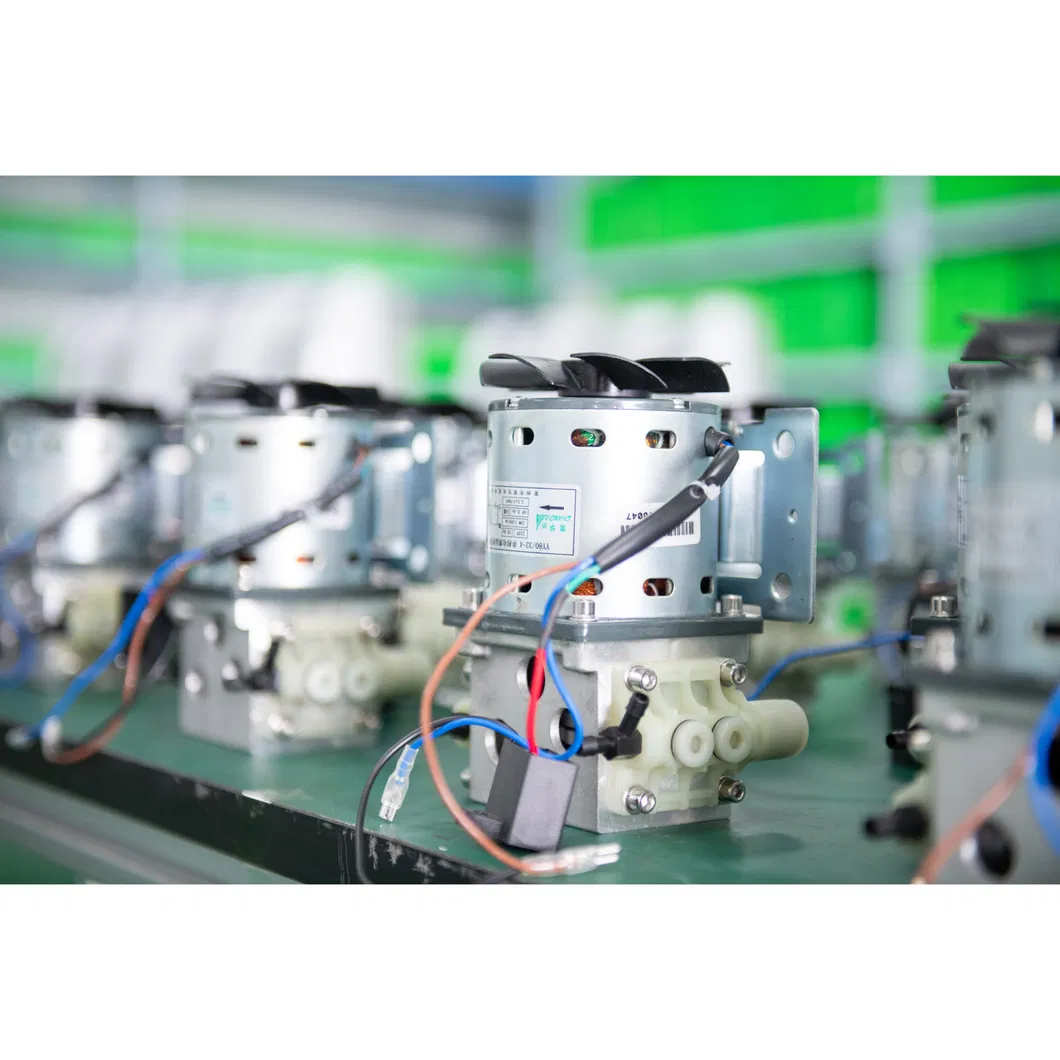

Production, product inspection and packaging

AngelBiss Medical Technology Co.,Ltd implements strict quality control and product testing, and adheres to the principle of quality first.

Quality policy: Continuously improve professionalism, Continuously optimize the workflow, Ensure the safety and effectiveness of the product.

Quality goal: The pass rate of raw materials inspection exceeded 95%, Product assembly qualification rate exceeds 98%, The factory pass rate is 100%.

After sales service

We offer a one-year warranty to our global distributors and customers.

Choose AngelBiss, Now level up faithfullness of our health
