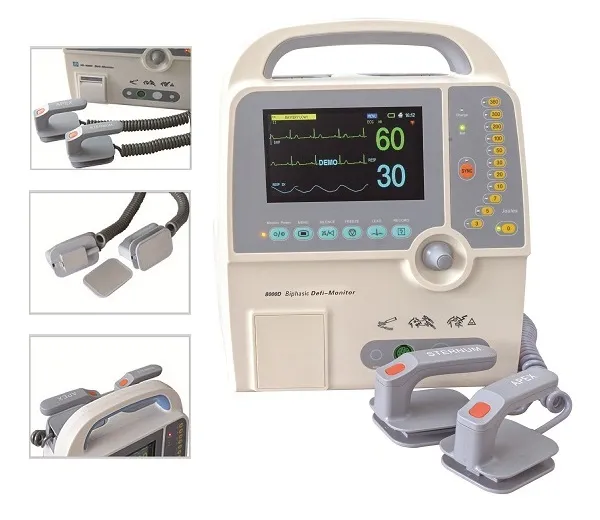

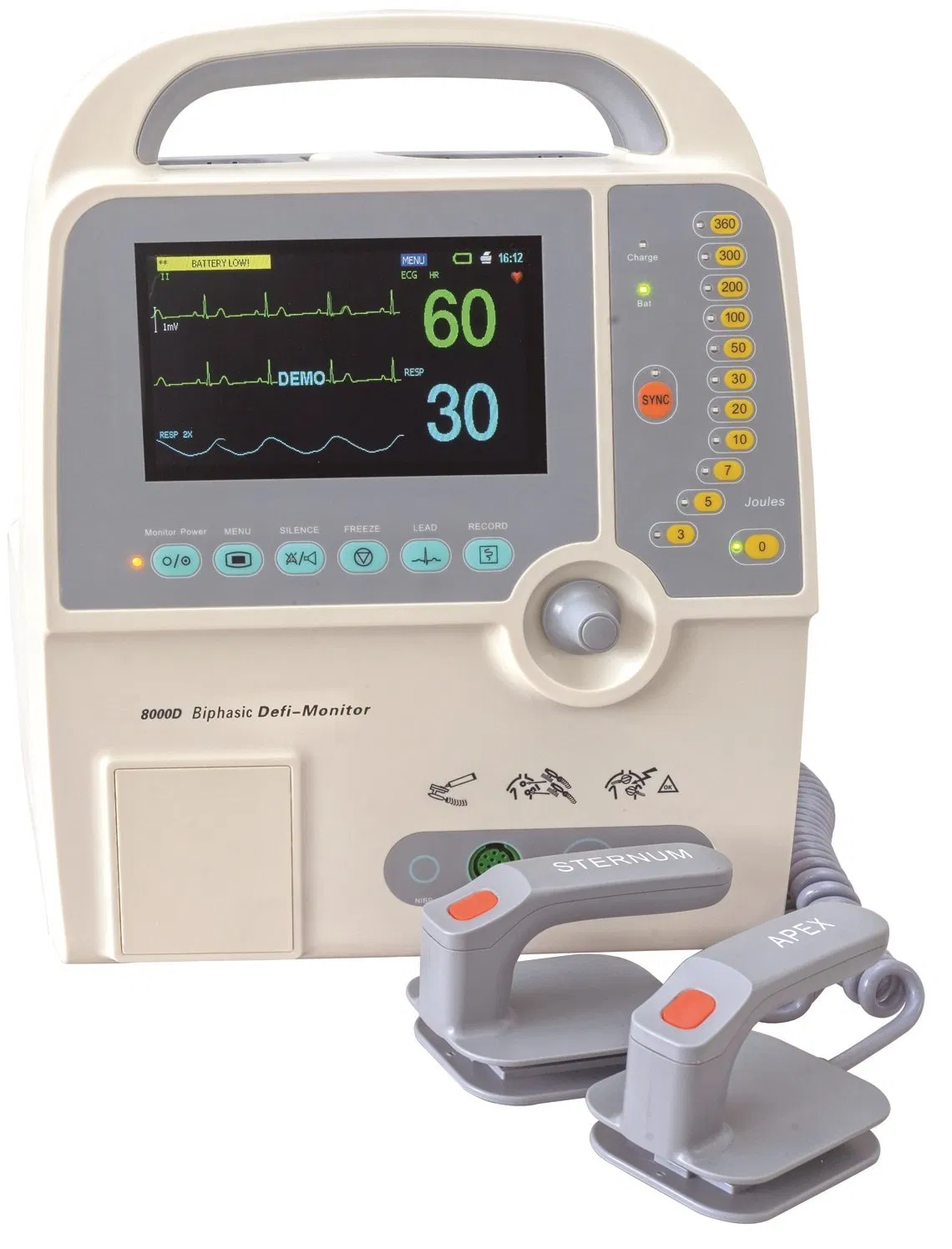

Dm-8000d Portable Automatic Emergency Biphasic Defibrillator
DM-8000D Portable Automatic Emergency Biphasic DefibrillatorTechnical specifications 1) Defibrillator type: Manual, Synchronized, Asynchronized.2) Energy accuracy: +1%3) Energy selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)4) Charging time: Maximu......
Send Inquiry
Product Description
DM-8000D Portable Automatic Emergency Biphasic Defibrillator
Technical specifications
1) Defibrillator type: Manual, Synchronized, Asynchronized.
2) Energy accuracy: ∠+1%
3) Energy selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)
4) Charging time: Maximum 10 seconds to 360 Joules
5) Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply 100V~240V, 50Hz/60 Hz
(b) Vehicle Voltage (Option) DC 12V
Internal Battery Backup
(1) Battery type: Rechargeable lead-acid battery (12V 2.0Ah X2)
(2) Charging time: Time-Minimum of 4 hours for full charging
(3) Battery charging: During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication: Red LED
(5) Battery Capacity: 100% of the battery will provide 120-min monitoring; and 30 discharges at 360 joules.
Display
LCD Dimensions 7-inch
Type High resolution true-color graphic
Resolution 480*234
ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
Standard parameter & configuration
ECG/ RESP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
Physical characteristics
Main unit: Portable
Dimensions: L320xW205xH410
Weight: 9.5kg
Technical specifications
1) Defibrillator type: Manual, Synchronized, Asynchronized.
2) Energy accuracy: ∠+1%
3) Energy selection: 0, 3, 5, 7, 10, 20, 30, 50, 100, 200, 300, 360 joules (nominal at a resistance of 50)
4) Charging time: Maximum 10 seconds to 360 Joules
5) Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply 100V~240V, 50Hz/60 Hz
(b) Vehicle Voltage (Option) DC 12V
Internal Battery Backup
(1) Battery type: Rechargeable lead-acid battery (12V 2.0Ah X2)
(2) Charging time: Time-Minimum of 4 hours for full charging
(3) Battery charging: During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication: Red LED
(5) Battery Capacity: 100% of the battery will provide 120-min monitoring; and 30 discharges at 360 joules.
Display
LCD Dimensions 7-inch
Type High resolution true-color graphic
Resolution 480*234
ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
Standard parameter & configuration
ECG/ RESP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
Physical characteristics
Main unit: Portable
Dimensions: L320xW205xH410
Weight: 9.5kg
