Dy-3 Medical Equipment Electric Low Vacuum Large Flow Dental Suction Unit Apparatus
DY-3 Medical Equipment Electric Low Vacuum Large Flow Dental Suction Unit ApparatusLow-Vacuum (High Flow) Suction Unit Model DY-3 is the Low Vacuum/High Flow aspirator. And it can be used for postoperatively suctioning in gastroenteric or in the Dept, of surgery, internal medicine and paediatrics.Pr......
Send Inquiry
Product Description

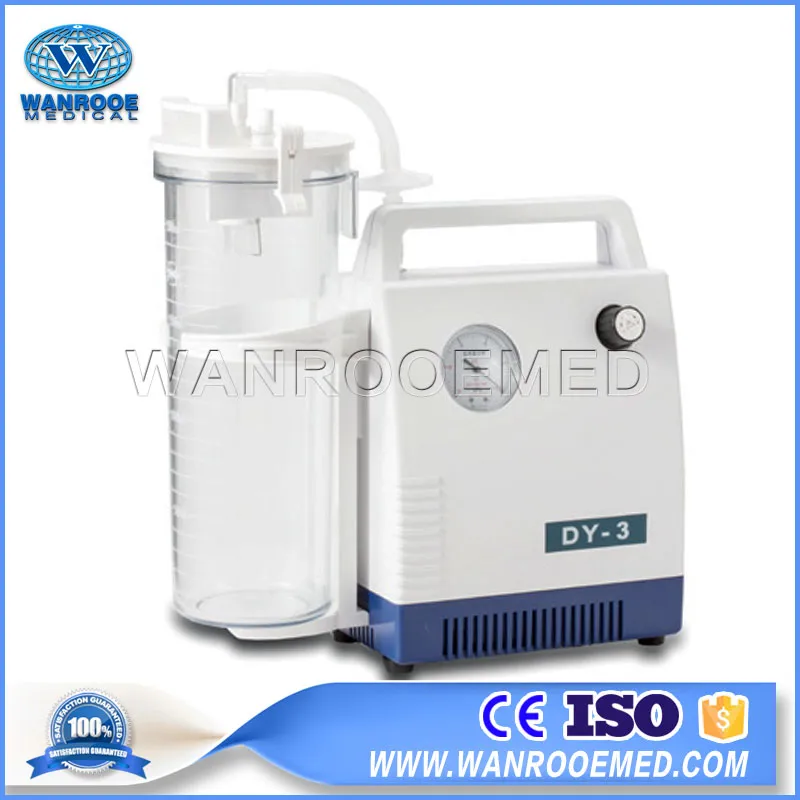

DY-3 Medical Equipment Electric Low Vacuum Large Flow Dental Suction Unit Apparatus
Low-Vacuum (High Flow) Suction Unit Model DY-3 is the Low Vacuum/High Flow aspirator. And it can be used for postoperatively suctioning in gastroenteric or in the Dept, of surgery, internal medicine and paediatrics.
Product overview
1. Safely powered by electromagnetic pump which requires no lubrication or daily maintenance can be continuously used for a long-time. No positive pressure producing. It is secure for patients.
2. Overflow protection device can safely and efficiently prevent the liquid form entering into pump. And the air emitted by the pump is prefiltered by a bacterial filter which provides an effective barrier against contamination and protection to the environment.
3. Vacuum regulator with a locked set can be optionally regulated according to requirements. And it can efficiently prevent the regulator knob moving by mistake.
4. Autoclavable, transparent plastic bottle is more convenient for disassembly, cleaning and carrying.
5. Body made of plastic material is light, compact, and convenient for carrying and operating.
Specification parameter
Details:
Company Information:
Low-Vacuum (High Flow) Suction Unit Model DY-3 is the Low Vacuum/High Flow aspirator. And it can be used for postoperatively suctioning in gastroenteric or in the Dept, of surgery, internal medicine and paediatrics.
Product overview
1. Safely powered by electromagnetic pump which requires no lubrication or daily maintenance can be continuously used for a long-time. No positive pressure producing. It is secure for patients.
2. Overflow protection device can safely and efficiently prevent the liquid form entering into pump. And the air emitted by the pump is prefiltered by a bacterial filter which provides an effective barrier against contamination and protection to the environment.
3. Vacuum regulator with a locked set can be optionally regulated according to requirements. And it can efficiently prevent the regulator knob moving by mistake.
4. Autoclavable, transparent plastic bottle is more convenient for disassembly, cleaning and carrying.
5. Body made of plastic material is light, compact, and convenient for carrying and operating.
Specification parameter
| Max Vacuum | 17~20KPa(128~150mmHg) |
| Adjustable vacuum range | 2KPa(15mmHg)~Max Vacuum |
| Flow rate | ≥20L/min |
| Noise | ≤60dB(A) |
| Jar capacity | 2000ml(polycarbonate) |
| Input | 100VA |
| Power supply | AC220V 50Hz |
| Dimemsion | 410mm×205mm×420mm |
| G.W./N.W. | 6.3kg/4.3kg |
