Home > Products > Surgical Equipment > General Medical Anaesthesia/Anesthesia Machine Ljm9500 with Ce Certificate

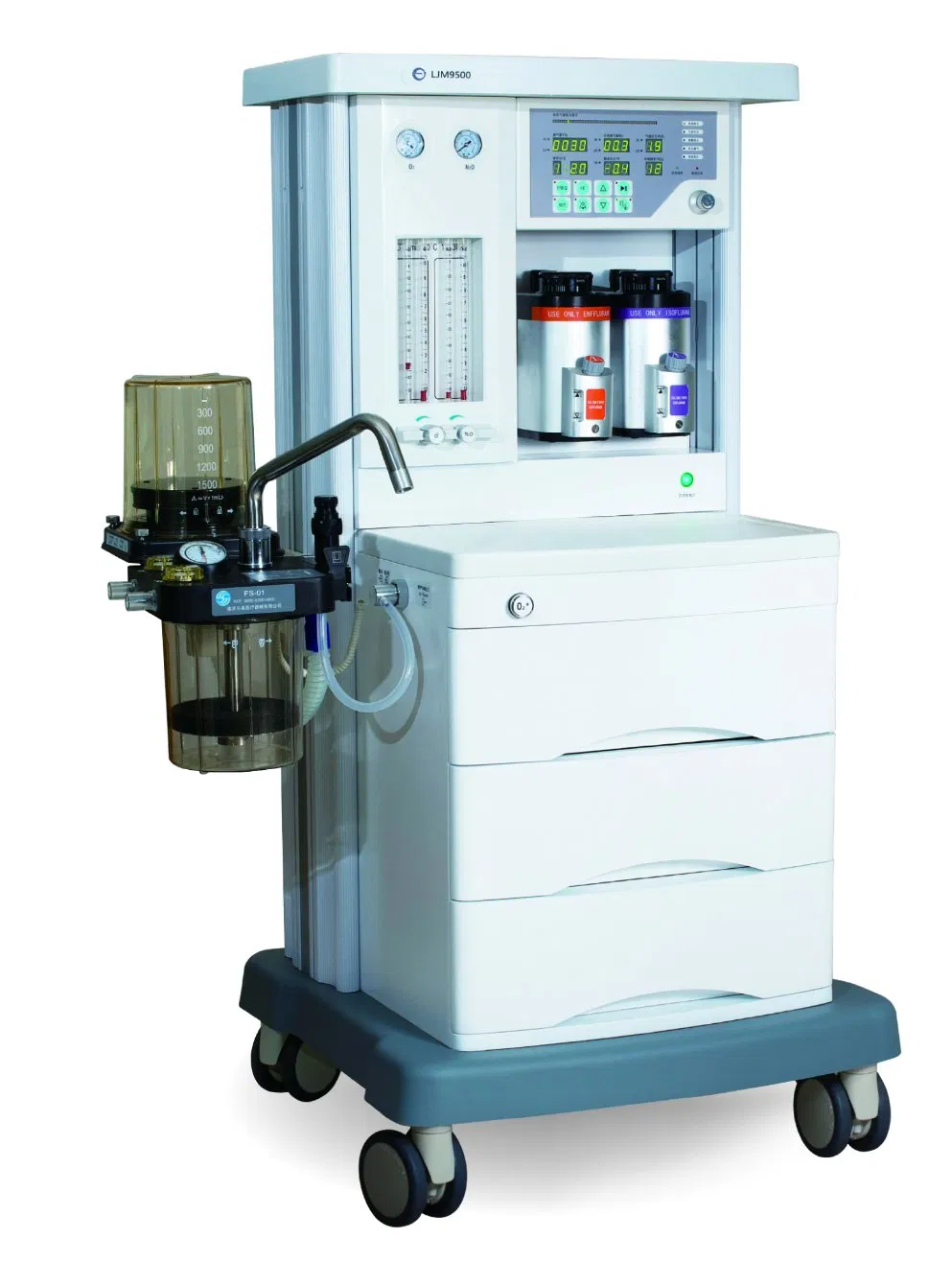

General Medical Anaesthesia/Anesthesia Machine Ljm9500 with Ce Certificate
Common Features Classic electropneumatic ventilator,widely apply for adults and children; High-precision four-tube flowmeters; nitrous oxide-oxygen anesthesia to ensure that the oxygen concentration is not less than 25%; Sophisticated monitoring of anesthesia respiratory parameters and alarm functio......
Send Inquiry
Product Description
Common Features
• Classic electropneumatic ventilator,widely apply for adults and children;

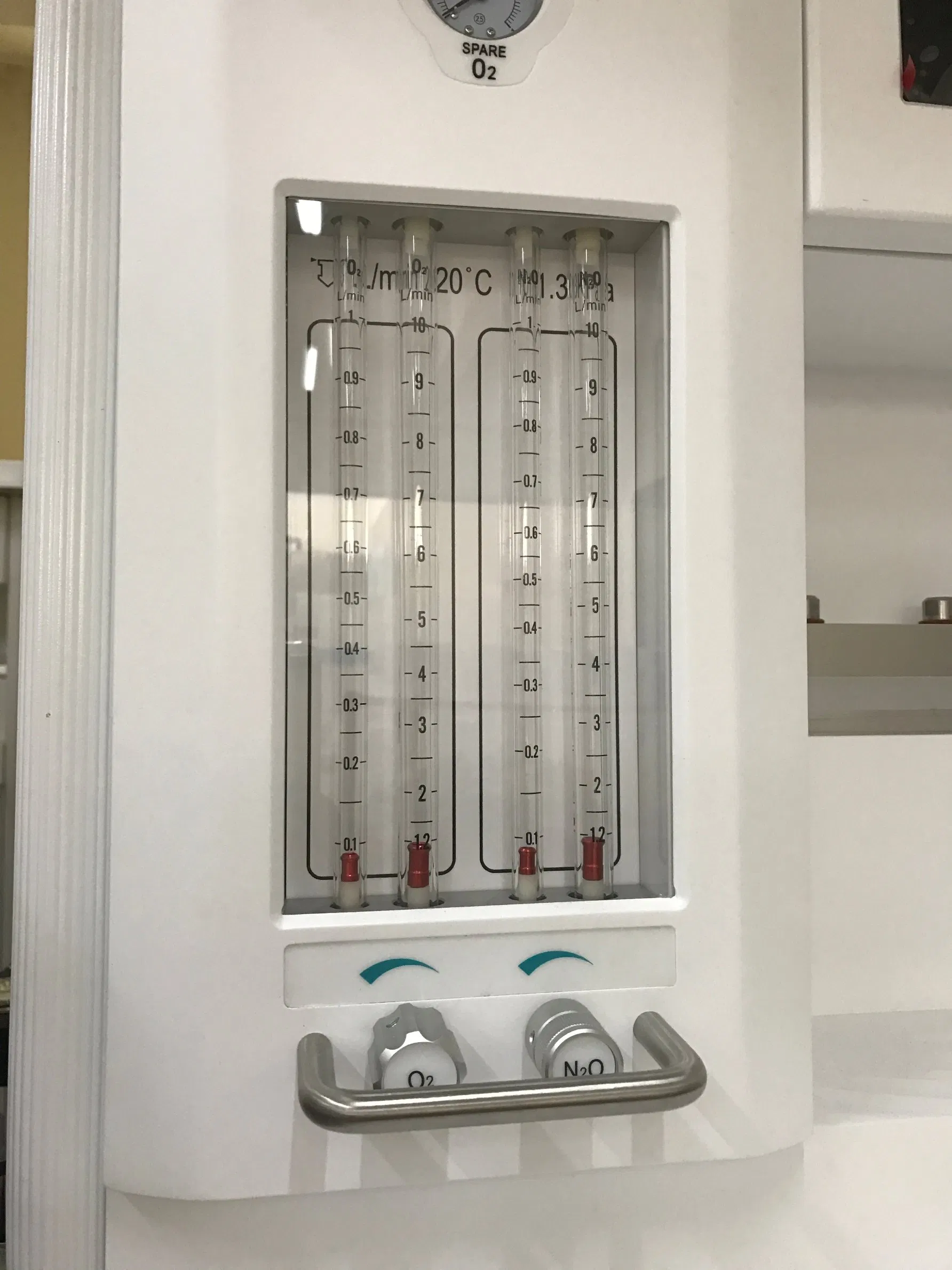

• High-precision four-tube flowmeters; nitrous oxide-oxygen anesthesia to ensure that the oxygen concentration is not less than 25%;
• Sophisticated monitoring of anesthesia respiratory parameters and alarm functions;

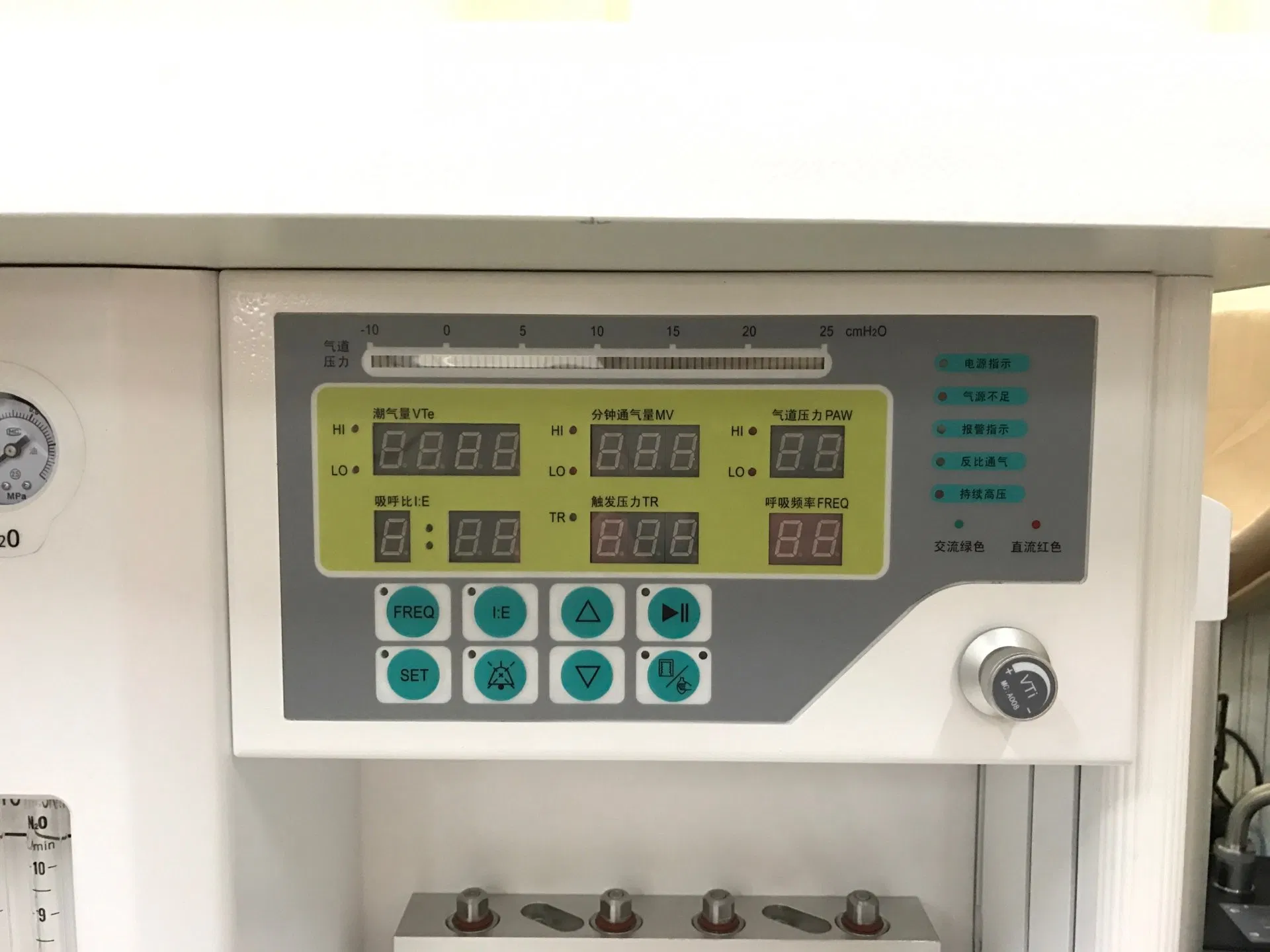

• Humanized interface, clearly shows the working state of the anesthesia machine, with a more comfortable operation feeling and visual sense;
• Advanced gas-electric isolation system eliminates the oxygen enrichment;
• With standard large-capacity maintenance-free battery, the machine can work continuously for not less than 8 hours.
• Modular design reduces potential leaks, misconnections and detachments of tube;
• Classic rising bellows can monitor the patient's breathing and detect leakproofness of circuit;

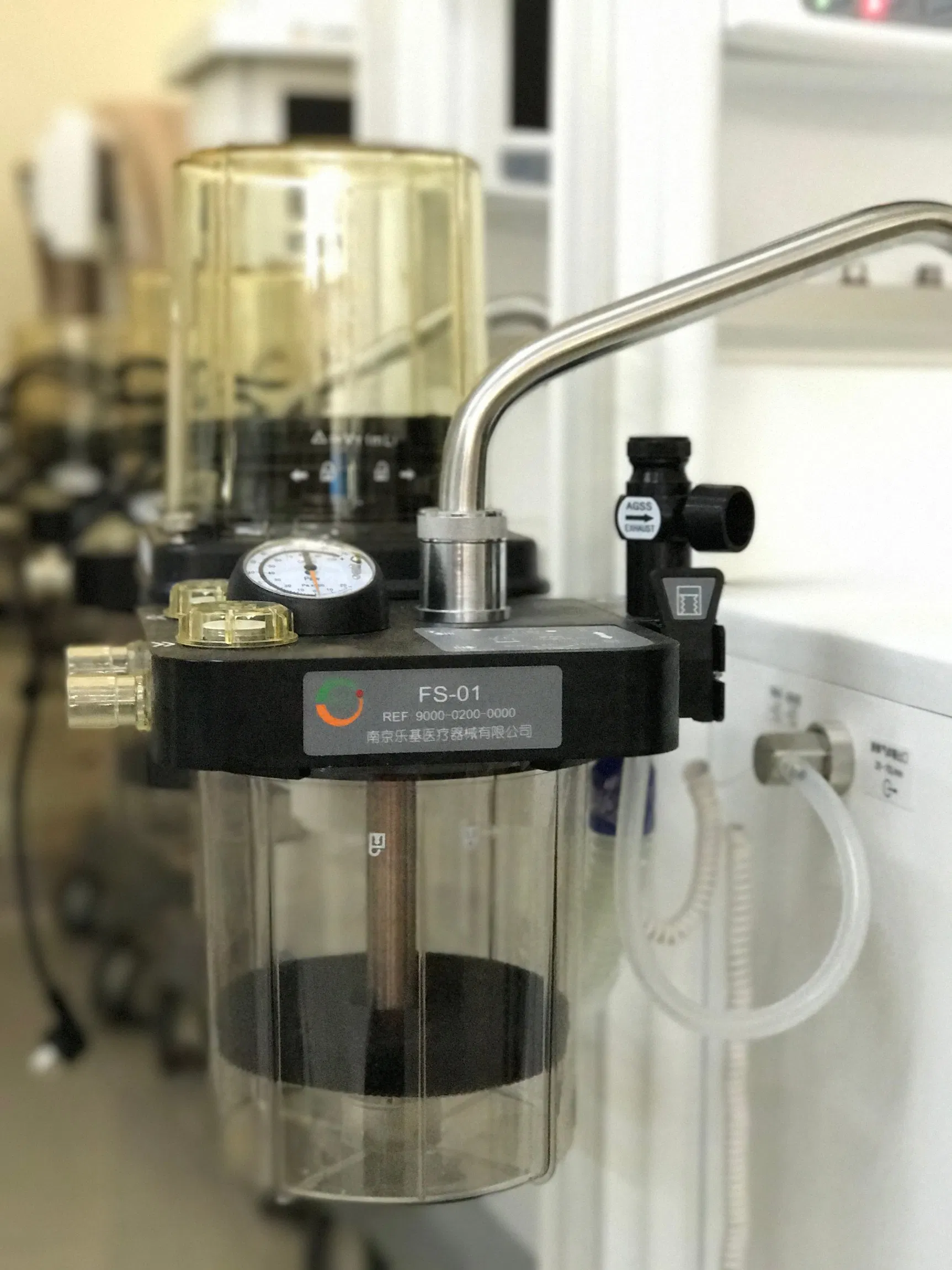

• Large- capacity CO2 absorption system;
• AGSS (optional) can effectively control pollution of anesthetic waste gas, clean surgical room, care for health of medical staff.
Specifications
• Classic electropneumatic ventilator,widely apply for adults and children;
• High-precision four-tube flowmeters; nitrous oxide-oxygen anesthesia to ensure that the oxygen concentration is not less than 25%;
• Sophisticated monitoring of anesthesia respiratory parameters and alarm functions;
• Humanized interface, clearly shows the working state of the anesthesia machine, with a more comfortable operation feeling and visual sense;
• Advanced gas-electric isolation system eliminates the oxygen enrichment;
• With standard large-capacity maintenance-free battery, the machine can work continuously for not less than 8 hours.
• Modular design reduces potential leaks, misconnections and detachments of tube;
• Classic rising bellows can monitor the patient's breathing and detect leakproofness of circuit;
• Large- capacity CO2 absorption system;
• AGSS (optional) can effectively control pollution of anesthetic waste gas, clean surgical room, care for health of medical staff.
Specifications
| Physical&Environment Specification | |
| Dimension(WxHxD) | 970*920*1670 mm |
| Weight | 95kg |
| Working temperature | +5ºC~+40ºC |
| Working humidity | ≤80% |
| Storage temerature | -20ºC~+50ºC |
| Storage humidity | ≤93% |
| Power supply | |
| Main power | 100-240V 50/60Hz |
| Battery | not less 8 hours |
| Outlets | 4 on back, 1.5A individual |
| Pneunatic Specification | |
| Gas supply | O2, N2O |
| Flowmeter: O2 range | 0-1L/min, 1-10 L/min |
| N2O range | 0-1L/min, 1-10 L/min |
| Air range | NO |
| Auxiliary O2 range | 0-1L/min, 1-10 L/min |
| Gas system:Oxygen supply failure alarm | Yes |
| N2O-cut-off system | Yes |
| O2 flush | 25-75L/min |
| ACGO | optional |
| AGSS | optional |
| Breathing system specification | |
| Operation model | Closed |
| CO2 Absorbed container | 1.6L |
| APL range | Adjustable |
| Material | ABS |
| CO2 bypass | Optional |
| Ventilator Specification | |
| Driven mode | pneumatically driven and electronically controlled |
| Patient type | Adult Pediatric |
| Ventilator mode | IPPV(VC),IPPV(PC),SIPPV(VC),SIPPV(PC).SIGH,MANUAL STANDBY |
| Setting mode | Button & encoder |
| Tidal volume | 10-1500ml |
| Ventilation frequency | 5-100 bpm |
| I:E ratio | 2:1-1:8 |
| Trigger sensitivity (Pressure) | -1 ~ -9cmH2O |
| Compensation | Compliance and leakage compensation, fresh gas compensation, altitude compensation |
| Ventilator Monitoring | |
| Display | Digital screen |
| Pressure | Ppeak, Pplat, Pmean |
| Gas | O2 concentration, optional CO2 |
| Graph display | NO |
| Alarm | High tidal volume/Low tidal volume |
| High minute volume Low minute volume | |
| Sustained high airway pressure | |
| High FiO2%/Low FiO2% | |
| Low gas supply | |
| Low battery | |
| Oxygen battery off | |
| Power faliure | |
| Alarm slience:110S | |
| Vaporizer | Halothane,Enflurane, Isoflurane,Sevoflurane |
