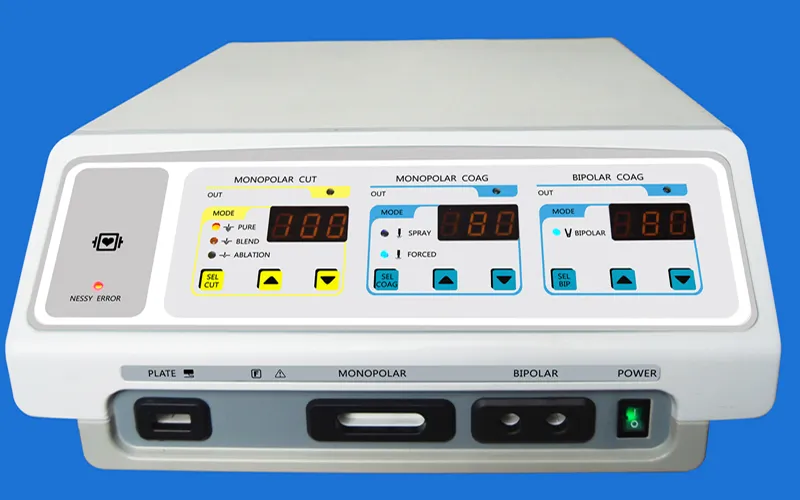

High Frequency Electrosurgical Cautery Machine

PT2000RF High Frequency Electrosurgical Cautery Machine

Main Features

Max 150W Radiofrequency Surgical Unit, with mono-polar and bipolar function.
Six working modes: Pure cut, blend, ablation, spray coag, forced coag, bipolar coag.
Wide clinical applications, such as the general surgery, dermatology, orthopedic surgery, cardiology, gynecology, , oncology, neurosurgery, ophthalmology, ENT, Stomatology, etc.
Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag, and bipolar coag, each output can be individually configured.
It redefines the surgical results with 4MHz radio wave technology, minimizes heat dissipation and cellular alteration while cutting and coagulation soft tissues.
Low temperature, non-carbide, no adhesion, Less bleeding, quick recover.
Protection against over-voltage and over-current.
Convection refrigeration without ventilator.
Mounted on a 4 wheels cart(optional).

Technical Specifications
Power: 220V± 22V, 50Hz± 1Hz(110V± 11V, 60Hz)
Operating frequency:
A)Monopolar: 4MHz
B) Bipolar: 1MHz
Power rating: 1100VA± 10%

Six Working Modes
Mono-polar Cut
A) Pure cut: 1W~150W( Load 700Ω )
B) Blend: 1W~100W(Load 700Ω )
C) ablation: 1W~100W(Load700Ω )
Mono-polar Coag
D) Spray Coag: 1W~80W( Load 700Ω )
E) Forced Coag: 1W~100W( Load 700Ω )
Bipolar
F) Bipolar Coagulation: 1W~120W( Load 200Ω )
Power Consumption: ≤ 1100VA

Configuration Sheet
Electrosurgical Pencil 5pcs
Neutral Electrode 1pcs
Neutral Electrode cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcs
Electrodes 10pcs
