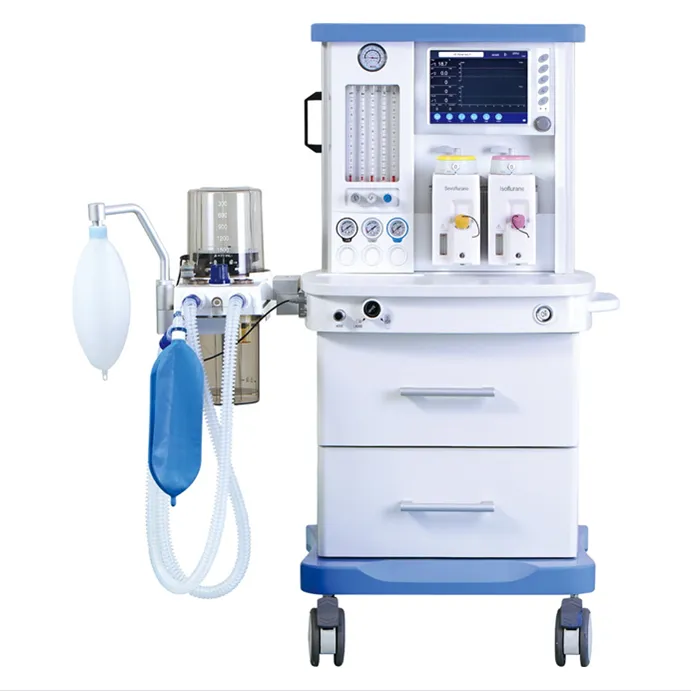

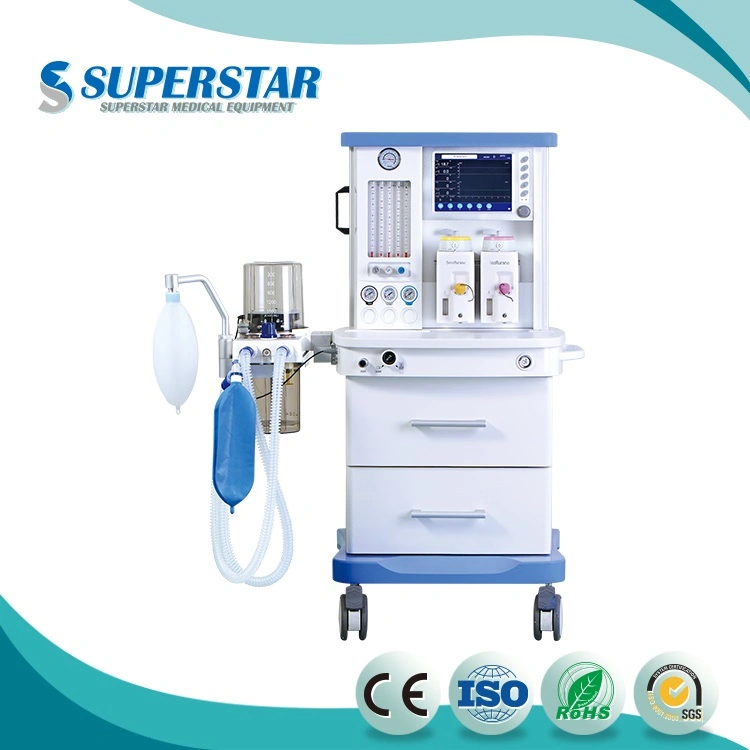

High Quality Hospital Anesthesia Equipment Medical Device

Product Description

Application:

1. The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation

room, Anesthesiology Department and other departments.

2 .Professional design for adult, child and infant , with advanced ventilation modes.
Outstanding ergonomic design, it ranks high level in safty, stability and convenience, also user experiences.

3. S6100 comfortable classic model, easy to use , and it is designed together with experienced

experts.
Perfect Features

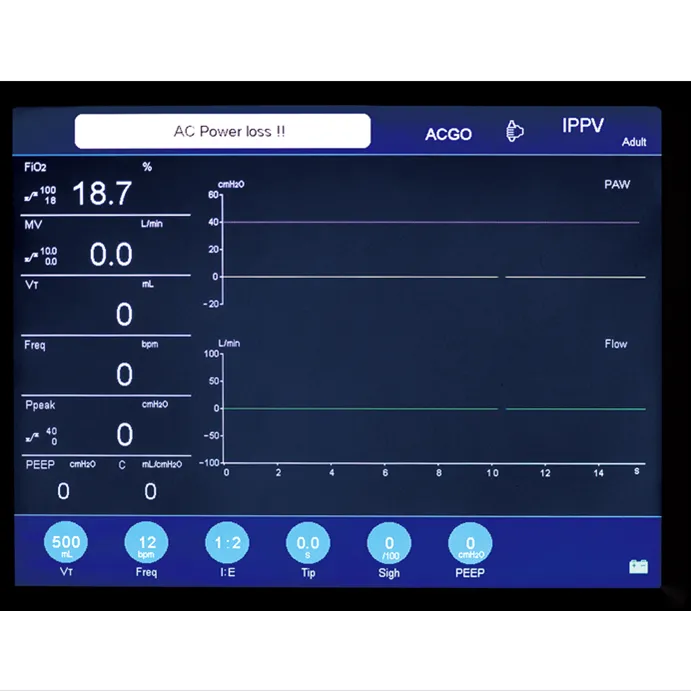

1. 10.4" TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.

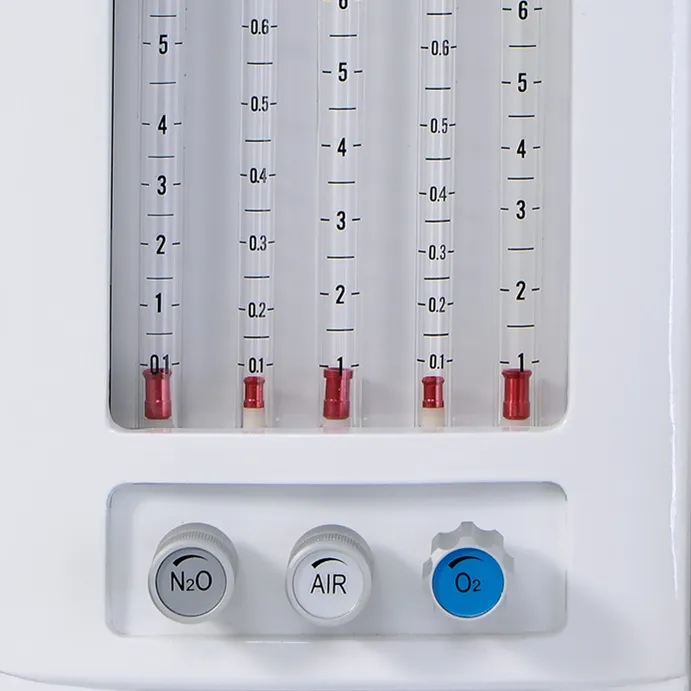

2. High precision flowmeter, instantly know the fresh gas flow to your patient.

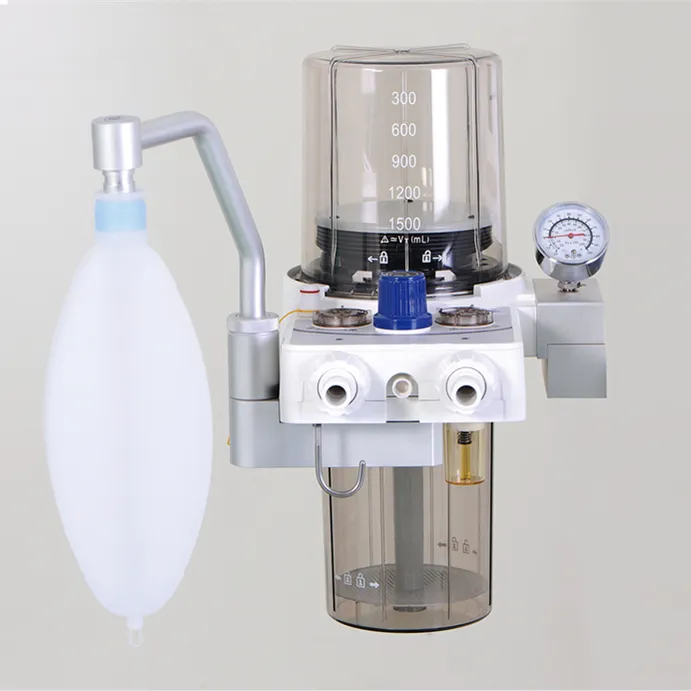

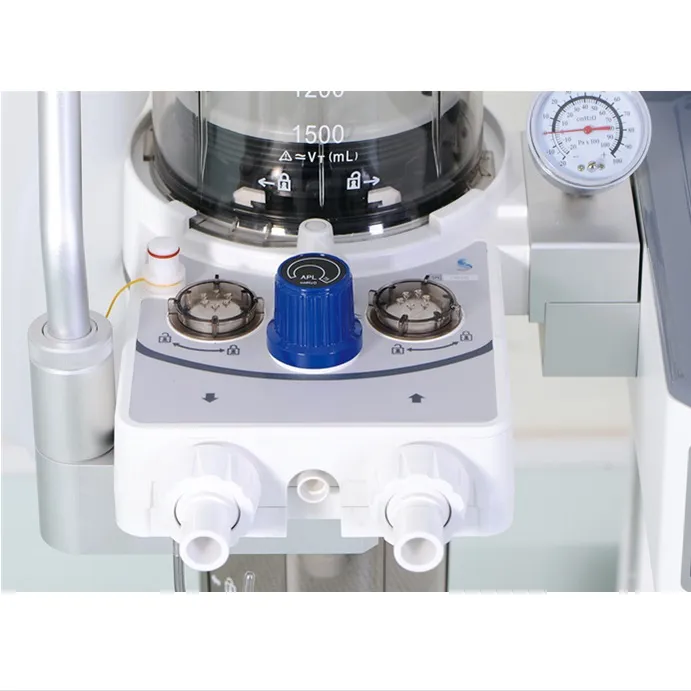

3. Integrated breathing circuit design, ensure easy operating and keep tidy.

4. Multiple working modes such as volume control and pressure limit, adapt to wide range patient.

5. Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety.

6. Multiple parameters monitoring interface, make every parameter clear, let users know the patient

conditions in all aspects.

7. Pressure-time, low-time loop oscillogram and high precision ETCO2, O2 concentration show in real

time.

8. Vital sign monitor and anesthetic gas monitor are optional.

9. ETCO2 module and Anesthesia Gas Scavenging System (AGSS) are optional.

High Quality Hospital Anesthesia Equipment Medical Device

Specifications

Ventilation modes:	IPPV; A/C; PCV; SIMV; SIGH;MANUAL
Flometer	O₂, AIR , N₂O
Rapid oxgen supply	25L/Mmin-75L/min
P-T	Pressure - Time
F-T	Flow - Time
Tidal volume	20-1500ml
Alarm and protection
The AC power failure alarm	Power failure or no connection
Internal battery backup low voltage alarm	<11.3±0.3V
No tidal volume	≤5Ml within 6s
High oxygen concentration alarm Low oxygen concentration alarm	19%-100% 18%-99%
High Airway pressure alarm Low Airway pressure alarm High Minute Volume alarm Low Minute Volume alarm Continuous Pressure alarm	20cmH2O-100cmH2O 0cmH2O-20cmH2O Adult(5L/min-20L/min) Paed(1L/min-15L/min 0-10L/min) (PEEP+1.5kPa) over 16s
Suffocation warning	5s-60s no spontaneous ventilation
The maximum limited pressure	<12.5 kPa
Fan error Oxygen deficit	Show on screen Show on screen
Working conditions
Gas source	O2,N2O,AIR
Pressure	280kPa-600kPa
Voltage	100-240V
Power frequency	50/60Hz
Input power	85VA
Vaporizer

Anesthesia gas	Adjustable scope % (volume percentage)
Halothane		0 ~ 5
	Enflurane		0 ~ 5
	Isoflurane		0 ~ 5
	Sevoflurane		0 ~ 8

packaging&shipping
Size
Wooden case packing size:L 920*W 970*H 1380mm , GW:156KG ; NW:102KG
High Quality Hospital Anesthesia Equipment Medical Device

our service

Good quality products with high technology and stable performance--We have the first batch engineer for ICU equipment in China.
Enough choices for customer--Our machine have different range from common level to high level.Every product series have at least 3 choices.
Maximize your benefit--We are manufacturer, so the price we give you is the first hand price,it can protect your benefit and your competitiveness in your market.
Fast delivery time--We locate in Nanjing which is very close to Shanghai, whenever you need the products, it will only spend one day to Shanghai port.
Great support to our customer--We will give 5-10 catalogs with small gift once you give order to us,everything will be delivered with products together.By the way,we can do OEM service for you for free if you need.

Our business line:
Anesthesia System
Nitrous Oxide Sedation system
CPAP system
Ventilator
Sleep Therapy System
