Hot Selling Medical Anethetic Systems Cwm-302

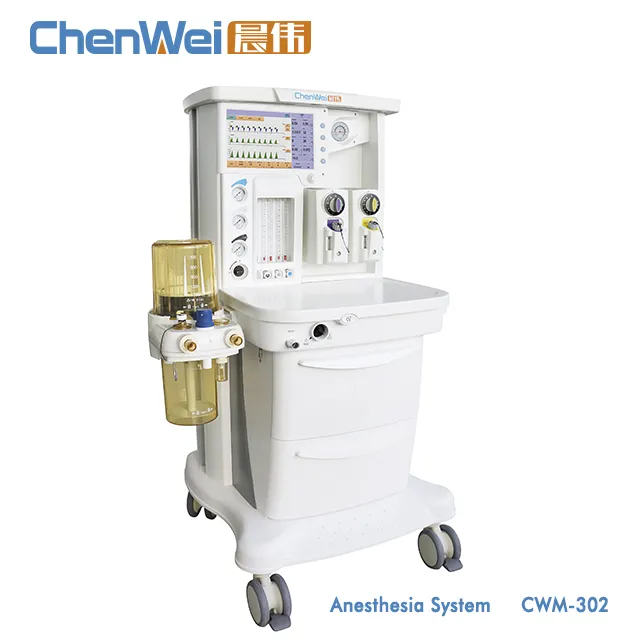

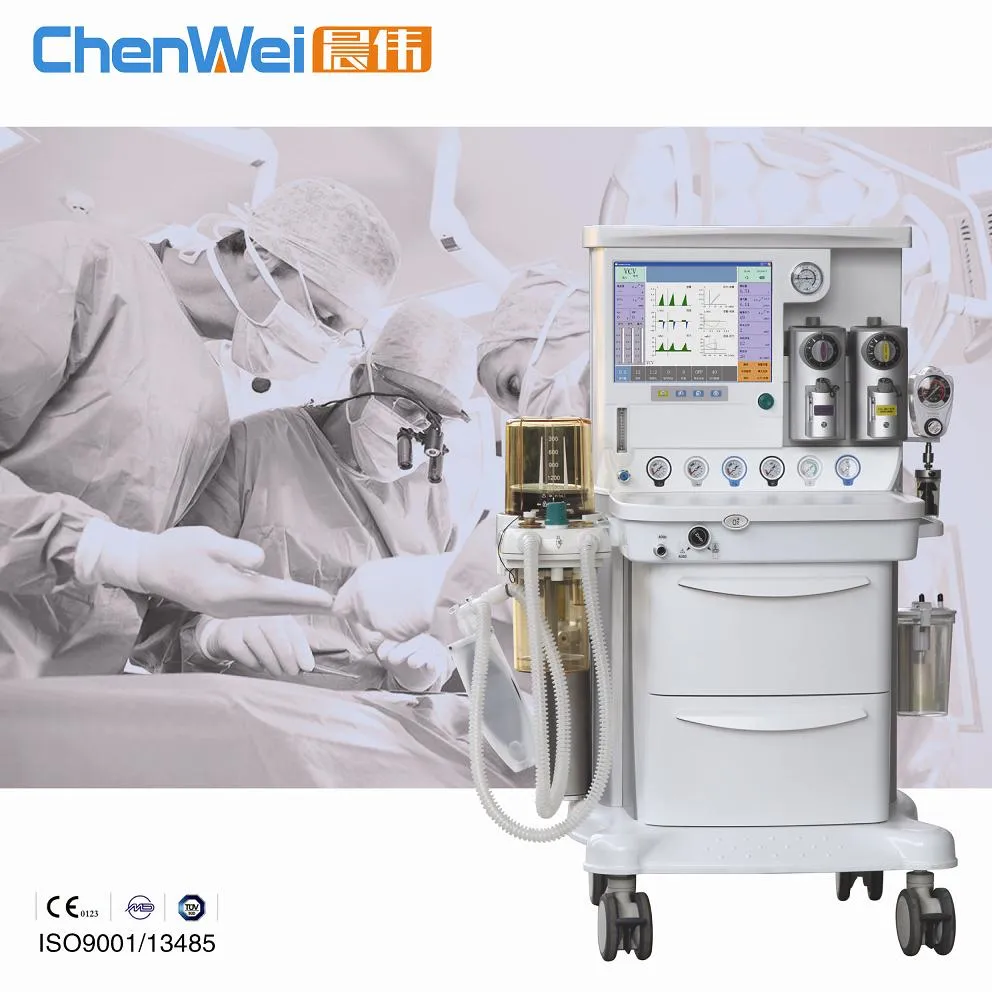

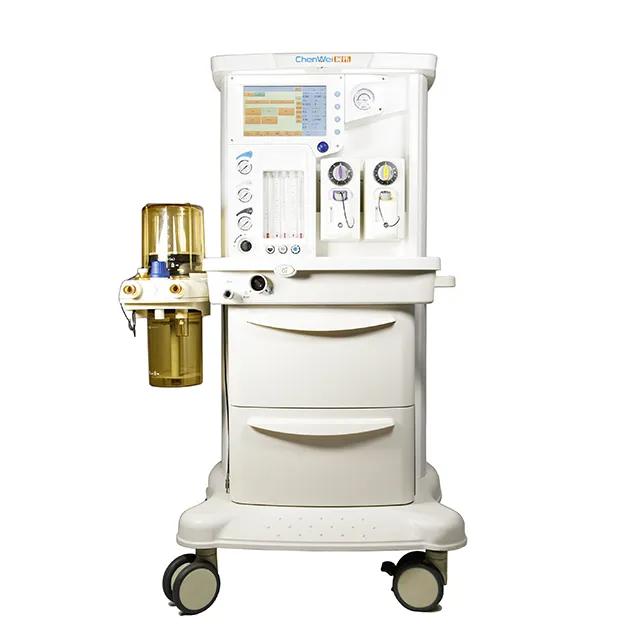

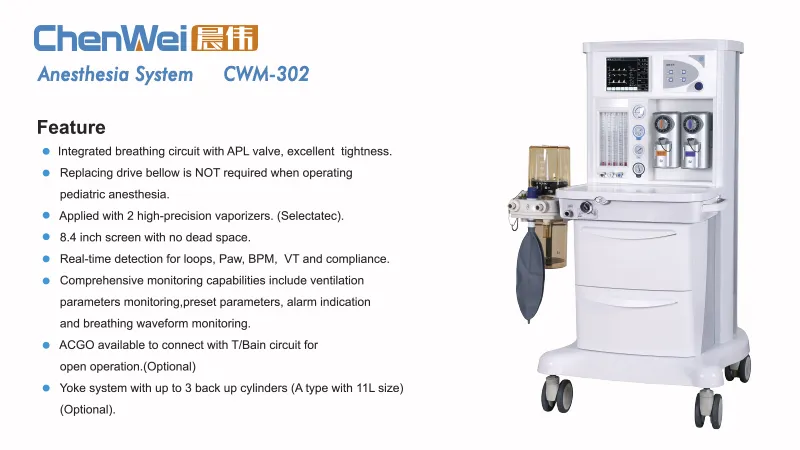

Anaesthesia Machine (CWM-302):
Applied for closed, semi-open inhalation anesthesia, controlled or assisted ventilation, monitoring and displaying patients' ventilation parameters
Applied for adult and child
APL valve is available
Good air tightness, easy to be operated, cleaned and disinfected
With concentration precisely controlled temperature, flow and pressure compensation technology
Optional imported vaporizers of isoflurane, enflurane and sevoflurane are provided as required
With gas driven and electrical control, color LCD screen displaying sorts of monitoring parameters

Main specification:

Power: 220V AC ± 10%, 50Hz ± 2%, built-in battery for backup
Gas: O² , N² O, air
Oxygen flush: 25 to 75L/minute

Ventilation modes: IPPV, SIGH, SIMV, pressure, PEEP, manual (optional: Standby)
Parameters monitoring: Tidal volume, minute volume, frequency, airway pressure, O² Concentration, lung compliance (optional)
Waveform display: Pressure-time, flow-time, pressure-volume loop (optional: Volume-time, flow-volume loop)
Alarm: Optimal third-class alarm unit, tidal volume too high (low), minute volume too high (low), airway pressure too high (low), apnea, O² Concentration too high (low), low voltage, AC power failure, gas source failure, airway malfunction
Prompt and protection: Prompt for parameter limitations, protection for unreasonable parameter setting.
