Jinling 820 Medical Surgical Equipment Anesthesia Machine for ICU
JinLing 820 Medical Surgical Equipment Anesthesia Machine for ICUFeaturesOperating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-openAnesthesia Ventilator: Built-in 5.7 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms ca......
Send Inquiry
Product Description

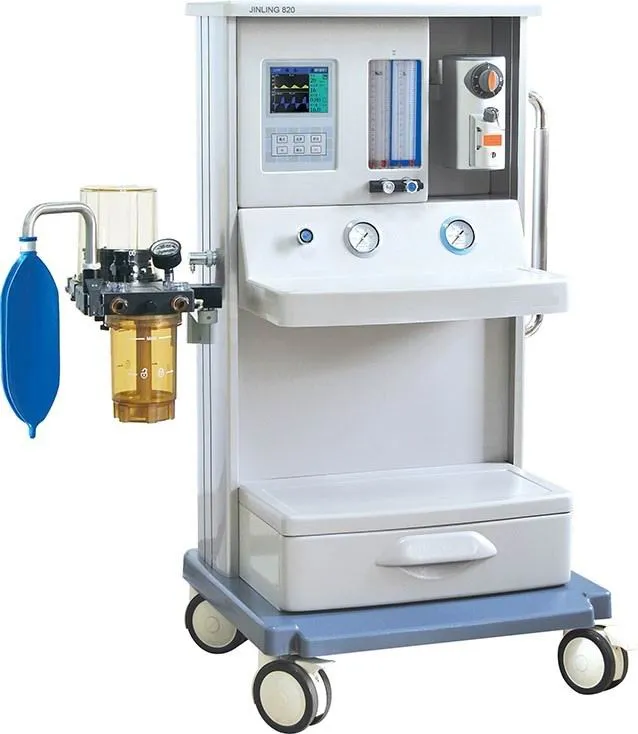

JinLing 820 Medical Surgical Equipment Anesthesia Machine for ICU
FeaturesOperating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 5.7 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
quipped with electronic pressure differential flow sensor, imported respiratory control valve
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Multi-parameter Patient Model: Optional
High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%

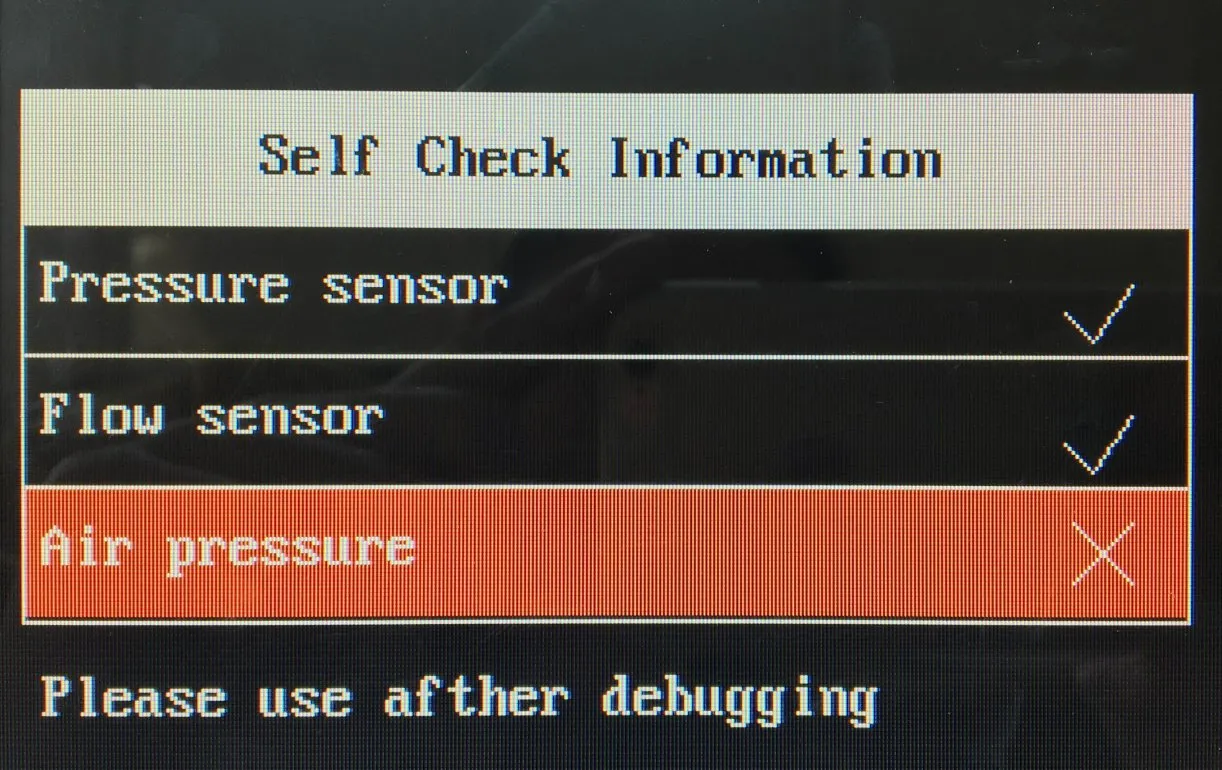

Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
Specifications
| Model | JINLING 820 |
| Display | 5.7 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min |
| N2O: 0.1-10L/min | |
| Ventilation Mode | IPPV, SIPPV, VCV, IMV, SIMV, MANUAL |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable range: 50-1500ml |
| Display range: 0-2000ml | |
| Respiratory Rate | 1-100bpm |
| Inspiratory/Expiratory (I:E) Ratio | 8:1-1:10 (capable of inverse ratio ventilation) |
| PEEP Range | 0-20cmH2O (electronically controlled) |
| Inspiratory Pressure Trigger Range | .-10-10cmH2O (electronically controlled) |
| SIGH | 1 sigh breath in every 80-120 breaths |
| SIMV Rate | 1-20bpm |
| Inspiratory Plateau | 0-1 second |
| Vaporizer Concentration Ranges | 0-5% |
| Vaporizer Slots | Single PA-I type slot |
