Jinling-850 ICU Medical Anesthesia Machine, Surgery Anaesthesia Equipment
JINLING-850 ICU Medical Anesthesia Machine,Surgery Anaesthesia EquipmentCommon Features Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-openAnesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressu......
Send Inquiry
Product Description
JINLING-850 ICU Medical Anesthesia Machine,Surgery Anaesthesia Equipment
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Monitor: Optional
Specifications
Product Show
Standard Model
Advanced Model
FAQ
I) What is your Minimum Order Quantity?
Our Minimum Order Quantity (MOQ) is generally 1 unit. The exception however is that for certain items (e.g. wires, gloves or tubing) the MOQ may vary. Feel free to contact us to get a exact MOQ for your product.
II) Which payment methods do you accept?
We accept most forms of monetary payment such as bank transfer, T/T, direct transfer, L/C and Western Union. Please get in touch with one of our sales managers to check if your payment option is acceptable.
III) What is your shipping & delivery time?
Once we have confirmation of your order & payment, we normally ship within 5 working days.IV) What product guarantees do you offer? All our products are Alibaba Trade Assured which means that your order will be fully protected. Hence if we fail meet product quality obligations or fail to ship on time, Alibaba will refund your payment.
V) Which certifications do you have?
Most of our products are CE, ISO and RoHS certified, some medical equipment also have FDA approval.
VI) Can I place my company logo on your product?
Yes, baring a few exceptions. Please check with our sales team before applying.
VII) What after sales services do you provide?
We offer technical, customer service & troubleshooting support for most of our products. Therefore if you have problems with any of our products, please contact us anytime and we will do our best to help.
VIII) How long is your warranty period?
We typically offer 12 months warranties for all our products,except some accessories which may have shorter warranty periods. Please check with our sales managers for the specific warranty period of your product.
Perlong Medical Equipment Co., Ltd.
Add.: Room 2807, Qinghua Building, No.120 Hanzhong Road, Nanjing 210029 China
http://perlong.en.made-in-china.com
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 8.4 inch color TFT display, able to display Pressure-Time, Flow-Time, Pressure-Volume and Flow-Volume, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Equipped with electronic pressure differential flow sensor, imported respiratory control valve, stable and reliable, rapid response time
High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, oxygen concentration, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Monitor: Optional
Specifications
| Model | 850 (Standard Model) | 850 (Advanced Model) |
| Display | 8.4 inch TFT display | 10.4 inch TFT display |
| Flowmeter Range | O2: 0.1-10L/min | |
| N2O: 0.1-10L/min | ||
| Air: 0.1-10L/min | ||
| Ventilation Mode | IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby | IPPV, SIPPV, VCV, PCV, IMV, SIMV, MANUAL, Standby |
| Back-up Power Supply | At least 4 hours | |
| Tidal Volume | Adjustable range: 20-1500ml | |
| Display range: 0-2000ml | ||
| Respiratory Rate | 1-100bpm | |
| Inspiratory/Expiratory (I:E) Ratio | 8:1-1:10 (capable of inverse ratio ventilation) | |
| PEEP Range | 0-20cmH2O (electronically controlled) | |
| Inspiratory Pressure Trigger Range | .-10-10cmH2O (electronically controlled) | |
| SIGH | 1 sigh breath in every 80-120 breaths | |
| Inhaled Oxygen Concentration Monitor | 21-100% | |
| SIMV Rate | 1-20bpm | |
| Inspiratory Plateau | 0-1 second | |
| Vaporizer Concentration Ranges | 0-5% | |
| Vaporizer Slots | Double PA-I type slots | |
Product Show

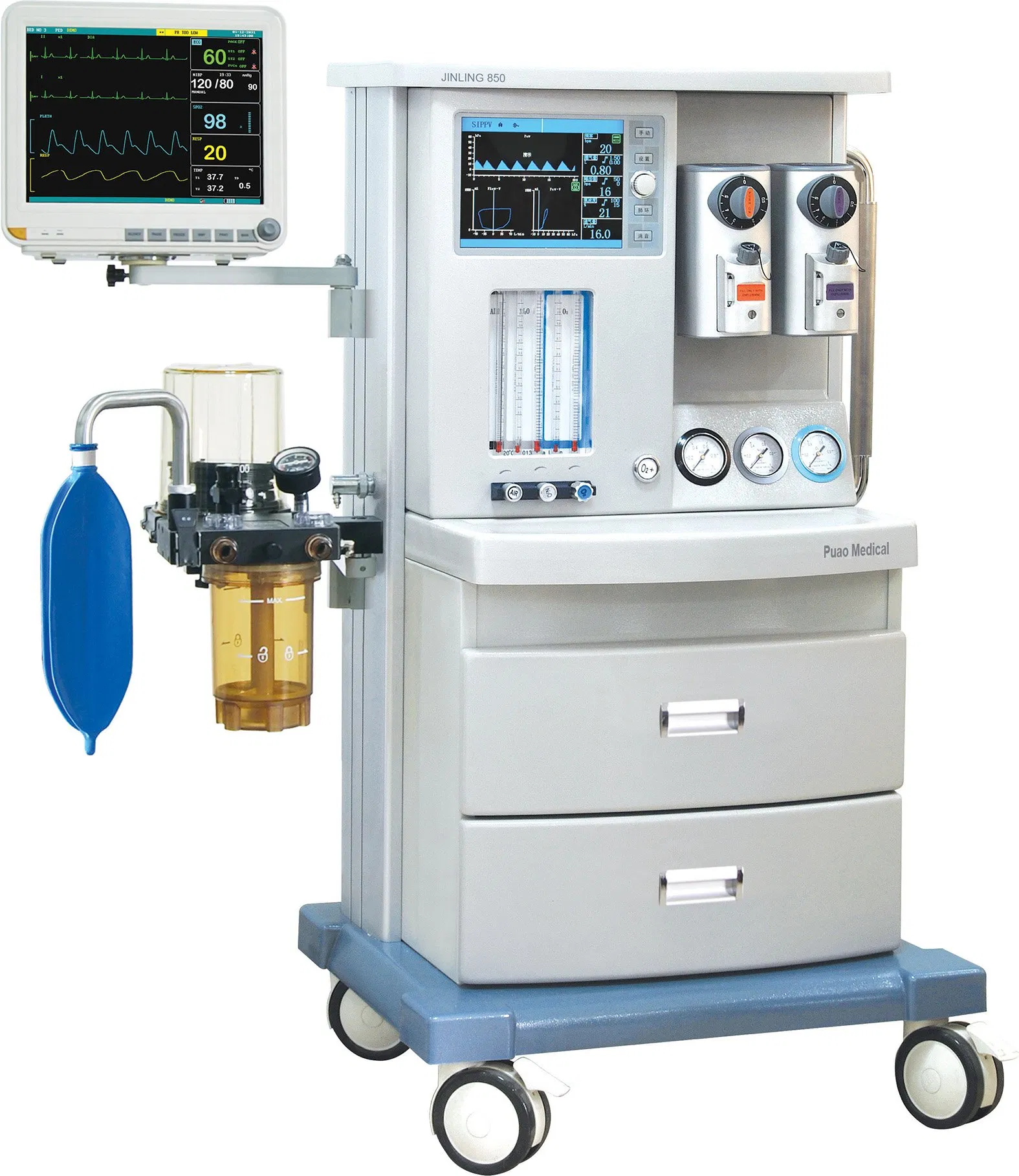

Standard Model
Advanced Model
| Name | Perlong |
| MOQ | 1 pc |
| Warranty | 1 year |
| Package | One piece one carton |
