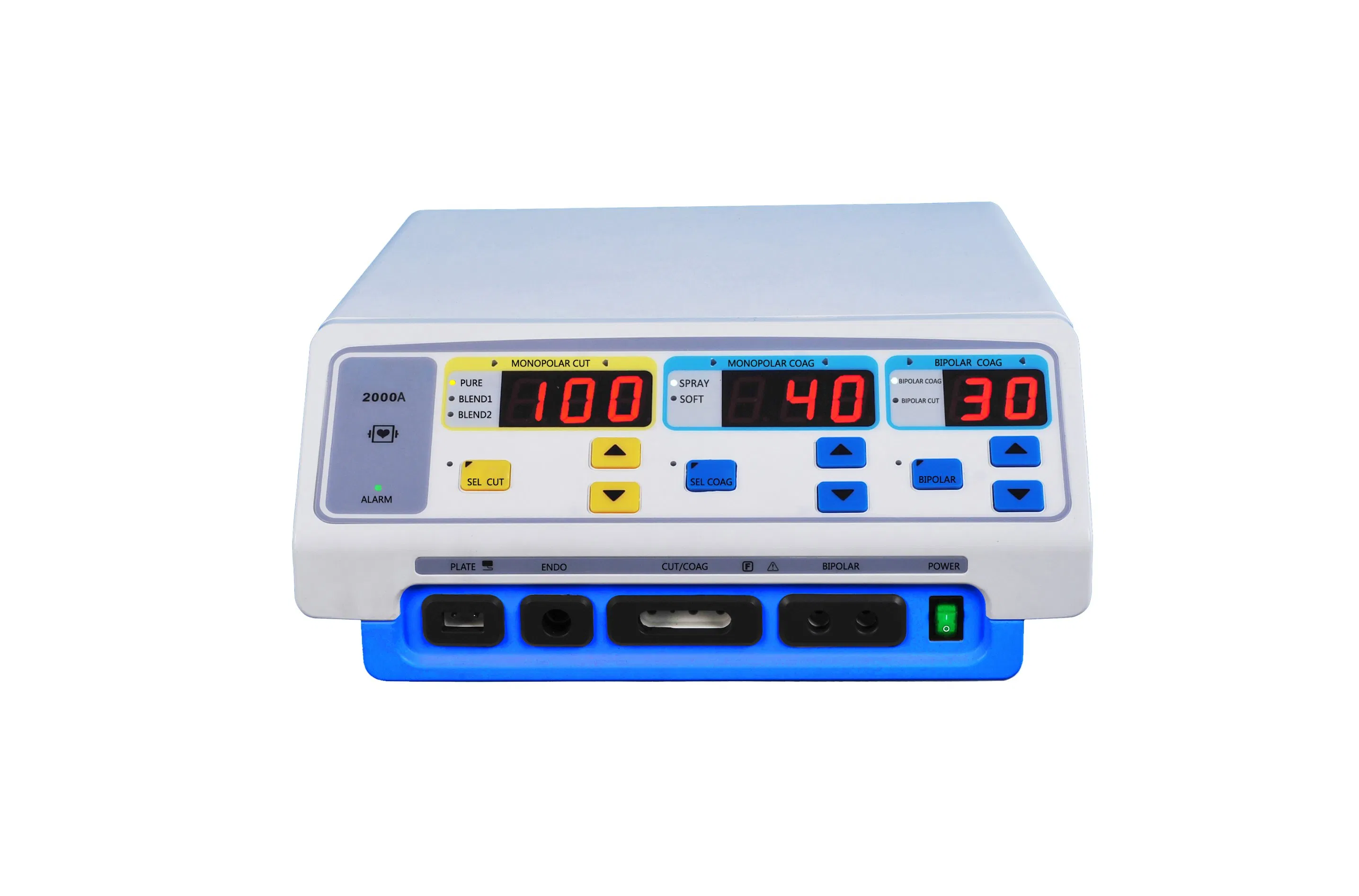

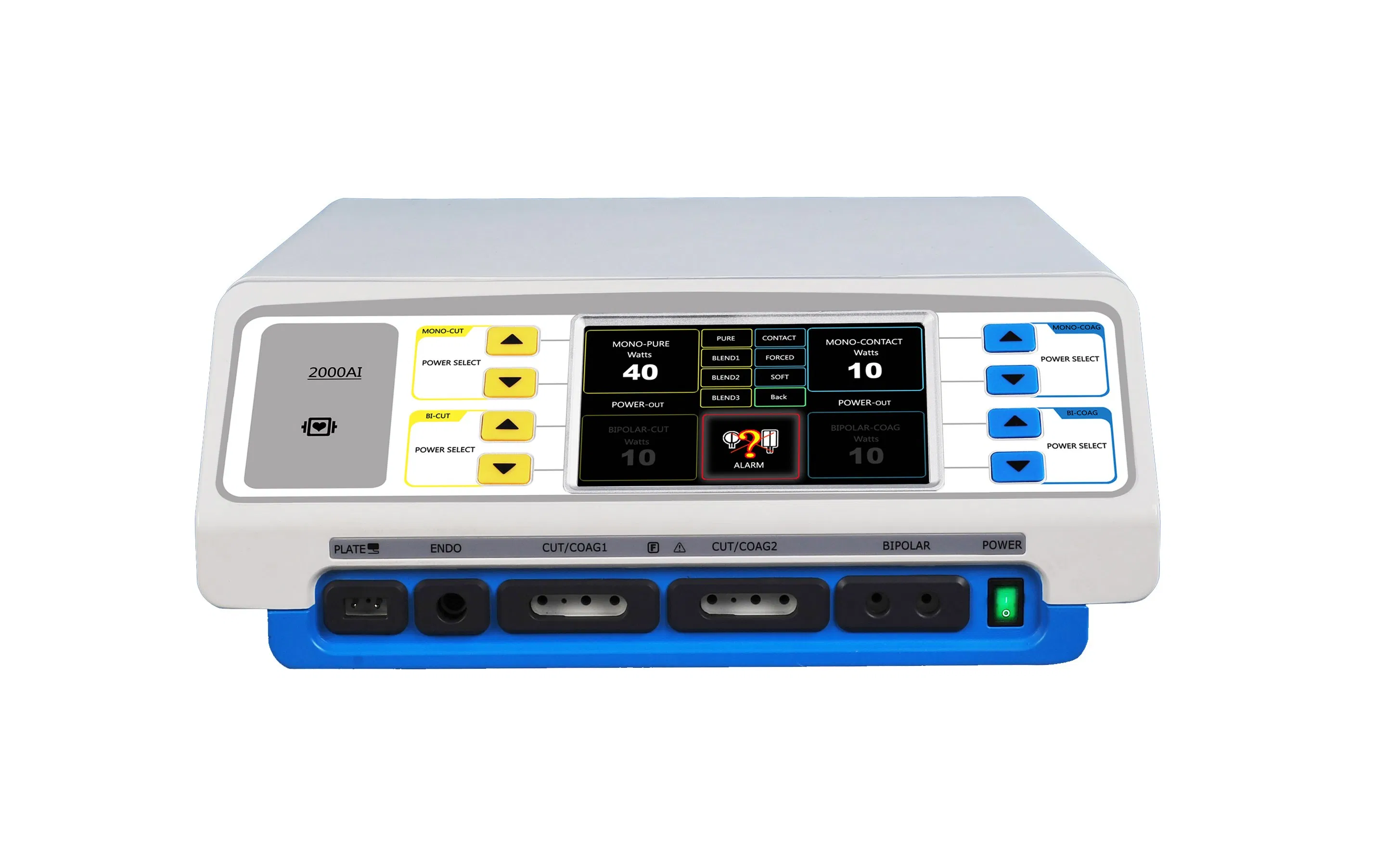

Med- Esu -Leep-5 Leep Five Working Modes, Electrosurgical Unit China

Med-Esu-Leep-5 Leep Five Working Modes,electrosurgical unit china

Model:MED-ESU-LEEP-5


Features for Med-Esu-Leep-5 Leep Five Working Modes,electrosurgical unit china

1. Microcomputer control
2. The generator adopts LEEP which specializing in
gynecological intrauterine event, increasing the accuracy,
controllability, security of the surgery.
3. Dealing with some kinds of pathological changes in
obstetric and gynecology,   for example, cutting, electrocoagulation,
cervical erosion, and some kinds of surgery that fit in peritoneoscope.
 4. Different electrodes have different effects in coagulation.

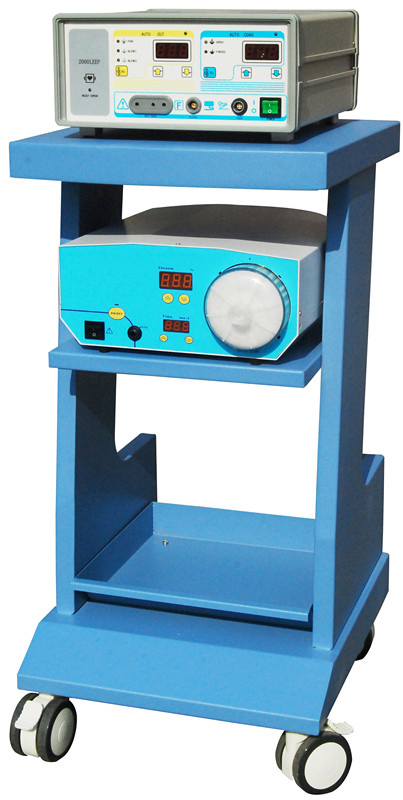

5. An optional smoke evacuation system is available.
6. Paticular illuminating ESU pencil can increase the clarity of
wound healing.

Technical Specifications:
Power: 220V±22V(110V±11V), 50Hz±1Hz
Operating frequency: 360~460kHz
Power rating: 880VA±10%

Five working modes:
 Monopolar Cut
a) Cut1 (pure cut): 1W~200W( Load 500Ω)
b) Cut2 (Blend1): 1W~150W(Load 500Ω)
c) Cut3 (Blend2): 1W~100W (Load 500Ω)

Monopolar Coag
d) Coagulation1(Spray Coag): 1W~120W( Load 500Ω)
e) Coagulation2(Forced Coag): 1W~80W( Load 500Ω)
 Power Consumption : <=880VA(Cutting function 200W)

Surgical Smoke Evacuation:
blowing rate: 100 l/min @ 6mm tube
Noise: <60dB(A)
Start Control: Manus/Foot/Synchronize
Suction Adjust: 10%-100%
Stop delay time: 0-60s
AC Power: AC90~250V, 50Hz
Power consumption: < 350W
Filter Characteristics: 99.999% @ 0.1-0.2μm
Active Carbon: 97% @ 1 year

Packing List:
