Medical Equipment Jinling 01b ICU Anesthesia Machine for Surgical Room

Product Description

Medical Equipment JinLing 01B ICU Anesthesia Machine for Surgical Room

Professional Anesthesia Machine Customer Favourite Hospital Surgical Enconomic Type Mobile Anesthesia

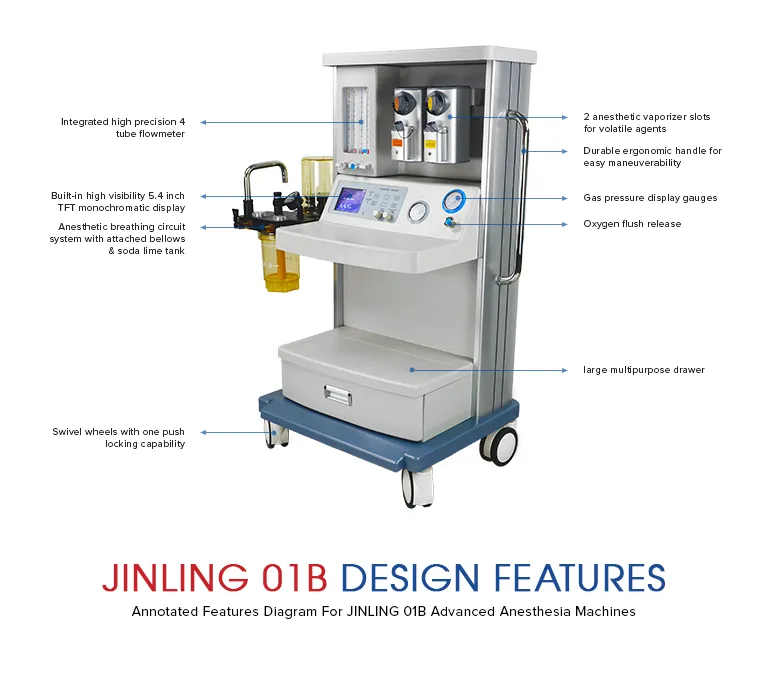

Features
1-Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open

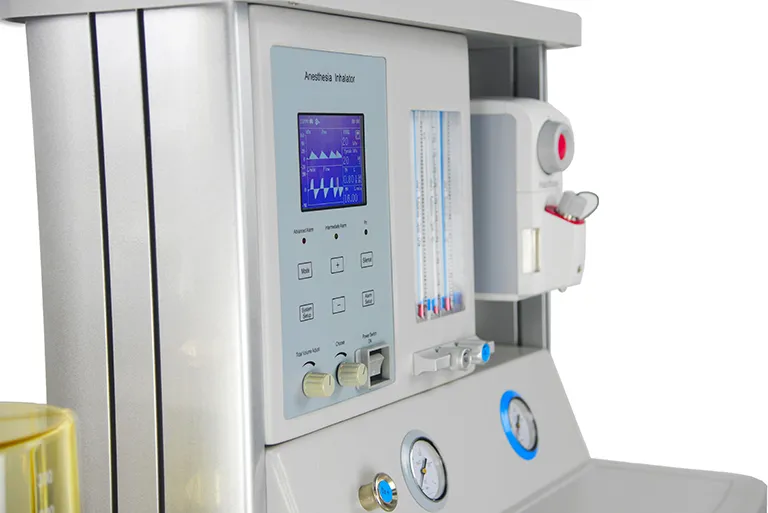

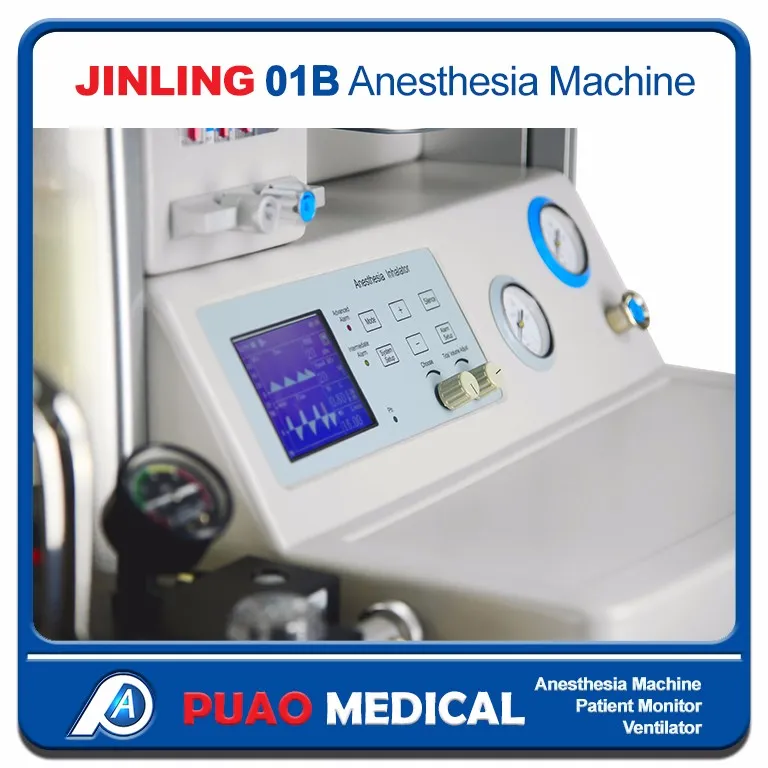

2-Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
3-Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
4-Equipped with electronic pressure differential flow sensor, imported respiratory control valve
5-Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
6-High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
7-Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
8-Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
9-Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
10-Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
Optional: Multi-parameter Patient Monitor

Specifications

Model	JINLING -01B advanced model
Display	5.4 inch TFT display
Flowmeter Range	O₂: 0.1-10L/min
Flowmeter Range	N₂O: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
Tidal Volume	Display range: 0-2000ml
Respiratory Rate	1-99bpm
Inspiratory/Expiratory (I:E) Ratio	4:1-1:10 (capable of inverse ratio ventilation)
Oxygen Supply Flow Rate	25~75L/min
Inspiratory Pressure Trigger Range	-10-10cmH₂O (electronically controlled)
SIGH	1 sigh breath in every 80-120 breaths
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Double PA-I type slot
