Medical First Aid Biphasic Defibrillator with Monitor Dm-8000b
Medical First Aid Biphasic Defibrillator with Monitor DM-8000BTechnical specifications 1) Defibrillator type: Manual, Synchronized, Asynchronized 2) Energy accuracy : +1%3) Energy selection: 0, 20, 50, 100, 160, 250......
Send Inquiry
Product Description

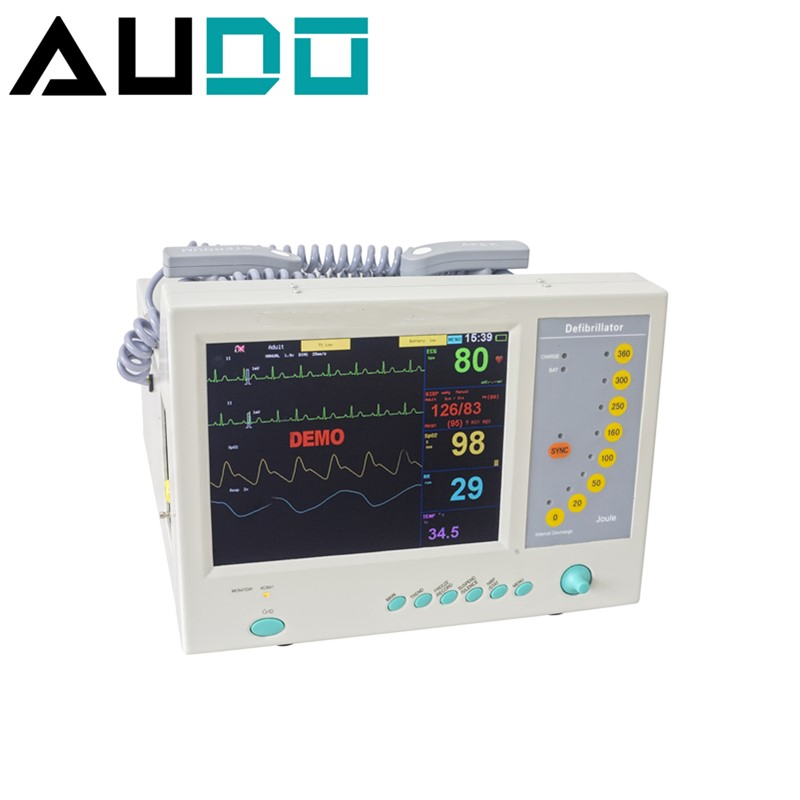

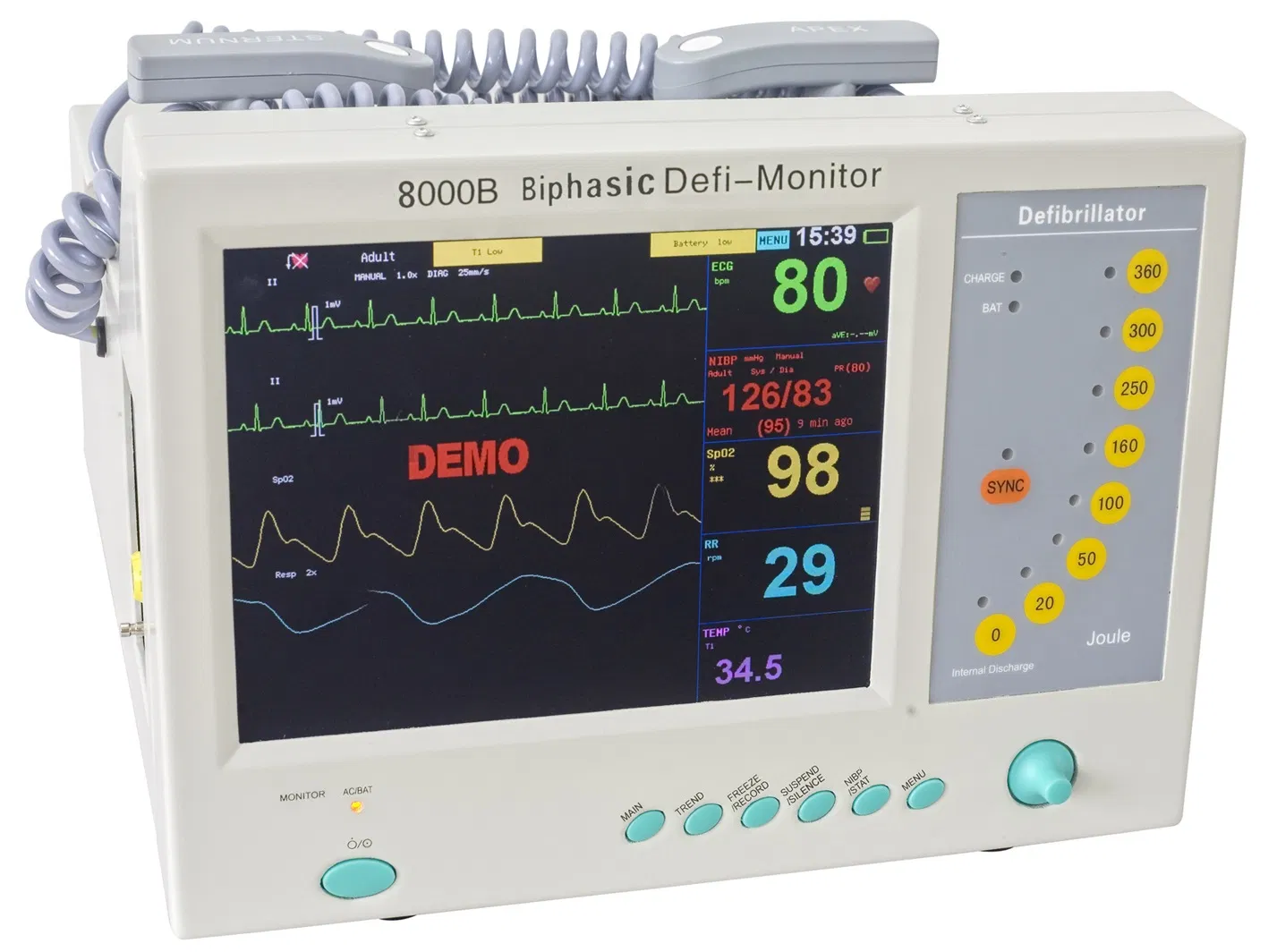

Medical First Aid Biphasic Defibrillator with Monitor DM-8000B
Technical specifications
1) Defibrillator type: Manual, Synchronized, Asynchronized
2) Energy accuracy : ∠+1%
3) Energy selection: 0, 20, 50, 100, 160, 250, 300, 360 joules (nominal at a resistance of 50)
4) Charging time: Maximum 10 seconds to 360 Joules
5) Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply 100V~240V, 50Hz/60Hz
(b) Vehicle Voltage (Option) DC 12V
Internal Battery Backup
(1) Battery type: Rechargeable lead-acid battery (12V 2.0Ah X2)
(2) Charging time: Time-Minimum of 4 hours for full charging
(3) Battery charging: During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication: Red LED
(5) Battery Capacity: 100% of the battery will provide 120-min of monitoring; and 35 discharges at 360 joules.
Display
LCD Dimensions 10.4 inch
Type High resolution true-color graphic LCD
Standard parameter & configuration
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45°C
Resolution 0.1°C
Pulse Oximetry (spO2)
Display: Spo2 value, pulse histogram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe: Standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap
Pulse range
Pulse range: 0-255bpm
Technical specifications
1) Defibrillator type: Manual, Synchronized, Asynchronized
2) Energy accuracy : ∠+1%
3) Energy selection: 0, 20, 50, 100, 160, 250, 300, 360 joules (nominal at a resistance of 50)
4) Charging time: Maximum 10 seconds to 360 Joules
5) Standard Adult/Pediatric Paddles: Reusable external adult paddles (pediatric paddles integrated)
Power requirements
(a) AC Power supply 100V~240V, 50Hz/60Hz
(b) Vehicle Voltage (Option) DC 12V
Internal Battery Backup
(1) Battery type: Rechargeable lead-acid battery (12V 2.0Ah X2)
(2) Charging time: Time-Minimum of 4 hours for full charging
(3) Battery charging: During AC Power Supply operation of the device.
(4) Charging /Low Battery Indication: Red LED
(5) Battery Capacity: 100% of the battery will provide 120-min of monitoring; and 35 discharges at 360 joules.
Display
LCD Dimensions 10.4 inch
Type High resolution true-color graphic LCD
Standard parameter & configuration
ECG/ RESP/SPO2/TEMP/PR/NIBP/DEFIBRILLATOR
Optional parameter
Recorder, Li-ion battery (11.1V 4Ah X2)
ECG
ECG lead: I, II, III, AVR, AVL, AVF, V1~V6
S-T segment analysis: -2.0~2.0mv
Arrhythmia analysis: Yes
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Respiration
Measurement method: Thoracic impedance
NIBP
Working mode: Manual/Automatic/stat
Method: Automatic oscillation
Cuff type: standard Adult; optional Pediatric/Neonatal
Temperature
Measurement range 20~45°C
Resolution 0.1°C
Pulse Oximetry (spO2)
Display: Spo2 value, pulse histogram, waveform, Pulse
Range: 0~99%for adult, pediatric and neonatal patients
Probe: Standard adult finger clip
Optional pediatric Y-type clip and neonatal wrap
Pulse range
Pulse range: 0-255bpm
| Physical characteristics | |
| Main unit | Desktop |
| Dimensions | L410xW360xH260 |
| Weight | 12kg |
