Product Description

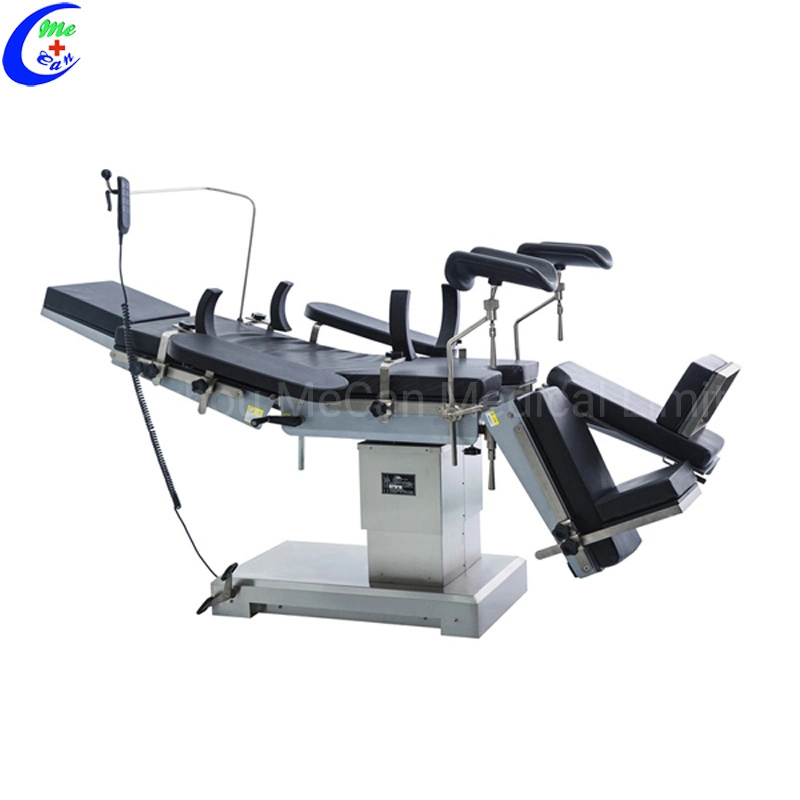

Medical Multifunctional Electric Stainless Steel Orthopedic Surgical Operation Table
Model: MCS-OT32
>> What is detail of our Stainless Steel Operating Table?
Our electric operating table is used for general surgery, heart and kidney, orthopedics, neurosurgery, gynecology, urology and other surgery. It's driven by low-voltage DC motor with advanced backup power, safe and reliable. The leg board can open and is removable. The base cover is made of stainless steel, slushing and easy to clean.

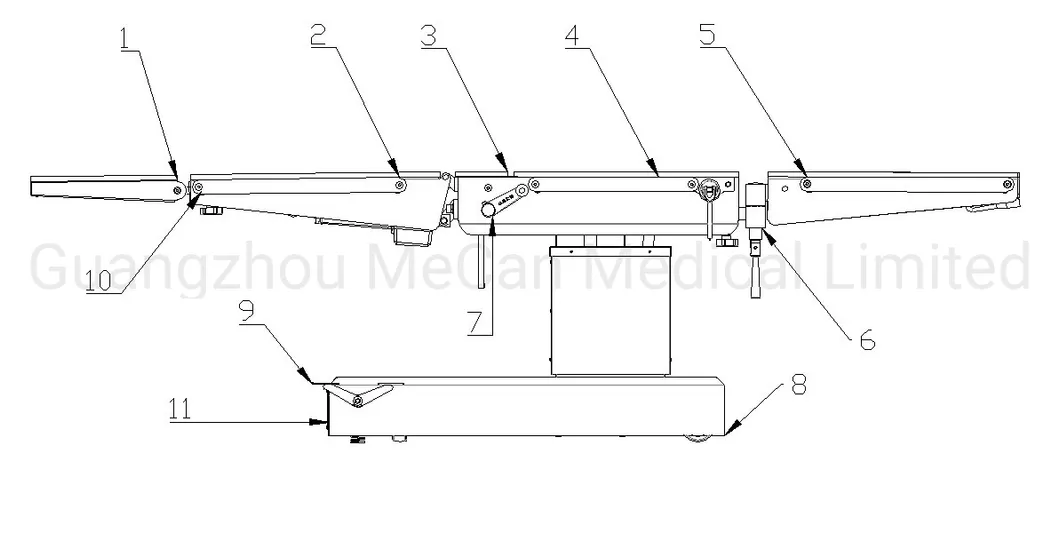

1.Headboard
2.Backboard
3.Waistboard
4.Seatboard
5.Legboard
6.Lock
7.Handle
8.Base
9.Brake
10.Guide
11.Power switch
>> What is specification of our surgical operation table?
| Size of the table top | 2000 mm×480 mm |
| Lifting range | Min≤550mm Max≥800mm |
| Tabletop lean forward | ≥ 20° |
| Tabletop lean backward | ≥ 25° |
| Tabletop lean left and right | ≥ 20° |
| Backboard folding up | ≥ 45 |
| Backboard folding down | ≥ 20° |
| Headboard folding up | ≥ 30° |
| Headboard folding down | ≥ 90° |
| Legboard folding down | ≥ 90° |
| Legboard open | ≥ 90° |
| Supply voltage | 220V±22V |
| Frequency | 50Hz±1Hz |
| Input power | 600VA |
| Weight | 180kg |
| Working mode | Short-term load continuous operation |
| Equipment category | Non AP / APG equipment |
| Enclosure rating | IPX4 |
| Equipment safety classification | I type B |
| Fuse models and specifications | T3AL250V(Φ5×20mm) |

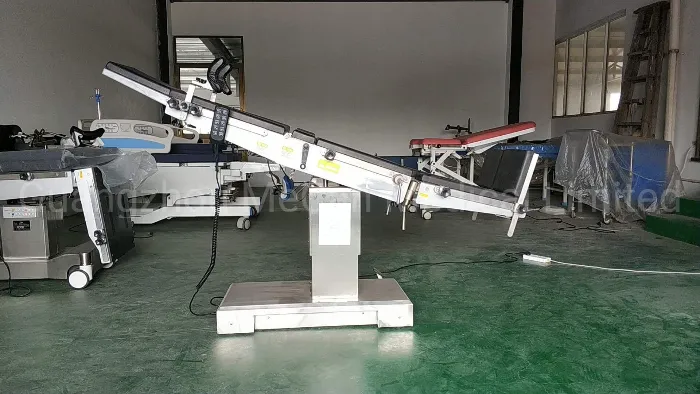

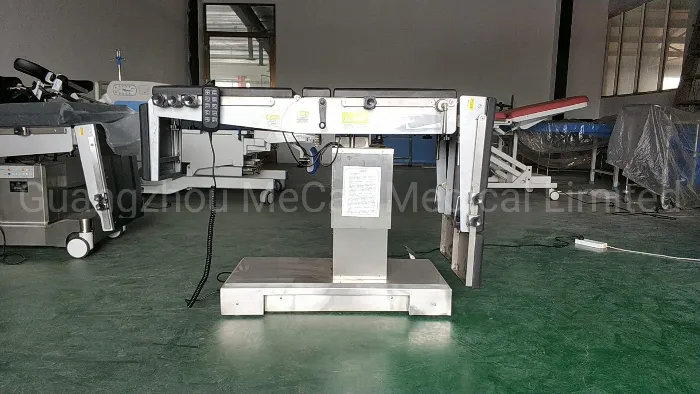

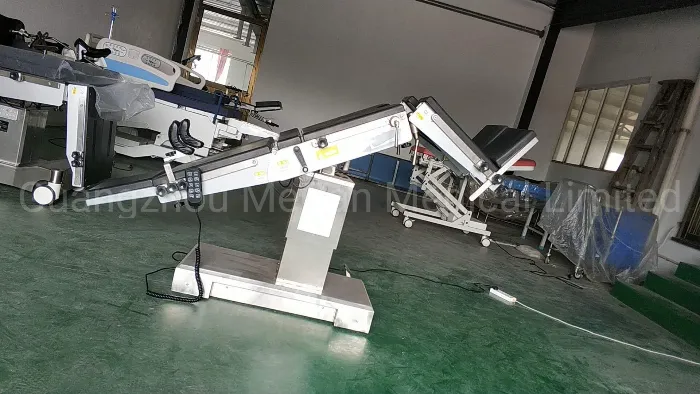

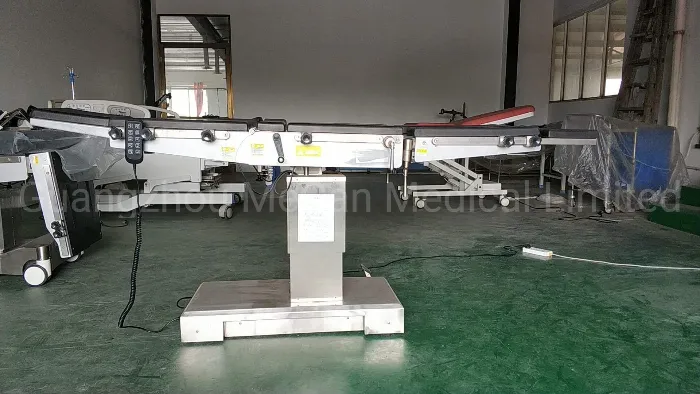

>> More pictures of our Electric surgical operation table

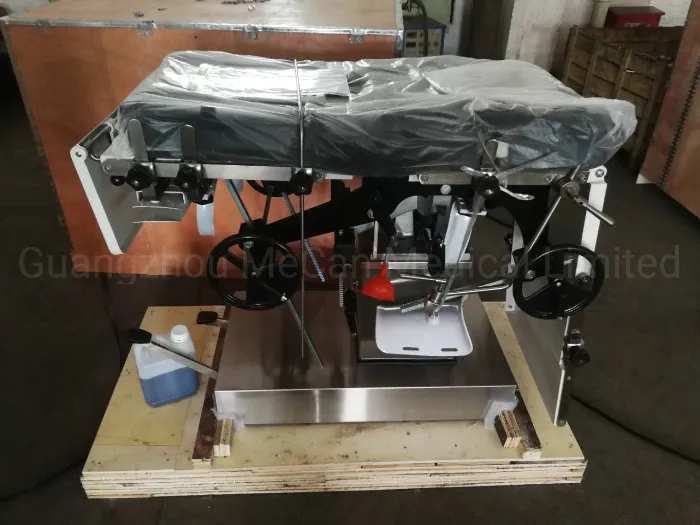

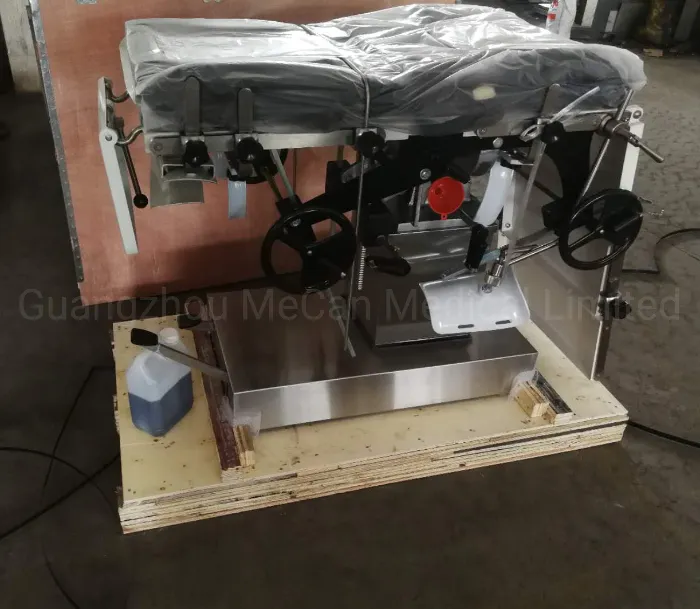

>> Package
