China Medical Portable Feeding Pump High-Precision

Product Description

Overview

Quick Details

Medical Portable Feeding Pump High-Precision

Type:

First-Aid Devices

Brand Name:

Zede

Model Number:

CY-1200L-1

Place of Origin:

Jiangsu, China

Instrument classification:

Class II

Power Source:

Electricity

Product:

Enteral feeding pump

Certificate:

CE

The range of limiting volume:

0~9999ml

After-Sales Service:

3 years

Accuracy:

≤±3%

Endurance of battery:

6h (flow rate ≤5mL/h)

KVO rate:

0.5 ml/h

Water Proof Level:

IPX4

Color:

Blue, white

Packaging & Delivery

Selling Units:
Single item
Single package size:
27X24X19 cm
Single gross weight:
2.800 kg
Package Type:
Dimension of product : 320mm*132mm*138mm Dimension of Carton : 368mm*218mm*225mm
Lead Time:

Quantity(Units)	1 - 10	11 - 50	>50
Est. Time(days)	7	10	To be negotiated

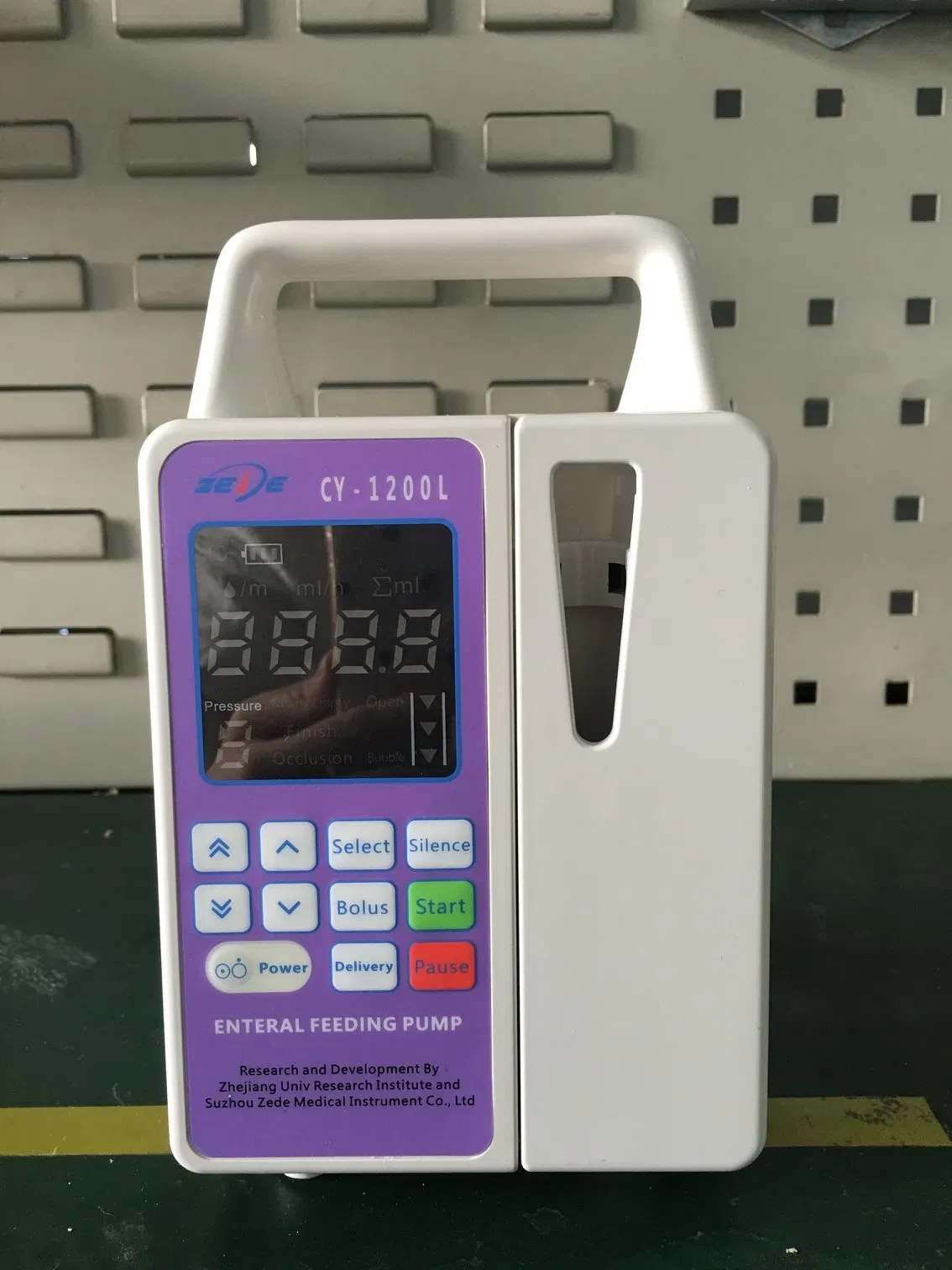

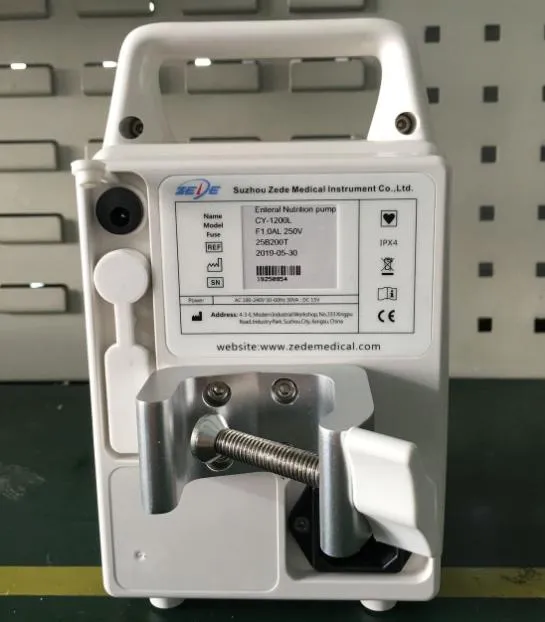

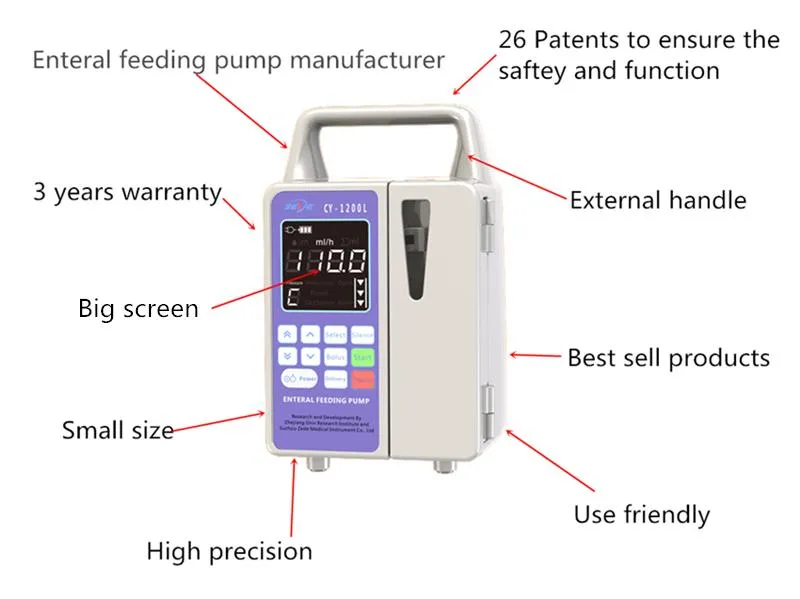

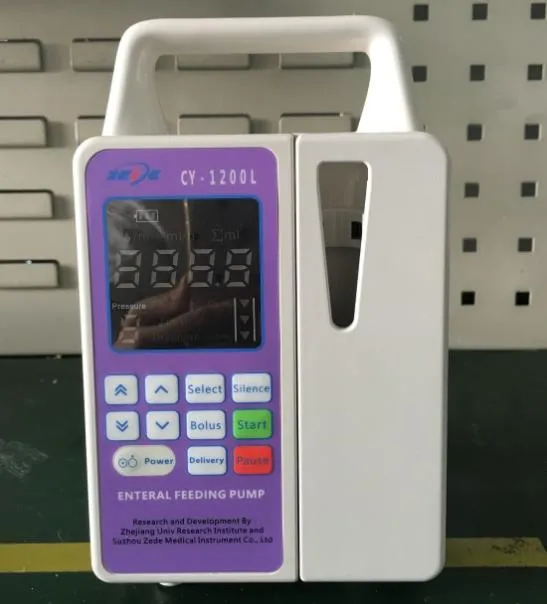

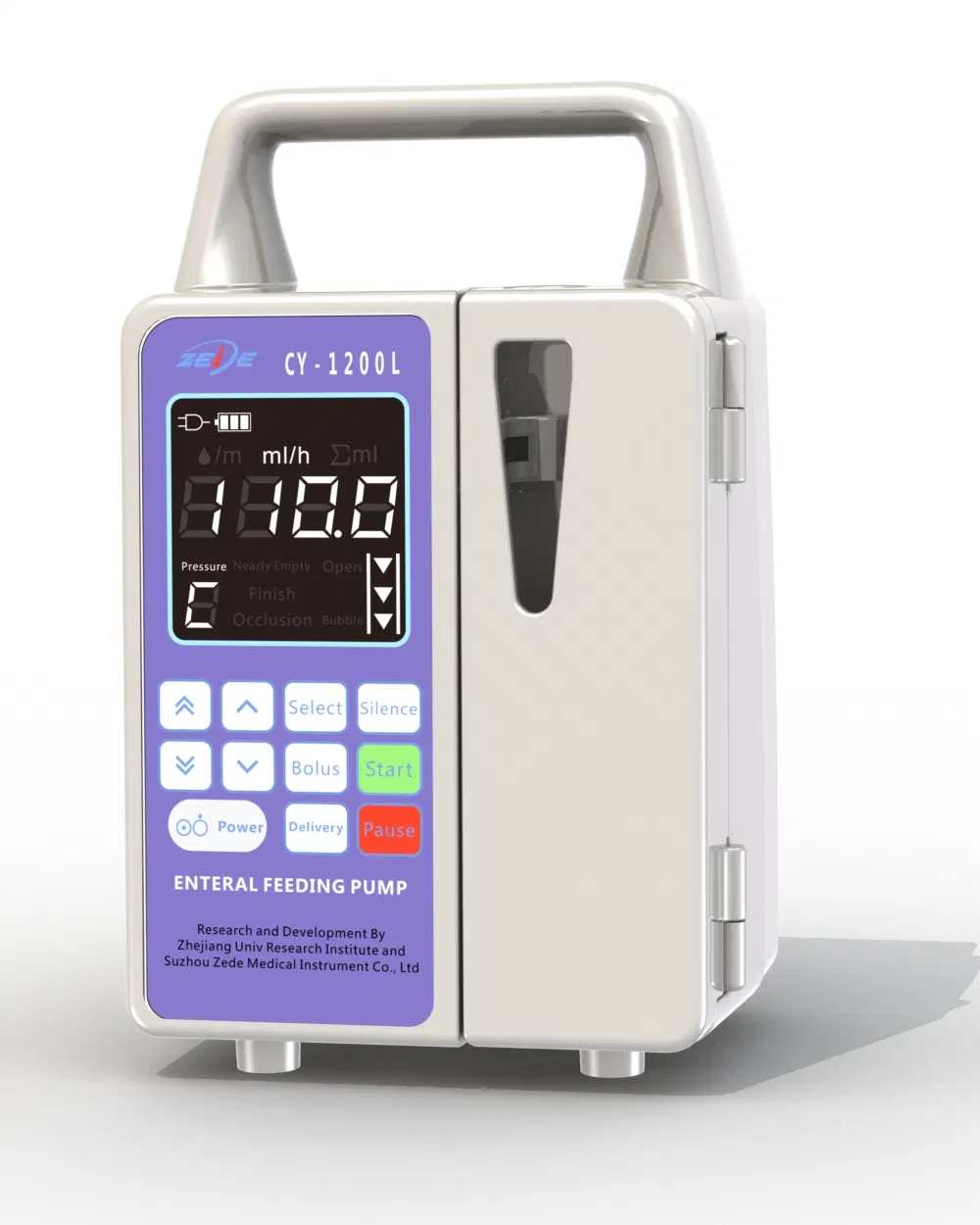

Zede CY-1200L enteral feeding pump medical electric nutrition pump

Product Description

Parameter CY-1200L Enteral feeding pump
Conventional model	15 d/ml infusion set 0.0ml/h~1200ml/h 20 d/ml infusion set 0.0ml/h~1200ml/h 60 d/ml infusion set 0.0ml/h~300ml/h Note:minimum resolution of setting flow rate is 0.1mL/h when rate is above 1000mL/h, the Resolution is 1mL/h.
Drip Mode	15 d/ml infusion set 0 d/min~300 d/min 20 d/ml infusion set 0 d/min~400 d/min 60 d/ml infusion set 0 d/min~300 d/min Note:The minimum resolution dripping speed Settings 1d/min.
Accuracy	≤±3%(Note:Under the condition of the benchmark test, using high elastic silicone iv path accuracy after calibration and commissioning.)
Bubble Detector	Ultrasonic detection method:Bubble above 25ul is detected
Total Infusion Volume	0.0ml-9999ml(0.1ml/h increment,1ml/h increment if over 1000ml/h)
Volume Limit	0.0ml-9999ml(0.1ml/h increment,1ml/h increment if over 1000ml/h)
Occlusion	(H):800±200mmHg (106.7±26.7kPa) (C):500±100mmHg (66.7±13.3kPa) (L):300±100mmHg (40.7±13.3kPa)
History Record	These serial products can maximally store 4500 pieces of history records. The record includes the following information: Date, flow rate, alarm data, total volume delivered, occlusion pressure and syringe brand and serial number.
Alarm	Near empty alarm,Empty alarm,Door open alarm, Bubble alarm,limited value reached alarm, AC power failure,Low battery alarm,Battery empty alarm,Remind alarm,Flow regulator or inlet valve closed alarm (optional)
Power	Supply Voltage:AC100V~240V(±10%),Power Frequency: 50Hz-60Hz Built-in Battery:DC15V Ni-MH battery(It can be replaced by lithium ion battery pack necessary.) Working time of battery:In case the battery is fully charged, the continuous working time can be up to 6 hours at the speed of 25ml/h. Maximum power:30VA;Note:Before the first use of this product, the battery must be charged while being shut down for more than 12 hours.
Working Environment	Temperature:+5ºC-+40ºC Relative humidity:20%-90% Environmental pressure:860hPa-1060hPa
Transport And Storage Environment	Temperature:-20ºC~+55ºC; Atmosphere Pressure:500hPa~1060hPa. products should be stored in the relative humidity in the range of 10% ~ 93%, no corrosion gas indoor and ventilated.
Electric Safety Classification	Class I, CF type,Built-in battery,Continuous operation equipment
Water Proof Level	IPX4
Net Weight	1.6kg(include fastener)
Dimension	155mm125mm200mm
Function
Safety lock for PURGE/BOLUS Standby function Preset occlusion detection pressure level (three levels) Preset Volume To Be Infused Audible and visual alarm (volume adjustable) RS232 interface History data memory		Safety lock for flow rate adjust Tube heating function Bolus release Inquiry of total infused volume Power indicator Vehicle Power Double CPU
Advanced Function
Adjust occlusion detection pressure Adjust KVO rate			Intelligent pressure test Preset maximum value of flow rate Preset system time
