Medical Ventilator Equipment (THR-VT-C17)

Product Description

THR-VT-C17 ventilator is gas driven by medical compressed oxygen and compressed air. In the inspiratory phase, two streams of compressed gas (compressed oxygen and compressed air) flow into a high performance air-oxygen mixer to form a mix of oxygen and air with a certain pressure.

ALL MACHINE UNIT HAS PASS THE CE

The automatic conversion for standby power while AC power outage, keep working not less than 1 hour

Display: 10.4''LCD Display Following Parameters & Real time waveform display

Operating mode and respiratory rate;

--Ventilator control frequency set by medical staff;

--Tidal volume of each breath in the patient;

--Occurrence of spontaneous breath in the patient and spontaneous breathing frequency;

--Expiratory phase and inspiratory phase and actual respiratory rate;

Ventilator Construction:

--Environmental Protection Material construction, hardly to be broken.

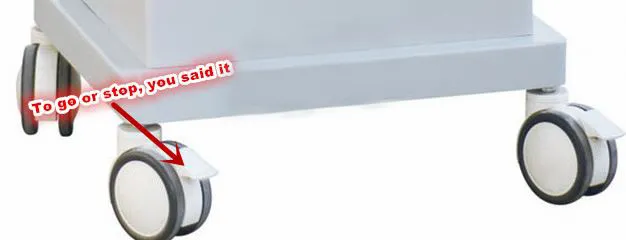

-- Trolly: Fitted with 4 nos anti-static rubber castors; two of which are lockable for braking and easy maneuverability with foot operated brake provisions

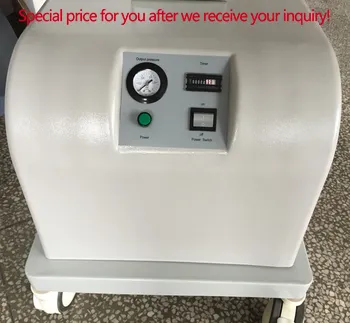

Air Compressor

Power: AC220V + 22 v, 50 Hz + 1 Hz and 300 va has a good reserve of single-phase ac power supply

FUSE :Φ 5 x 20 / F8A

Output gas pressure: 0.3 ~ 0.4 MPa

Output gas minimum flow: ≥50L/Min

Output gas transient flow: ≥100L/Min
