Multifunctional Anesthesia Unit Medical Equipment ( JINLING -01)
JINLING-01 Multifunctional Anesthesia Unit medical EquipmentJINLING-01(Advanced Model)JINLING-01 (Standard Model)Common FeaturesOperating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-openAnesthesia Ventilator: Built-in high visibility, wide angle LED alp......
Send Inquiry
Product Description

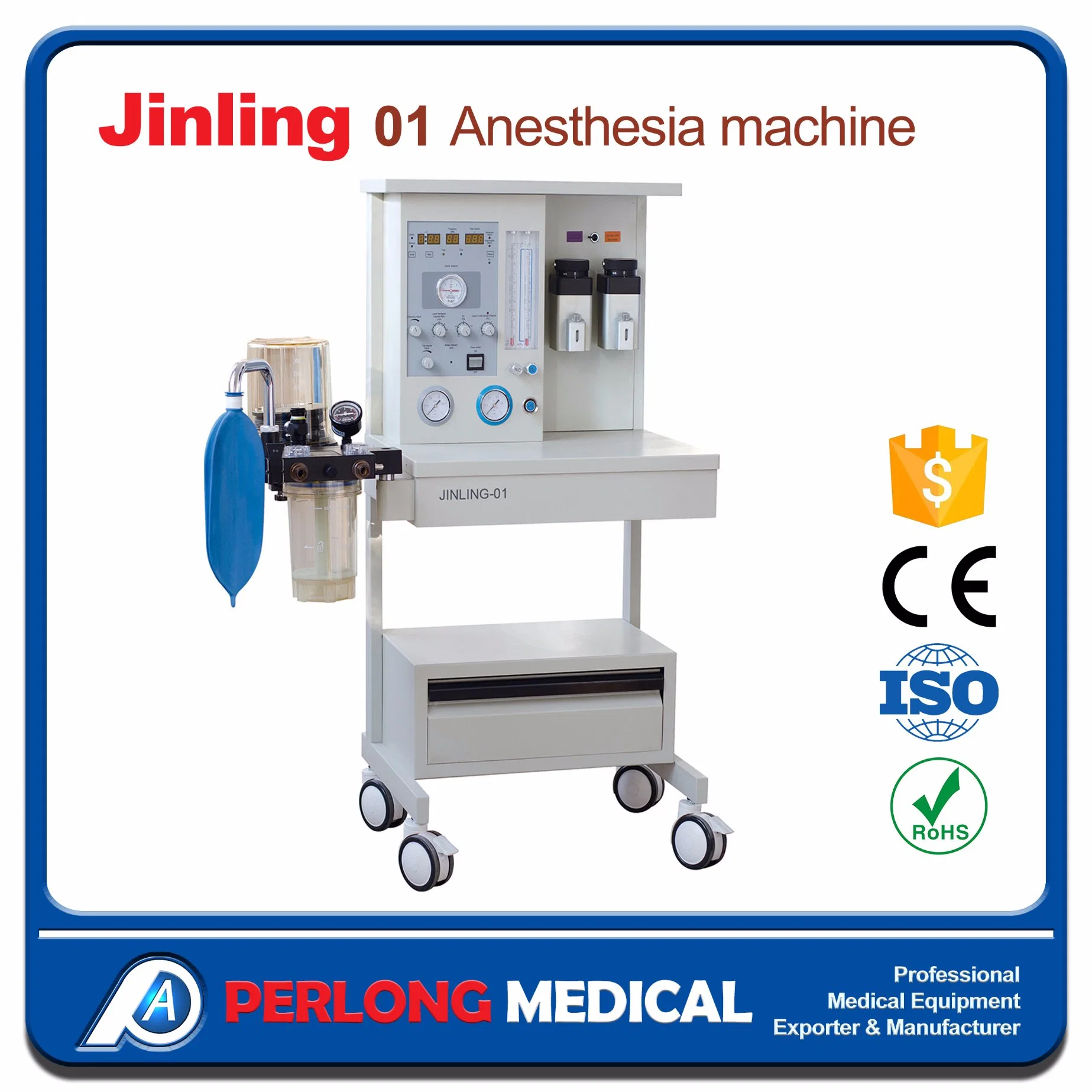

JINLING-01 Multifunctional Anesthesia Unit medical Equipment
JINLING-01(Advanced Model)

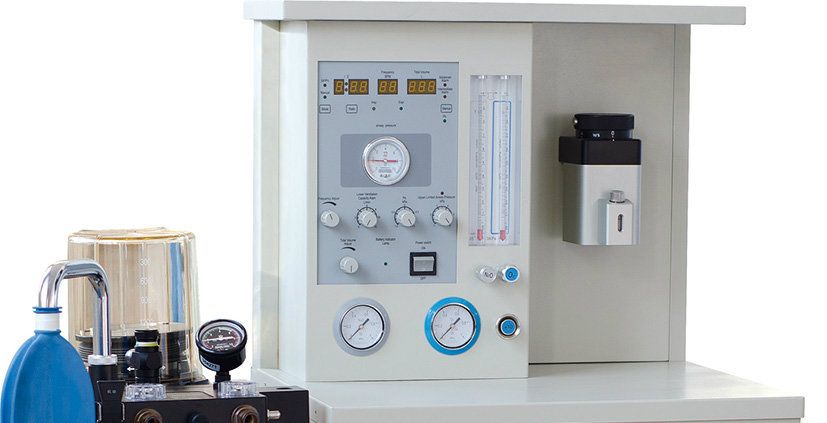

JINLING-01 (Standard Model)
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable

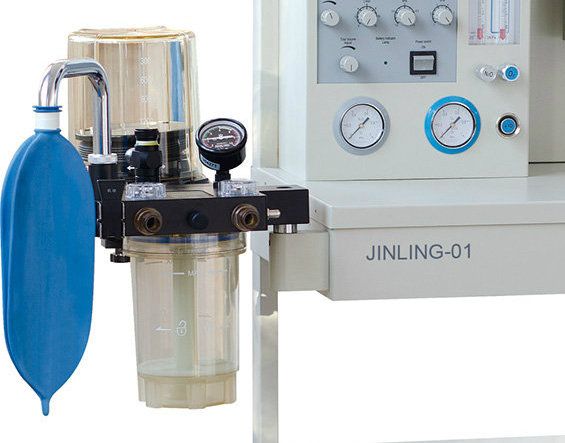

Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Monitor: Optional

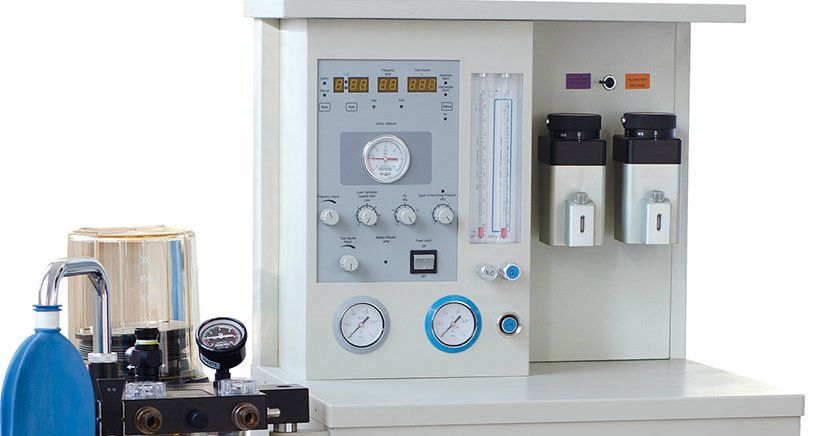

Advanced Model Exclusive Features
Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability
Specifications
About us
Perlong Medical Equipment Co.,Ltd., Seeuco Electronics Technology Co.,Ltd., was founded in Nanjing, China with the goal to supply products with high quality, competitive price and good after-sell service.
As the leading professional manufacturer & exporter of medical equipment, we have established its efficient worldwide network of marketing. In the past years, we have exported our products to more than 130 countries all over the world. We also have established long-term cooperation with WHO.UNICEF and many international organizations.
Our products range covers ICU Equipment, laboratory equipment, X-ray machines, Ultrasound Scanner, ECG, Optoelectronic Equipment, Hospital Furniture, Reagents, and other medical equipments.
Your cooperation with us will definitely create a win-win situation for both of us.
FAQ
I) What is your Minimum Order Quantity?
Our Minimum Order Quantity (MOQ) is generally 1 unit. The exception however is that for certain items (e.g. wires, gloves or tubing) the MOQ may vary. Feel free to contact us to get a exact MOQ for your product.
II) Which payment methods do you accept?
We accept most forms of monetary payment such as bank transfer, T/T, direct transfer, L/C and Western Union. Please get in touch with one of our sales managers to check if your payment option is acceptable.
III) What is your shipping & delivery time?
Once we have confirmation of your order & payment, we normally ship within 5 working days.
IV) What product guarantees do you offer? All our products are Alibaba Trade Assured which means that your order will be fully protected. Hence if we fail meet product quality obligations or fail to ship on time, Alibaba will refund your payment.
V) Which certifications do you have?
Most of our products are CE, ISO and RoHS certified, some medical equipment also have FDA approval.
VI) Can I place my company logo on your product?
Yes, baring a few exceptions. Please check with our sales team before applying.
VII) What after sales services do you provide?
We offer technical, customer service & troubleshooting support for most of our products. Therefore if you have problems with any of our products, please contact us anytime and we will do our best to help.
After-sales Service
All products have a warranty of 12 months. We have special engineer for after-sales service. If any questions during the use, feel free to tell us by email, fax or telephone at any time, we will do our best to support you to keep your market reputation.
Contact information
Sweeney Bu
Perlong Medical Equipment Co., Ltd.
Add.: Room 2807 Qinghua Building, No.120 Hanzhong Road, Nanjing 210029, China
Tel: 86-25-52635350/52635360 ext.9028 Fax: 86-25-52635356
perlong.en.made-in-china.com
JINLING-01(Advanced Model)
JINLING-01 (Standard Model)
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in high visibility, wide angle LED alphanumeric data display
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Fully metallic frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Monitor: Optional
Advanced Model Exclusive Features
Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability
Specifications
| Model | JINLING-01 (Standard Model) | JINLING-01 (Advanced Model) |
| Display | LED | |
| Flowmeter Range | O2: 0.1-10L/min | |
| N2O: 0.1-10L/min | ||
| Ventilation Mode | IPPV, SIPPV, MANUAL | |
| Back-up Power Supply | At least 4 hours | |
| Tidal Volume | Adjustable range: 50-1500ml | |
| Display range: 0-2000ml | ||
| Respiratory Rate | 4-40bpm | |
| Inspiratory/Expiratory (I:E) Ratio | 1:1.5-1:3.0 | |
| Inspiratory Pressure Trigger | .-10-10cmH2O | |
| Vaporizer Concentration Ranges | 0-5% | |
| Vaporizer Slots | Single PA-80 type slot | Double PA-80 type slots |
