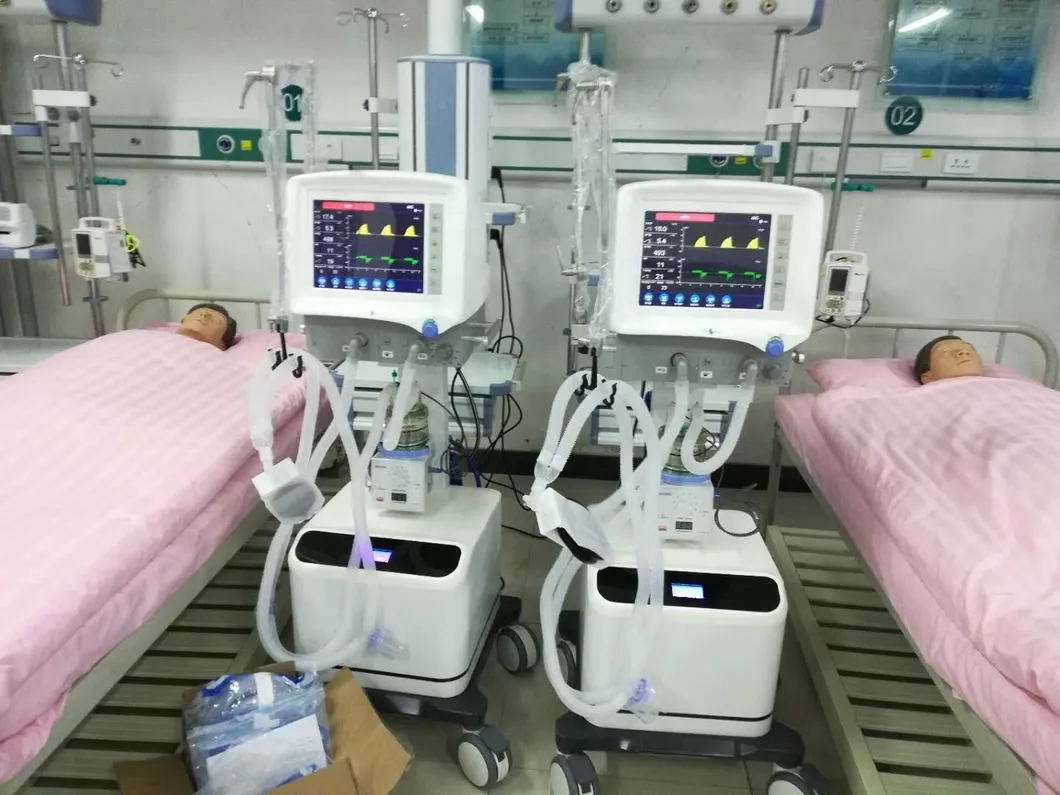

              Superstar S1100 ICU Ventilator
              • Superstar S1100 ICU VentilatorSuperstar S1100 ICU Ventilator
              • Superstar S1100 ICU VentilatorSuperstar S1100 ICU Ventilator
              • Superstar S1100 ICU VentilatorSuperstar S1100 ICU Ventilator
              • Superstar S1100 ICU VentilatorSuperstar S1100 ICU Ventilator

              Superstar S1100 ICU Ventilator

              Main technical specification of S1100Gas supplyGas supply O2(For medical use)Vmax=70L/minAir(For medical use)or compressed air, Vmax=70L/min Input pressure range 280 kPa~600 kPaOutput pressure of regulator(gas cylinder supply) 400 kPaSafety valve 750kPaPower supplyVoltage 100-240V......

              Send Inquiry

              Product Description

              Superstar S1100 ICU VentilatorSuperstar S1100 ICU VentilatorSuperstar S1100 ICU VentilatorSuperstar S1100 ICU VentilatorSuperstar S1100 ICU VentilatorSuperstar S1100 ICU Ventilator

              Main technical specification of S1100

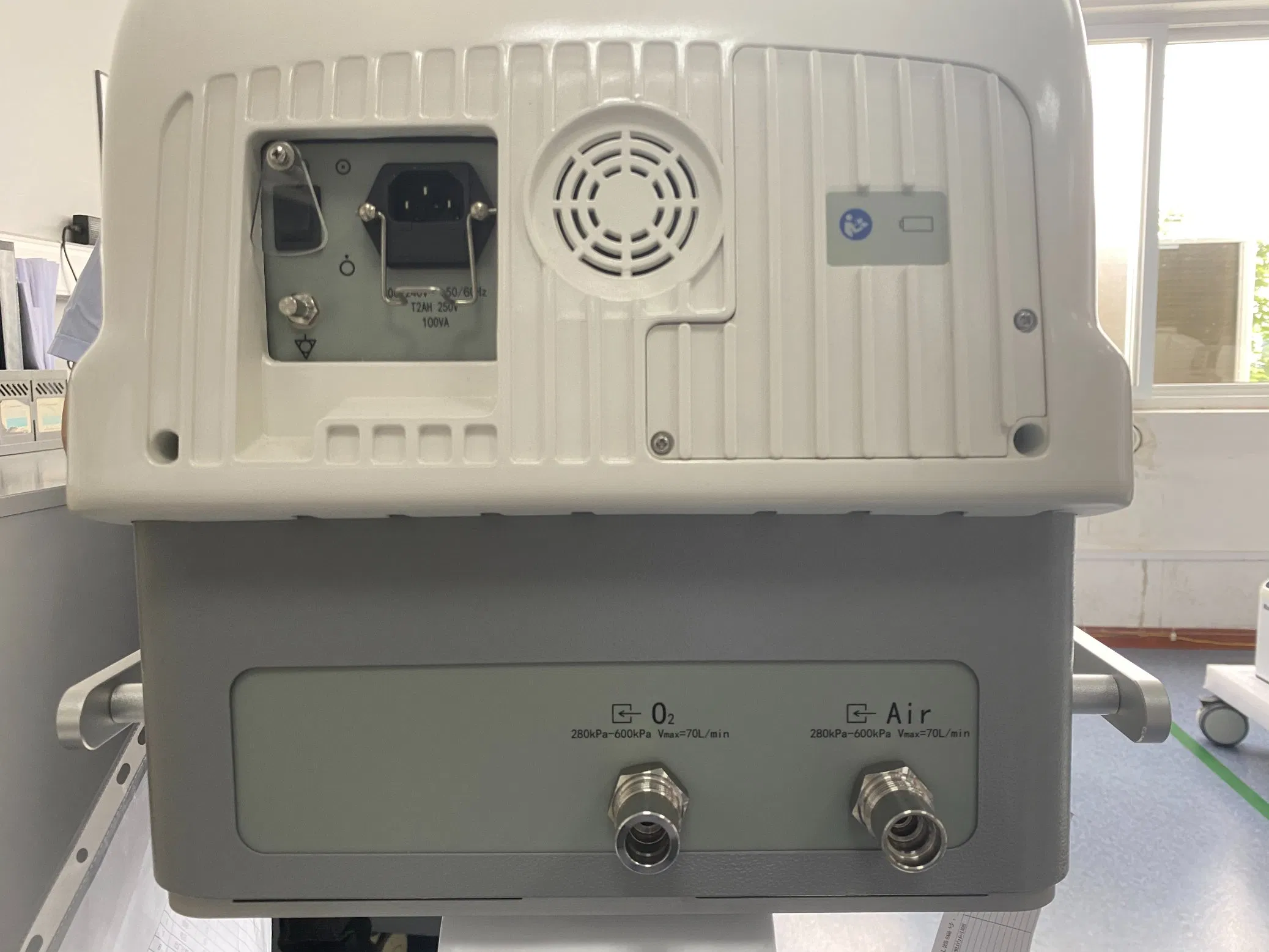

              Gas supply

              1. Gas supply  O2(For medical use)Vmax=70L/min
              Air(For medical use)or compressed air, Vmax=70L/min
              1. Input pressure range      280 kPa~600 kPa
              2. Output pressure of regulator
              (gas cylinder supply)             400 kPa
              1. Safety valve  750kPa

              Power supply

              1. Voltage 100-240V~
              2. Frequency 50 HZ/60 HZ
              1. Input power 900VA (if equipped with air compressor)
                                                 80 VA (if not equipped with air compressor)
              1. Internal power                   DC12V, 1.5A, 4Ah
              When the back-up battery is fully charged, the battery will supply power for the ventilator about 2 hours.
              1. Fuse
              --Mains power T2AH 250V
              T10AH 250V(if equipped with air compressor)
              T6.3AH 250V(if equipped with air compressor)
              --Internal power     T4AH 250V


              Ventilation mode

              --IPPV
              --A/C
              --PCV
              --SIMV
              --SPONT/ CPAP
              --PSV
              --SIGH
              --MAUN


              Ventilation parameter adjustment

              1. Frequency
              --Adjusting range           1 bpm ~ 100 bpm
              (Under SIMV:1 bpm~ 40 bpm
              All mode except SIMV:VTH  4 bpm~ 40 bpm
              VTL  20bpm~ 100 bpm )
              --Allowable error ± 1 bpm or ± (10% setting value), whichever is the greater

              1. Inhalation time(I:E)(Tinsp)
              --Adjusting range        0s~ 12s(except SIMV mode, 4:1~ 1:8)
              --Allowable error        ± 15 %
              1. Tidal volume(VT)
              --Adjusting range    0 mL ~ 2000 mL
              And:
              VTH         250 mL ~ 2000 mL
              VTL          0,20 mL~ 300 mL
              1. Minute ventilation(MV)
              --Max MV
              VTH         ≥18 L/min
              VTL        ≥10 L/min
              1. PEEP
              --Adjusting range     0 cmH2O ~ 40 cmH2O
              --Allowable error             ±(2 cmH2O + 5% setting valve)
              1. CPAP
              --Adjusting range          0 cmH2O ~ 20 cmH2O
              --Allowable error             ±(2 cmH2O + 5% setting valve)
              1. Continuous flow
              --Adjusting range            VTH  7 L/min ~ 60 L/min
                                                VTL 2 L/min ~ 30 L/min
              --Allowable error              >3L/min,±15%
              ≤3L/min,±0.5 L/min
              1. Pressure trigger(PTr)
              --Adjusting range      -20 cmH2O ~ 0 cmH2O(base on PEEP)
              --Allowable error            ±(1 cmH2O +10 % setting valve)
              1.  Pressure control(Pc)
              --Adjusting range    5 cmH2O ~ 80 cmH2O
              --Allowable error             ±(2 cmH2O + 5% setting valve)
              1. Pressure support(Ps)
              --Adjusting range    0 cmH2O ~ 80 cmH2O
              --Allowable error             ±(2 cmH2O + 5% setting valve)
              1. Flow trigger(FTr)
              --Adjusting range            OFF, 0.5 L/min ~ 30 L/min
              --Allowable error
                  >3L/min:                ±15%
              ≤3L/min:                  ±0.5 L/min
              1. O2 concentration
              --Adjusting range             21 %~100 %
              --Allowable error ± 3 %(V/V)or ±10 % setting valve,whichever is greater
              1. Holding time(Inhalation platform)(TIP)
              --Adjusting range             0 ~ 6s(0%~50% inhalation time)
              --Allowable error              ± 0.1s or ±10 % setting valve,whichever is greater
              1. Sigh
                   --Adjusting range             0, 1/100 ~ 5/100
                                              (Sigh tidal volume is 1.5 to 2 times higher than setting valve of tidal volume)
              1. Apnea ventilation
              --Adjusting range               OFF,5 s ~ 60 s
              1. Maximal Inspiratory Flow Rate
              --Maximal Inspiratory Flow Rate:≥ 60 L/min
              1. Max set working pressure
              (pressure limit range)   20 cmH2O ~ 100 cmH2O
              1. Max pressure     ≤125 cmH2O
              1. Output MV under manual ventilation  ≥25L/min
              2. Nebulizer gas                      maximum output pressure≤0.2 MPa
                                                   maximum output flow≥8 L/min
              explanation:
              1) set pressure limit value to produce maximum working pressure( the upper limit of high airway pressure alarm).
              2) do not use negative pressure at exhalation.
              3) maximum limit pressure is pressure of the safety valve.


              Ventilation parameter Monitoring range

              1. The following are monitoring parameters under the environment of body temperature and pressure-saturated.
              2. Fig display:
              ParameterRangeResolving powerAccuracy
              Frequency(Freq)0 bpm ~ 100 bpm1 bpm±1/min or ± (10% actual reading), whichever is the greater

              Tidal volume(VT)0 mL~2500mL10 mL>50 mL, ±(4.0 mL+15% actual reading)
              ≤50 mL, ±20 mL
              Minute ventilation(MV)  0 L/min~99 L/min0.1 L/min>3L/min,
              ±(15% actual reading)
              ≤3L/min, ±0.5 L/min
              (Ppeak)0 cmH2O ~100 cmH2O1 cmH2O±(2%full scale+
              4%actual reading)
              O2 concentration15 % ~ 100 %0.1 %±[ 2.5 %(v/v)+
              2.5 %(concentration level)]
              Compliance1~1000mL/ cmH2O 1mL/ cmH2O
              1. Waveform display:
              --Time- airway pressure(under all modes)
              --Time-flow(under all modes)
              --pressure volume loop(all modes)
              Remarks:The machine cannot record all the adjusting and monitoring values.

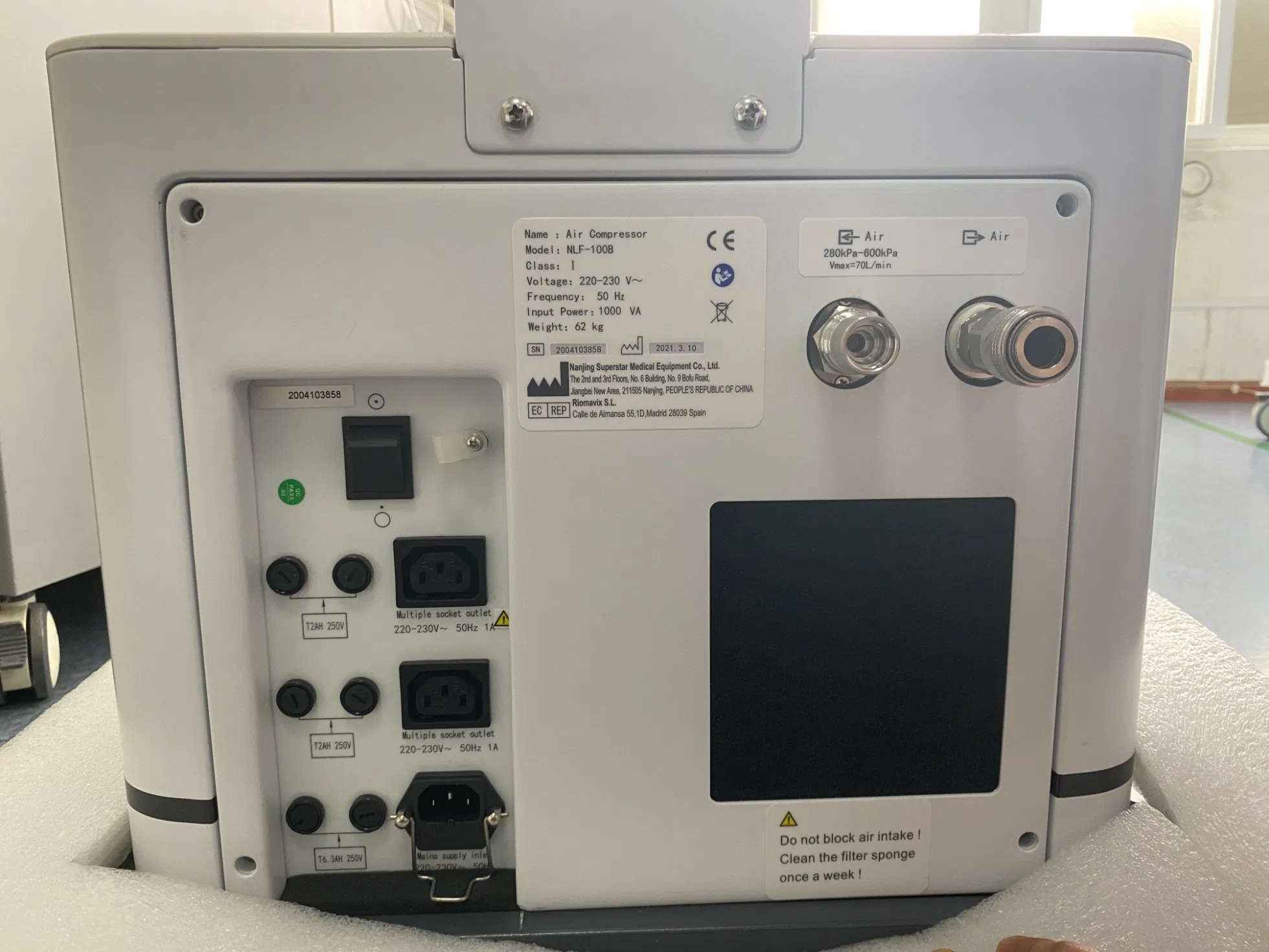

              Technical specification of air compressor

              1. Rated output pressure:    0.35MPa±0.05MPa
              2. Continuous output flow:     When the output pressure is 0.35MPa,continuous output flow is
              ≥45L/min
              1. Peak flow:               When duration is 1 second,the peak flow is ≥120L/min
              2. Dew point temperature:    ≤ 5ºC
              3. Alarm temperature:       temperature in compressor cabinets≥85ºC±10ºC


              Alarm hint and protection

              1. Mains power failure alarm
              When the power is supplied by AC, the power state indication place will display the signal of "".When the power is changed from AC to back-up battery , there will be a sound alarm, and the power state indication place will display the signal of "".
              1. Alarm of low voltage of back-up battery
              When the voltage of back-up battery is low (11V±0.3V), the power state indication place will display the signal of "",and there will be a sound alarm.
              Alarm lasting time: >120 s
              !  Warning:
              If mains power fails or the voltage of back-up battery is low during operation, and the machine stop working, please do manual ventilation to the patient.
              1. Gas failure (No tidal volume) alarm
              If there is no tidal volume in 6 seconds, there will be a sound alarm and display of No tidal volume.
              Alarm lasting time   >120 s
              1. High or low MV alarm
              When the monitoring value over upper limit of MV or under low limit of MV, there will be a sound alarm and display of alarm hint.
              --Setting range of upper limit   VTH: 5 L/min ~ 99L/min
                                                       VTL:1 L/min ~ 30L/min
              --Setting range of upper limit      0 L/min ~20min
              1. High or low Ppeak alarm
              When the monitoring value of Ppeak over the upper limit or under the low limit in 5-20 seconds, there will be a sound alarm and display of alarm hint.
              --Setting range of upper limit   20 cmH2O  ~ 100 cmH2O
              --Setting range of low limit   0 cmH2O ~ 20 cmH2O
              1. Pressure limit
              When the Ppeak value is higher than the upper limit preset value, the airway pressure alarm sounds, the airway peak pressure is limited in upper limit preset value level.



              1. Continuous pressure alarm
                   If the airway pressure (PEEP+15 cmH2O)over the upper limit or under low limit of continuous pressure alarm in 16 seconds, there will be a sound alarm and display "Pcon high !!!"
              1. High or low O2 concentration alarm
              When the monitoring value of O2 concentration over the upper limit of O2, or under the low limit, there will be a sound alarm and display of alarm hint.
              --Setting range of upper limit 19% ~ 100 %
              --Setting range of low limit 18 % ~ 99 %
              1. Apnea alarm
              Choose Sigh ventilation under mode of SIMV and set the SIGH time. If there is no spontaneous or assisted ventilation during SIGH time, the mode will change to AC, and there is alarm hint " Apnea !!!". (Red color).
              If there are 3 times of Spontaneous ventilation after change mode to A/C, the mode will change to the former ventilation mode, and there is alarm hint " Apnea !!!".
              --Apnea time setting range              OFF,5 s ~ 60 s
              !  Note:
              When there is Apnea alarm, the mode will change to A/C. So if set Apnea alarm under SIMV, proper parameters should be set under A/C.

              Note:When the sigh time is set to OFF, there will be no Sigh ventilation or Apnea alarm indication.
              1. Audio paused
              When an alarm occurs, the alarm sound may be audio paused for 2 minutes by pressing audio paused key but the alarm indication will display on the screen, unless the problem is solved.
              When there are new and different alarm conditions, sound restore.
              --Audio paused time  <120 s
              1. Safety valve

                  When the airway press over the safety valve pressure, the safety valve will release the excess gas.
              --safety valve pressure          ≤125 cmH2O
