Yj-801 High Quality Portable Anesthesia Machine

Product Description

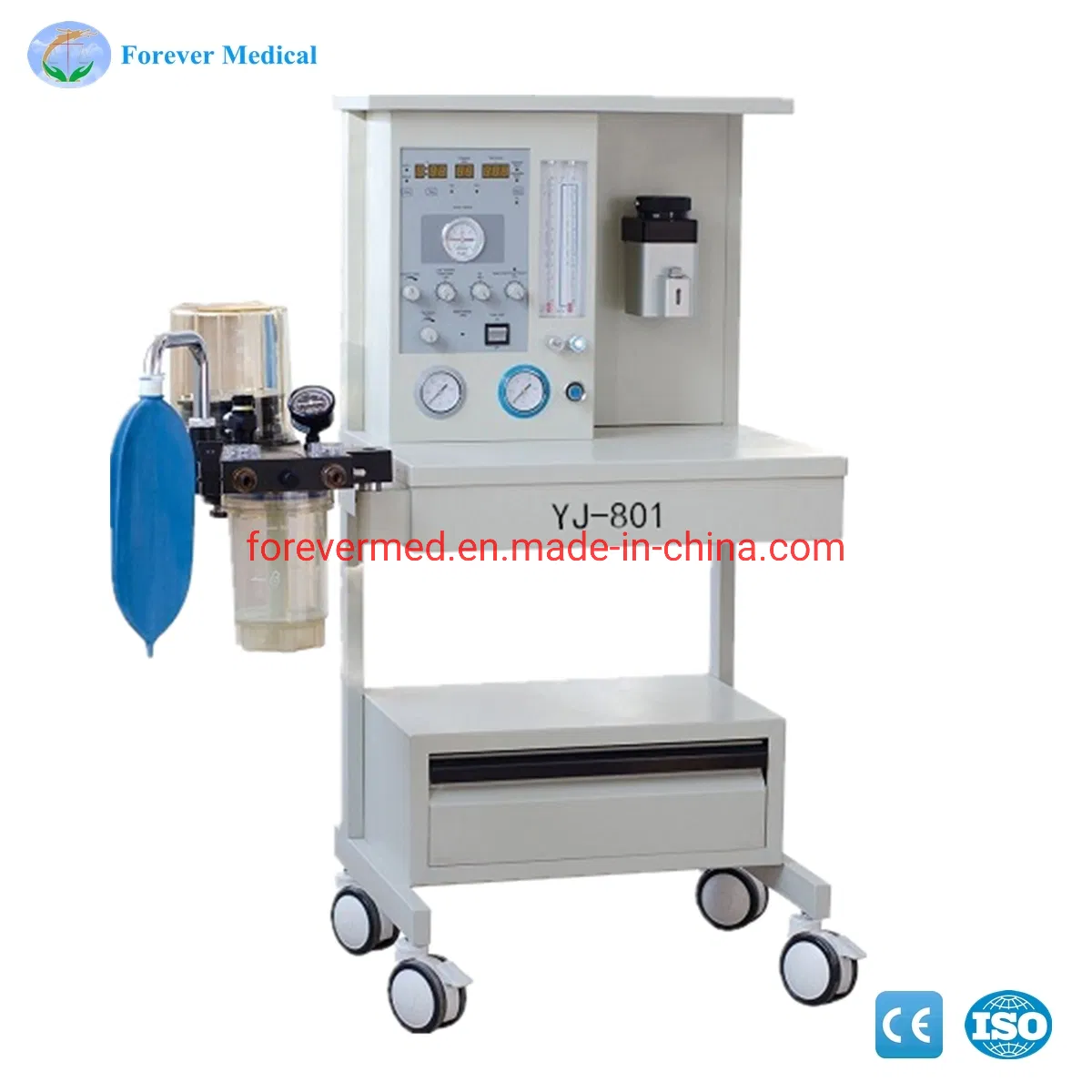

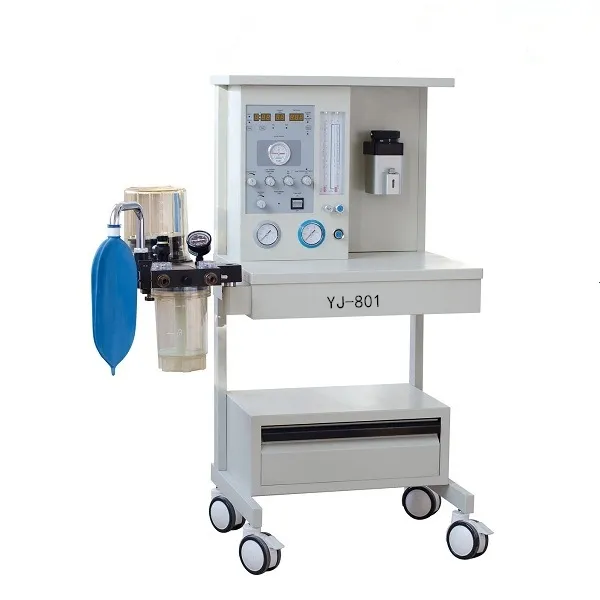

Yj-801 High Quality Portable Anesthesia Machine
CE, ISO 13485 and Rohs certificates
Pneumatically driven and electrically controlled system
Built-in ventilator, LED display screen
Closed; Semi-Closed; Semi-Open wotking mode
Applied for Adult and Pediatric

Diagnostic Medical Anesthesia Machine Hospital Equipment Yj-801

Diagnostic Medical Anesthesia Machine Hospital Equipment Yj-801

Main technical specifications:
Gas requirement: Medical oxygen and nitrous oxide with a pressure ranging from O2 & NO2: 0.32~0.6 MPa.
2-tubes Flowmeters, O 2 & N 2 O; 0.1L/Min ~ 10L / Min;
Oxygen Flush: 25~75 L / Min
Respiration Mode: A/C,IPPV,SIPPV,MANUAL
Tidal Volume: 50~1500ml
I/E Ratio: 1:1.5 ~ 1:3.0
One vaporizers: Enflurane/ Isoflurane/Sevoflurane/Halothane
Vaporizer Setting Range: 0.5%~5%
Respiration Frequency : 4~40 bpm;
Ptr: -1.0kPa ~ 1.0 kPa
CO 2 absorber capacity : 1 kg
Optional: Patient monitor
Alarm parameters: upper/lower limit of airway pressure,tital volume exceed limitation,no tidal volume output,apnea,
AC power malfunction,Battery low power

Features :
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in ventilator, LED display screen
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Equipped with electronic pressure differential flow sensor, imported respiratory control valve

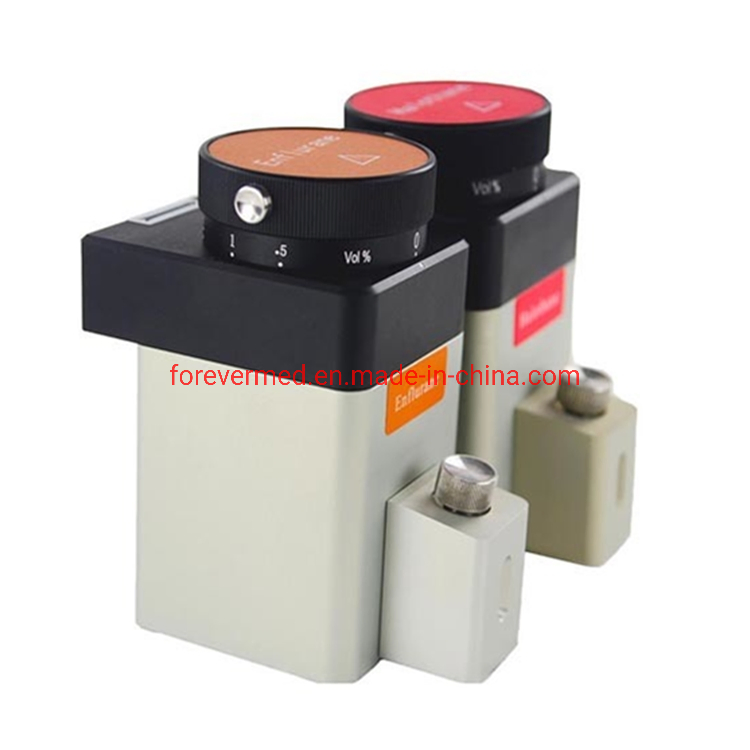

Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Multi-parameter Patient Monitor: Optional
High precision four tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Nonhazardous environmentally friendly frame, with automated self-checking function during startup and an automatic self-calibrating sensor
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, asphyxia, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with advanced international rotating Na-lime tank, uses imported PPSU material and temperature resistant to 134°C
.
Specifications:

Model	YJ-801
Display	LED display
Flowmeter Range	O2: 0.1-10L/min
Flowmeter Range	N2O: 0.1-10L/min
Ventilation Mode	A/C,IPPV,SIPPV,MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
Tidal Volume	Display range: 0-2000ml
Respiratory Rate	4-40bpm
Inspiratory/Expiratory (I:E) Ratio	1:1.5 ~ 1:3.0
Inspiratory Pressure Trigger Range	-10-10cmH2O (electronically controlled)
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Single YJ-801 type slot

Company Introduction

Forever Medical is a professional medical equipment company from China, compounded with the R&D and sale of medical device, is a leading supplier of medical equipment, especially in the field of medical x-ray machine and ultrasound scanner. Diagnostic Medical Anesthesia Machine Hospital Equipment Yj-801

Customer visits

Transportation and packaging
Packaging Details
Packaging Details: Strong anti-impact export package
Delivery Time: Whin 3 office days
Port
Shanghai/Shenzhen
Lead Time :
