Ysx101 Operation Microscope
YSX LED Series Operation MicroscopeALLTION provides professional microscopes for wide range of medical specialties: Dentistry, ENT surgery, Gynecology, Orthopedics, Hand surgery, Neurosurgery, Andrology and Urology, Plastic and Reconstructive surgery, Veterinary surgery etc. ALLTION is proud to offe......
Send Inquiry
Product Description
YSX LED Series Operation Microscope
ALLTION provides professional microscopes for wide range of medical specialties: Dentistry, ENT surgery, Gynecology, Orthopedics, Hand surgery, Neurosurgery, Andrology and Urology, Plastic and Reconstructive surgery, Veterinary surgery etc.
ALLTION is proud to offer YSX series of operation microscopes. Precise structure, new type of appearance and LED illumination system, offer you excellent parfocal, large field view, precise and clear three dimensional images. YSX series of operation microscopes have different working distance and magnification and suitable for the department of ophthalmology, stomatology, gynaecology, ENT and surgery.
Items and specification subject to change, please contact ALLTION for current product information.

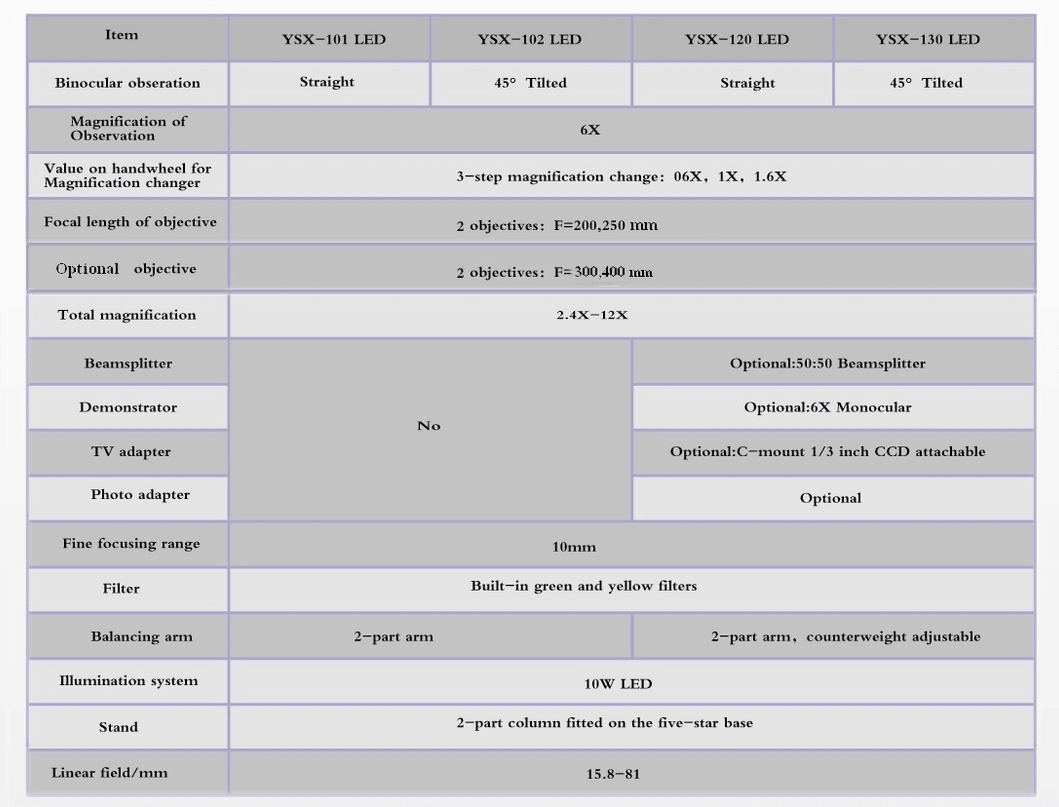

Table of Specification for YSX series Operation Microscopes:
FEATURES/SPECIFICATIONS
FEATURES/SPECIFICATIONS
ALLTION provides professional microscopes for wide range of medical specialties: Dentistry, ENT surgery, Gynecology, Orthopedics, Hand surgery, Neurosurgery, Andrology and Urology, Plastic and Reconstructive surgery, Veterinary surgery etc.
ALLTION is proud to offer YSX series of operation microscopes. Precise structure, new type of appearance and LED illumination system, offer you excellent parfocal, large field view, precise and clear three dimensional images. YSX series of operation microscopes have different working distance and magnification and suitable for the department of ophthalmology, stomatology, gynaecology, ENT and surgery.
Items and specification subject to change, please contact ALLTION for current product information.
Table of Specification for YSX series Operation Microscopes:
FEATURES/SPECIFICATIONS
- YSX-101 LED: Straight binocular head/ YSX-102: 45°inclined binocular head

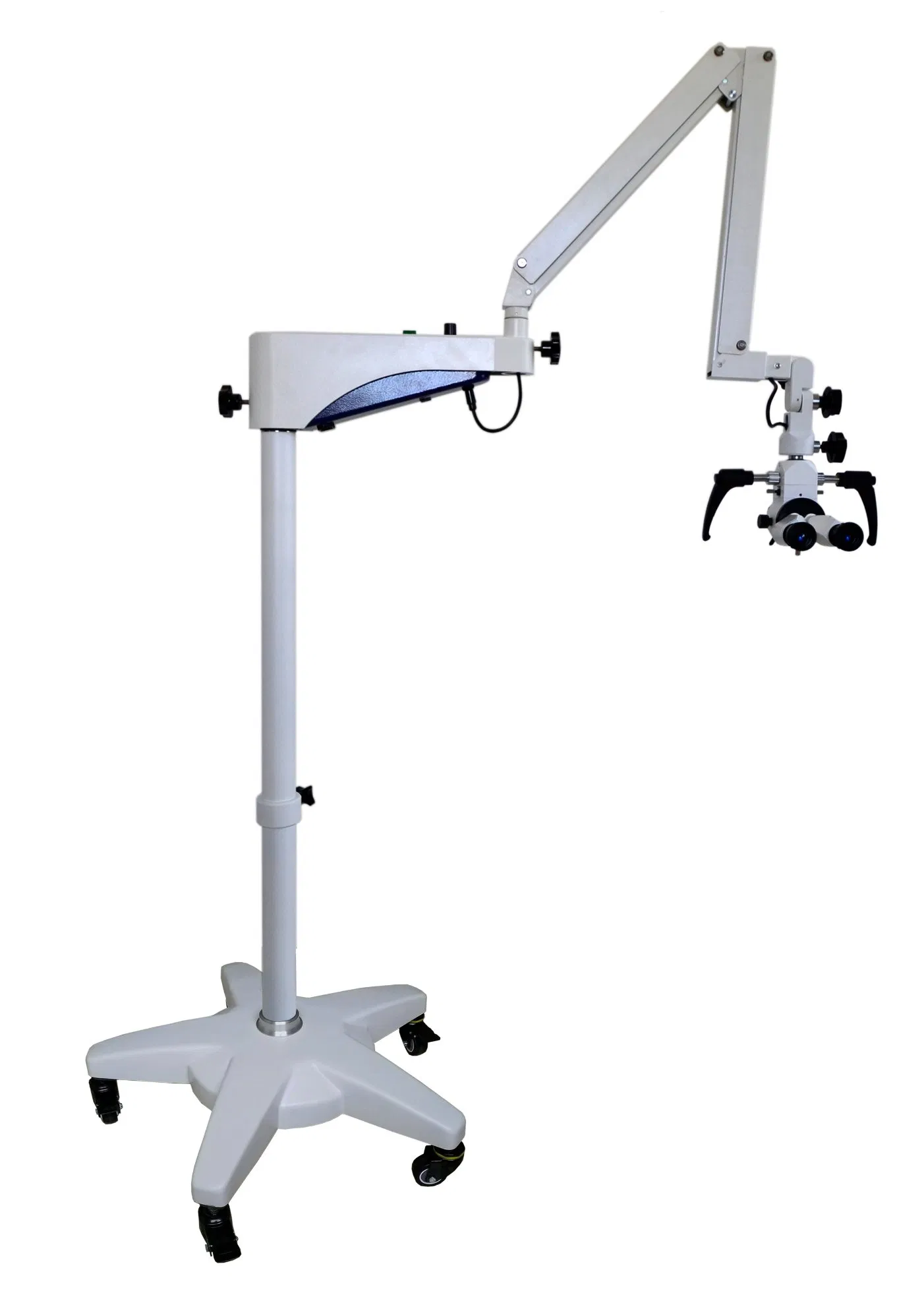

- 1500mm Super long pantograph arm offers wider operation space
- Different working distance objectives: f=200mm, f=250mm
- Smooth turret 3-step magnification pod
- Field diameter: 7.88mm-81mm
- Magnification: 2.4X-12X
- Green and blue filter selected by a lever
- The top 10W LED illumination
- 20,000 hours LED lifespan
- 50,000 LUX objective illumination
- Power supply voltage: 90V/60HZ-250V/50HZ
FEATURES/SPECIFICATIONS

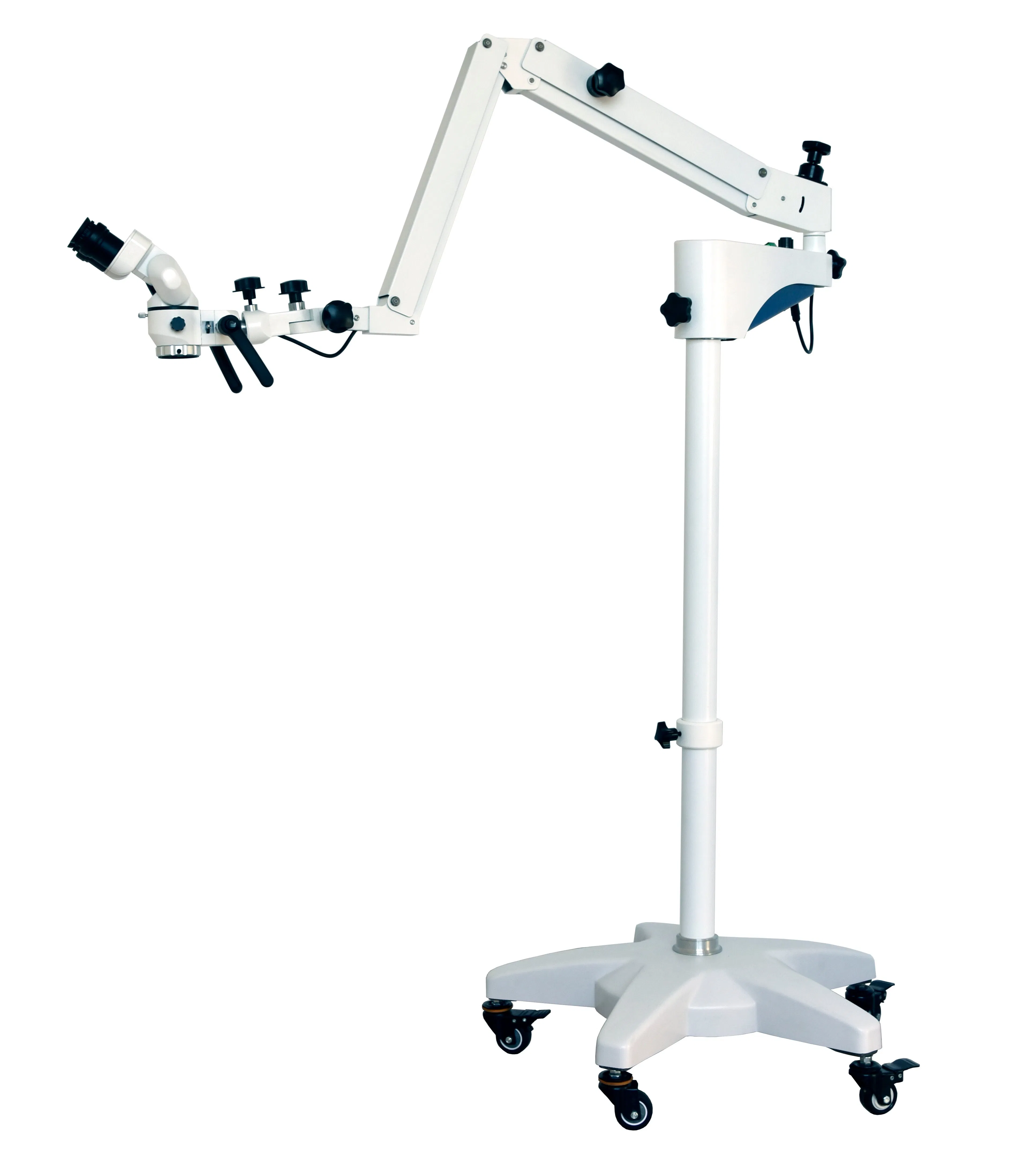

- YSX-120 LED: Straight binocular head/ YSX-130: 45°inclined binocular head

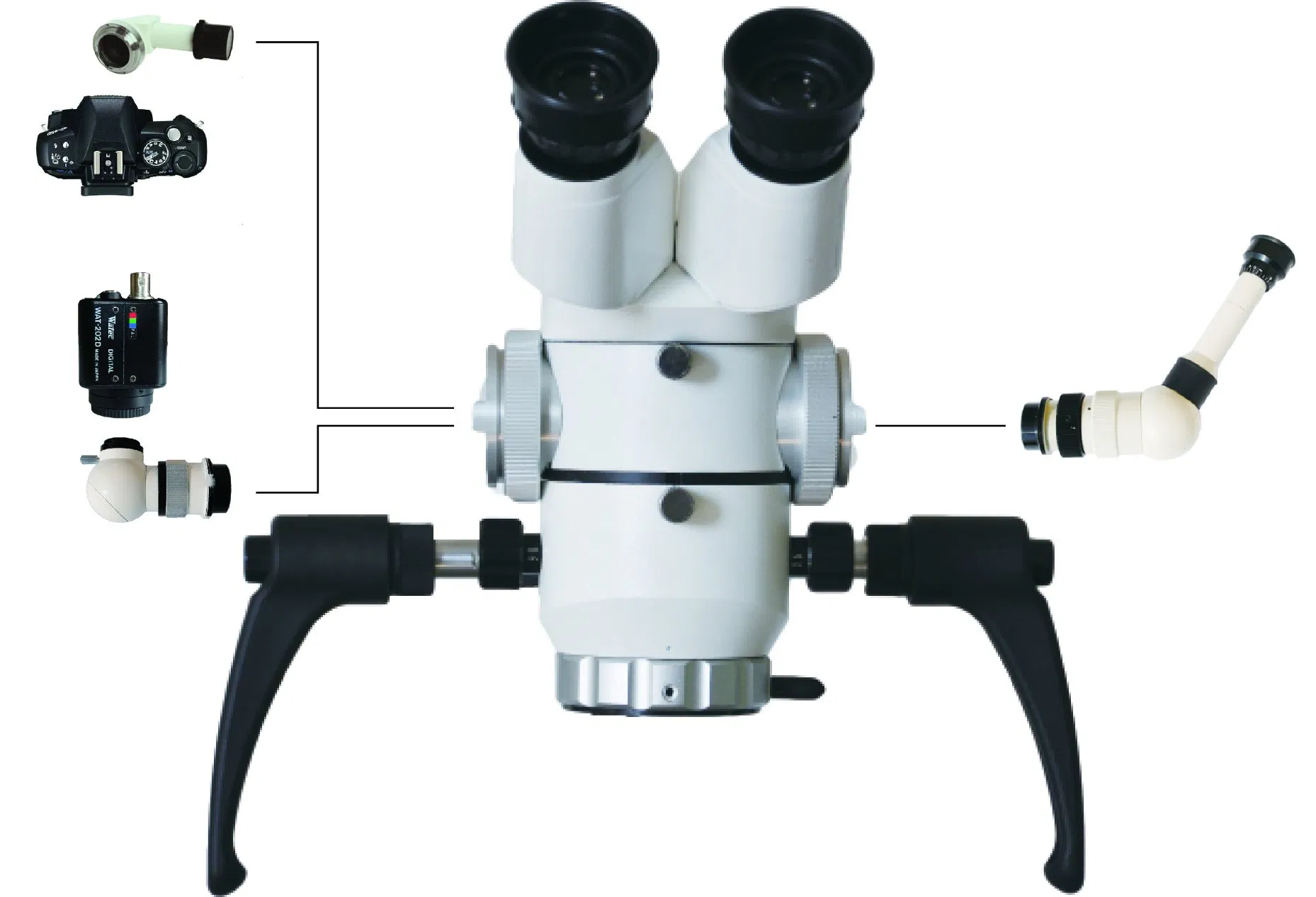

- Beam splitters, various kinds of adapters and image processing unit are provided
- 1600mm Super long pantograph arm offers wider operation space
- Different working distance objectives: f=200mm, f=250mm
- Smooth turret 3-step magnification pod
- Field diameter: 7.88mm-81mm
- Magnification: 2.4X-12X
- Green and blue filter selected by a lever
- The top 10W LED illumination
- 20,000 hours LED lifespan
- 50,000 LUX objective illumination
- Power supply voltage: 90V/60HZ-250V/50HZ
- DC12V output on the instruments and supply the power for CCD camera
