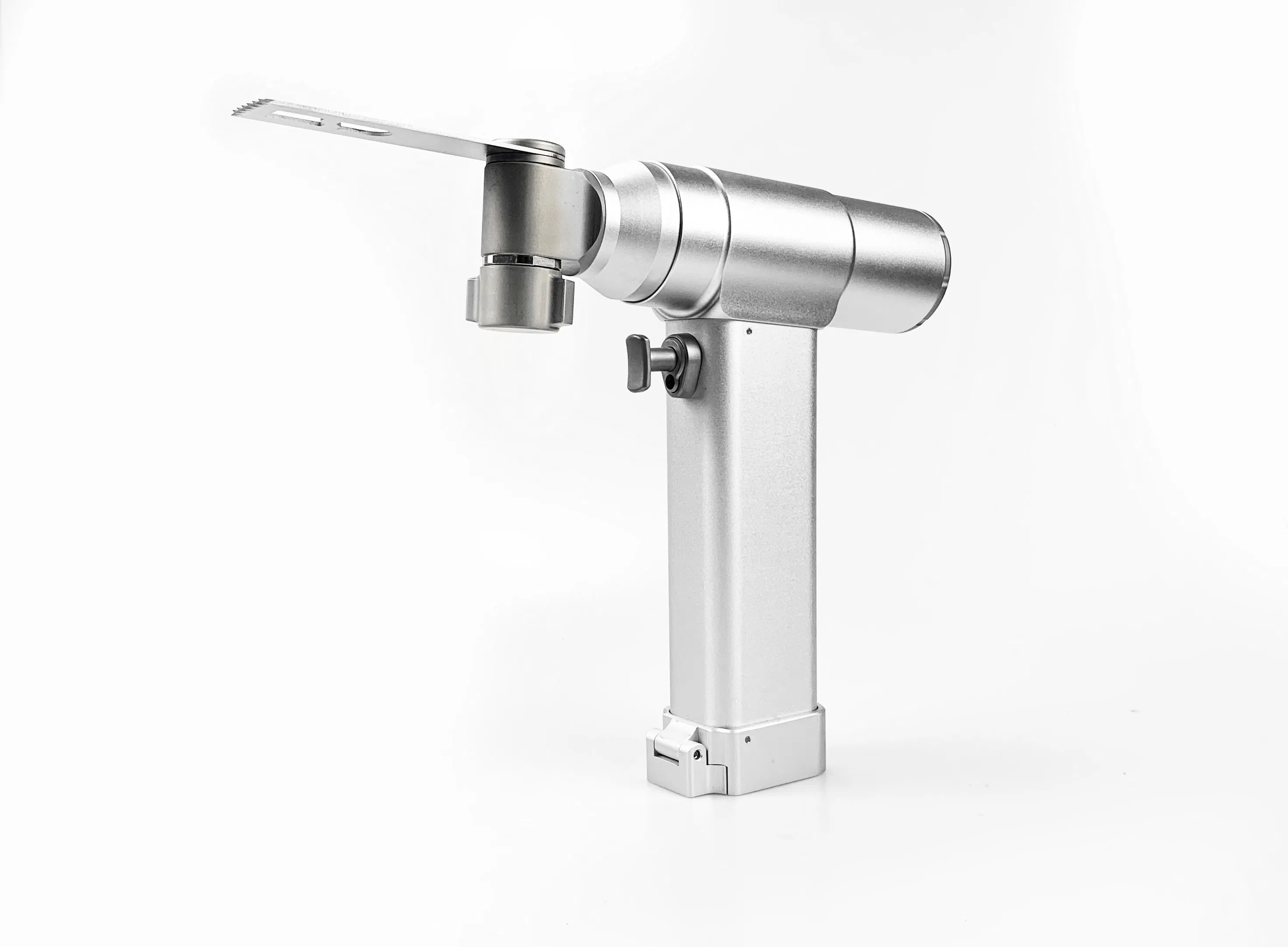

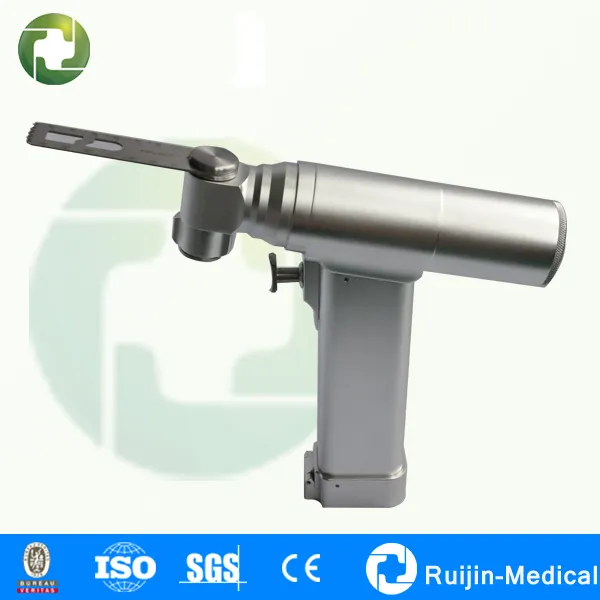

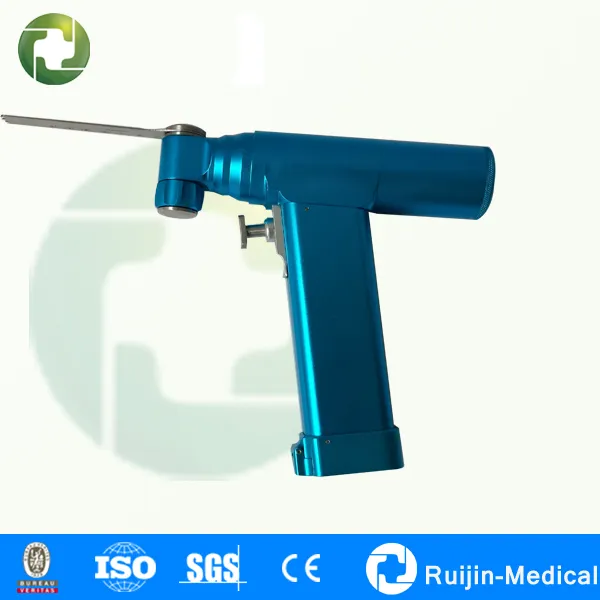

1. Surgical Power Saw Swing Saw / Medical oscillating Saw for Traumatic Operation
I: Autoclavable type and stainess steel swing saw.
Ii: Professional drill and saw manufacturer
Iii: Discretionary speed control
Iv: Practical and most-effective

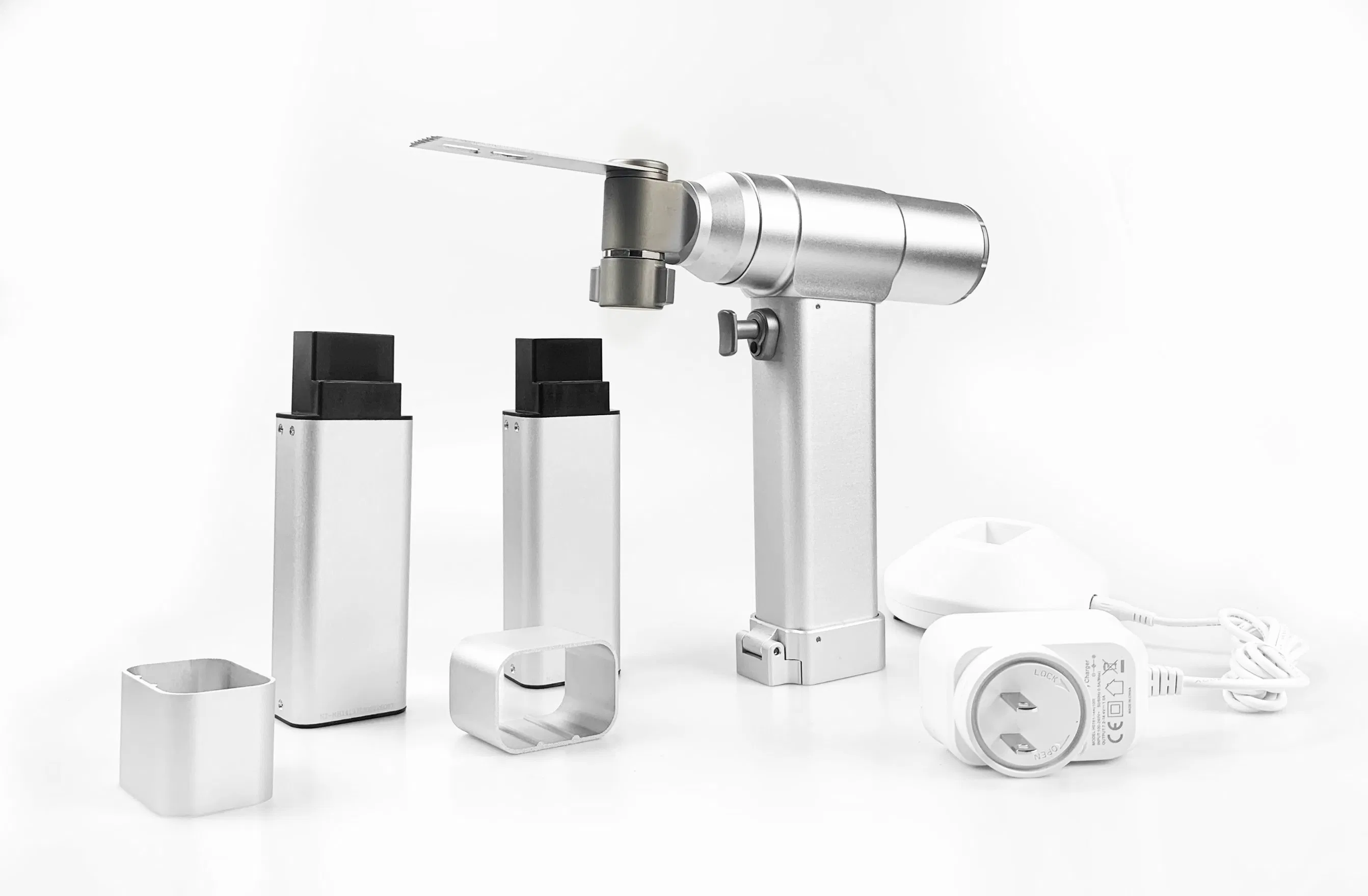

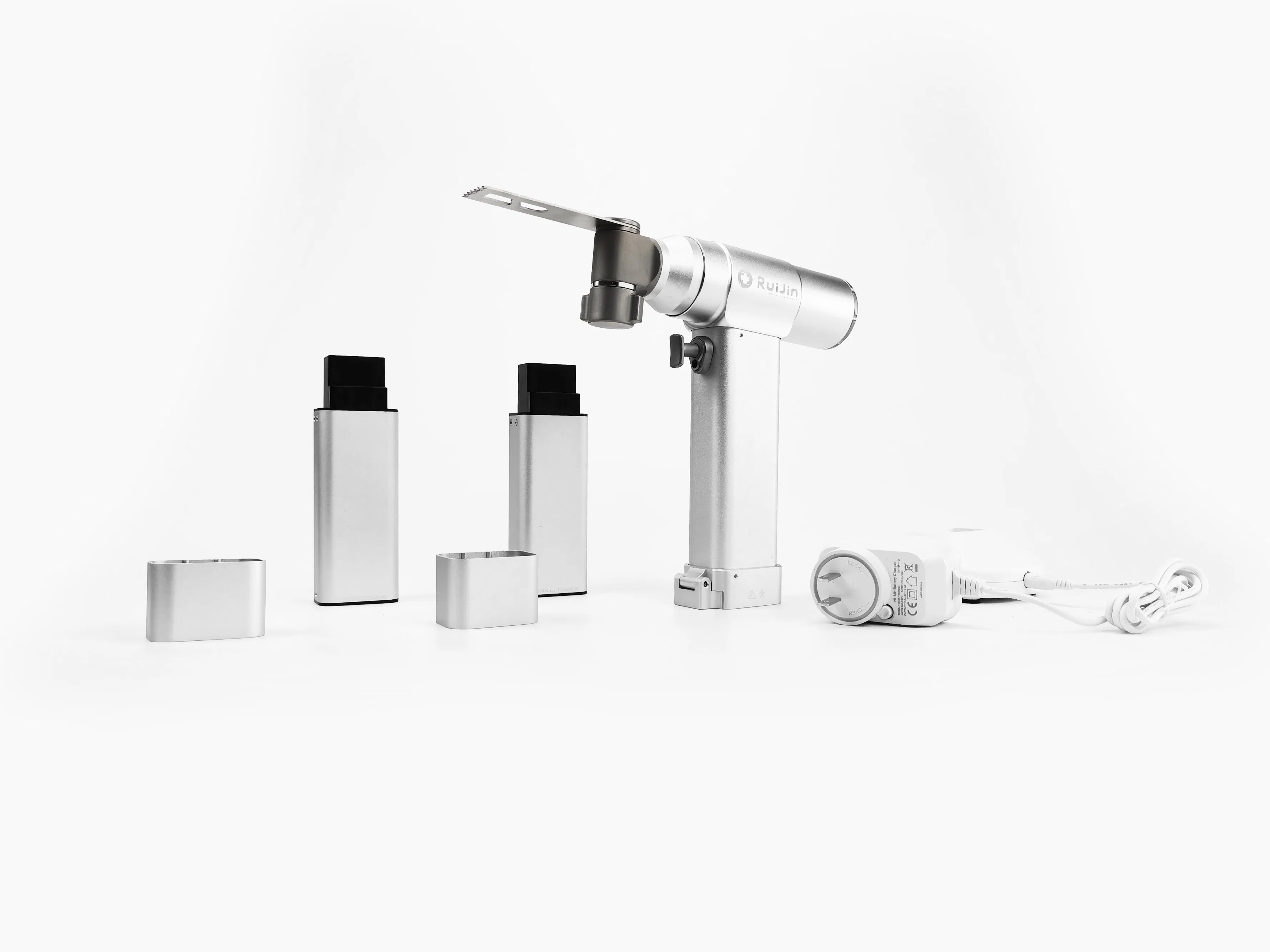

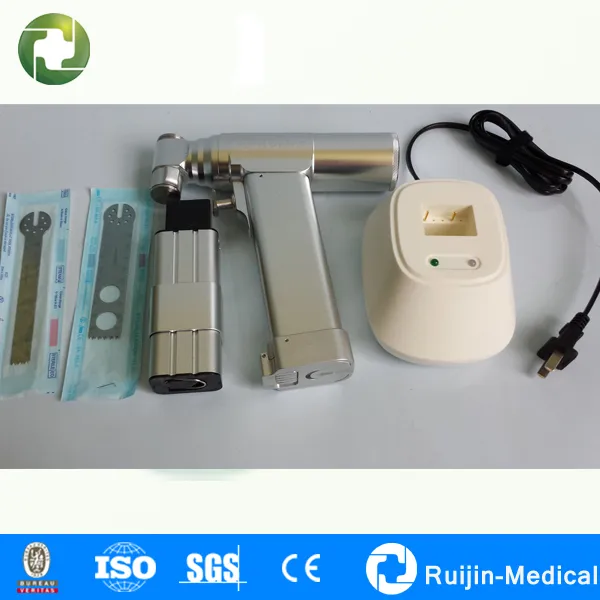

2. Standard configuration:
Autoclavable swing saw(improved type):
One mainframe
One charger
One battery

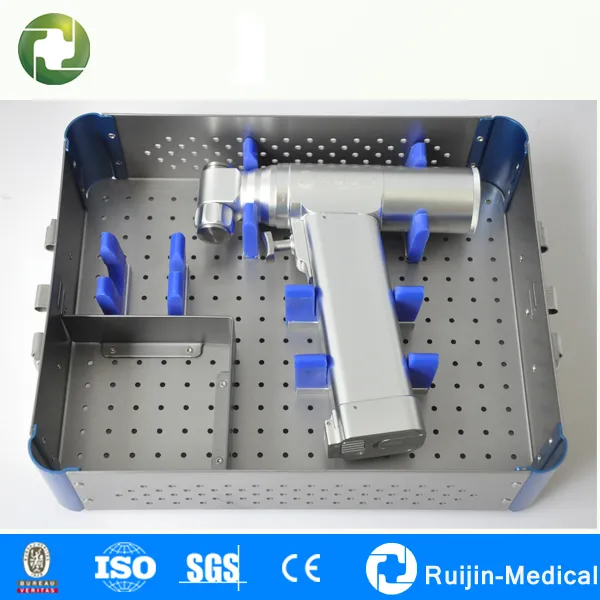

One sterilizing channel
Two saw blades(70mm and 90mm)
One aluminum alloy box
3. Technical merits:
I: Ideal torque used in joint, prosthesis surgery and osteotomies procedures.
Ii: Powerful and efficient motor ensures regular cutting edge or smooth surface.
Iii: Ingenious design allows for optimal maneuverability, minimizing wrist fatigue.
Iv: Unique sharpest blade with quick-locked structure.
V: Gearless variation control speed, oscillating Frequency: >18000cpm, .
Vi: Oscillating amplitude 5° , Noise: < 63dB; Temp. Rise < 25 oC.
4. Payment term:
I: Price: FOB USD480~550 / Set, Shanghai Port
Ii: MOQ: 1 Set
Iii: Payment term: T/T IN ADVANCE OR WESTERN UNION
Iv: Packing details: Aluminium alloy box and then put in a carton
V: Delivery time: 3 days after receiving the payment
Many thanks for your kind concern about our Swing Saw / oscillating Saw. Any request, pls don't hesitate to contact me. Thanks.
Hand Piece Working Voltage | 14.4V |
Hand Piece Output Power | 20W |
Hand Piece Unit rise in temperature | 25 degree |
Charger Input Power | AC 220V, 50Hz |
Charger Output Power | 14.4V, 700mA |
Charger Input Power | 30VA |
Battery Voltage | 14.4V |
Battery Charging time | About 3 hours |
Non-loaded speed | 18000r/min |
Non-loaded noise | 75dB(A) |
Radial run-out | 0.5mm |
