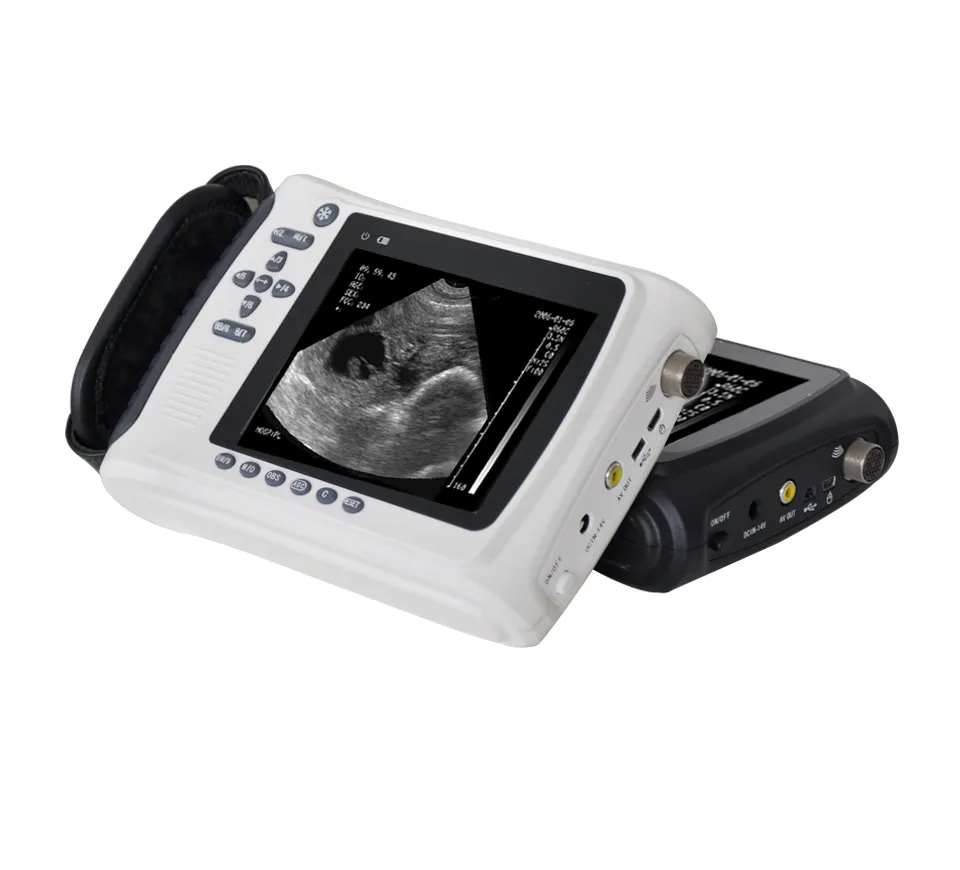

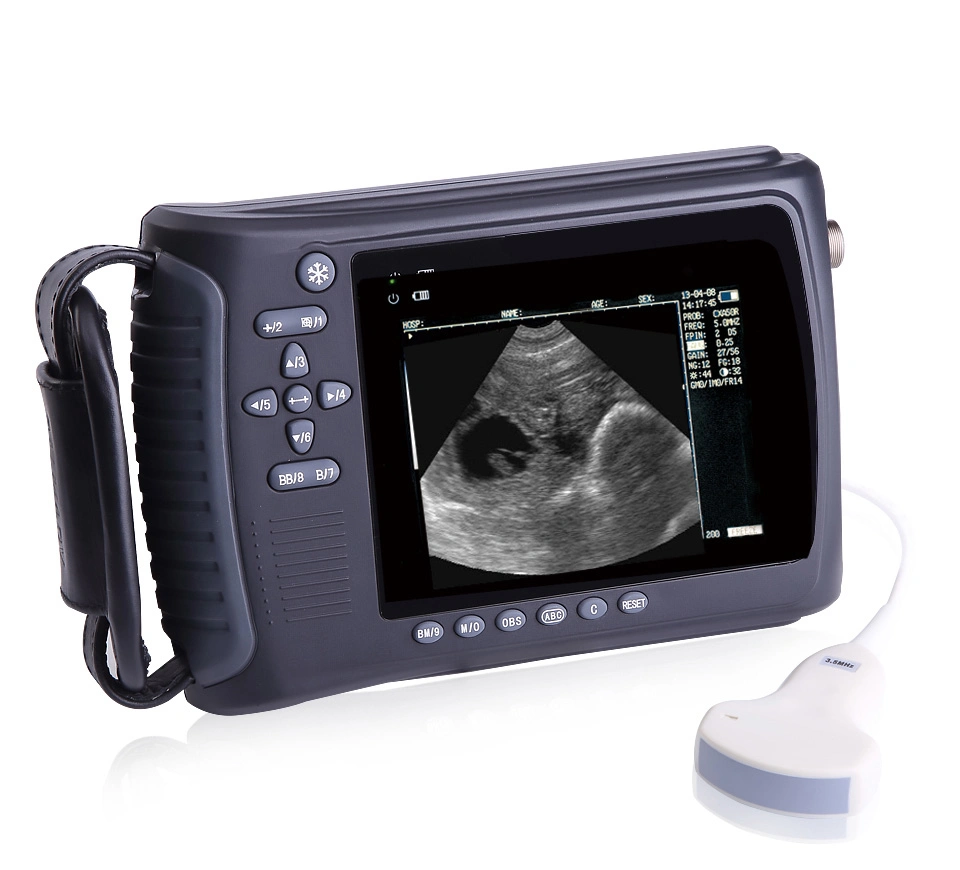

(PL-3018V) Veterinary Handheld Ultrasound Scanner Price
( PL-3018V ) Veterinary Handheld Ultrasound Scanner Price Applications: Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.Features:5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.Hand-held design, smart and light, easy to carry,......
Send Inquiry
Product Description
( PL-3018V ) Veterinary Handheld Ultrasound Scanner Price
Applications:
Ovine, Bovine, Equine, Swine, Alpaca, Feline, Canine, Rabbit, Fish, Snake and etc.
Features:
5" TFT-LCD, wide visual, high brightness, high contrast, image clear and exquisite.
Hand-held design, smart and light, easy to carry, convenient for detection.
OB measurement: EDD and GA for Bovine, equine, swine, alpaca, ovine, goat, canine, feline, rabbit.
128 frames permanent storage, 256 frames cine loop.

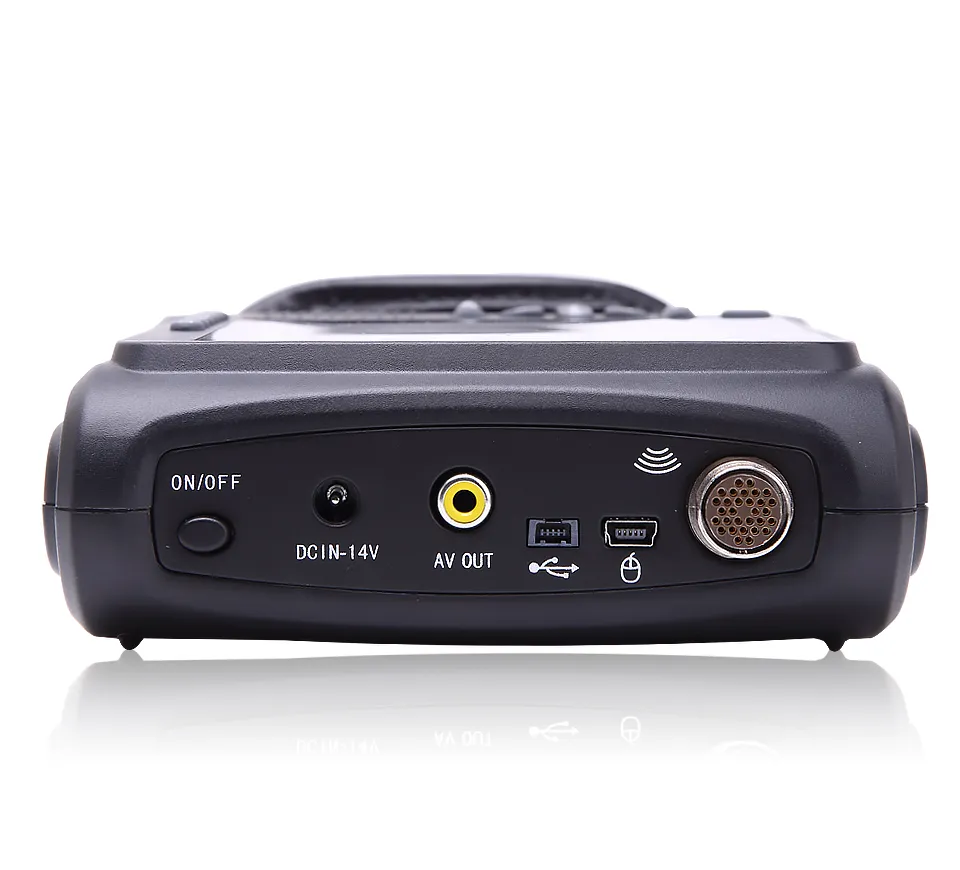

Output: USB2.0, video (PAL-D, NTSC), connecting to video recorder and ultrasonic workstation.
Easy to print out all kinds of detection images and reports.
Optional mouse to operate easier.
Adopted AC and DC to supply power, lithium battery capacity 3500mA which can make machine work more than 180 minutes.
Specifications:
Detect Depth(mm): ≥140
Blind zone(mm): ≤3
Monitor size: 5 inch TFT-LCD
Display mode: B, B+B, B+M, M, 4B
Image gray scale: 256
Image storage: 128
Cine loop: ≥400 frame
Scan depth: 120mm-220mm
Image flip: up/down, left/right
Focus position: Adjustable
Posture mark: 15
Image process: Histogram, color encode, gama, image smooth
Probe frequency: Adjustable ( 3 point each probe )
Frame correction: Adjustable
Measurement: distance, circumference, heart rate, EDD, area, volume, GA and etc.
Notation: date, time, name, sex, age, full screen words edit and etc.
Output report: regular
Output: USB2.0, VIDEO( PALD, NTSC)
Charging method: adapter, battery
Adapter rating: 100-240V~, 50-60Hz, 70VA
Battery: 2600mAh, continuous work: ≥3 hours
Machine dimension: 230mm(L)x120mm(W)x38mm(H)
Net weight: 700g
Standard Configuration:
Scanner Body: 1pc
Li-ion Battery: 1pc
3.5MHz Convex Probe: 1pc
Charger with a Set of Wires: 1set
Wrap Bag: 1pc
CD: 1pc
Bottle of USG gel: 1pc
Transportation Case: 1pc
User Manual: 1pc
Optional:
5.0MHz Micro-convex Probe
6.5MHz Rectal Probe
6.5Mhz Rectal Probe with Rod
7.5MHz Linear Probe
Goggle
Video Printer
Li-ion Battery
Rod of Rectal Probe
Car Charger
Charging Adaptation Wire ( containing power cord )
