Product Description

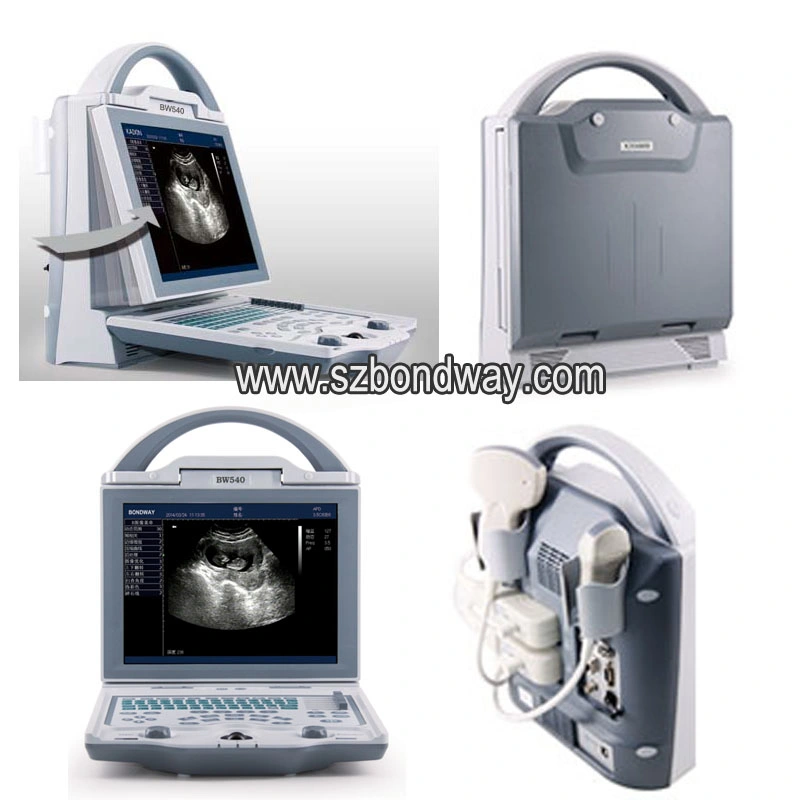

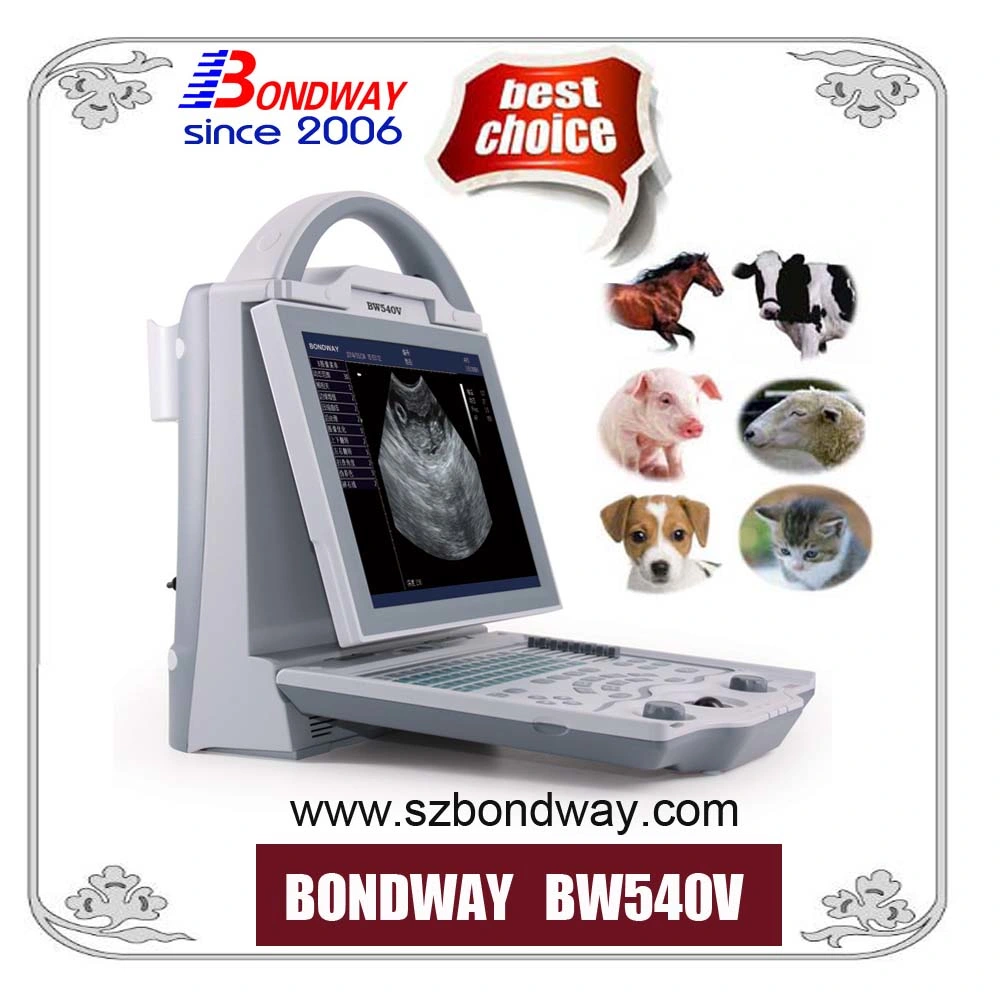

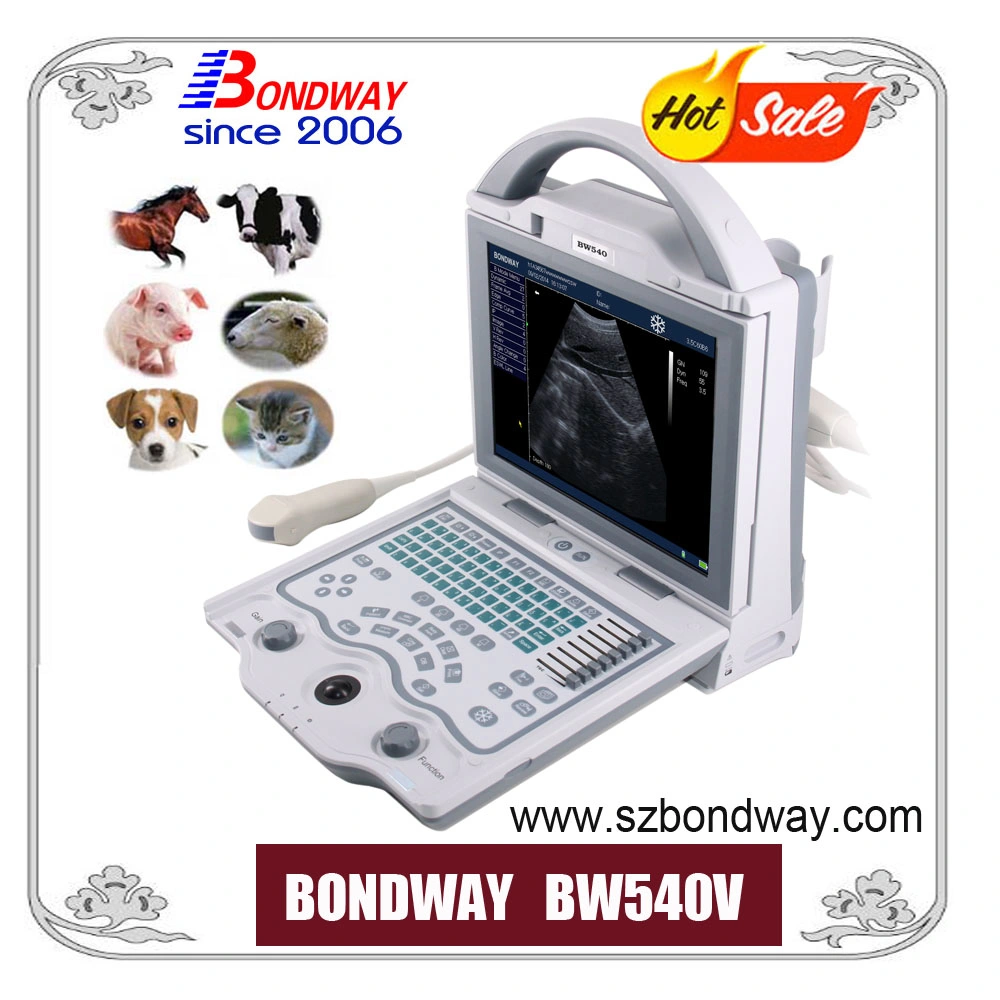

As an Economic digital portable veterinary ultrasound machine, BW540V is an ideal product for veterinary clinics or hospitals, swine-breeding farmers, stud farms, horse breeders, cattle or cow farmers, aquatic museums, zoos and research institutions, etc. You'll be happy with it for its excellent image quality, powerful software packages, large-capacity rechargeable batteries, lightweight (4.5kg only) and compact design, etc.
Cow Pregnancy Test Portable Ultrasound Scanner, Veterinary Ultrasound Machine, Equine Ultrasound, Vet Dignostic Ultrasound Imaging Machine

Cow Pregnancy Test Portable Ultrasound Scanner, Veterinary Ultrasound Machine, Equine Ultrasound, Vet Dignostic Ultrasound Imaging Machine

Application

*Diagnose the pregnancy of Bovine, Equine, Swine, Ovine, Canine, Feline and other animals

*Diagnose animal's uteri and fetus condition

*Calculate backfat and lean percentage automatically
Cow Pregnancy Test Portable Ultrasound Scanner, Veterinary Ultrasound Machine, Equine Ultrasound, Vet Dignostic Ultrasound Imaging Machine

BENEFITS
1) Excellent Image Quality due to the application of latest DIGITAL technology.
2) Smaller-sized and very light. 4.5KG only( without probe and battery)
3) With Built-in workstation, permanent image storage: 5000 images

4) With rotatible LED display,you can easily observe images at different viewing angle.

5) Keyboard light. no extra light required and when you use it in a dark room.

6) Rechargeable battery Powered and AC. Each machine is equipped with two batteries, each supporting maximum 3-hour operation
7) More Multifrequency high-density Probes available for selection: convex, linear, microconvex, linear transrectal probe, convex transrectal probe,etc.
Cow Pregnancy Test Portable Ultrasound Scanner, Veterinary Ultrasound Machine, Equine Ultrasound, Vet Dignostic Ultrasound Imaging Machine

Features
Display	10.4"
Gray Scale	256
Language	English
Battery	2 Reachargeable batteries life of 200 minutes
Depth	10steps,236mm
TGC	8
Pseudo color	8
Storage	4G
OB measurement	15 kind of obstetric software, several GA measurement, amniotic fluid index, fetal growth curve and OB report
Urology measurement and analysis	residual urine volumem, prostate volume, and urology report
Normal Measurment	distance, perimeter, area, volume, angle, length and area stenosis ratio measurement
Probe	Two probe sockets, auto-identify different optional probe
Video output	PAL/NTSC, can connect video printer when necessary
N.W	4.5kg
Size	256150326mm (LWH)
Optional Probes
Rectal Convex Probe	2.4/2.5/4.0/5.0 Mhz
Rectal Linear Probe (with Handle)	4.0/5.0/6.5/7.5 Mhz
Convex Array Probe	2.0/2.5/3.5/5.0 Mhz
Linear Array Probe	5.0/6.5/7.5/9.0 Mhz
Micro-convex Array Probe	4.0/5.0/6.0/7.5 Mhz
Rectal Linear Prob (without Handle)	4.0/5.0/6.5/7.5 Mhz

Standard Configuration	Main unit with 10.4-inch Color LED monitor 4.5/5.5/6.5/7.5Mhz Transrectal linear Probe 1pc* Probe Connector 2 pcs Pseudo Color System (8 colors) 1set Rechargeable Battery 1 pc Power Adapter 1pc Output: 2 USB sockets, VGA socket, Ethernet socket 1set Built-in workstation ( powerful data management system) 1pc Professional Veterinary software package including equine, bovine, swine, canine, sheep, feline, llama, etc Operation Manual (English Version) 1pc

Optional parts	1. 6.5MHz multi-frequency trans-vaginal probe
	2. 7.5MHz multi-frequency linear probe
	3. Li-battery
	4. Trolley
	5. Charger
