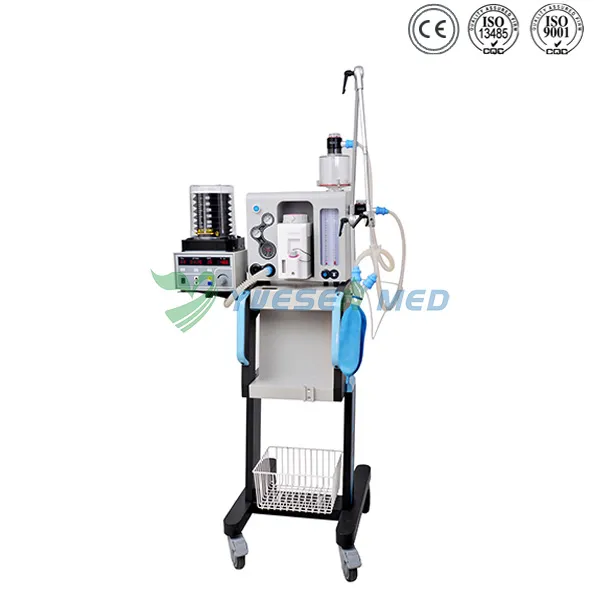

Hospital Veterinary Trolley Anesthesia Machine
YSAV600MV Hospital Veterinary Trolley Anesthesia SystemFeature:CE approved portable anesthesia machineCompact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.Jackson or Bains Absorber is availableSpecifically designed to accomodate low flowS......
Send Inquiry
Product Description
YSAV600MV Hospital Veterinary Trolley Anesthesia System
Feature:
CE approved portable anesthesia machine
Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.
Jackson or Bains Absorber is available
Specifically designed to accomodate low flow
Selectatec-bar and quick change vaporizer mounting device
Professional airtight breathing circuit design, provide the stable gas anesthesia, save
anesthesia gas consumption, to ensure a clean operating room and laboratory
environment.
External and reusable soda lime canister, easily watch and replace soda lime.
With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen
supply demand.
With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the
animal safety .
Wastewater discharge system
Visible inspiration and expiration valve.
Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely
Module rack with polyester medical material with superior spray technology, high
strength and light weight.
With transport case, convenient to take and transport
Easy to disassemble and assemble all the components, convenient for clean and
maintenance.
Specification:
Application: Adult and pediatric( 3kg over).
Ventilation mode: Closed, half-closed, half-open.
Tidal volume( Manual Mode): 10~2000ml.
Gas pressure: 0.25~0.65Mpa
Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1~10L/M
APL valve: 0.5~6.0Kpa
OXYGEN Flush: 25~75L/min
I:E: As the doctor operation
BPM: As the doctor operation
Monitoring: Airway pressure, respiratory mode.
Three gauges: One for Oxygen source pressure
One for oxygen working pressure
One for airway pressure
Vaporizer:
With the latest innovative design of delivery system, vaporizers deliver accurate
concentration under varying conditions of variable flow rate, pressure, temperature
and so on.
Stably deliver agent, automatic temperature-compensating, deliver accurate agent
Sophisticated delivery system,Stable, prompt, accurate
Various kinds of mounting types.
Safety lock device to prevent the anesthetic gas volatile accidentally.
The big view window is convenient to observe drug usage levels.
Specification:
Concentration range:
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick
Mounting type:
selectatec compatible
draeger plug in
cagemount(ISO 23mm tapers)
cagemount with interlock
Net Weight: 26kg
Gross Weight: 30kg
Size:86 X51 X 38CM
Feature:
CE approved portable anesthesia machine
Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.
Jackson or Bains Absorber is available
Specifically designed to accomodate low flow
Selectatec-bar and quick change vaporizer mounting device
Professional airtight breathing circuit design, provide the stable gas anesthesia, save
anesthesia gas consumption, to ensure a clean operating room and laboratory
environment.
External and reusable soda lime canister, easily watch and replace soda lime.
With Oxygen flush function to ensure that clinical anesthesia demand and Oxgyen
supply demand.
With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the
animal safety .
Wastewater discharge system
Visible inspiration and expiration valve.
Could upgrade to Oxygen&N2O or Oxygen&Air flow meter freely
Module rack with polyester medical material with superior spray technology, high
strength and light weight.
With transport case, convenient to take and transport
Easy to disassemble and assemble all the components, convenient for clean and
maintenance.
Specification:
Application: Adult and pediatric( 3kg over).
Ventilation mode: Closed, half-closed, half-open.
Tidal volume( Manual Mode): 10~2000ml.
Gas pressure: 0.25~0.65Mpa
Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1~10L/M
APL valve: 0.5~6.0Kpa
OXYGEN Flush: 25~75L/min
I:E: As the doctor operation
BPM: As the doctor operation
Monitoring: Airway pressure, respiratory mode.
Three gauges: One for Oxygen source pressure
One for oxygen working pressure
One for airway pressure
Vaporizer:
With the latest innovative design of delivery system, vaporizers deliver accurate
concentration under varying conditions of variable flow rate, pressure, temperature
and so on.
Stably deliver agent, automatic temperature-compensating, deliver accurate agent
Sophisticated delivery system,Stable, prompt, accurate
Various kinds of mounting types.
Safety lock device to prevent the anesthetic gas volatile accidentally.
The big view window is convenient to observe drug usage levels.
Specification:
Concentration range:
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%
Flow range:0.2 to 15L/min
0.2 to 10L/min(normal usage)for concentrations>5 vol%
Filling volume for agent:
About 340ml with dry wick
About 300 ml with moist wick
Mounting type:
selectatec compatible
draeger plug in
cagemount(ISO 23mm tapers)
cagemount with interlock
Net Weight: 26kg
Gross Weight: 30kg
Size:86 X51 X 38CM
