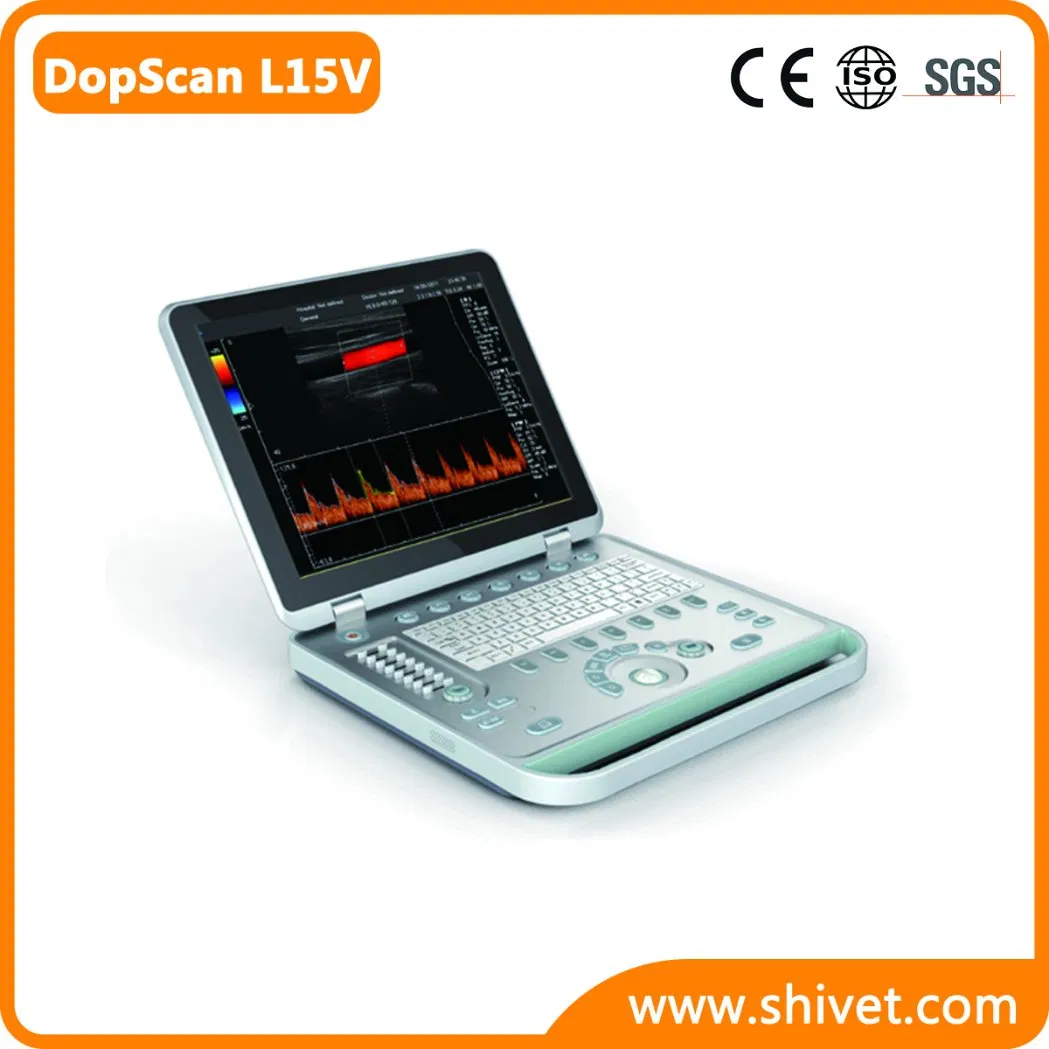

Veterinary Color Doppler ( DopScan L15V)

Product Description

Veterinary Laptop Color Doppler Ultrasound Scanner
Model: DopScan L15V

Shinova DopScan L15V Veterinary Color Doppler Ultrasound System is a very high cost-effective device, for it with good image, powerful functions and also pretty appearance, but price is inexpensive.

It with a large volume hardisk so can store many image and video, and can make a detail report directly

Not need connect to computer and make on computer, and can work with general ink or laser printer, so the printer cost is low.

Support 12 kinds of languages: English, Spanish, French, Russian, Italian, German, Romanian, Polish, Hungarian, Lithuania, Korean, Chinese.

Feature:
· CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF, THI
· High definition image
· Very thin, light and pretty
· 15inch LED Screen
· Built-in Battery
· 3D imaging(option)
· Abundant functions, Multilingual
· Hardisk, USB storage

Specifications:
1. Imaging Modes:
B, B|B, 4B, B|M, Ml
Color Doppler (CFM)l
Power Doppler (PDI)l
Directional Power Doppler (DPDI)l
Pulsed Wave Doppler (PWD)l
B+PWD (Duplex)l
B+CFM/PDI/DPDI+PWD (Triplex)l
High Pulse Repetition Frequency (HPRF)l
Tissue Harmonic Imaging (THI)l

2. Scanning Method:
Electronic linear, electronic convex, electronic micro-convex, scanning depth: 2-24cm

3. Color Doppler:
PRF variable: 0.5-9 kHzl
Wall filter settings: 3 steps (5%, %10%, 15% PRF)l
Angle steering for linear transducers: ± 10° L
Real-time spatial filter: 4 valuesl
CFM palettel>10 maps
PDI palettel>10 maps
B/Color priority controll
Color threshold controll
CFM baseline controll
Doppler frequency selectionl
Color frame averagingl
Transparent Color Mapping (TCM)l

4. Pulsed Wave Doppler:
PRF variable: 1-10 kHzl
Wall filter settings: 16 steps (2.5%-20% PRF)l
Angle steering for linear transducers: ± 10° L
Real-time trace line with automatic calculation of spectrum parametersl
Stereo sound: Volume controll
PWD palettel>10 maps
Doppler frequency selectionl

5. Processing:
High Line Density scan mode for better resolutionl
8 sliders TGC Controll
Dynamic rangel>120 dB
Overall gain controll
M - mode sweep speed controll
Acoustic power controll
Variable frame averagingl
Brightness, contrastl
Advanced gamma controll
Scan direction, rotation, up-down controlsl
Negative / positive controll
Echo enhancement controll
Noise rejection functionl
Speckle reductionl

6. Image and video:
AVI, JPG, BMP, PNG, TIF, DCM (DICOM)

7. General Measurements and Calculations: Distance, Length, Area, Circumference, Volume, Angle, Stenosis %, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration, Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc.

8. Measurements and Calculations Software Packages:
Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc.

9. Expansion interfaces:
VGA, TV Interfacel
USB2.0 Interfacel
RJ-45 Network interfacel
Support DeskJet printer, LaserJet printer, video printer

Standard Configuration:
Main unit + 5.0Mhz Veterinary Micro-convex probe + 7.5MHz Linear probe, carrying case, etc.

Optional:
Linear, Trans-vaginal, Micro-convex, Rectal probe; 3D imaging software; Bag; Trolley; Laser Printer; Video Printer
