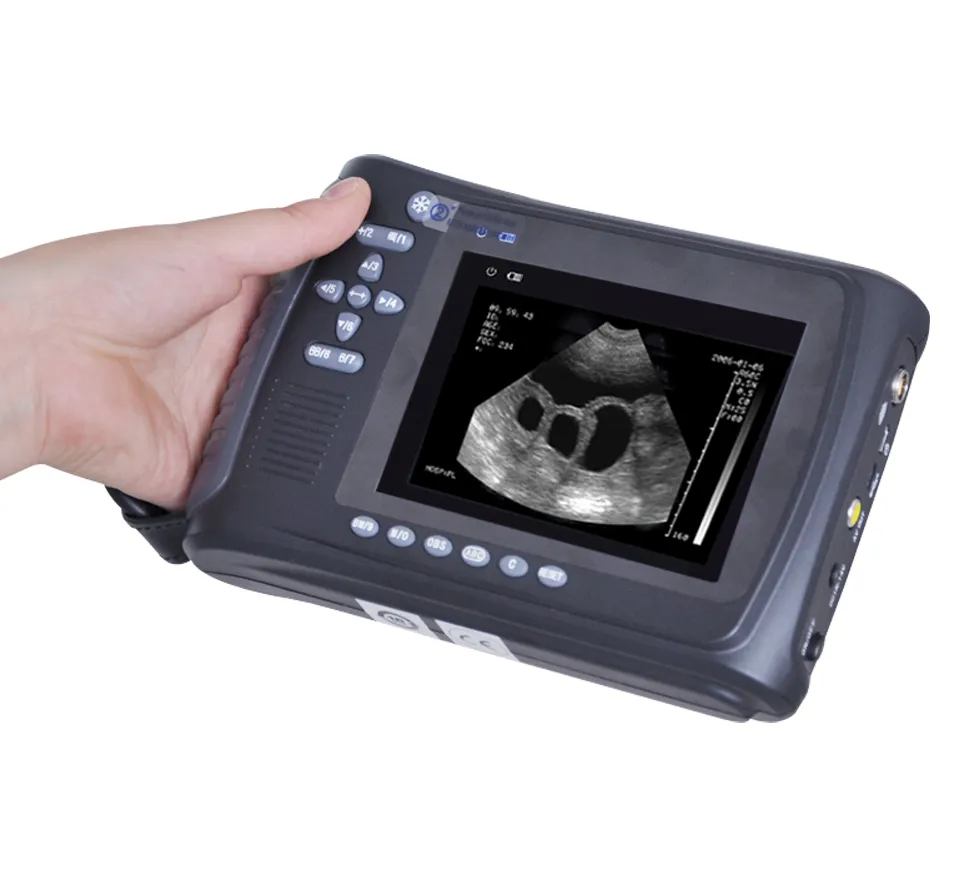

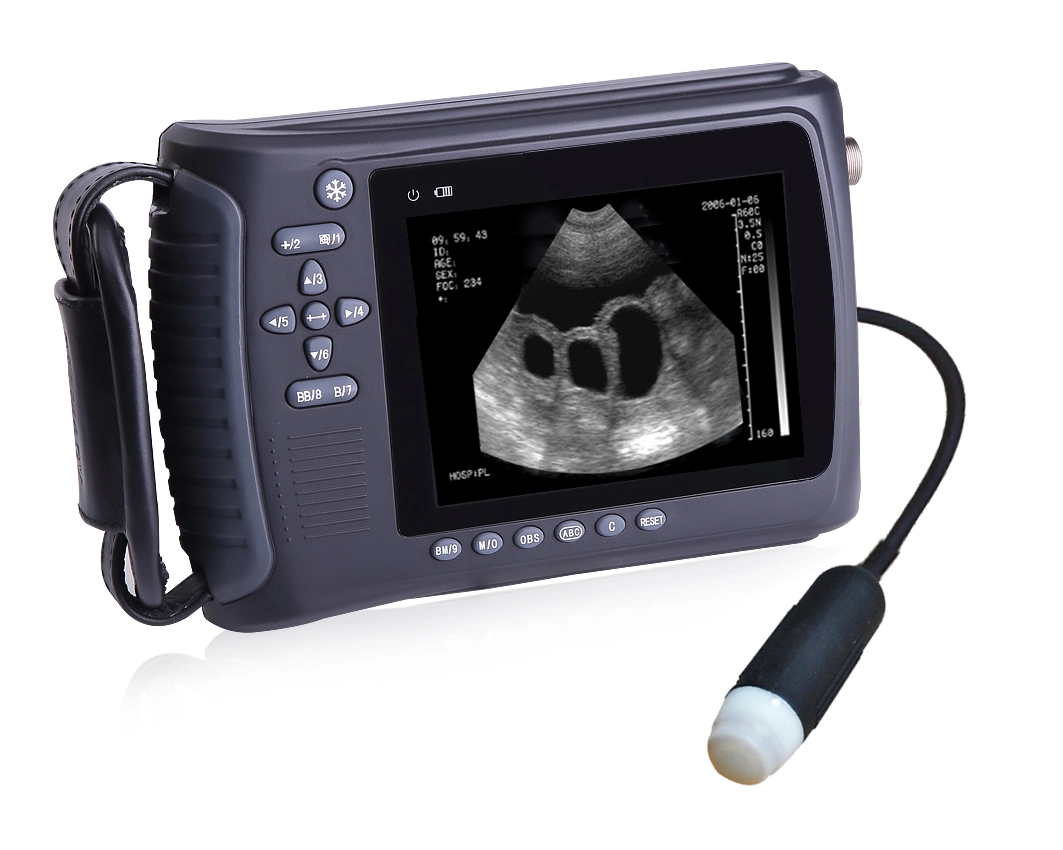

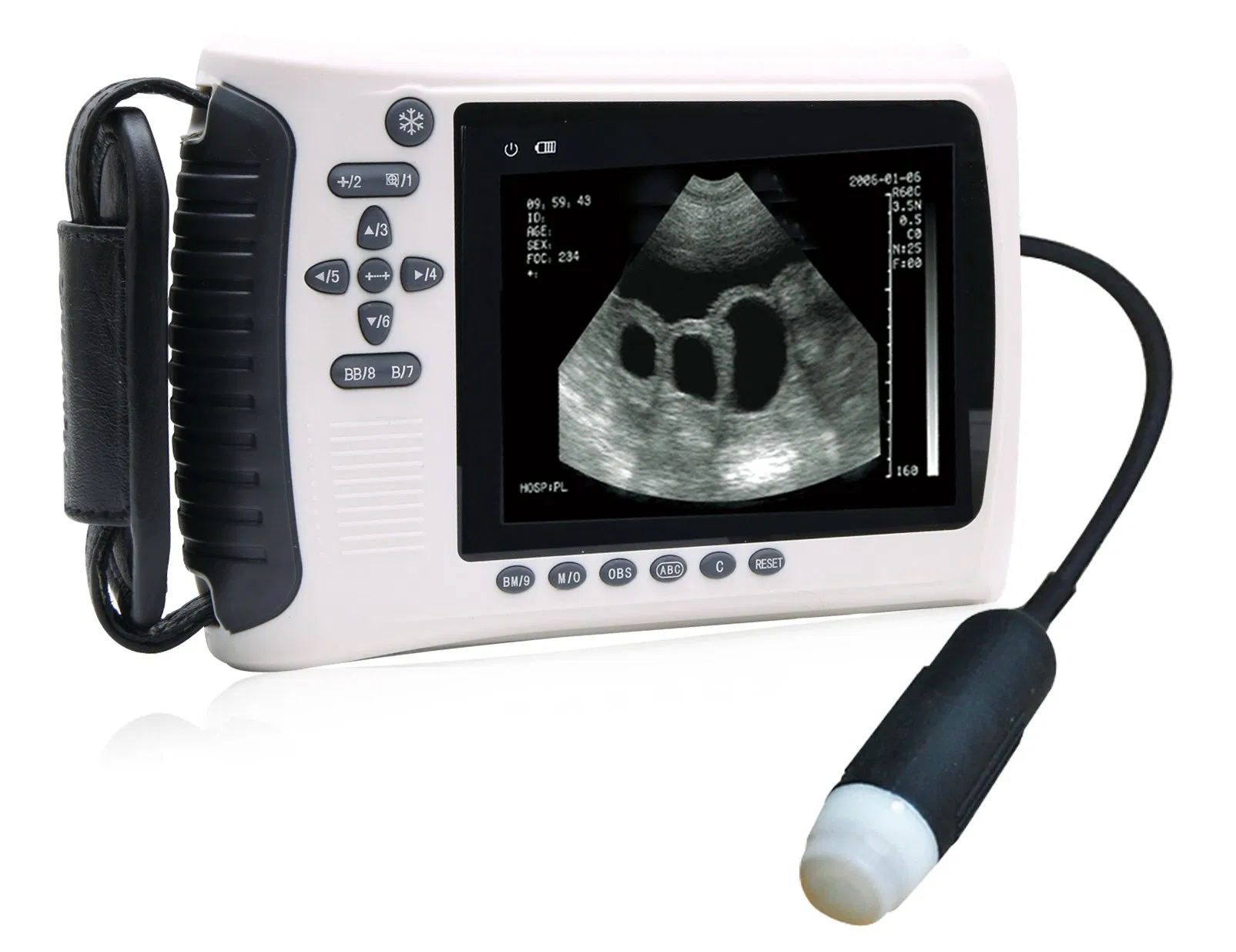

Veterinary Handheld Ultrasound Scanner for Pig and Sheep (PL-2021V)

Product Description

Veterinary Handheld Ultrasound Scanner for Pig and Sheep with CE certificate

Range of application: pig, sheep and etc.

Brief introduction:
This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution.

Standard Configuration:
-Main unit.
-3.5Mhz sector probe.

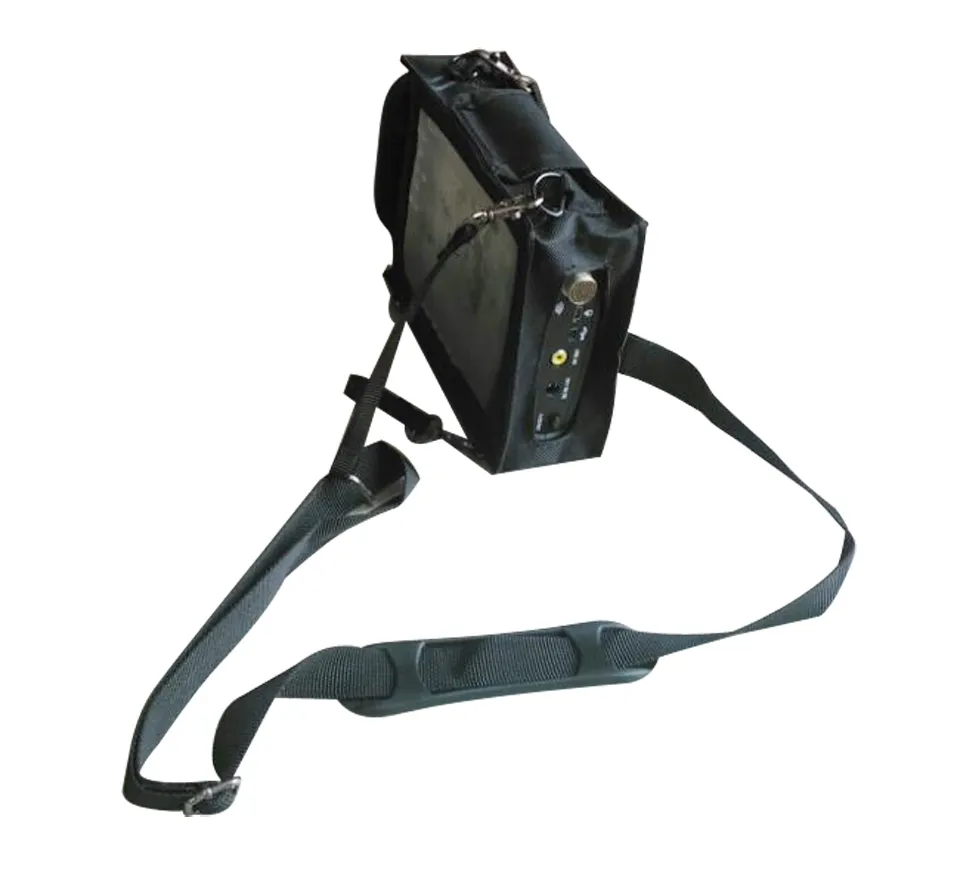

-Wrap bag.
-Protective box.
-Manual/ technical instructions.
-Power adapter(containing powder cord)

Optional:
-S3/5.0Mhz waterproof sector probe.
-Video printer
-Li-ion battery
-Car charger
-Charging adaptation wire

Specification:	Probes		3.5Mhz sector probe	5.0Mhz sector probe
	Displayed Depth(mm)		192	192
	Maximal detect depth(mm)		≥140	≥80
	Resolution/mm	Lateral	≤4 (depth≤80) ≤5 (80<depth≤130)	≤3 (depth≤60)
		Axial	≤2 (depth≤80)	≤1 (depth≤60)
	Blind zone(mm)		≤8	≤8
	Geometric position precision	Horizontal	≤20	≤15
		Vertical	≤10	≤10
	Monitor size		5.0 TFT-LCD
	Display mode		B, B+B, B+M, M, 4B
	Image gray scale		256
	Scan depth		120mm-190mm
	Image process		Histogram, color encode, gama, image smooth
	Battery capacity		2200mAh
	Measurement		Distance, circumference, area, volume, heart rate, gestation age
	Notation		Date, time, name, sex, age, full screen words edit and etc.
	Output report		Measurement
	Output		USB2.0, VIDEO( PALD, NTSC)
	Battery continuous work		≥3 hours
	Machine size		230mm(L)x120mm(W)x38mm(H)
	Net weight		800G

Brand:	Palmary
Origin:	China
Min. qty :	1 set.
Factory capacity:	More than 300sets.
Delivery time:	1-3 days after received payment.
Payment term:	T/T, West union, paypal and etc.
Warranty time:	Any quality problems, it can be replaced for free within 2 years and life-long service.
