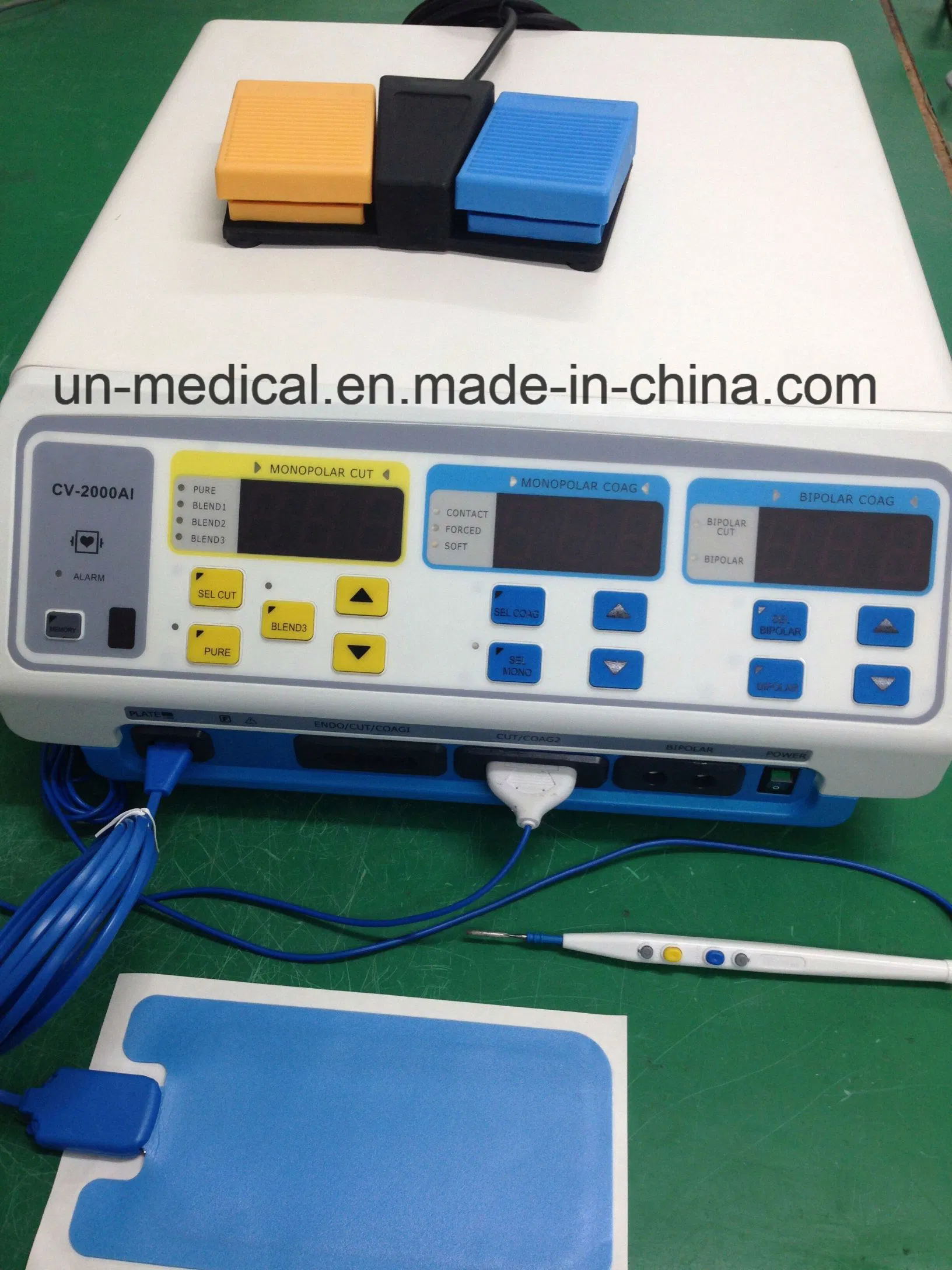

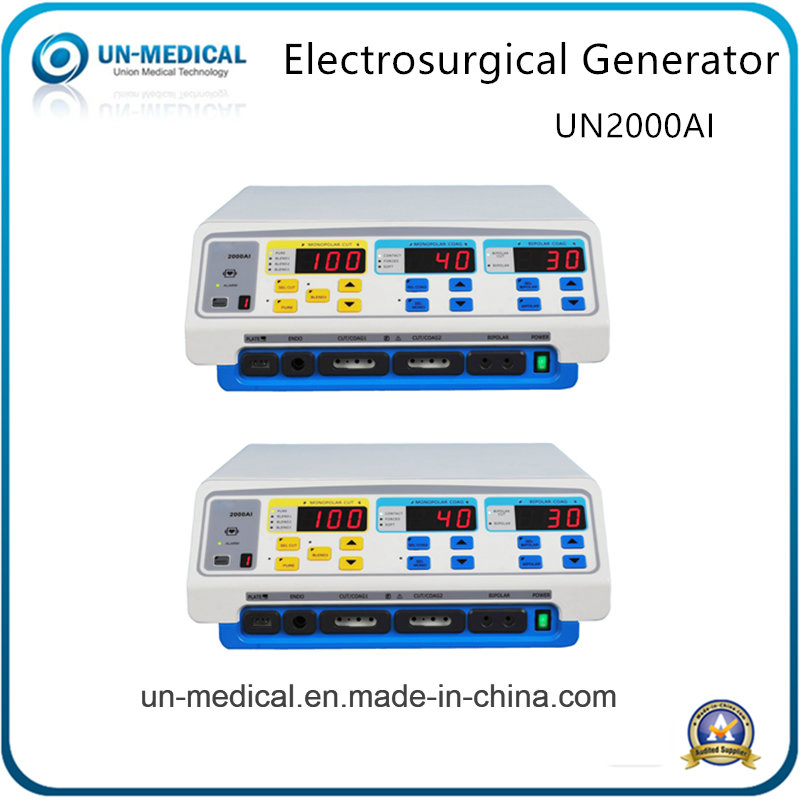

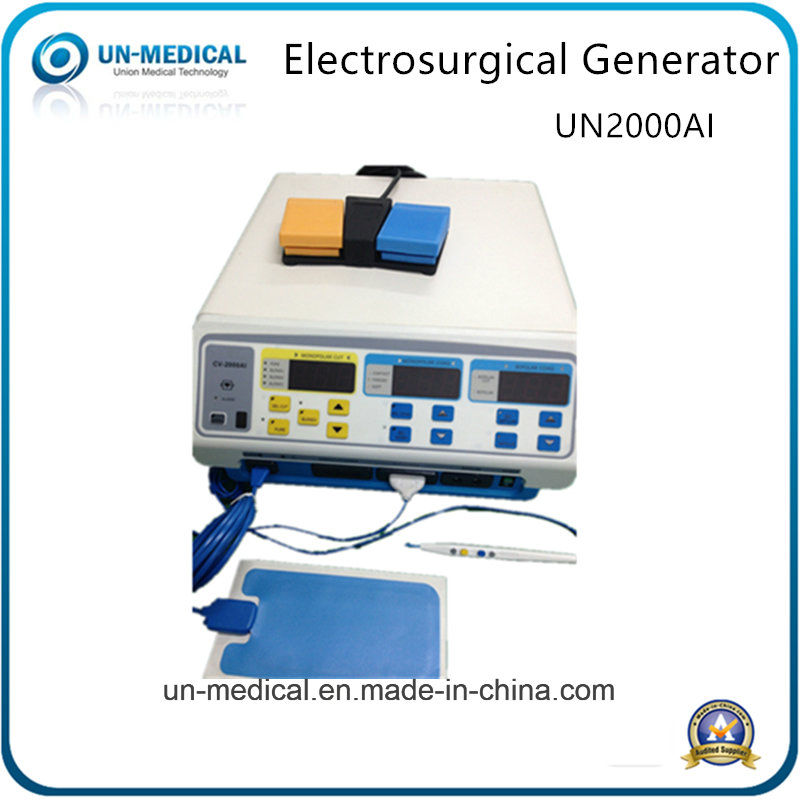

400W Surgical Cautery Electrosurgical Diathermy Machine Cautery

Product Description

400W Electrosurgical Unit/ Electrosurgical Cautery Unit/ Medical Diathermy Equipmentc

Main Features

Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
Both hand and foot controlled.
Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
Memory for at least 10 frequently used programs.
Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
The ESU unit can be connected with laparoscope and endoscope, etc.
Protection against over-voltage and over-current.
Defibrillation protected.
Convection refrigeration without ventilator.
Mounted on a 4 wheels cart(optional).
Meets the requirements of international safety standards EN60601-1 and EN60601-2.

Technical Specifications

Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:512KHz b) Bipolar:1024KHz
Power rating: 1100VA±10%

Nine working modes:
Mono-polar Cut
a) Pure cut:1W~400W( Load 800Ω)
b) Blend1:1W~300W(Load 800Ω)
c) Blend2:1W~200W(Load 800Ω)
d) Blend3:1W~150W(Load 800Ω)
Mono-polar Coag
e) Spray Coag:1W~80W( Load 800Ω)
f) Forced Coag:1W~120W( Load 800Ω)
g) Soft Coag:1W~120W( Load 800Ω)
Bipolar
h) Bipolar Coagulation: 1W~70W( Load 200Ω)
i) Bipolar Cut: 1W~120W( Load 200Ω)
Power Consumption: ≤1100VA

Configuration Sheet
Electrosurgical Pencil      5pcs
Electrosurgical Pad        10pcs
Electrosurgical pad cable   1pcs
Footswitch                1set
Bipolar Forceps           1pcs
Bipolar forceps cable       1pcs

Exhibitions

400W Surgical Cautery Electrosurgical Diathermy Machine Cautery

400W Surgical Cautery Electrosurgical Diathermy Machine Cautery

Shipment and payment

For the order which less than 20units, more of the customers choose the shipment by Express Courier or by Air Cargo.
Our normal Lead Time is within 5-7working days after payment.
