Home > Products > Surgical Instrument > Medical Equipment 300W Digital Display Electrosurgical Generator with Five Working Modes

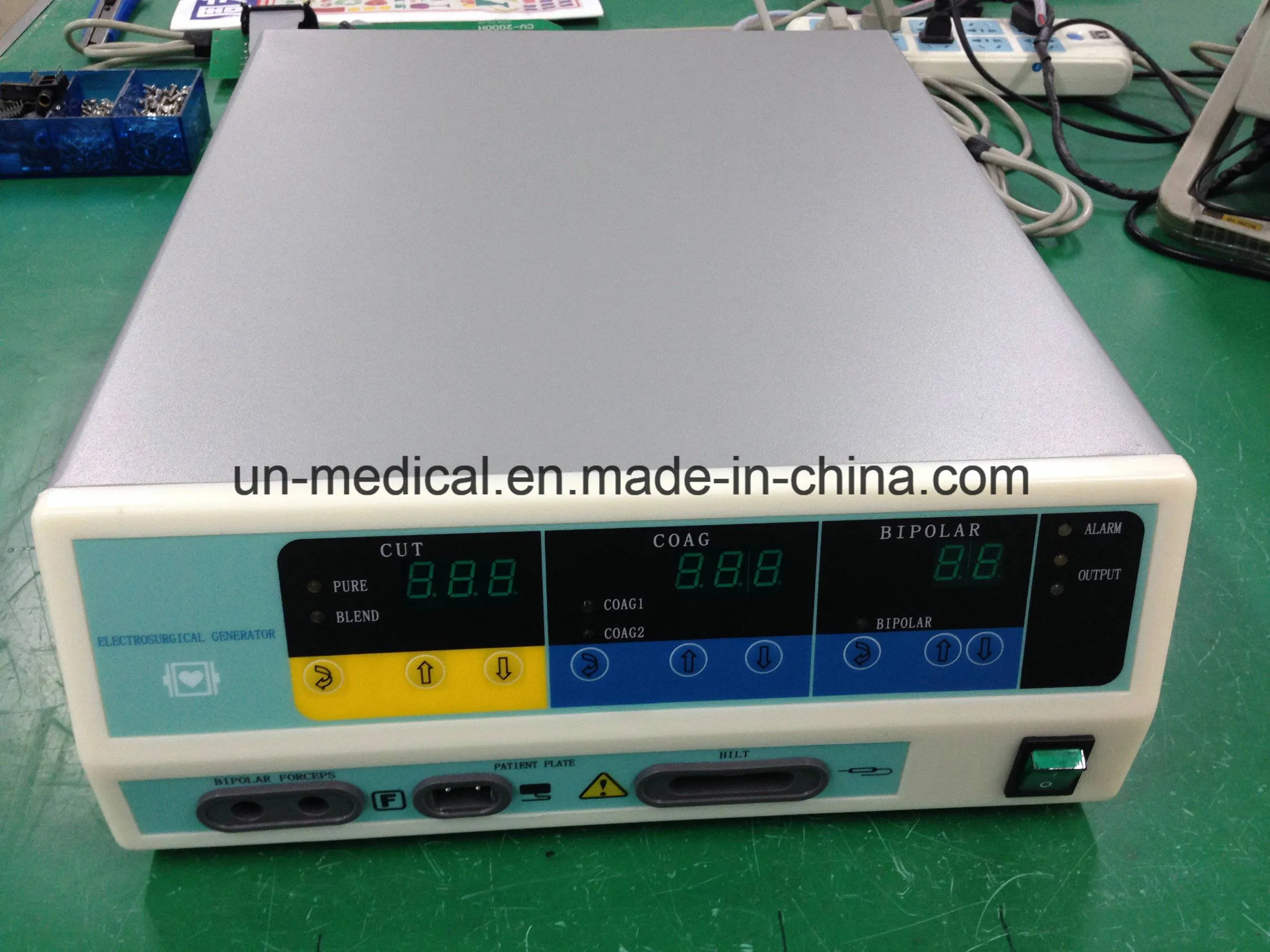

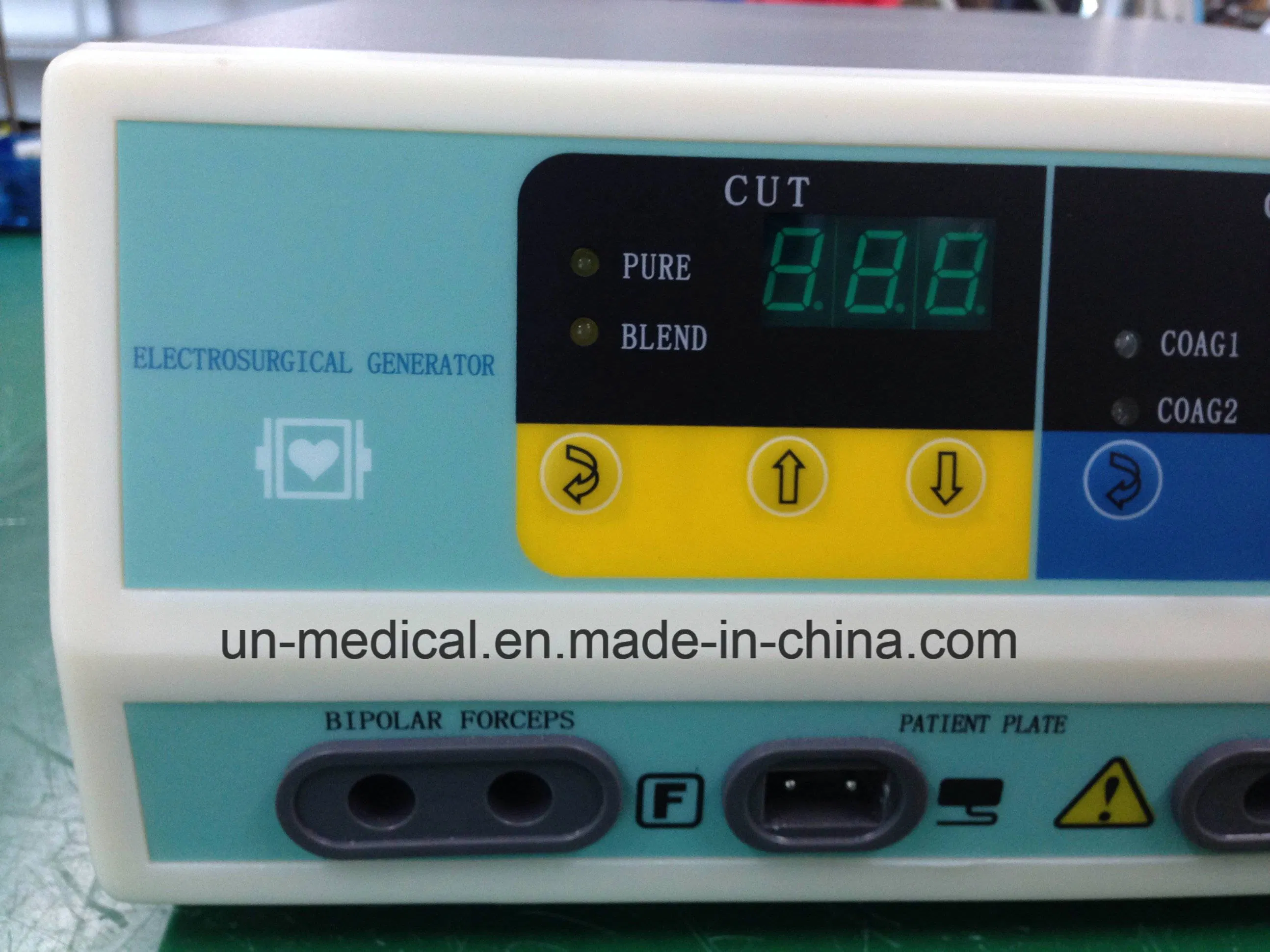

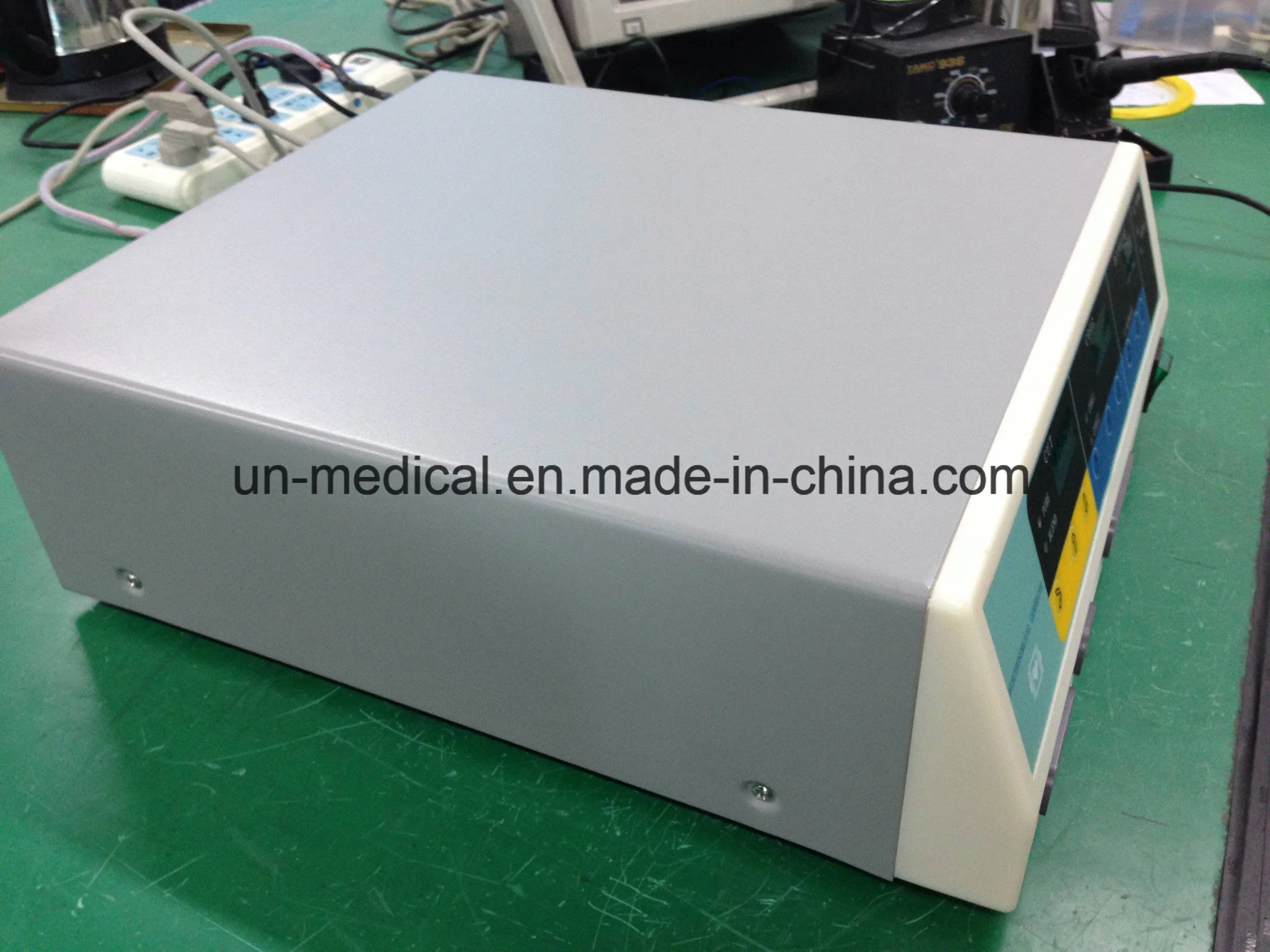

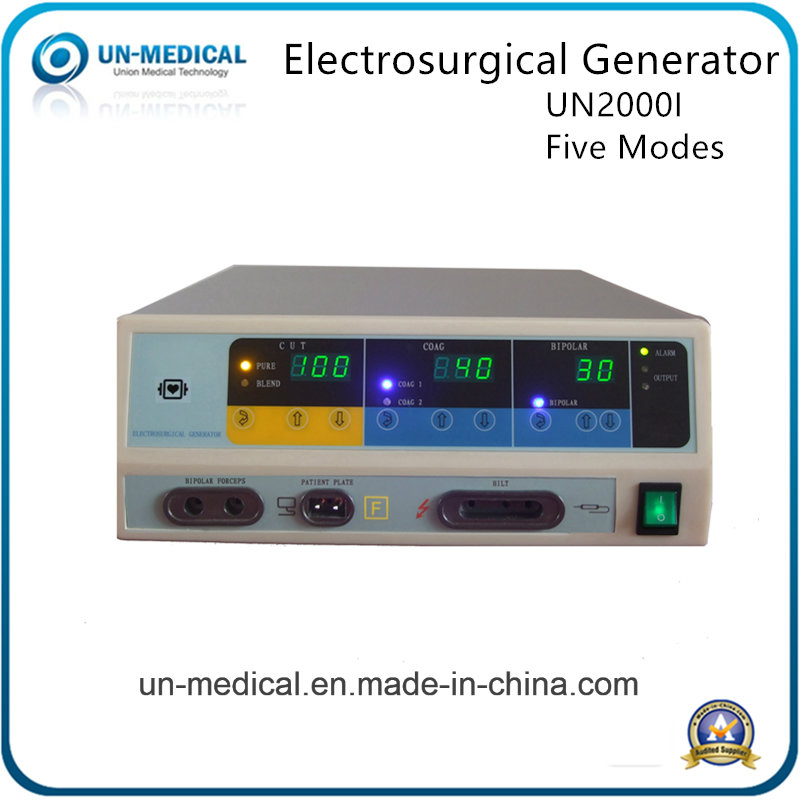

Medical Equipment 300W Digital Display Electrosurgical Generator with Five Working Modes
300W Electrosurgical Generator With Five working modesMain FeaturesMax 300W Electrosurgical Generator, with mono-polar and bipolar function.Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic......
Send Inquiry
Product Description
300W Electrosurgical Generator With Five working modes
Main Features
Exhibitions
Shipment and payment
For the order which less than 20units, more of the customers choose the shipment by Express Courier or by Air Cargo.
Our normal Lead Time is within 5-7working days after payment.
Contact US
Main Features
- Max 300W Electrosurgical Generator, with mono-polar and bipolar function.
- Five working modes: pure cut, blend, spray coag, forced coag, bipolar coag.
- Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
- Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
- Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
- Both hand and foot controlled.
- Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
- The ESU unit can be connected with laparoscope and endoscope, etc.
- Protection against over-voltage and over-current.
- Defibrillation protected.
- Mounted on a 4 wheels cart(optional).
- Meets the requirements of international safety standards EN60601-1 and EN60601-2.
- Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: 512KHz
Power rating: 1100VA±10%
Five working modes:
Mono-polar Cut
a) Pure cut:1W~300W( Load 800Ω)
b) Blend:1W~200W(Load 800Ω)
Mono-polar Coag
c) Spray Coag:1W~80W( Load 800Ω)
d) Forced Coag:1W~120W( Load 800Ω)
Bipolar
e) Bipolar Coagulation: 1W~50W( Load 200Ω)
Power Consumption: ≤1100VA
Configuration Sheet
Electrosurgical Pencil 5pcs
Electrosurgical Pad 10pcs
Electrosurgical pad cable 1pcs
Footswitch 1set
Bipolar Forceps 1pcs
Bipolar forceps cable 1pcS
Exhibitions
Shipment and payment
For the order which less than 20units, more of the customers choose the shipment by Express Courier or by Air Cargo.
Our normal Lead Time is within 5-7working days after payment.
Contact US
