Medical Orthopedic Bone Drill Electric Surgical Power Drill Product
Medical Orthopedic Bone Drill Electric Surgical Power Drill Product 1.Technical Data Output Power130WSpeed(r.p.m)0-16000rpmNoise(db)≤75Sterilization≤135ºCOperation voltage(V) 14.4VHand-piece Unit Rise in Temperature≤25ºCCharging Time About 3 hoursGross Weight5K......
Send Inquiry
Product Description
Medical Orthopedic Bone Drill Electric Surgical Power Drill Product
1.Technical Data
| Output Power | 130W |
| Speed(r.p.m) | 0-16000rpm |
| Noise(db) | ≤75 |
| Sterilization | ≤135ºC |
| Operation voltage(V) | 14.4V |
| Hand-piece Unit Rise in Temperature | ≤25ºC |
| Charging Time | About 3 hours |
| Gross Weight | 5KG |
| Radial Run-out | ≤ 0.5mm |
| Battery Type | Ni-MH |
| Charger Input Voltage | AC 220V, 50Hz |
| Charger Input Power | 30VA |
| Charger Output Power | 14.4V, 900mA |
2. Product Technical Merits
- Can be sterilized up to 135ºC
- Motor is imported from German
- Strong power ,low noise,small vibration
- Reduced the risk of surgery
- Variable speed and lightweight for better accuracy
- Axial run-out of concentrically is within 0.05mm.

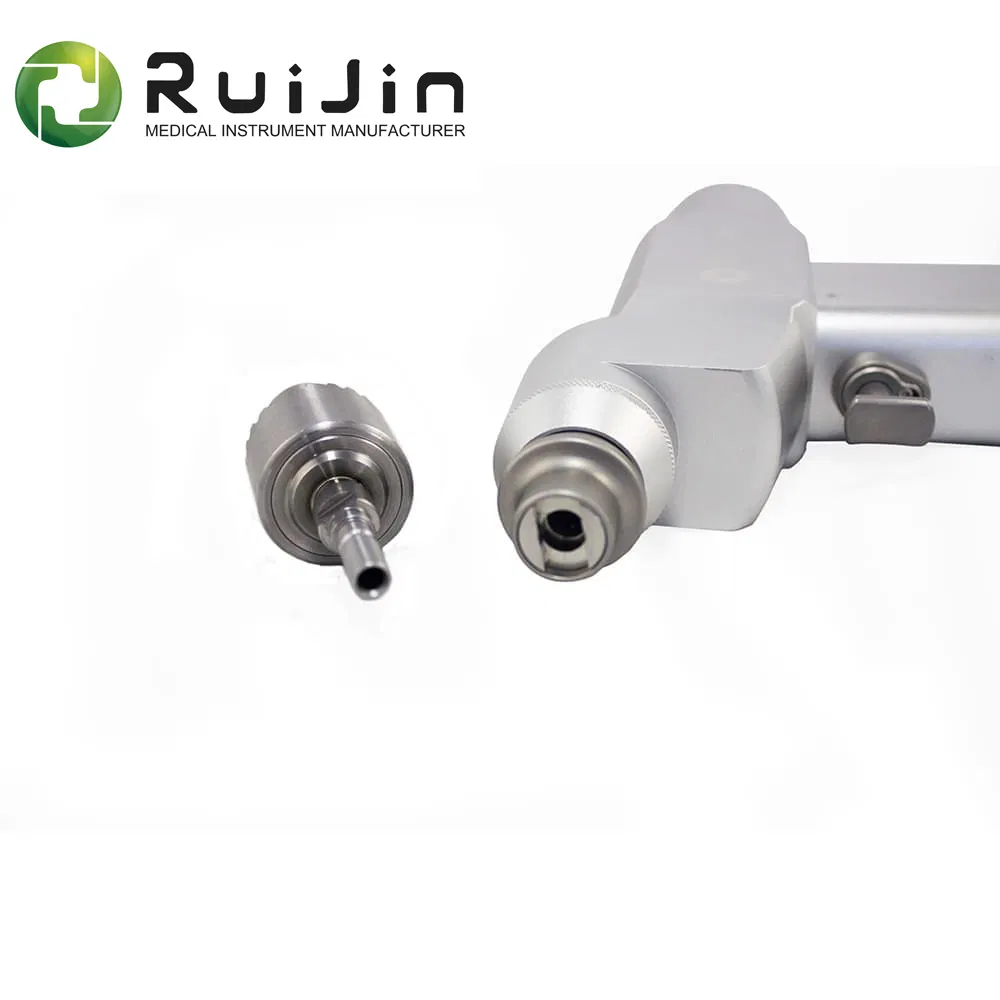

- Multipurpose interface is easier to use in clinic
- 4.0mm hollow for all brand needles to pass through.
- Ni-MH battery without memory environment.

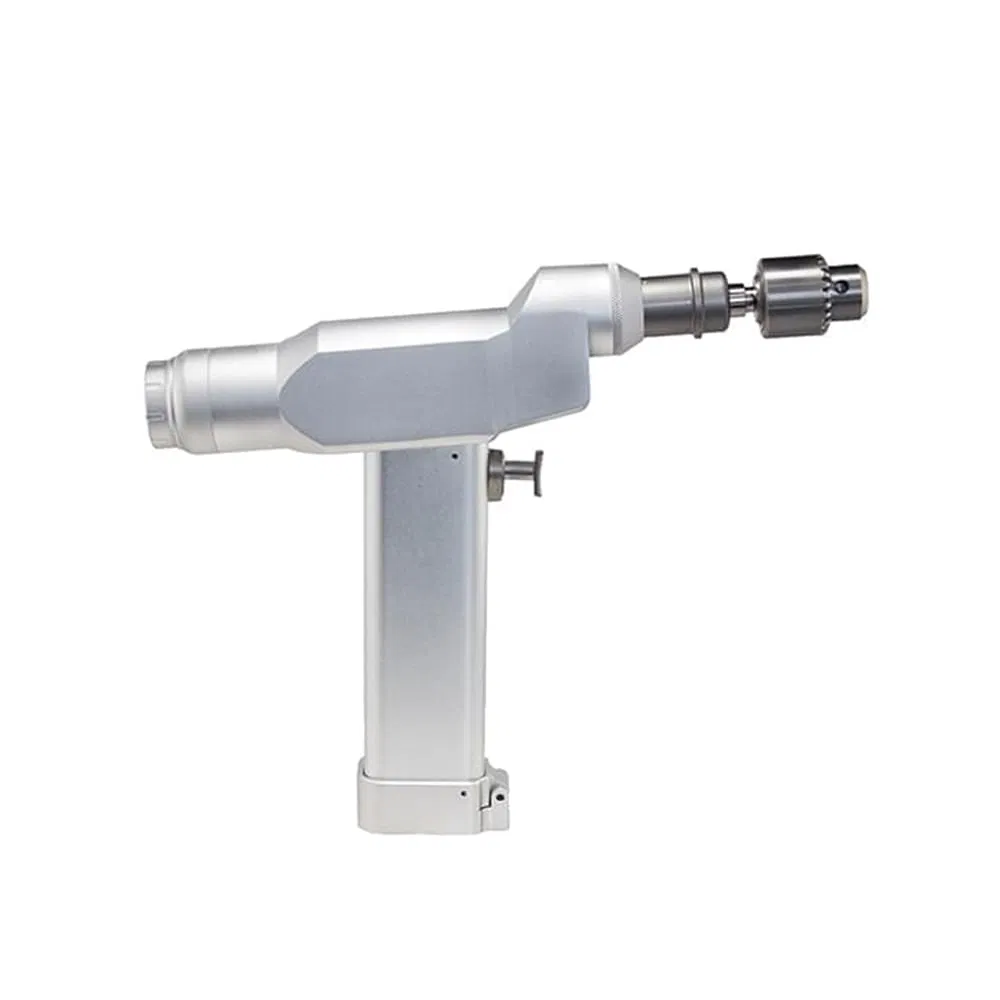

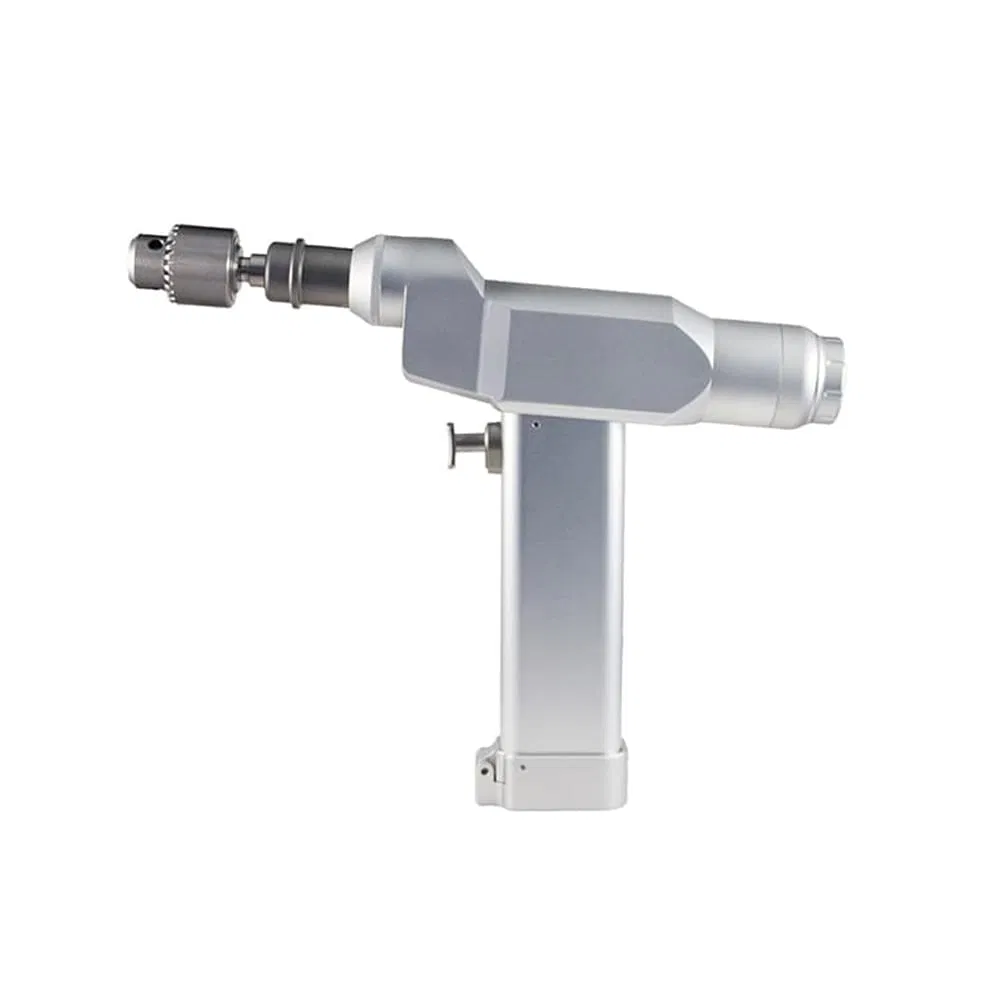

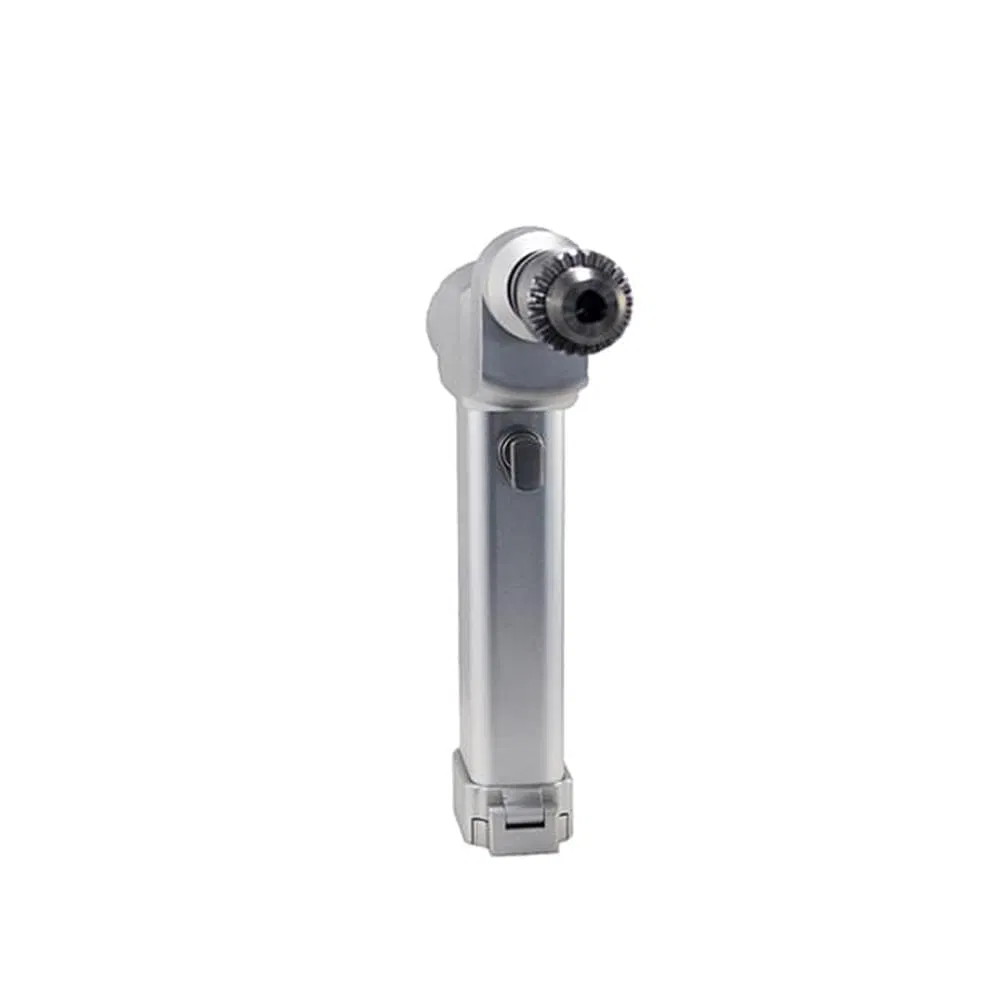

3. Product Display

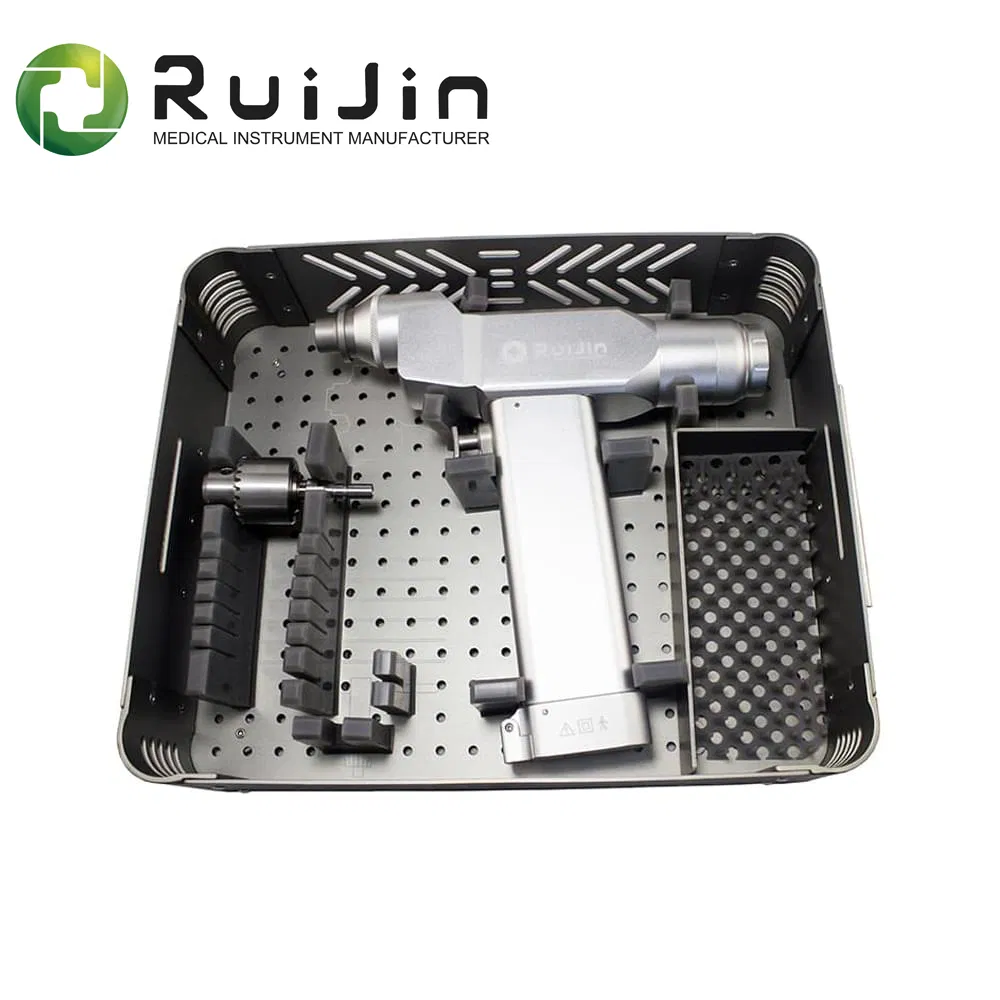

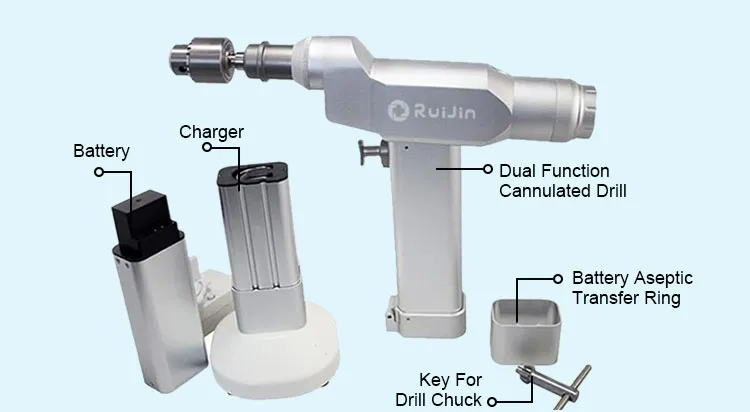

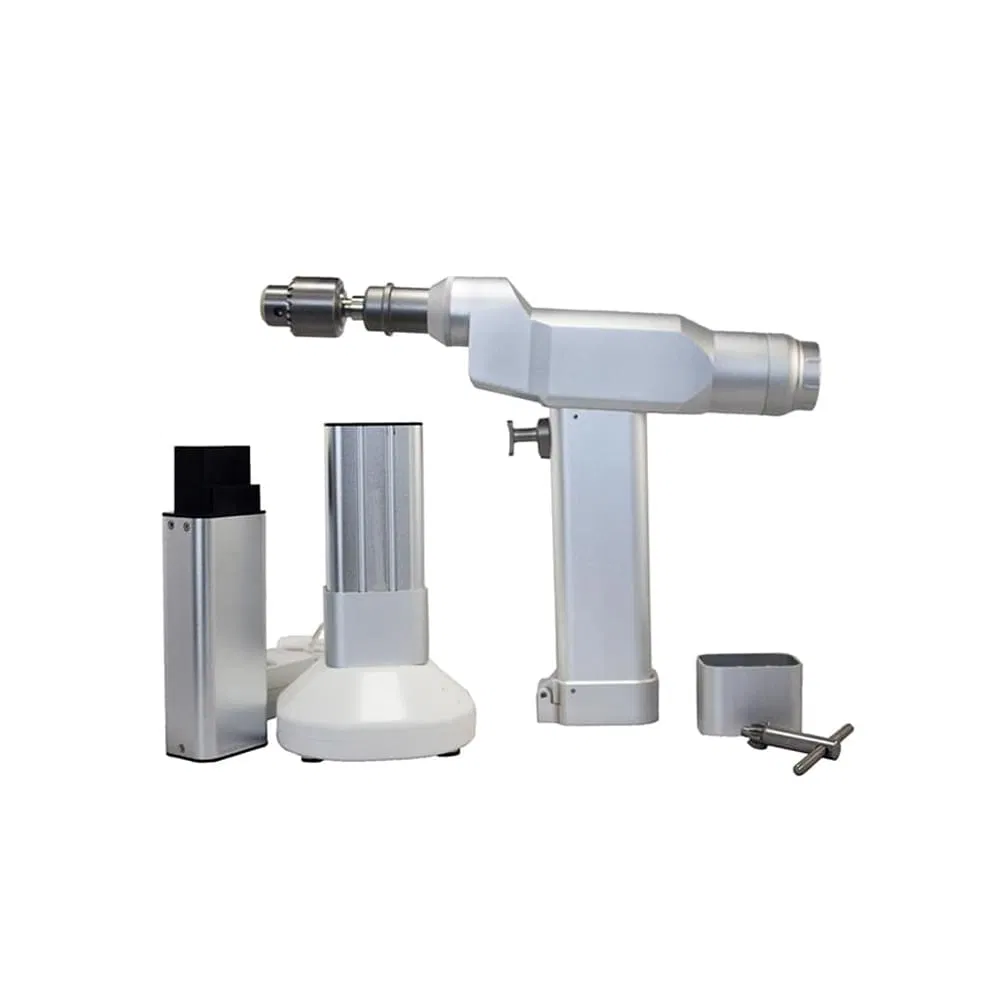

Standard Configuration
-One drill chuck with key
-One battery
-One charger
-One hand piece
-One sterilizing channel
-One aluminium box
4. Certificate
5. About Us
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
CONTACT US:
No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
+(86) 0553-2672512
6. Payment & Delivery
1: Price: FOB USD 450-545 / Set, Shanghai Port
2: MOQ: 1 piece
3: Payment Terms: T/T in advance or western union
4: Delivery Time: Within 3 days after payment
7. Attention & Notes
1. Sterilize temperature ≤ 135 ° C, if the temperature is over 135 ° C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm, acetabulum reamering drill with big torque, rpm is around 400, canulate drill is used with nail or K- wire, rpm is around 800.
3. The battery need to be get out of the power tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized, it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to avoid the blood stick in the bur, then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water, after sterilization.
7. The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
