ND -1001 Medical Electric Autoclavable Bone Drill
ND-1001 Medical Electric Autoclavable Bone DrillI: Autoclavable.Ii: Professional drill and saw manufacturer.Iii: Drill chuck scope: 0.6-8mm/0.6-6mm.Iv: Discretionary speed control.1.Technical Data Output Power 130WSpeed 0-13000 r.p.mNoise≤ 65 dBSterilization≤135ºCOperation vol......
Send Inquiry
Product Description

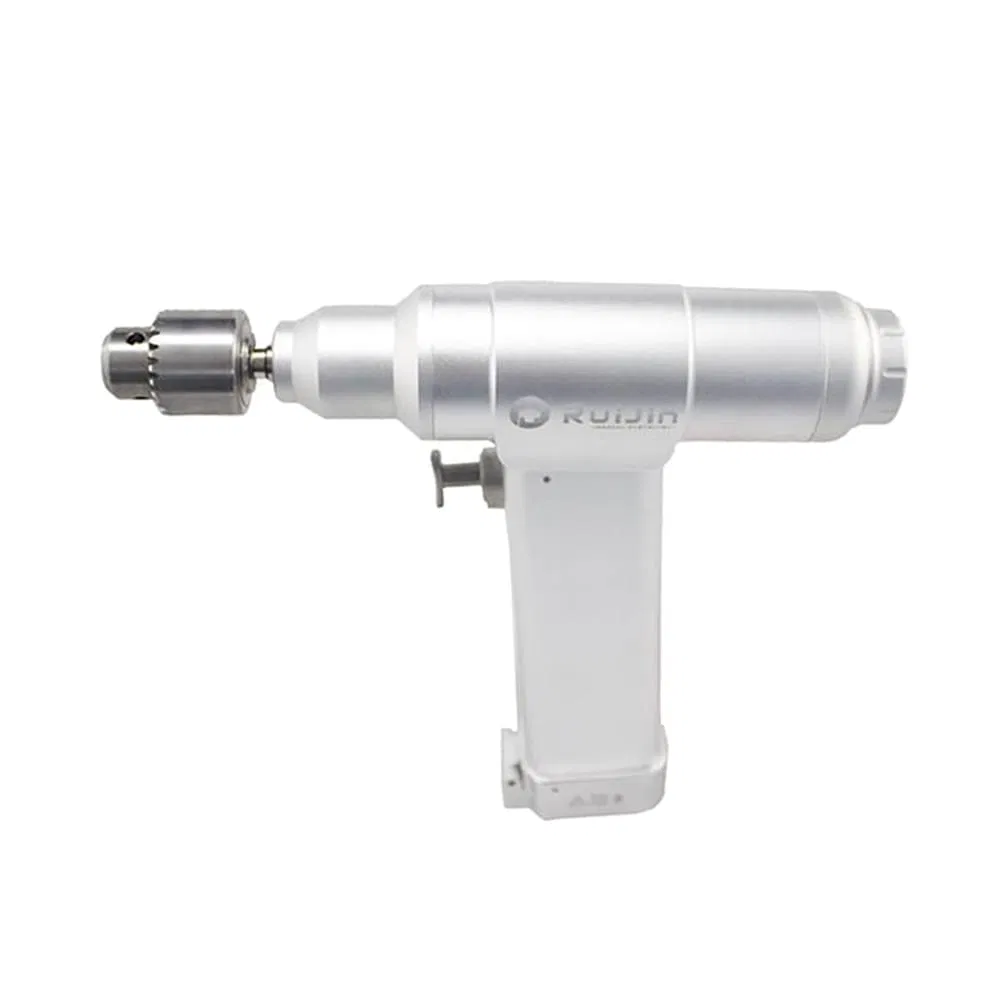

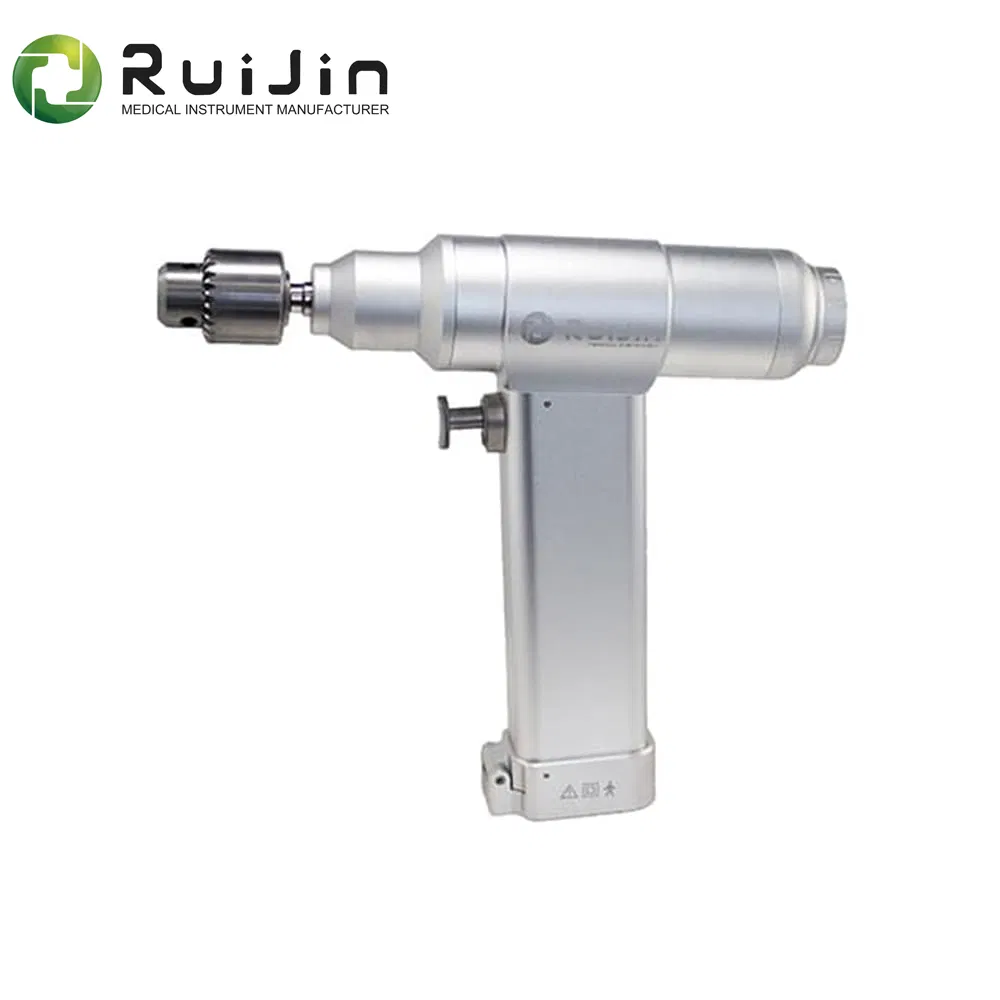

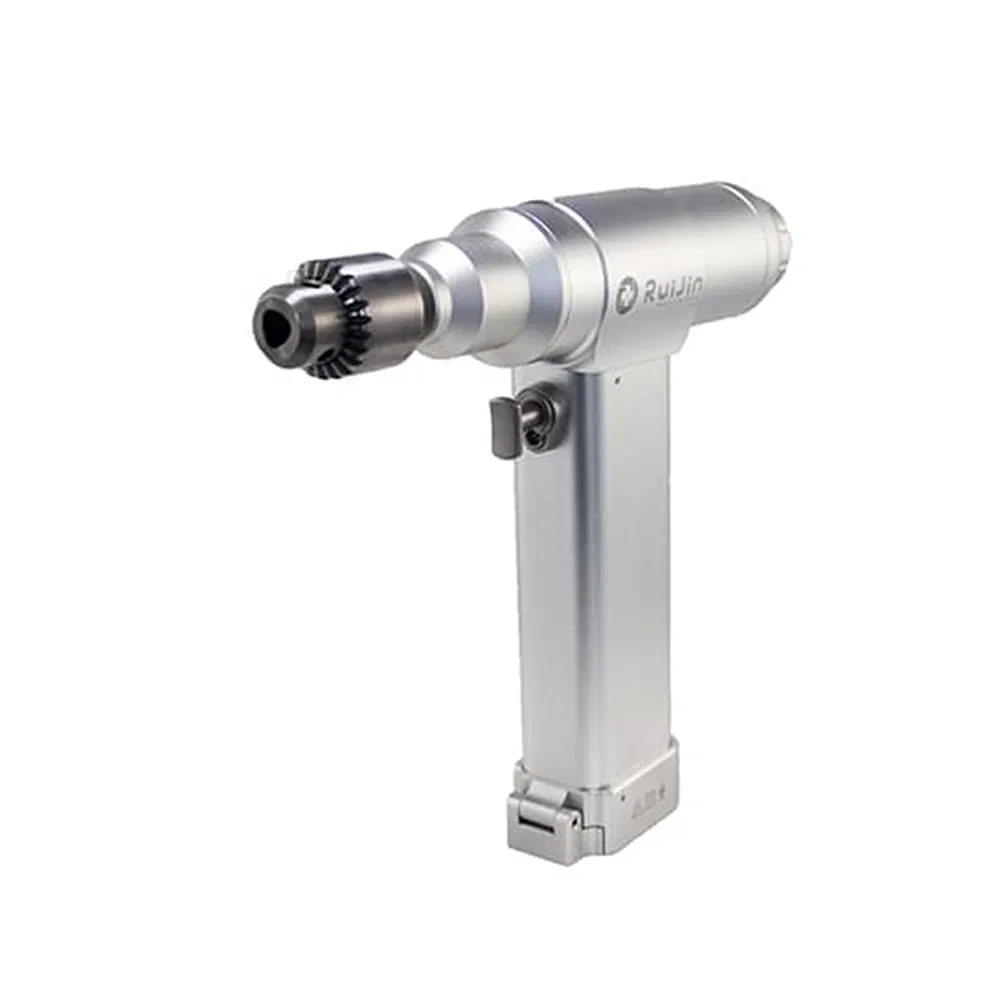

ND-1001 Medical Electric Autoclavable Bone Drill
I: Autoclavable.
Ii: Professional drill and saw manufacturer.
Iii: Drill chuck scope: 0.6-8mm/0.6-6mm.
Iv: Discretionary speed control.
1.Technical Data
| Output Power | 130W |
| Speed | 0-13000 r.p.m |
| Noise | ≤ 65 dB |
| Sterilization | ≤135ºC |
| Operation voltage | 14.4V |
| Hand-piece Unit Rise in Temperature | ≤25ºC |
| Main Material | Aluminum Alloy |
| Structure | Integrated |
| Net Weight | 1.5KG |
| Battery Type | Ni-MH |
| Charger Input Voltage | AC 220V, 50Hz or 110V,60Hz |
| Charger Output Power | 14.4V, 900mA |
| Charging Time | 2.5-3 Hours |
| Non-load Speed | ≥ 1300r/m |
| Diameter Run-out | ≤ 0.5mm |
2. Product Technical Merits
- Can be sterilized up to 135ºC
- Discretionary speed control to meet different surgery situation.
- Strong power ,low noise,small vibration
- Convenient operation with ergonomic design
- Ni-MH battery without memory environment.
- Concentric drilling less than 0.05mm difference ensures precise and stable performance.
- A variety of drilling demands available with dedicated drill bit.
- Custom-made drilling speed: 1100 rpm. 1200rpm. 1350rpm. 1500rpm are available.

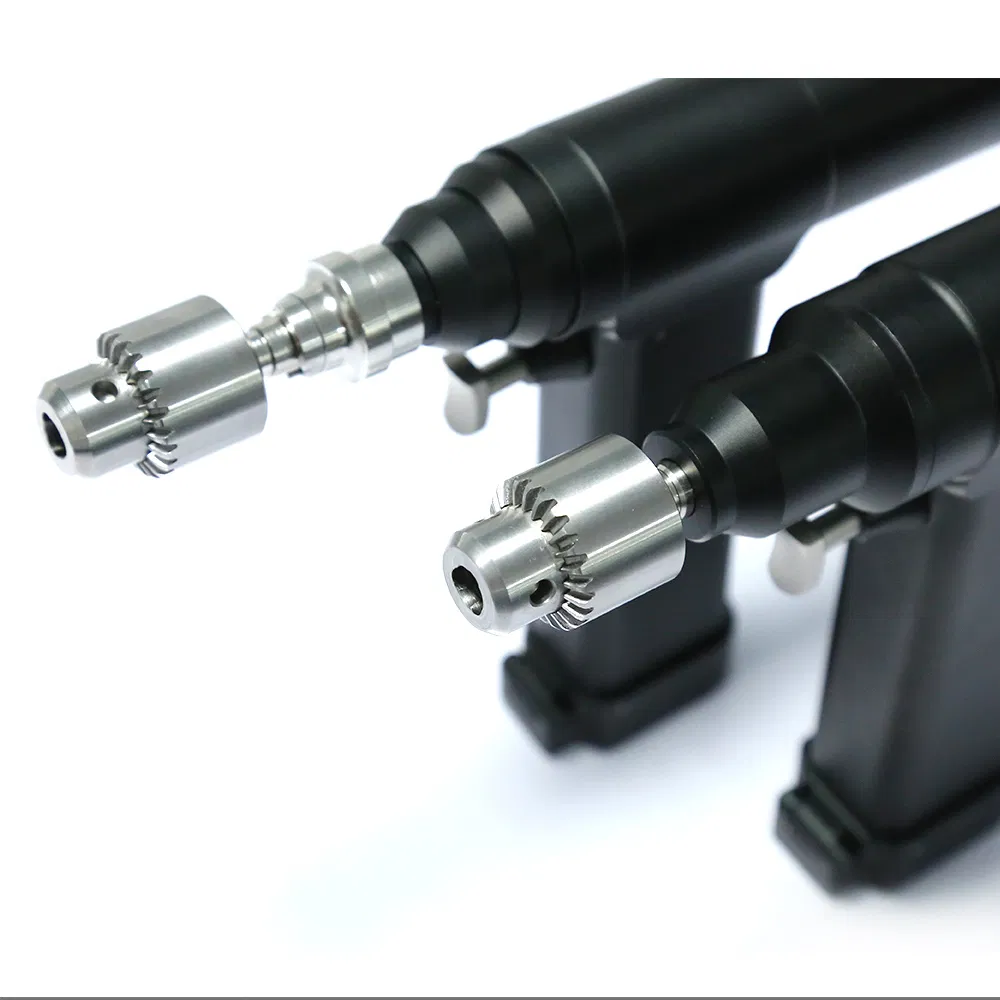

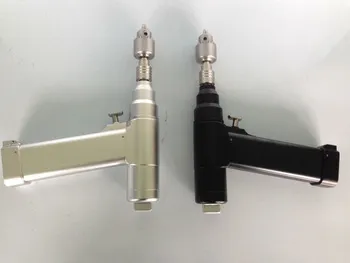

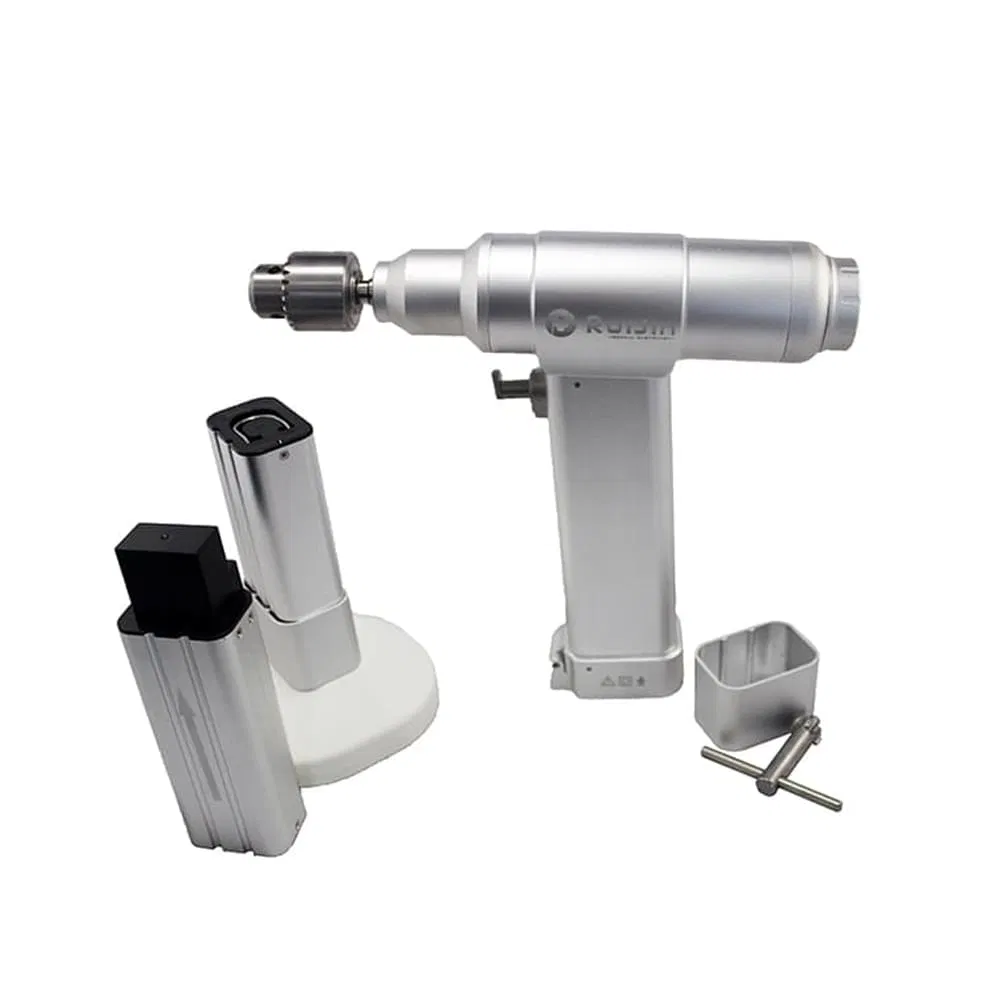

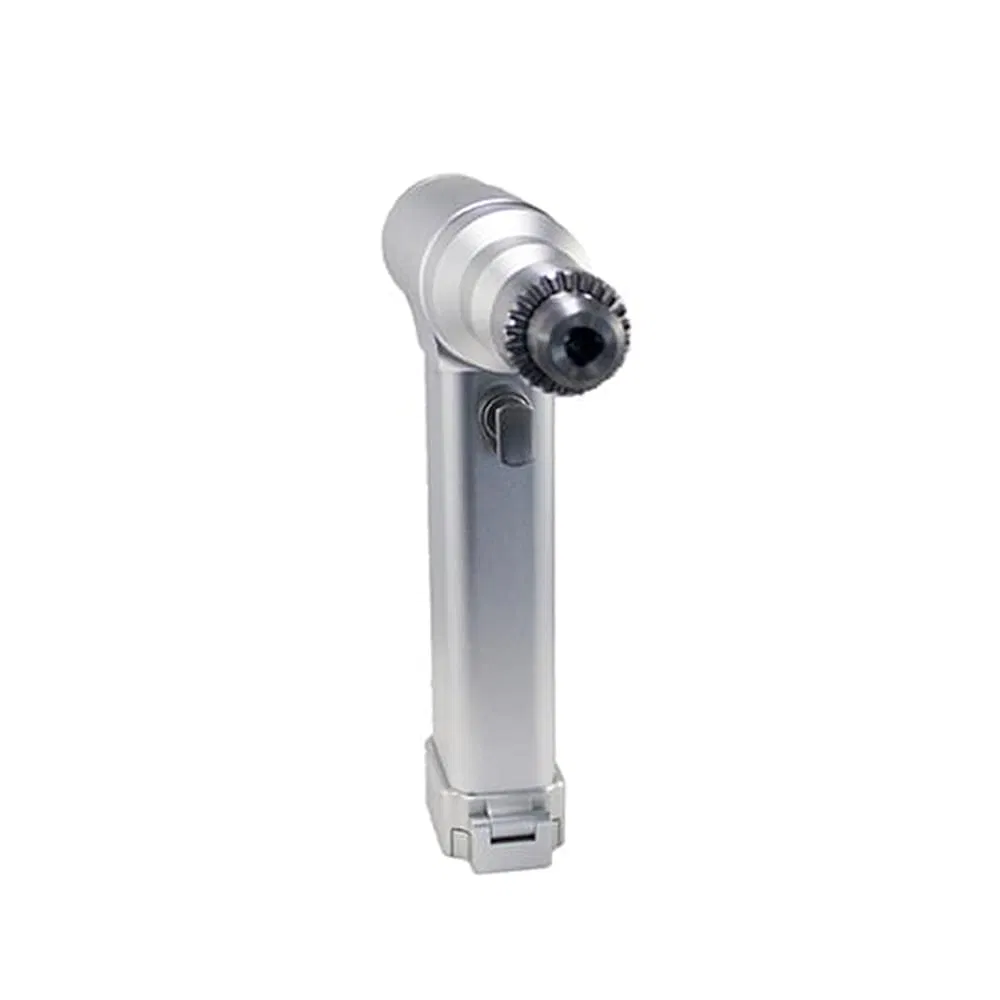

3. Product Display

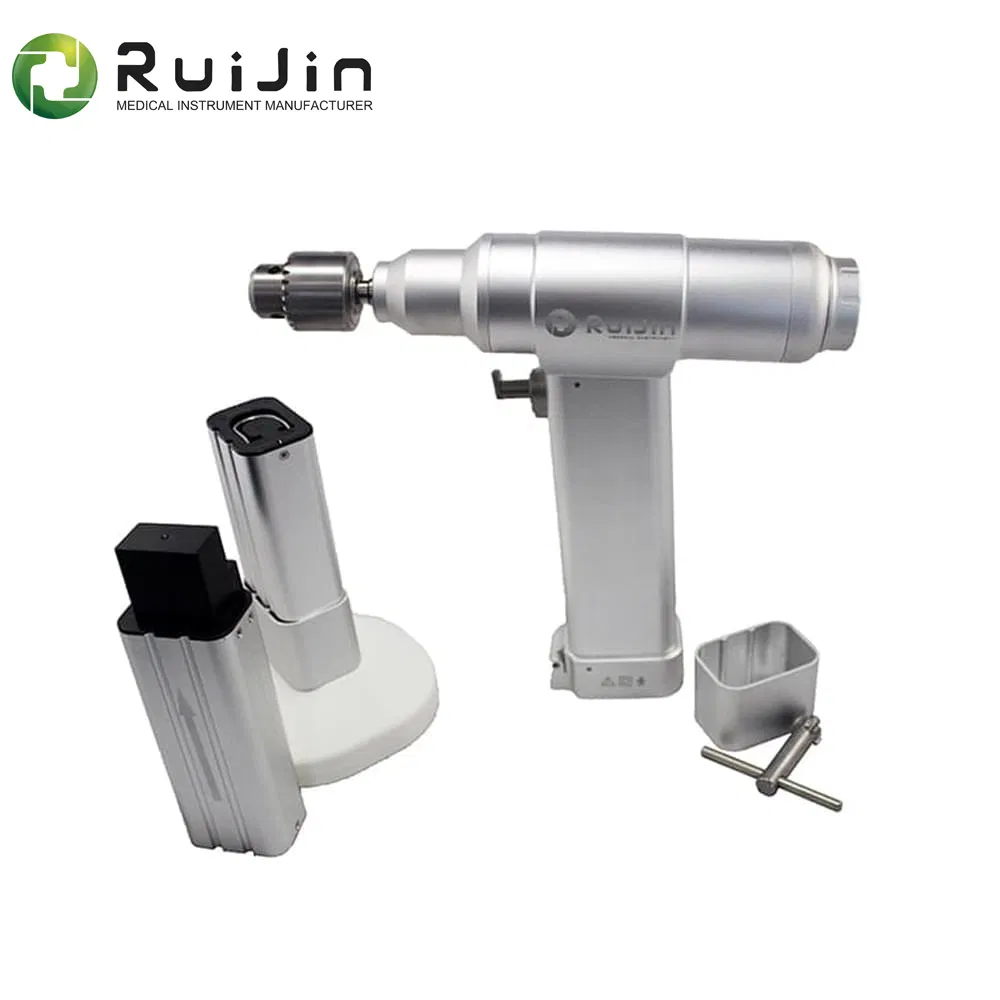

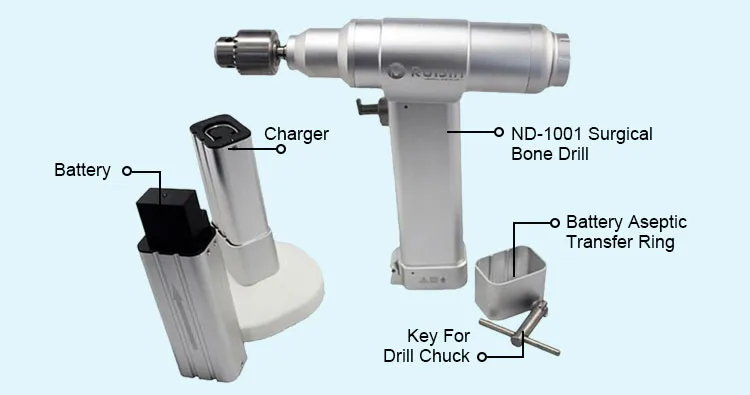

Standard Configuration
-One battery
-One mainframe
-One drill chuck
-One aluminum alloy outer case
-One sterilizing channel
-One battery charger
4. Certificate

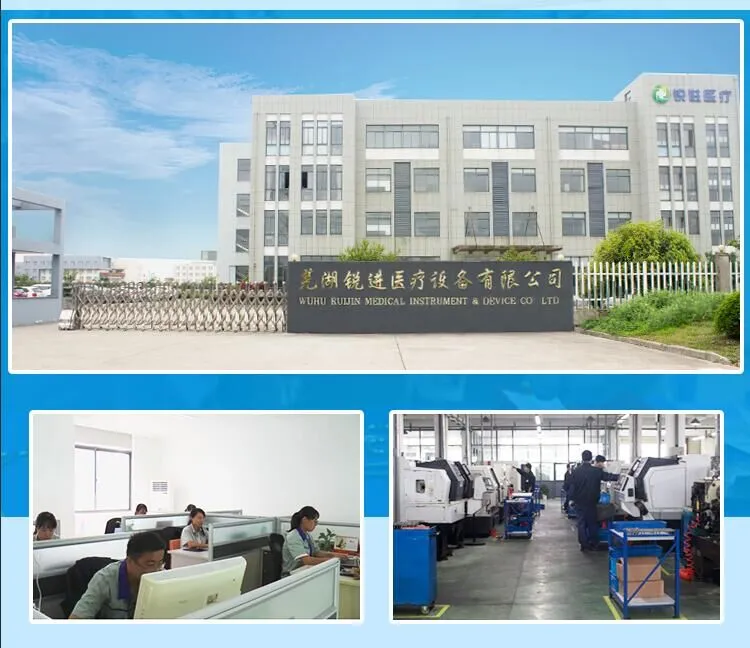

5. About Us
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
CONTACT US:
No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
+(86) 0553-2672512
6. Payment & Delivery& Packing Details
1): Price: FOB USD 450-560 / Set, Shanghai Port
2): MOQ: 1 piece
3): Payment Terms: T/T in advance or western union
4): Delivery Time: Within 3 days after payment
5): Packing details:
--- One set packed in the aluminum alloy box and then put in a carton
--- Size of aluminum alloy box: 38cmx28cmx13cm
--- Size of carton box: 41cmx32cmx15cm

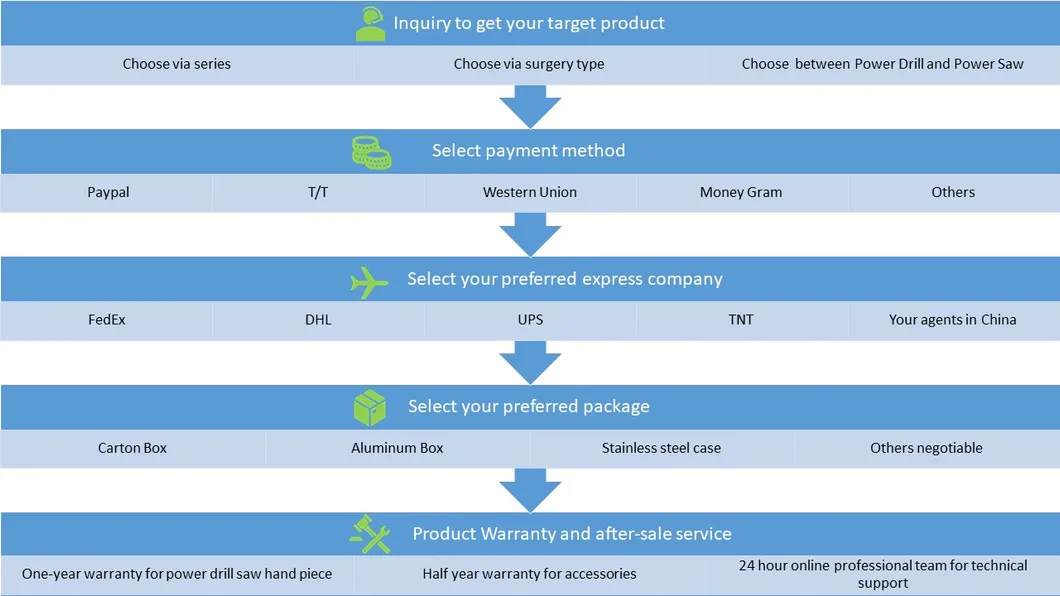

7.Ordering Process
8. Attention & Notes
| 1. The device is forbidden to be demolished by non-professionals. If any problem, please contact with us for after sales service. |
2. Our products are chargeable, it can match for electricity source 110V60Hz-220V/50Hz. |
| 3. The battery needs to be taken out of the machine's mobile phone, otherwise a small automatic discharge will shorten the battery life. |
| 4.The battery cannot be disinfected. The battery space should be dry after sterilization. |
| 5. Saw blade, the drill bit is cleaned with a purifier and kept dry after operation |
| 6. The sterilization temperature is lower than 135 degrees Celsius. If it exceeds 135 degrees Celsius, the motor will be damaged. |
| 7.Professional manufacturer with 24 hours online service , warranty offered, CE marked. |
