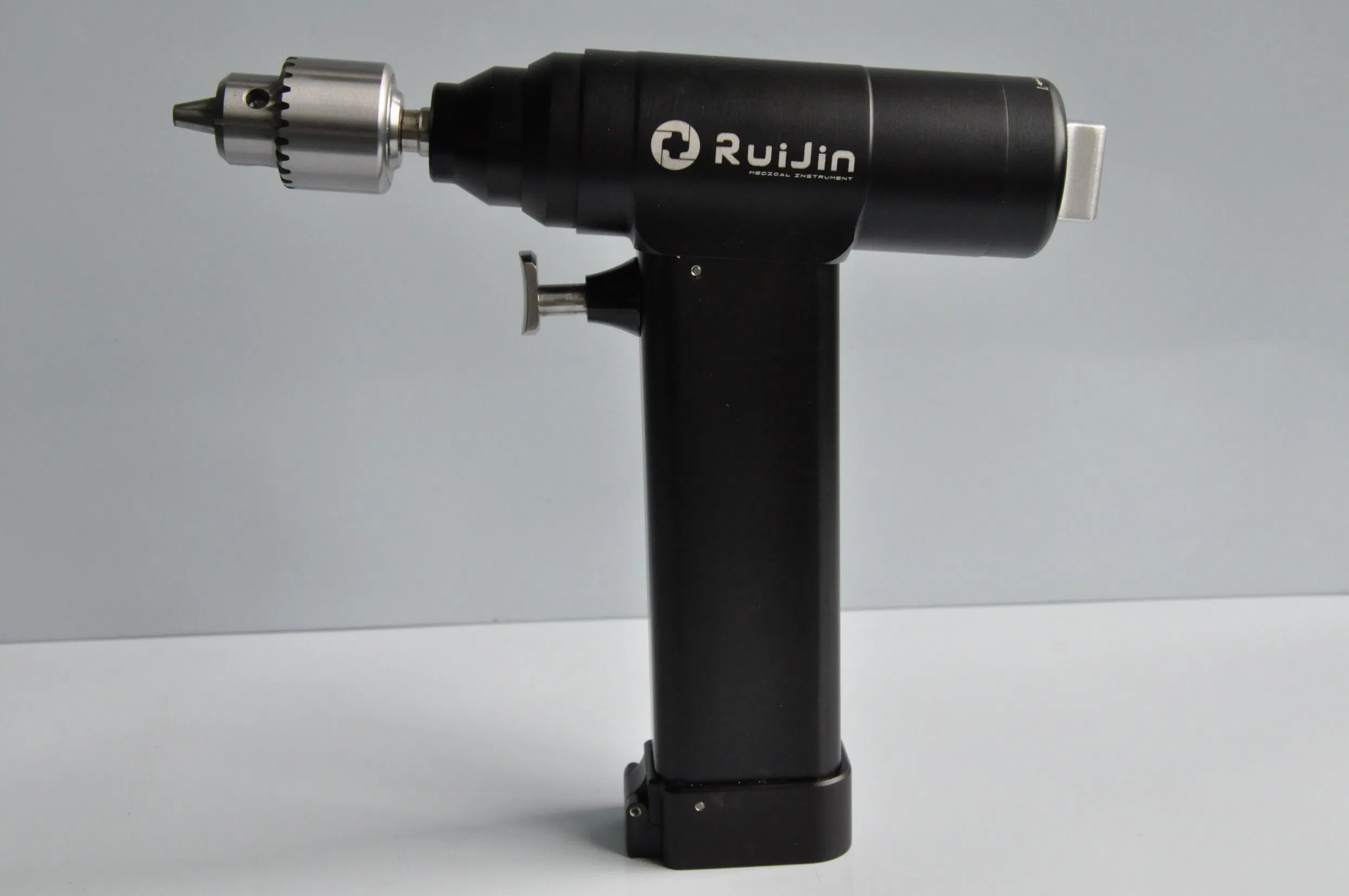

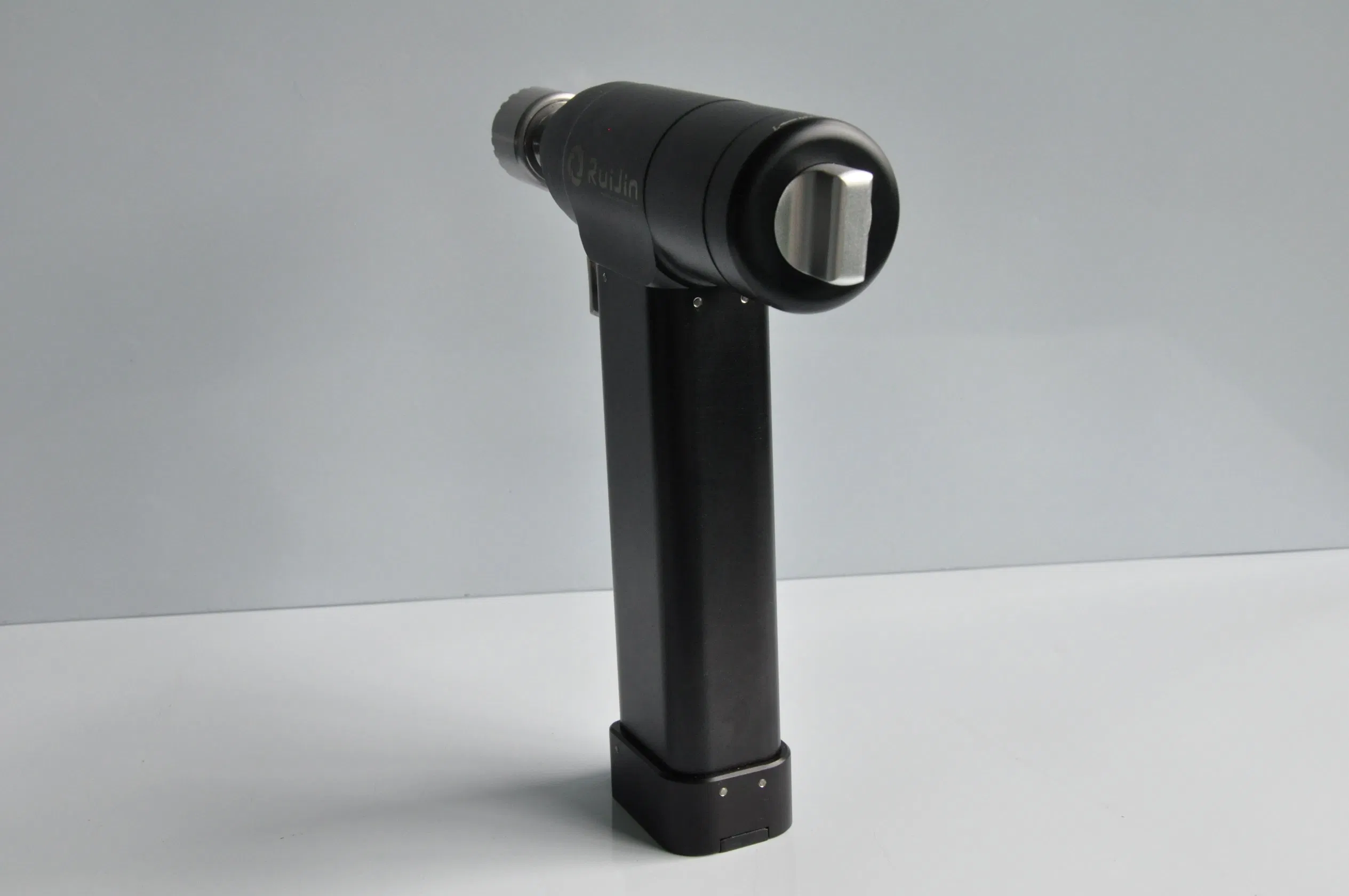

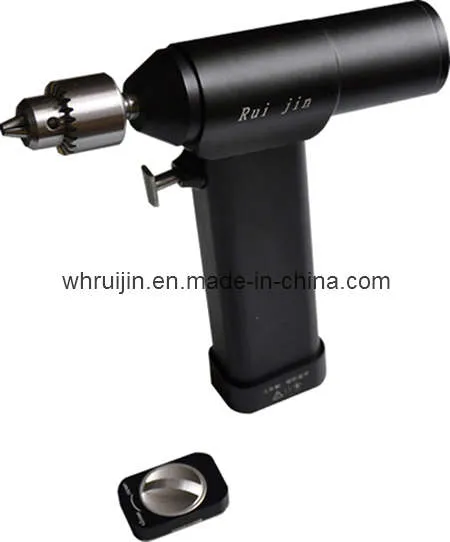

ND -1001 Surgical Implants Orthopedic Bone Drill

ND-1001 Surgical Implants Orthopedic Bone Drill

1) Autoclavable drill
2) Professional drill and saw manufacturer
3) Discretionary speed control
4) Versatile and cost-effective

1, Technical Data:
1) Working Voltage: 13.2V
2) Output Power: More than 20W
3) Unit Rise In Temperature: Less than 25 centi-degree
4) Input Voltage: AC 220V, 50Hz
5) Output Power: 13.2V, 900Ma
6) Input Power: 30VA
7) Voltage: 13.2V
8) Charging Time: About Three Hours
9) Speed : More than 1100r/min
10) Applying scope: 0.6-6mm, 0.6-8mm
11) Noise: Less than 63dB
12) Weight: 1700g
13) Material: Stainless steel
14) Torque: 7500gcm
15) Diameter of run-out: Less than 0.5mm
16) Drill type: Autoclavable type

2, Standard configuration:
1) One mainframe
2) One charger
3) One battery
4) One sterilizing channel
5) One drill chuck
6) One aluminum alloy box

3, Technical Merits
1) More powerful with long single operating time.
2) Resist high temperature and high pressure up to 135 centigrade.
3) Employ the advanced electric machinery with more sufficient power.
4) Improved design for changover switch making more stable performance.

4, Payment term:
1) Port: Shanghai, China
2) MOQ: 1 Set
3) Payment term: T/T IN ADVANCE OR WESTERN UNION
4) Delivery time: 3 days after the payment

5, Packing details:
1) One set packed in the aluminum alloy box and then put in a carton
2) Size of aluminum alloy box: 38cmx28cmx13cm
3) Size of carton box: 41cmx32cmx15cm

6, Remarks:
Our products are chargeable, if your electricity source is 110V-120V/60Hz, Please inform us, we can offer you a transformer.
Please do not hesitate to contact me if you have any question about our medical products.
