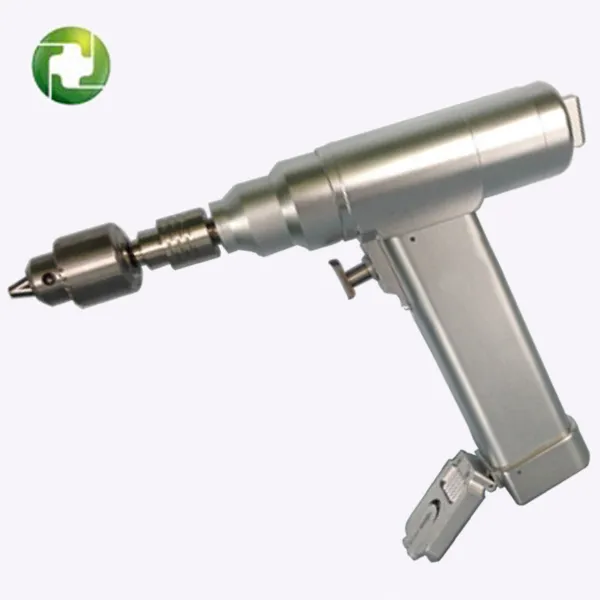

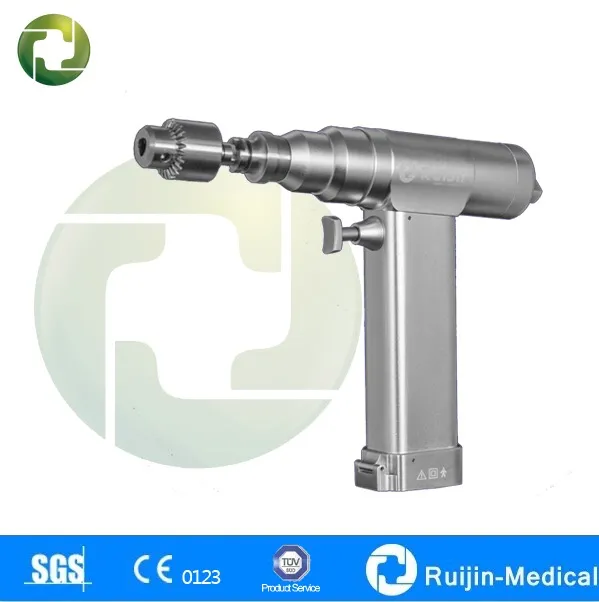

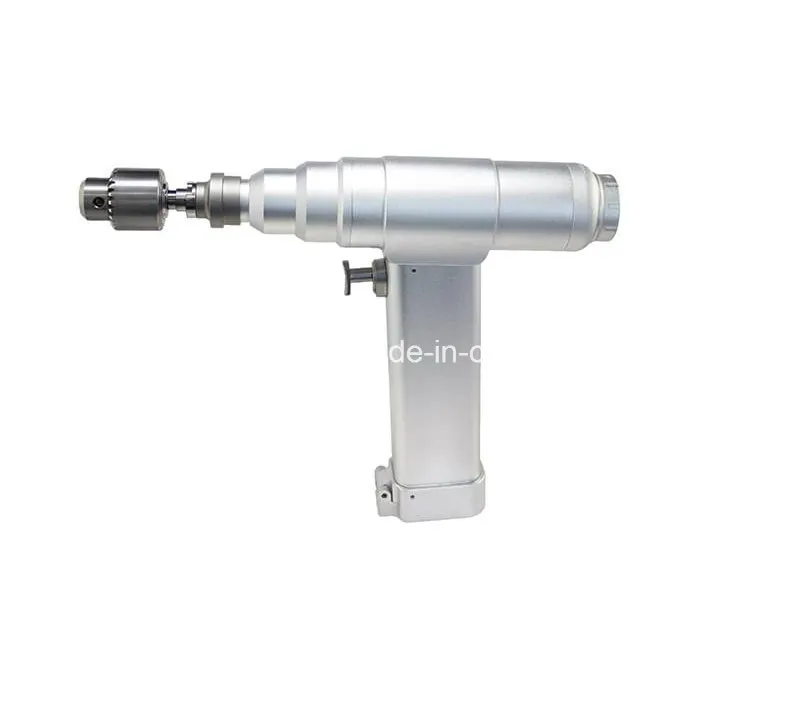

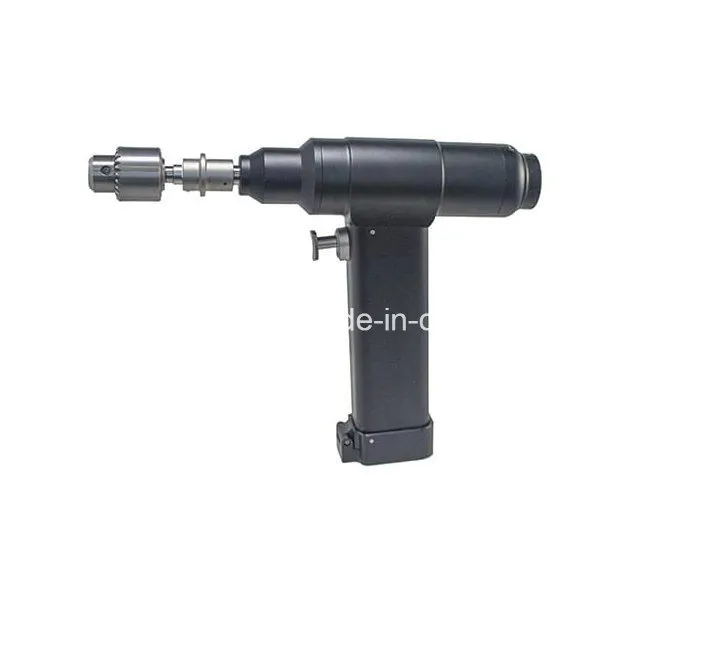

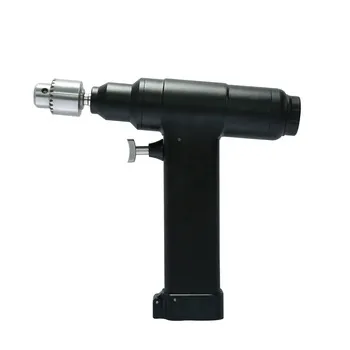

Orthopedic Surgical Bone Drill Surgical Instruments ND -3011
orthopedic Surgical Bone Drill Surgical Instruments ND-3011I: Autoclavable.Ii: Professional drill and saw manufacturer.Iii: Drill chuck scope: 0.6-8mm/0.6-6mm.Iv: Discretionary speed control.1.Technical DataWorking Voltage14.4VOutput Power130WUnit rise in Temperature≤ 25ºCInput Volt......
Send Inquiry
Product Description
orthopedic Surgical Bone Drill Surgical Instruments ND-3011
I: Autoclavable.
Ii: Professional drill and saw manufacturer.
Iii: Drill chuck scope: 0.6-8mm/0.6-6mm.
Iv: Discretionary speed control.
1.Technical Data
2. Product Technical Merits
Standard Configuration
- One handpiece
- One charger
- Two batteries
- One sterilizing channel
- One drill chuck
- One aluminum alloy box
4. Certificate
5. About Us
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
6. Payment & Delivery
1: Price: FOB USD 450-500 / Set, Shanghai Port
2: MOQ: 1 piece
3: Payment Terms: T/T in advance or western union
4: Delivery Time: Within 3 days after payment
5. One set packed in the aluminum alloy box and then put in a carton
- Size of aluminum alloy box: 38cmx28cmx13cm
- Size of carton box: 41cmx32cmx15cm
7.Ordering Process
8. Attention & Notes
9: CONTACT US:
Wbsite: whruijin.en.made-in-china.com
Address:No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
I: Autoclavable.
Ii: Professional drill and saw manufacturer.
Iii: Drill chuck scope: 0.6-8mm/0.6-6mm.
Iv: Discretionary speed control.
1.Technical Data
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Output Voltage | 14.4V, 900mA |
| Charger Input Power | 30VA |
| Charging time | 3 hours |
| Speed | 300r/min |
| Non-loaded noise | 63dB(A) |
| Radial run-out | 0.5mm |
| Torque | 33000gcm |
2. Product Technical Merits
- For joint operation.
- Low speed, great torque, can be connected by any kinds of the acetabulum burnishing tools and medullary cavity expanding tools.
- Main unit can be sterilized by high temperature and high pressure up to 135 ºC.
- Excellent quality, portable, low noise, variable speed control, carbonless motor available for increased power, allows for easy selection of power during operation.
- Scientific balance technics, reduces vibration and enhances handpiece control, afford surgeon a comfortable operation.
- High concentricity ensures the precision of polishing acetabulum in HIP operation.
- Large torsional moment to give more powerful polishing.
- Low speed, high torque.

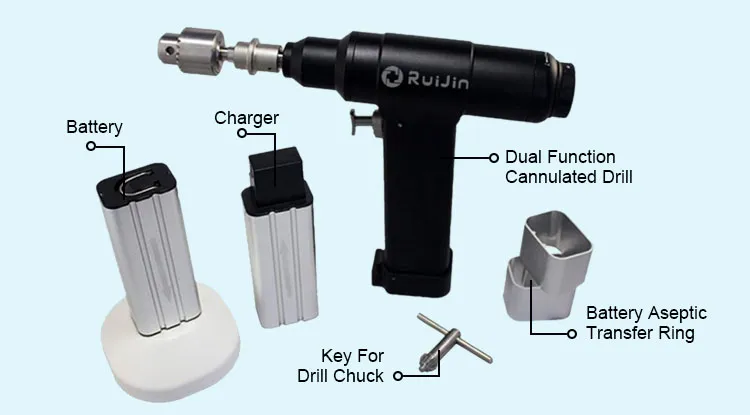

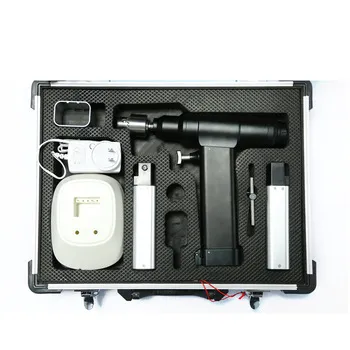

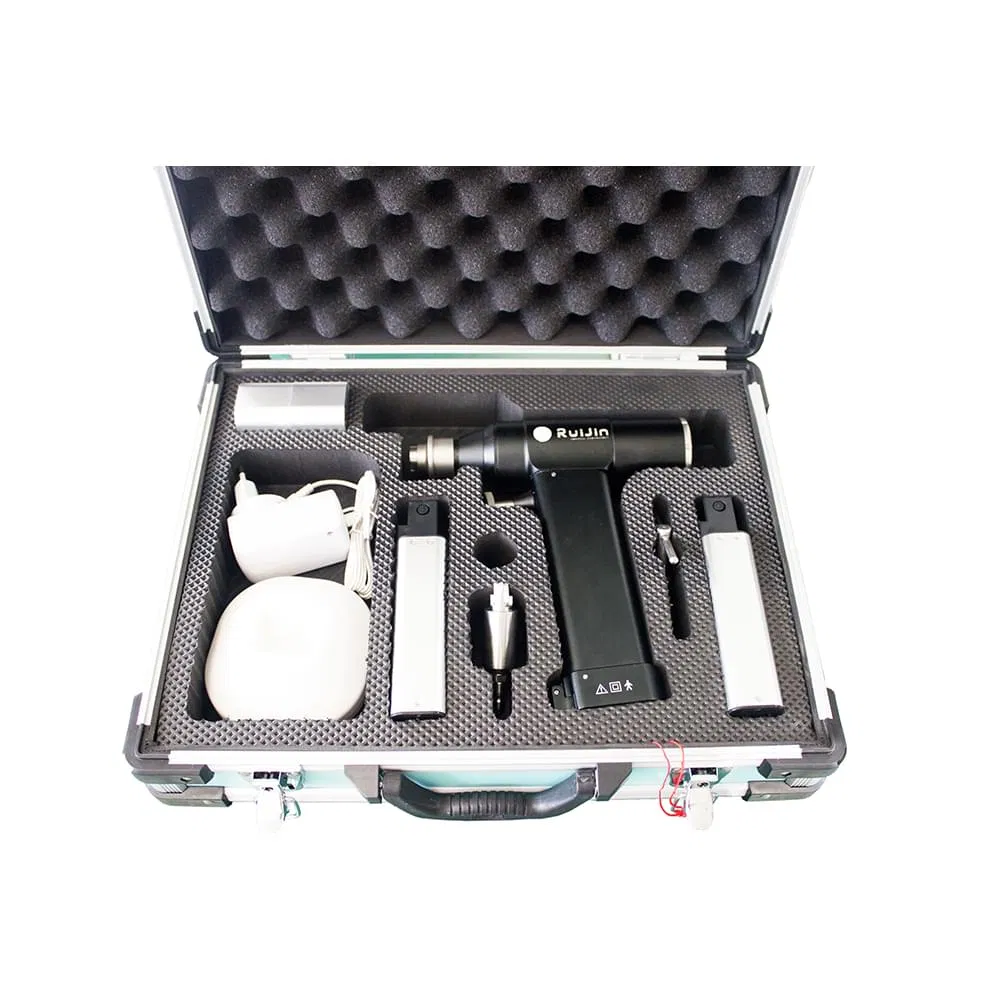

Standard Configuration
- One handpiece
- One charger
- Two batteries
- One sterilizing channel
- One drill chuck
- One aluminum alloy box
4. Certificate
5. About Us

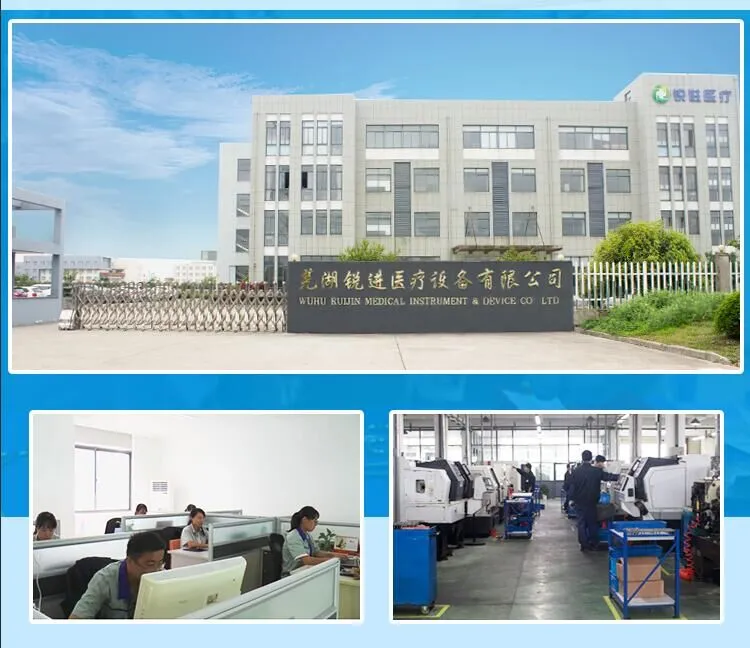

Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
6. Payment & Delivery
1: Price: FOB USD 450-500 / Set, Shanghai Port
2: MOQ: 1 piece
3: Payment Terms: T/T in advance or western union
4: Delivery Time: Within 3 days after payment
5. One set packed in the aluminum alloy box and then put in a carton
- Size of aluminum alloy box: 38cmx28cmx13cm
- Size of carton box: 41cmx32cmx15cm

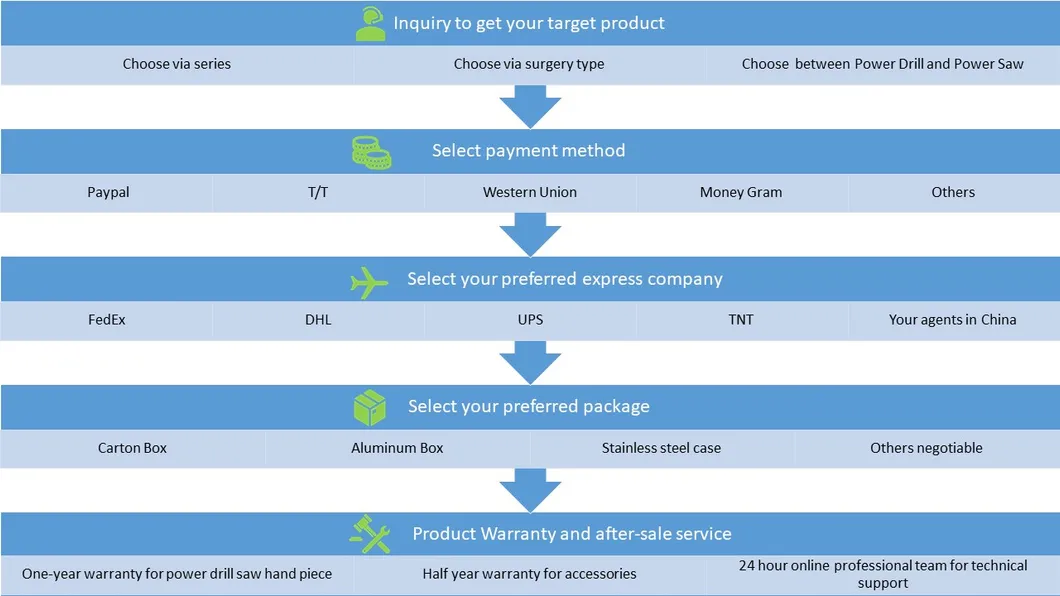

7.Ordering Process
8. Attention & Notes
| 1. The device is forbidden to be demolished by non-professionals. If any problem, please contact with us for after sales service. |
2. Our products are chargeable, it can match for electricity source 110V60Hz-220V/50Hz. |
| 3. The battery needs to be taken out of the machine's mobile phone, otherwise a small automatic discharge will shorten the battery life. |
| 4.The battery cannot be disinfected. The battery space should be dry after sterilization. |
| 5. Saw blade, the drill bit is cleaned with a purifier and kept dry after operation |
| 6. The sterilization temperature is lower than 135 degrees Celsius. If it exceeds 135 degrees Celsius, the motor will be damaged. |
| 7.Professional manufacturer with 24 hours online service , warranty offered, CE marked. |
9: CONTACT US:
Wbsite: whruijin.en.made-in-china.com
Address:No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
