Home > Products > Surgical Instrument > Ruijin Orthopedic Surgical Cranial Drill for Neurosurgery ( ND -4011)
Ruijin Orthopedic Surgical Cranial Drill for Neurosurgery ( ND -4011)
Ruijin Orthopedic Surgical Cranial Drill for Neurosurgery ( ND-4011)1.our advantage:1. There is no MOQ.2. Timely delivery.3. Provide a comprehensive after-sales service system.4. 24 hours online professional team, at any time provide professional answers.5. There are a number of patented technologie......
Send Inquiry
Product Description
Ruijin Orthopedic Surgical Cranial Drill for Neurosurgery ( ND-4011)
1.our advantage:
1. There is no MOQ.
2. Timely delivery.
3. Provide a comprehensive after-sales service system.
4. 24 hours online professional team, at any time provide professional answers.
5. There are a number of patented technologies, and the quality is guaranteed.
6. Two years free power drill saw handpiece technical support and six months free accessory support.
2.Technical Data
3. Product Technical Merits
4. Product Display
Standard Configuration
1) One Hand piece
2) One Battery
3) One Charger
4) One cranial drill bit attachment (the size can be chosen)
5) One aseptic transfer kit
6) One aluminum box
5. Certificate
6. About Us
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
7. Payment & Delivery
1: Price: FOB USD 450-500 / Set, Shanghai Port
2: MOQ: 1 piece
3: Payment Terms: T/T in advance or western union
4: Delivery Time: Within 3 days after payment
5. One set packed in the aluminum alloy box and then put in a carton
- Size of aluminum alloy box: 38cmx28cmx13cm
- Size of carton box: 41cmx32cmx15cm
8.Ordering Process
9. Attention & Notes
10.CONTACT US:
Wbsite: whruijin.en.made-in-china.com
Address:No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
1.our advantage:
1. There is no MOQ.
2. Timely delivery.
3. Provide a comprehensive after-sales service system.
4. 24 hours online professional team, at any time provide professional answers.
5. There are a number of patented technologies, and the quality is guaranteed.
6. Two years free power drill saw handpiece technical support and six months free accessory support.
2.Technical Data
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Output Voltage | 14.4V, 700mA |
| Charger Input Power | 30VA |
| Charging time | 3 hours |
| Speed | 500-900 r/min |
| Non-loaded noise | ≤73dB(A) |
| Torque | 7500 gcm |
3. Product Technical Merits
- Mainly applied to neurosurgery
- Automatic-stopping function assure the security of operation
- Main unit can be sterilized by high temperature and high pressure up to 135 ºC
- Packaged assembly and modified structure are easier to use
- Portable, low noise, variable speed control, carbonless motor available for increased power, allows for easy selection of power during operation
- Ni-MH battery without memory environment friendly

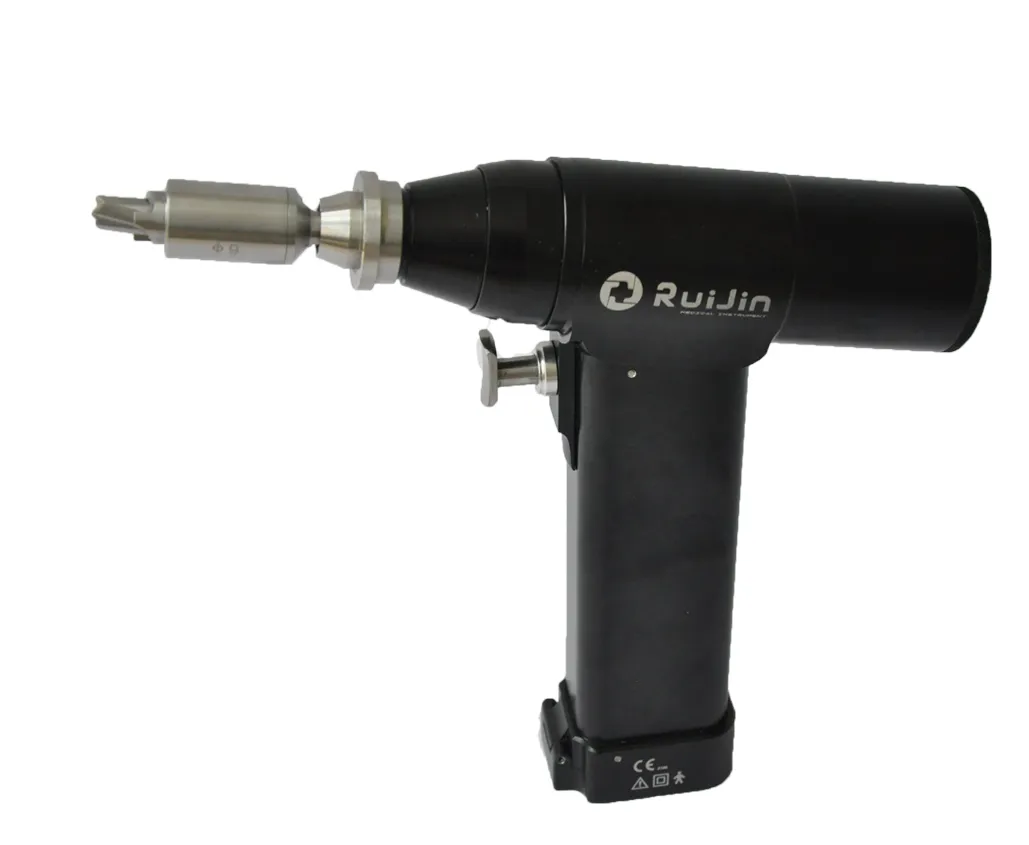

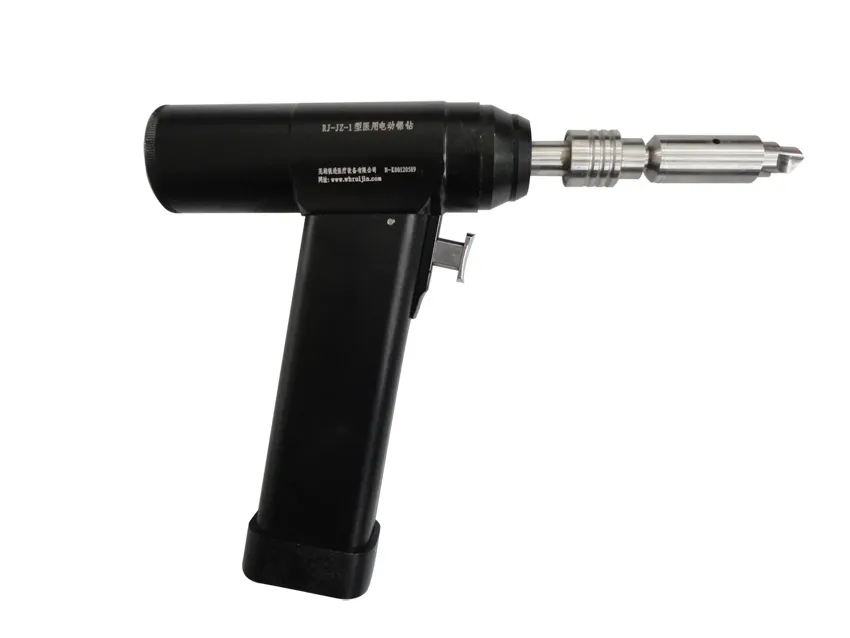

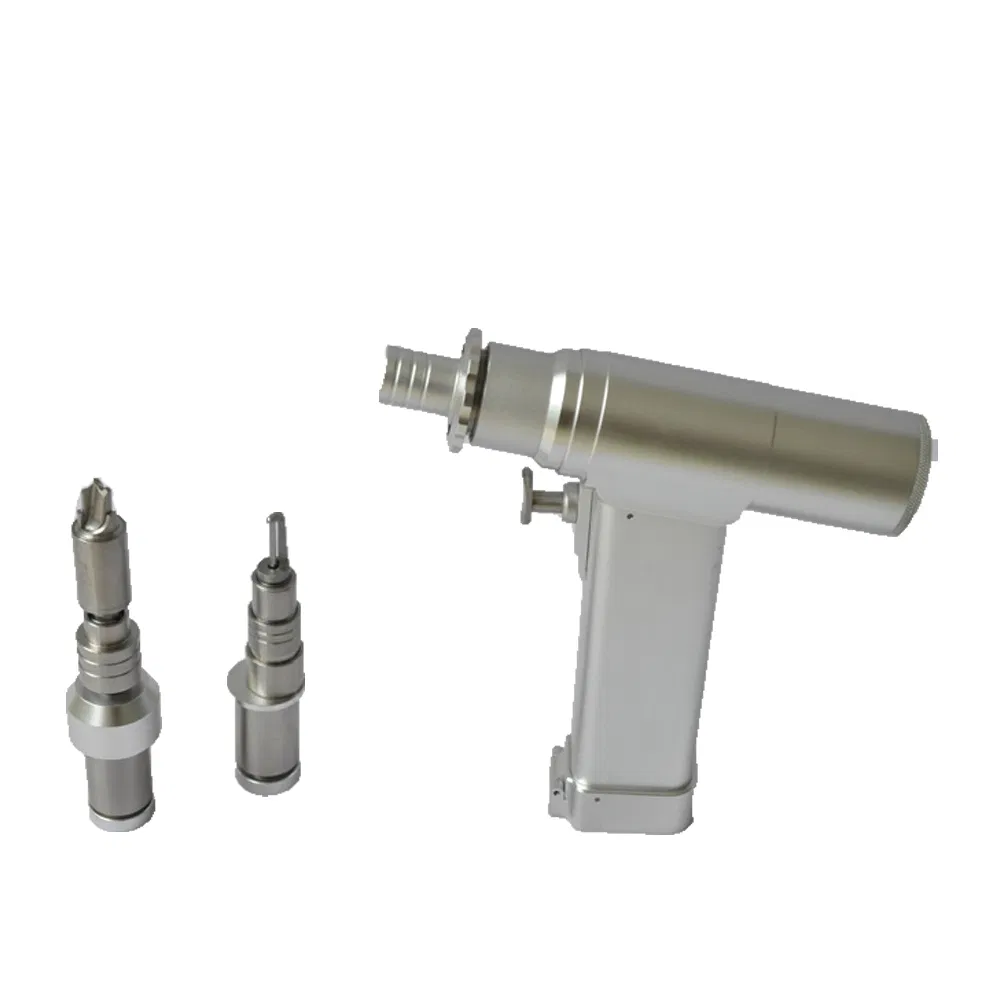

4. Product Display

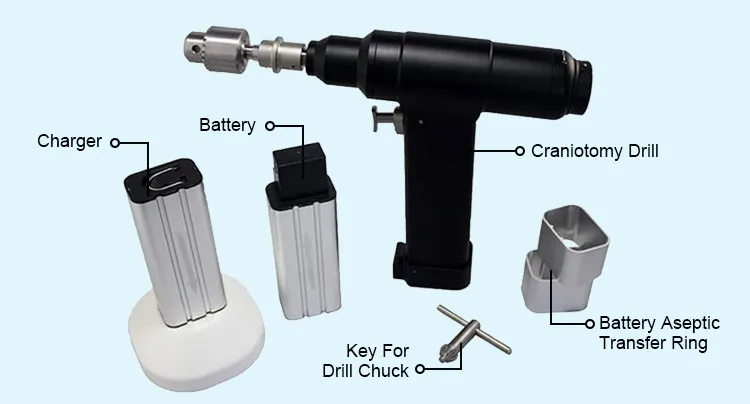

Standard Configuration
1) One Hand piece
2) One Battery
3) One Charger
4) One cranial drill bit attachment (the size can be chosen)
5) One aseptic transfer kit

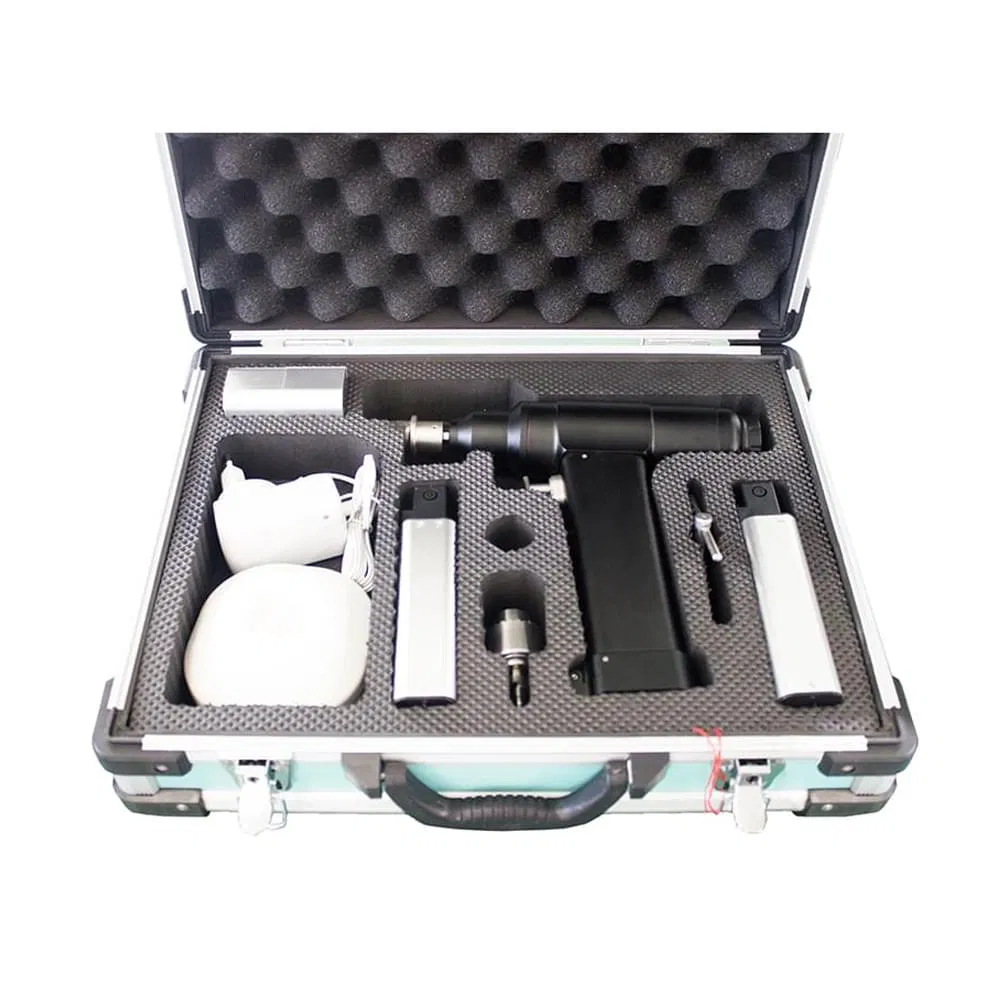

6) One aluminum box
5. Certificate

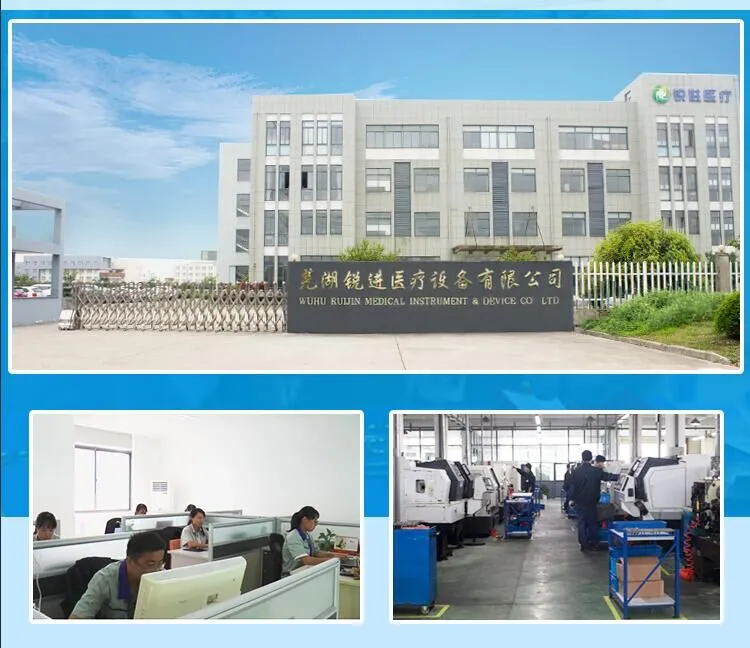

6. About Us
Wuhu Ruijin Medical Instrument & Device Co., Ltd.
Wuhu Ruijin Medical Instrument & Device Co., Ltd., established in 2007 and locates in Wuhu City, Anhui Province, China. We are a medical device manufacturer integrated with R&D, production and sales, focusing on medical drill series and micro medical electric drill series. Our main products include medical bone drill, multi-functional cannulated drill, oscillating saw, reciprocating saw, and medical electric plaster saw, which can be used in many surgeries such as Trauma Surgery, Thoracic Surgery, Joint Operation and Veterinary Orthopedic Surgery, etc.
Visiting our website: whruijin.en.made-in-china.com
7. Payment & Delivery
1: Price: FOB USD 450-500 / Set, Shanghai Port
2: MOQ: 1 piece
3: Payment Terms: T/T in advance or western union
4: Delivery Time: Within 3 days after payment
5. One set packed in the aluminum alloy box and then put in a carton
- Size of aluminum alloy box: 38cmx28cmx13cm
- Size of carton box: 41cmx32cmx15cm

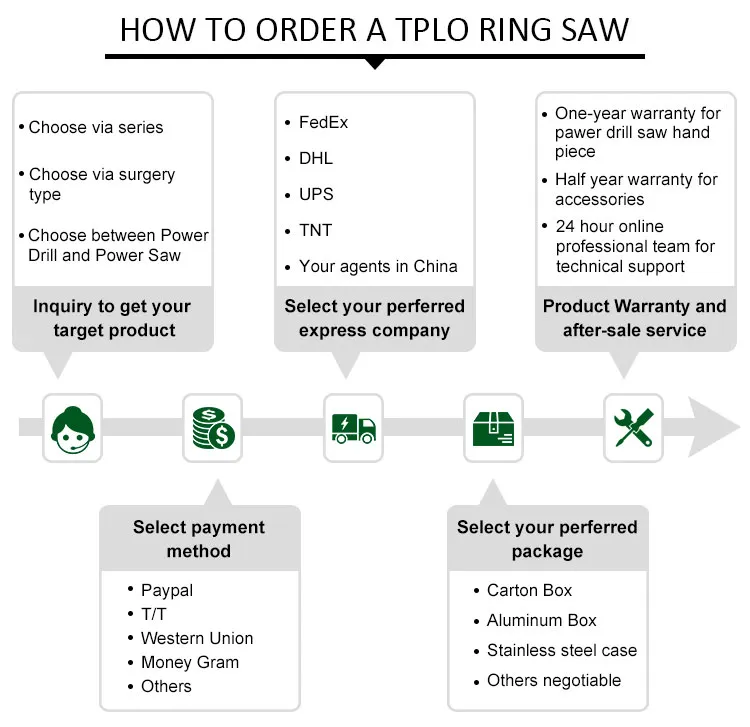

8.Ordering Process
9. Attention & Notes
| 1. The device is forbidden to be demolished by non-professionals. If any problem, please contact with us for after sales service. |
2. Our products are chargeable, it can match for electricity source 110V60Hz-220V/50Hz. |
| 3. The battery needs to be taken out of the machine's mobile phone, otherwise a small automatic discharge will shorten the battery life. |
| 4.The battery cannot be disinfected. The battery space should be dry after sterilization. |
| 5. Saw blade, the drill bit is cleaned with a purifier and kept dry after operation |
| 6. The sterilization temperature is lower than 135 degrees Celsius. If it exceeds 135 degrees Celsius, the motor will be damaged. |
| 7.Professional manufacturer with 24 hours online service, warranty offered, CE marked. |
10.CONTACT US:
Wbsite: whruijin.en.made-in-china.com
Address:No. 33 Wanchun Road, Wuhu, Auhui,China. 241000
