Single Use Foreign Body Snares for Polypectomy Retrieval in Endoscopy
Single Use Foreign Body Snares for Polypectomy Retrieval in EndoscopyIntended UseRemoval of polyps or other excess tissues in the digestive tract used with diathermic energy.( Disposable Polypectomy Snares - SD )Features*Made by high-strength medical braided wire, offering a precise&quick cuttin......
Send Inquiry
Product Description

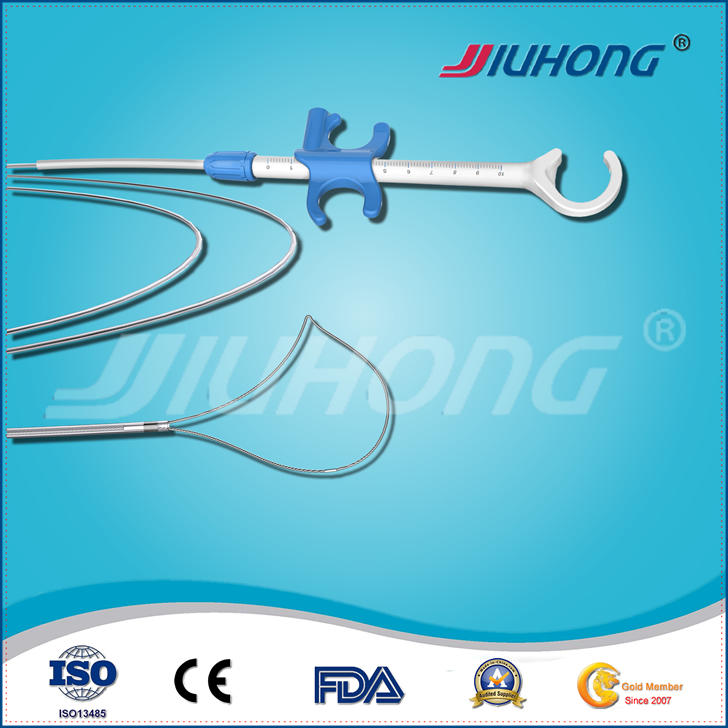

Single Use Foreign Body Snares for Polypectomy Retrieval in Endoscopy
Intended Use
Removal of polyps or other excess tissues in the digestive tract used with diathermic energy.

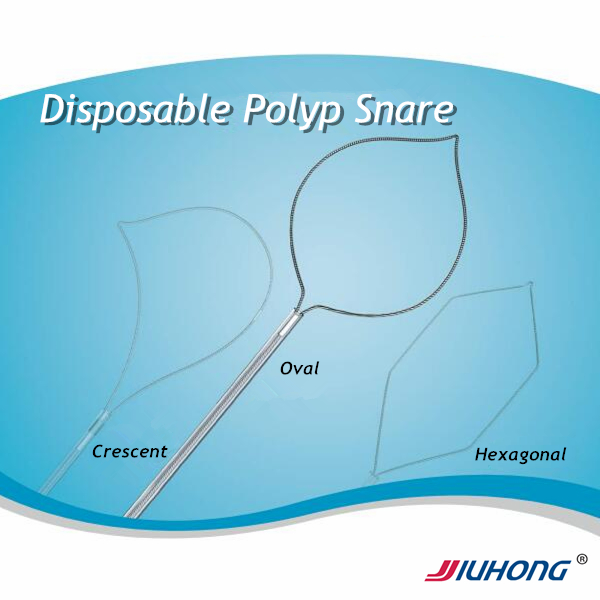

( Disposable Polypectomy Snares - SD )
Features
*Made by high-strength medical braided wire, offering a precise&quick cutting properties, as well as an outstanding electric coagulation.
*Loop rotates synchronously by rotating the 3-ring handle, highly increase efficiency.
*Standard power connection, compatible with all main high-frequency devices on the market.
*Ergonomic design of 3-ring handle, easier to hold and use.
Material Table
Specifications

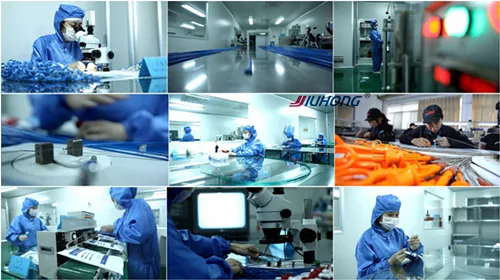

Workshop

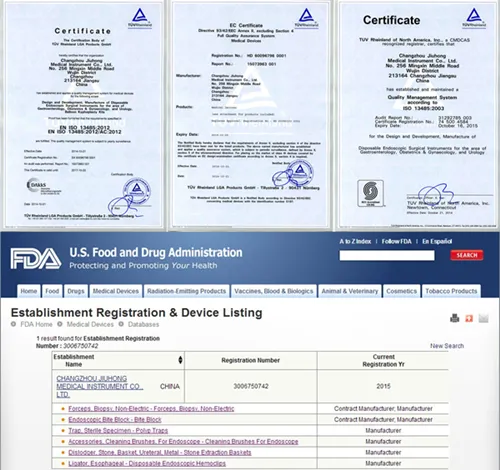

Certifications
Exhibition
Contact Infos
JIUHONG Medical - Jeremy Yang
Phone: +86 186 0258 2990
ENDOSCOPIC ACCESSORIES SINCE 2003
jiuhongmed.en.made-in-china.com

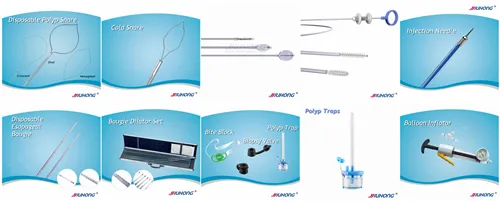

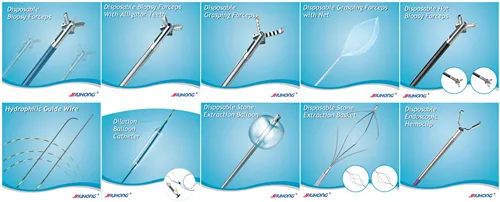

Others you may also interested
Endeavor for the Development of Chinese Endoscopy Enterprise.
Intended Use
Removal of polyps or other excess tissues in the digestive tract used with diathermic energy.
( Disposable Polypectomy Snares - SD )
Features
*Made by high-strength medical braided wire, offering a precise&quick cutting properties, as well as an outstanding electric coagulation.
*Loop rotates synchronously by rotating the 3-ring handle, highly increase efficiency.
*Standard power connection, compatible with all main high-frequency devices on the market.
*Ergonomic design of 3-ring handle, easier to hold and use.
Material Table
| Component | Material | Standard |
| Loop | X5CrNi18-10, X5CrNiMo17-12-2 | EN10088-1-2005 |
| Tube Sheath | PTFE | ISO13000-2005 |
| Protective Sleeve | PU | ISO16365-2013 |
| Handle | ABS | ISO2580-1-2002 |
| Electrode Plug | Cu | EN 13601-2013 |
| Pulling Wire | X5CrNi18-10, NiTi, PE | EN 10088-1-2005 ASTM F 2063-2005 ASTM D 7436-2012 |
Specifications

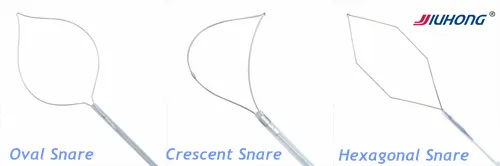

| Model | Tube O.D. (mm) | Working Length (mm) | Snare Shape | Snare Width (mm) |
| JHY-SD-18-160-20-A1 | 1.8 | 1600 | Oval shape | 20 |
| JHY-SD-23-160-10-A1 | 2.3 | 1600 | Oval shape | 10 |
| JHY-SD-23-160-20-A1 | 2.3 | 1600 | Oval shape | 20 |
| JHY-SD-23-230-30-A1 | 2.3 | 2300 | Oval shape | 30 |
| JHY-SD-23-230-35-A1 | 2.3 | 2300 | Oval shape | 35 |
| JHY-SD-18-160-20-B1 | 1.8 | 1600 | Crescent shape | 20 |
| JHY-SD-23-160-10-B1 | 2.3 | 1600 | Crescent shape | 10 |
| JHY-SD-23-160-20-B1 | 2.3 | 1600 | Crescent shape | 20 |
| JHY-SD-23-230-30-B1 | 2.3 | 2300 | Crescent shape | 30 |
| JHY-SD-23-230-35-B1 | 2.3 | 2300 | Crescent shape | 35 |
| JHY-SD-18-160-20-C1 | 1.8 | 1600 | Hexagonal Snare | 20 |
| JHY-SD-23-160-10-C1 | 2.3 | 1600 | Hexagonal Snare | 10 |
| JHY-SD-23-160-20-C1 | 2.3 | 1600 | Hexagonal Snare | 20 |
| JHY-SD-23-230-30-C1 | 2.3 | 2300 | Hexagonal Snare | 30 |
| JHY-SD-23-230-35-C1 | 2.3 | 2300 | Hexagonal Snare | 35 |
